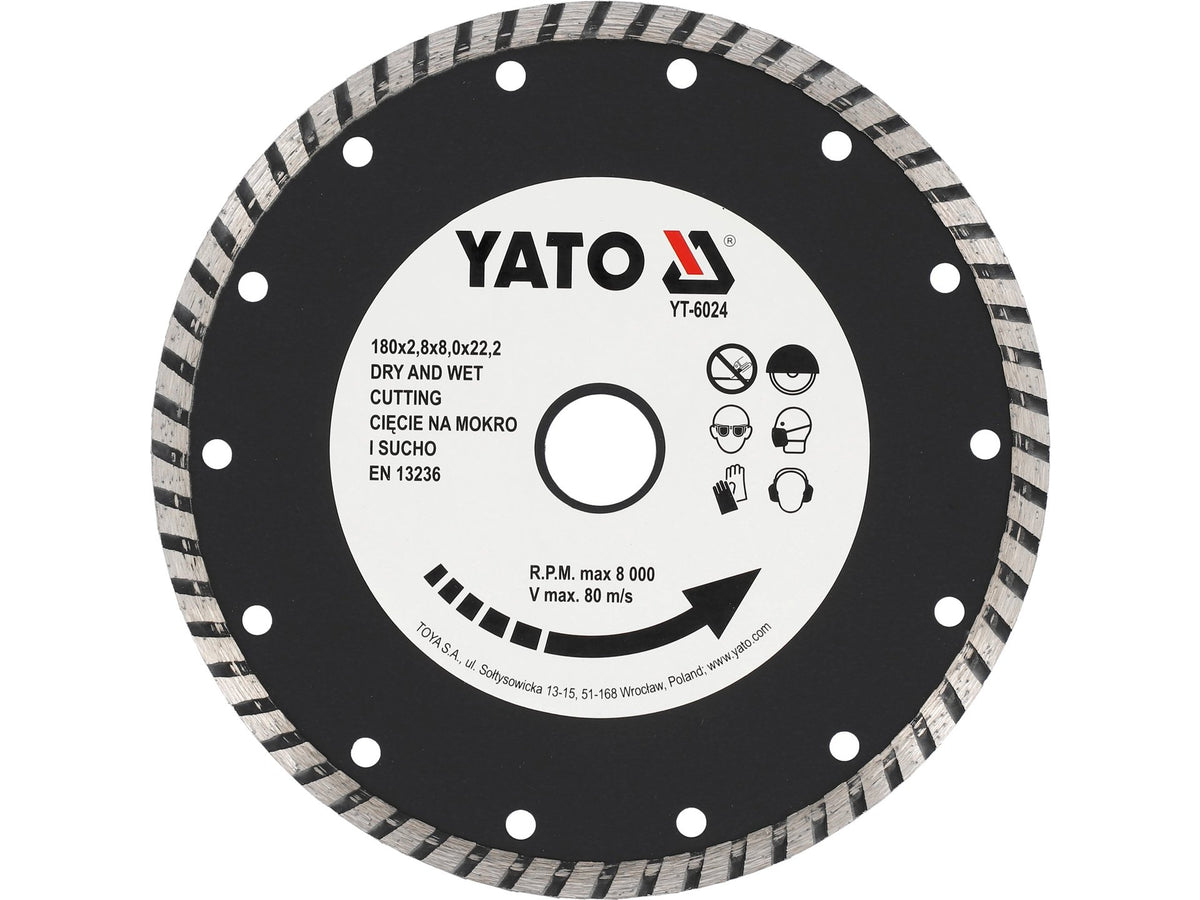

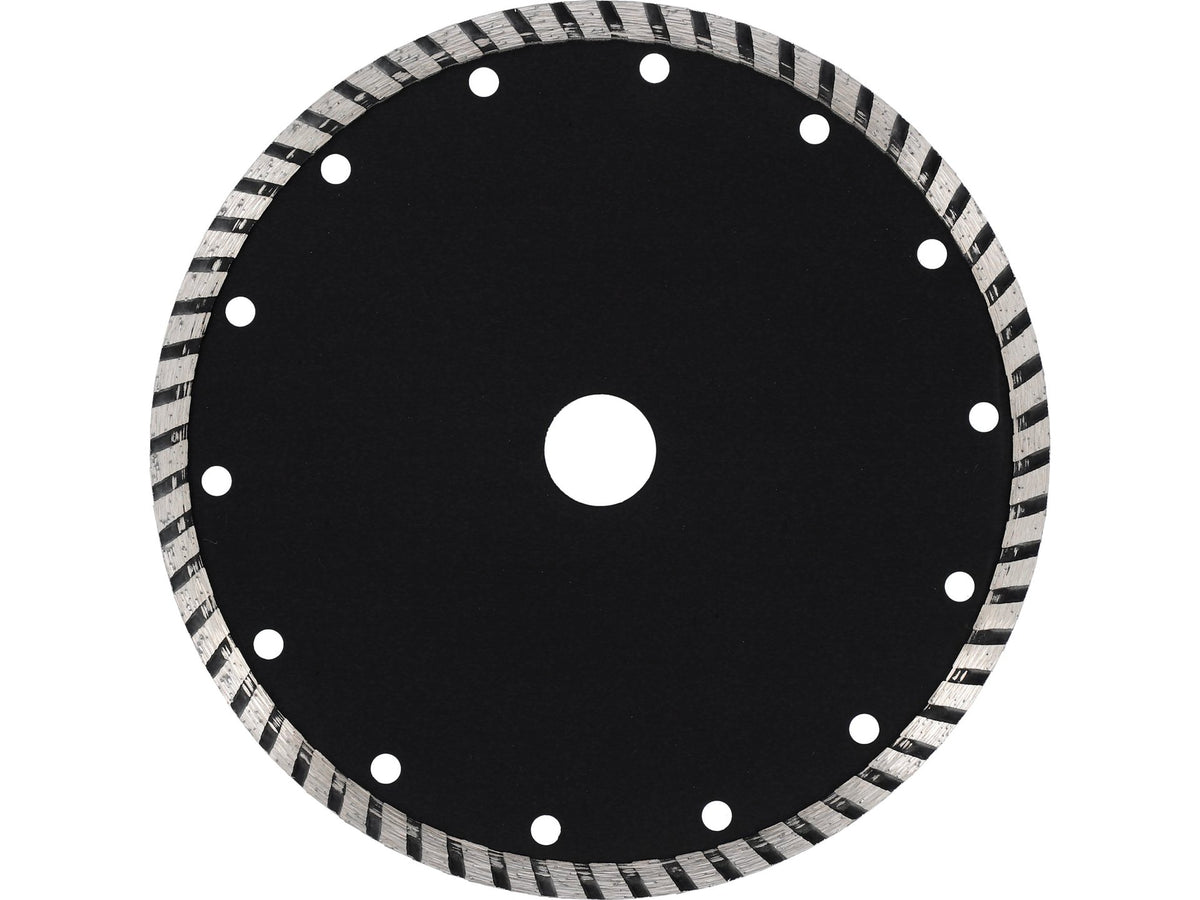

The YATO turbo diamond blade is a 180 mm cutting disc for compatible angle grinders. It is intended for professional users cutting hardened concrete, reinforced concrete, brick, granite, masonry, stone, and sandstone in wet or dry conditions.
| Parameter | Value |
| Brand | YATO |
| SKU | 100751-0001 |
| Product Type | Turbo diamond blade |
| Diameter | 180 mm |
| Mounting Hole Diameter | 22.2 mm |
| Cutting Segment Thickness | 2.8 mm |
| Cutting Segment Height | 8 mm |
| Disc Material | 65Mn steel |
| Cutting Segment Chemical Composition | Fe 25%, Cu 53%, Sn 7%, Ni 7%, Co 8%, diamond coating 13% |
| Work Type | Dry, wet |
| Application | Hardened concrete, reinforced concrete, brick, granite, masonry, stone, sandstone |
| Maximum Rotations | 8000 min⁻¹ |
| Recommended Rotations | Approx. 8000 rpm |
| Maximum Disc Linear Velocity | 80 m/s |
| Weight | 0.42 kg |
| Dimensions | 26 × 21.5 × 0.5 cm |
| Volume | 0.47 |
| Unit Of Measure | PCS |
