Home » MITRE SAW 255MM WOOD/METAL 1800W 2SPEED
YATO

MITRE SAW 255MM WOOD/METAL 1800W 2SPEED

SKU: 100519-0001
(0)
€256,02 inc. VAT
Coming soon
On order

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

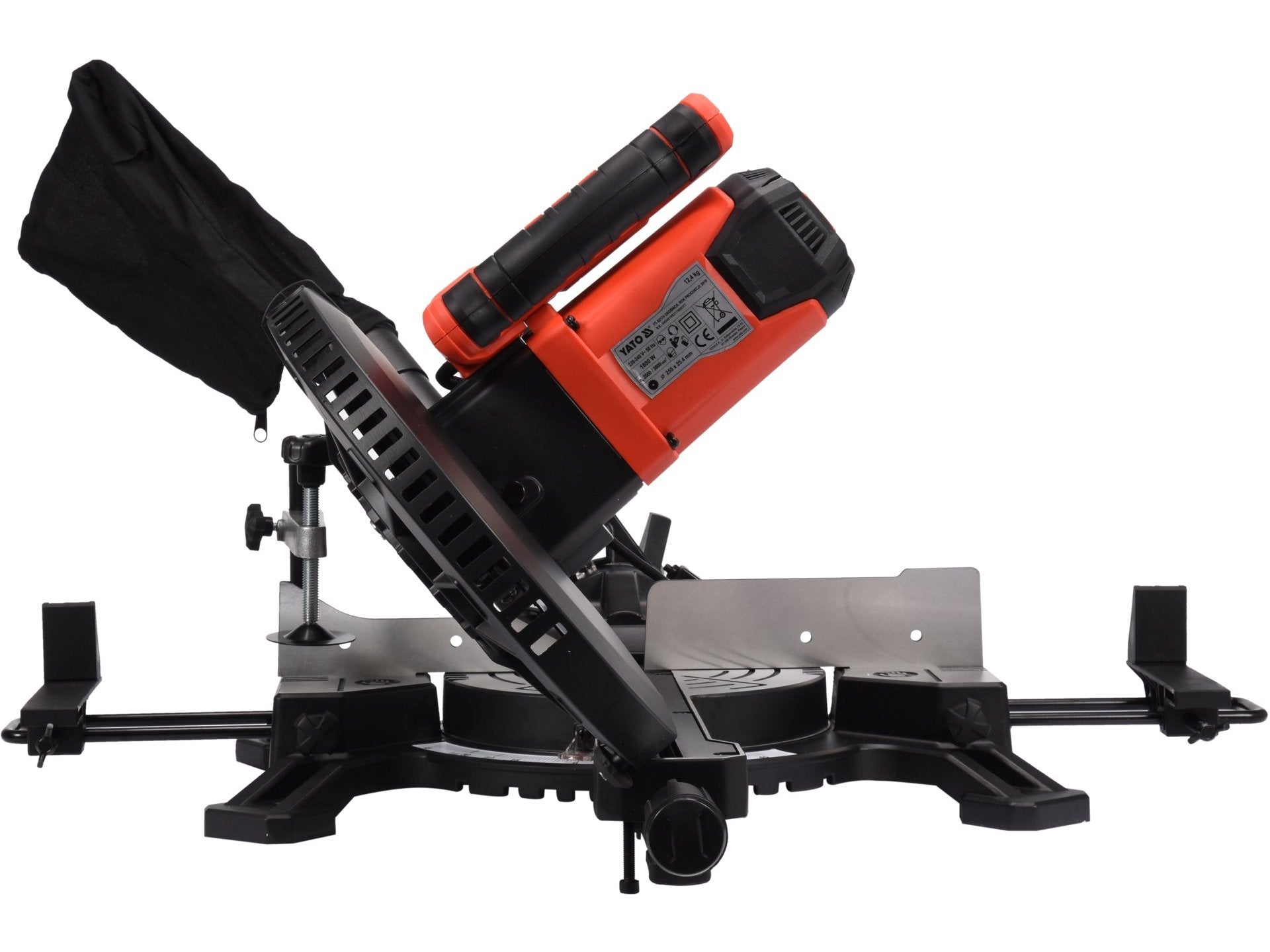

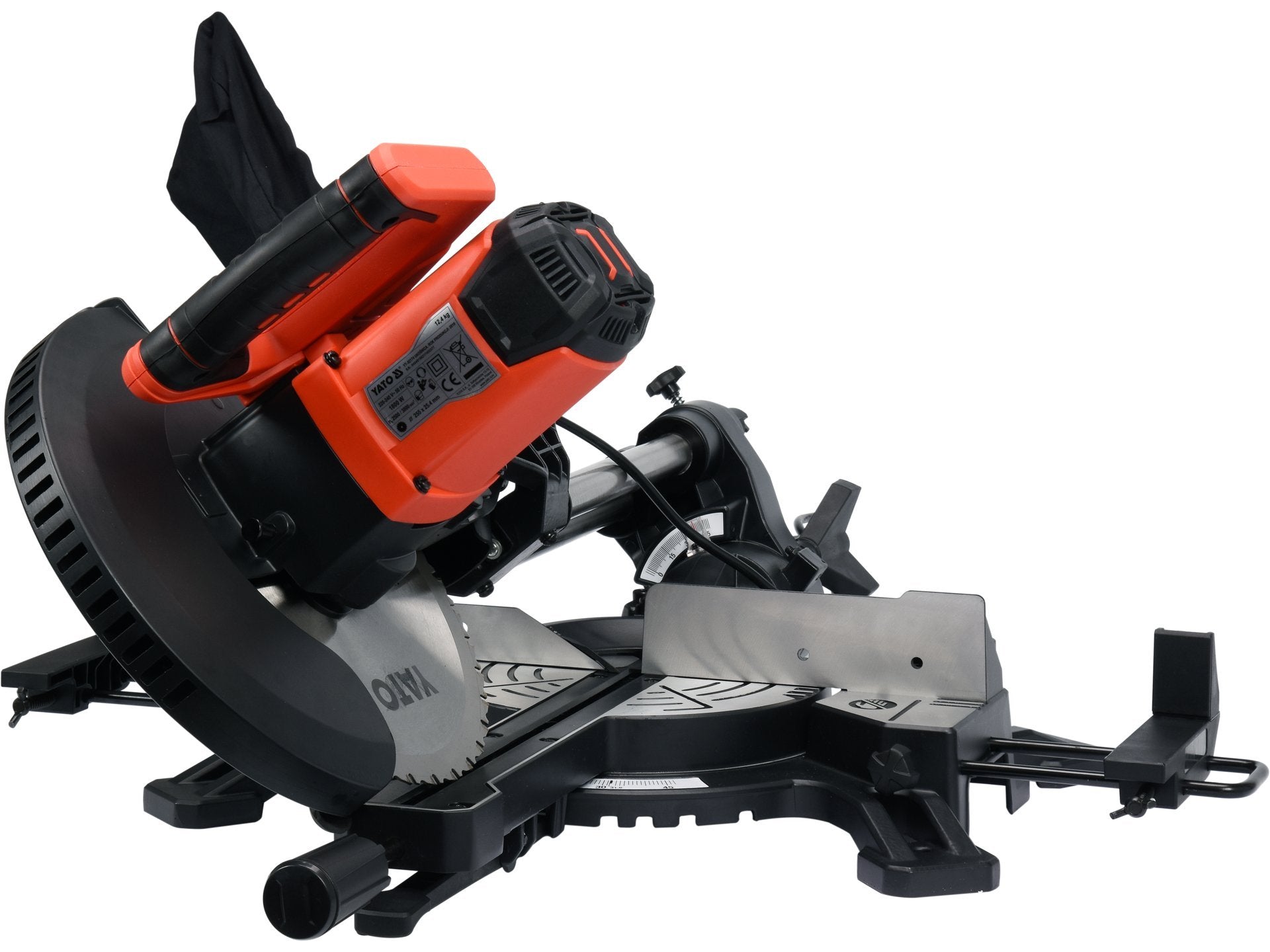

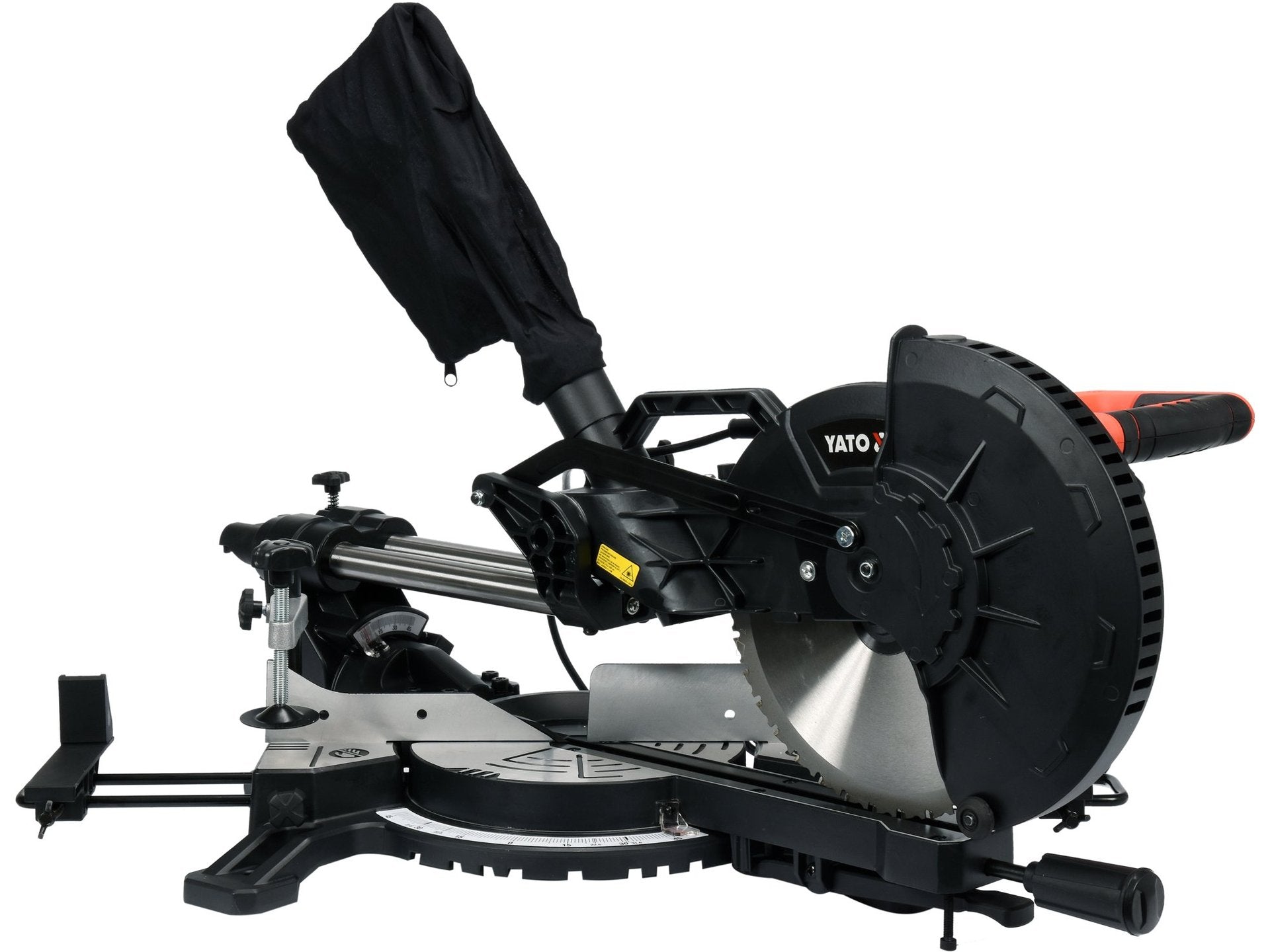

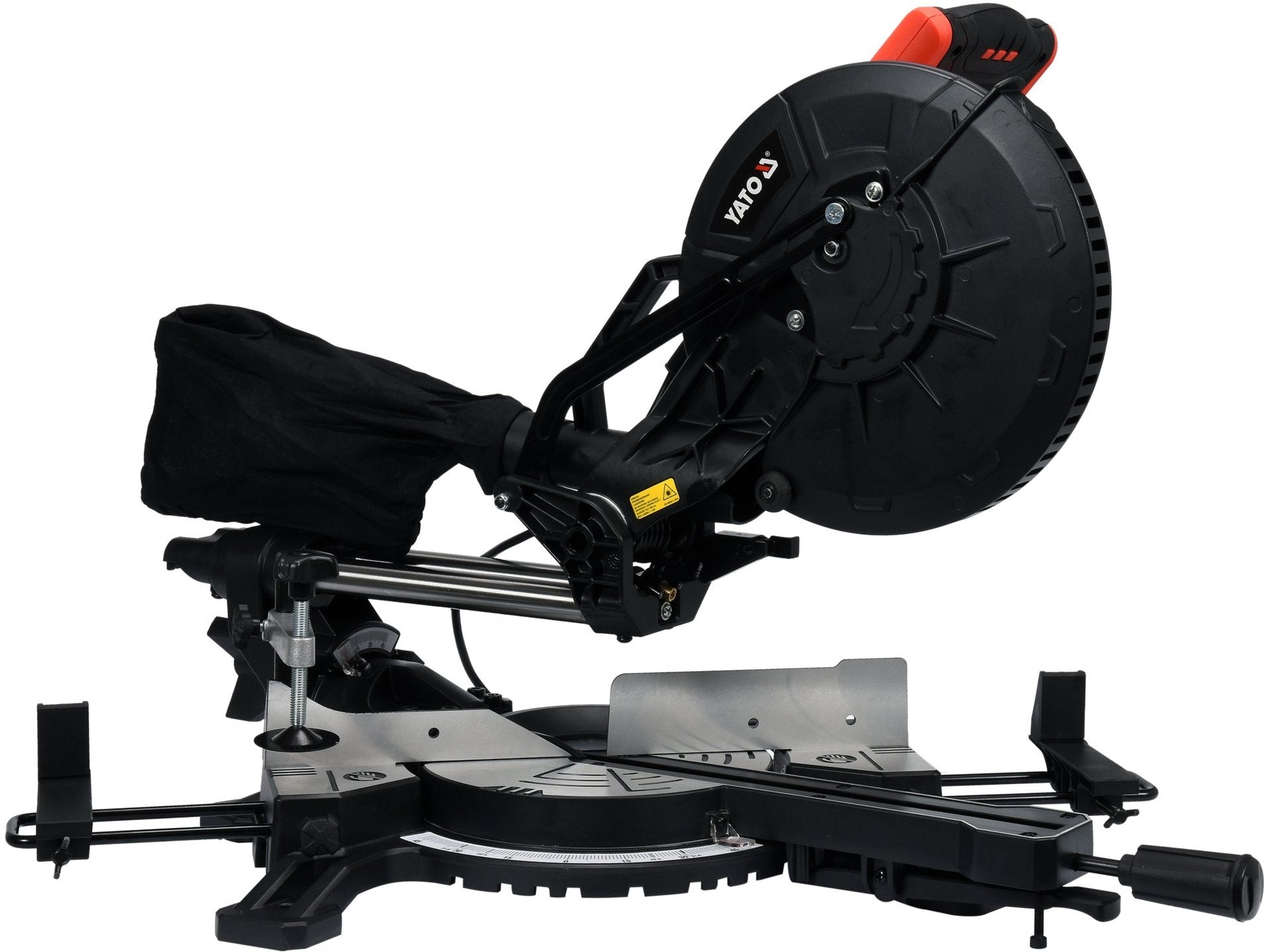

This YATO 255 mm mitre saw is designed for professional straight and angled cutting of wood, metal, panels, laminates, plastics, and related construction materials. It suits repair and construction work where adjustable cutting angles, laser guidance, feed function, and dust collection support efficient material processing.

Key Features

  • Professional cutting use: Designed for straight and angled cutting of wood, metal, panels, laminates, plastics, PVC, skirting boards, floor skirting boards, soffits, parquet, cable ducts, scantlings, battens, and steel profiles for applications such as railings and gates.
  • Two-speed operation: 3800 min⁻¹ for wood and 2500 min⁻¹ for metal, powered by an 1800 W motor.

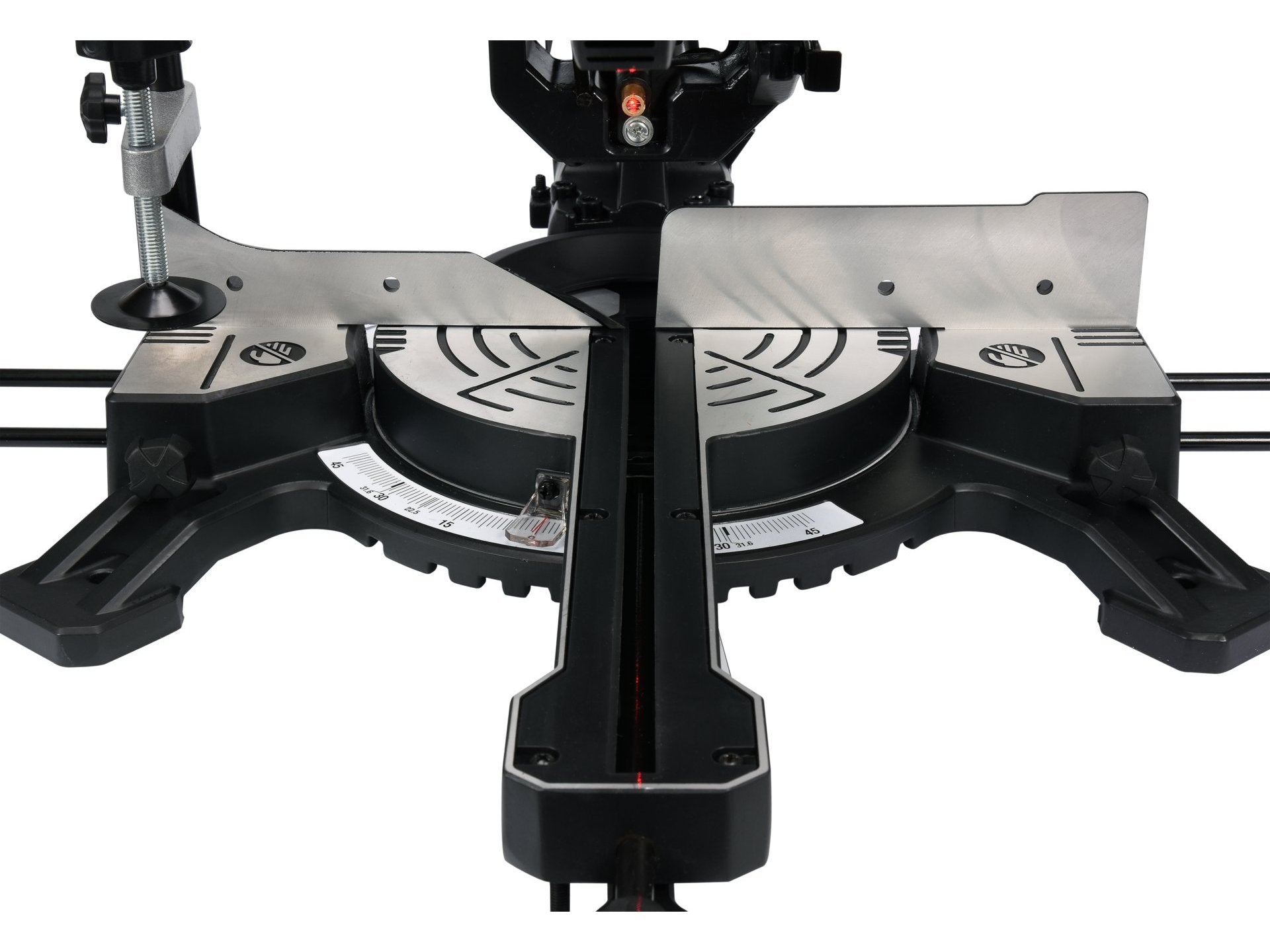

  • Adjustable cutting angles: Stable base with vertical and horizontal angle adjustment, head rotation within ±45°, and cutting head tilt up to 45°.
  • Feed function and work support: Bearing blade advance and lateral extendable supports help handle longer workpieces during cutting.

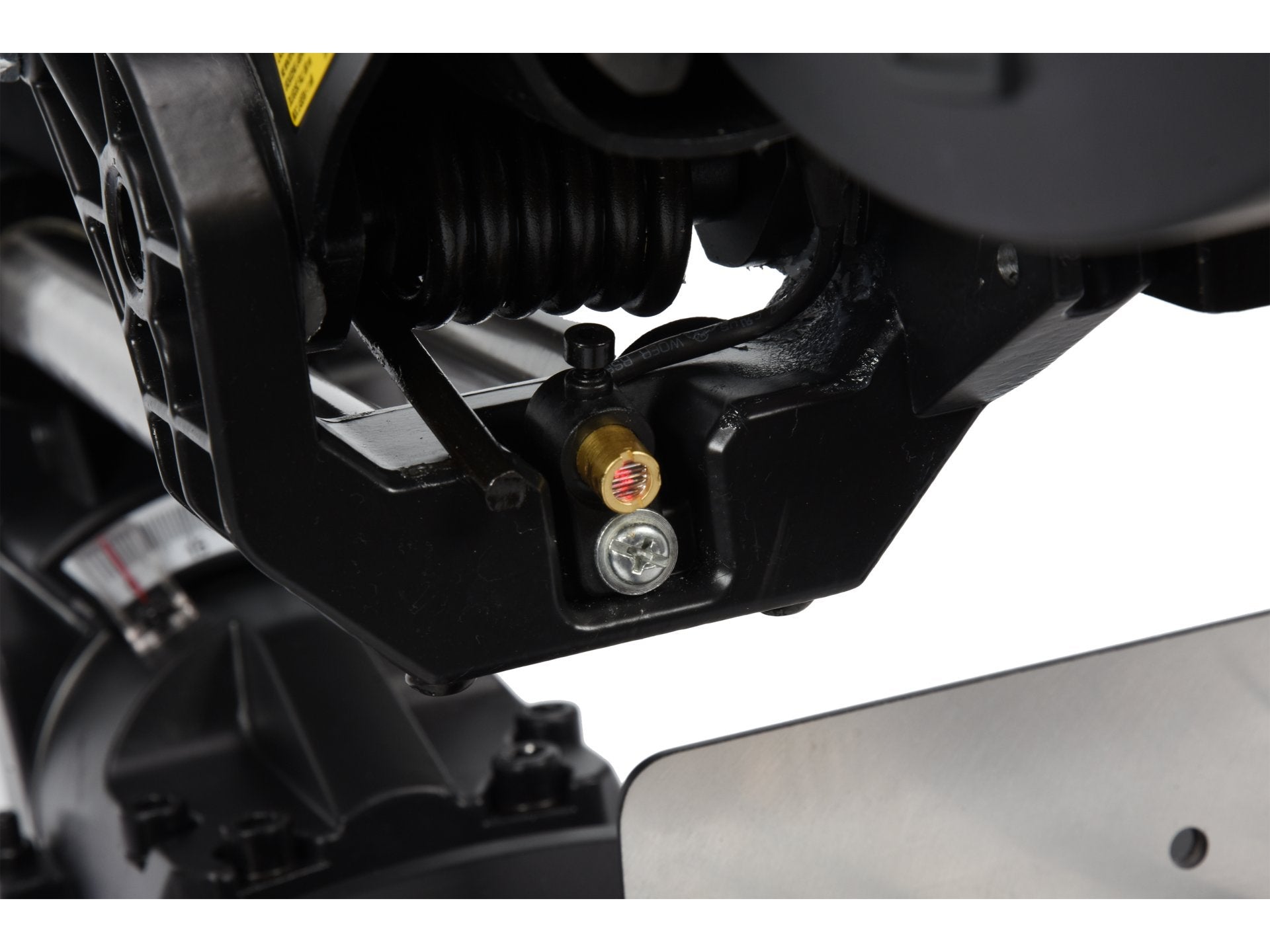

  • Laser cutting guide: Red class 2 laser pointer shows the cutting line and is activated by an independent switch.
  • Safer workpiece handling: Integrated base clamp helps immobilize the workpiece quickly and securely.
  • Dust management: Spigot allows use with the included dust collection bag or connection to an external dust extraction system.
  • Portable design: Compact dimensions and a central transport handle support balanced carrying.

Technical Specifications

Parameter Value
Brand YATO
SKU 100519-0001
Product Type Mitre saw with feed function
Application Metal, wood, panels, laminates, plastics, PVC, skirting boards, soffits, parquet, cable ducts, scantlings, battens, and steel profiles
Rated Voltage 220–240 V a.c.
Frequency 50 Hz
Rated Power 1800 W
Rated Speed, 1st Gear 2500 min⁻¹ for metal
Rated Speed, 2nd Gear 3800 min⁻¹ for wood
Cutting Disc Outer Diameter 255 mm
Cutting Disc Internal Diameter 25.4 mm
Cutting Disc Maximum Thickness 1.4 mm
Number Of Teeth 36
Maximum Bevel Cutting Angle 45°

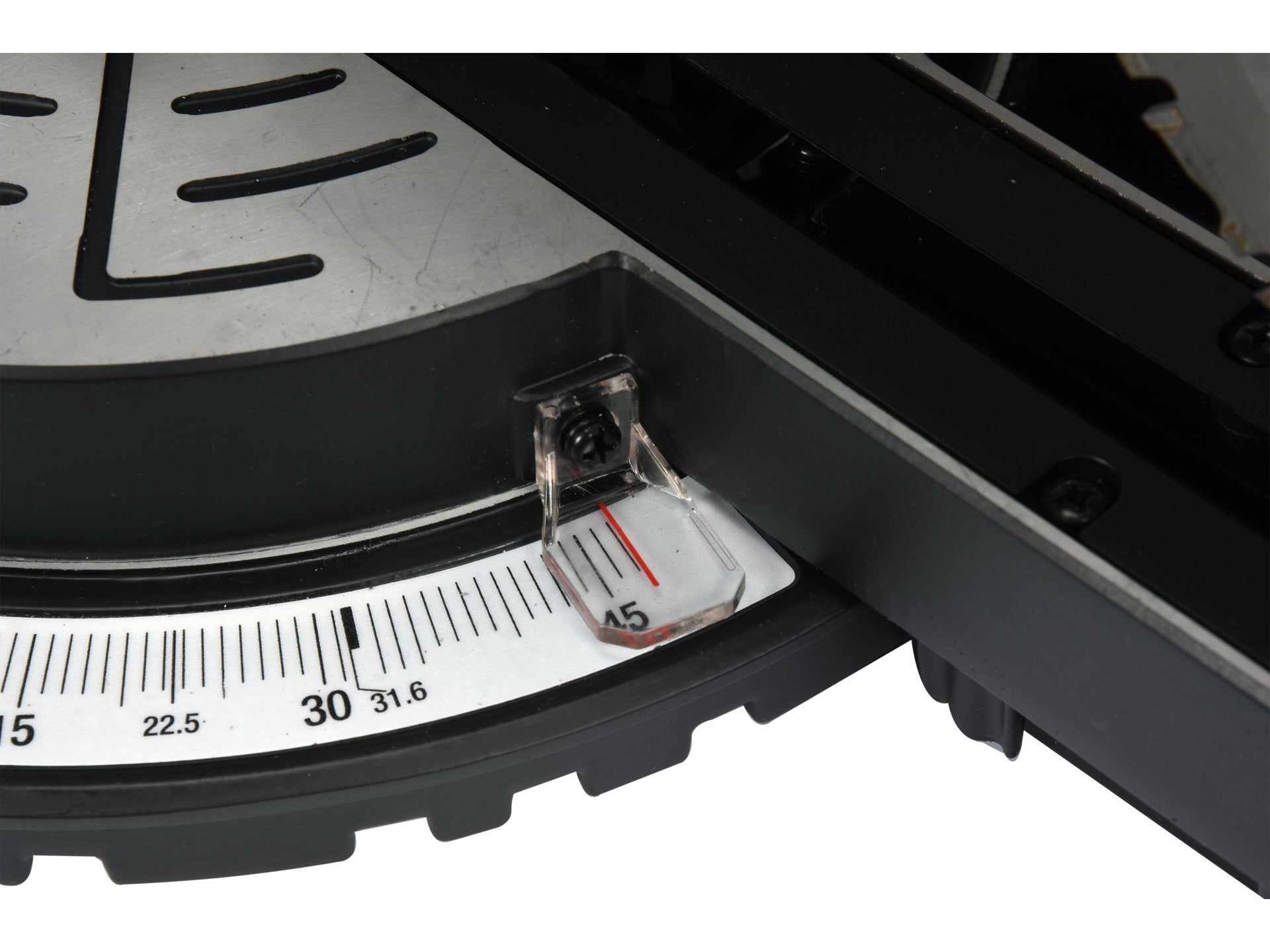

Longitudinal Cutting Angle Head rotation within ±45° with ratchet scale positions at 0°, 15°, 22.5°, 31.6°, and 45°

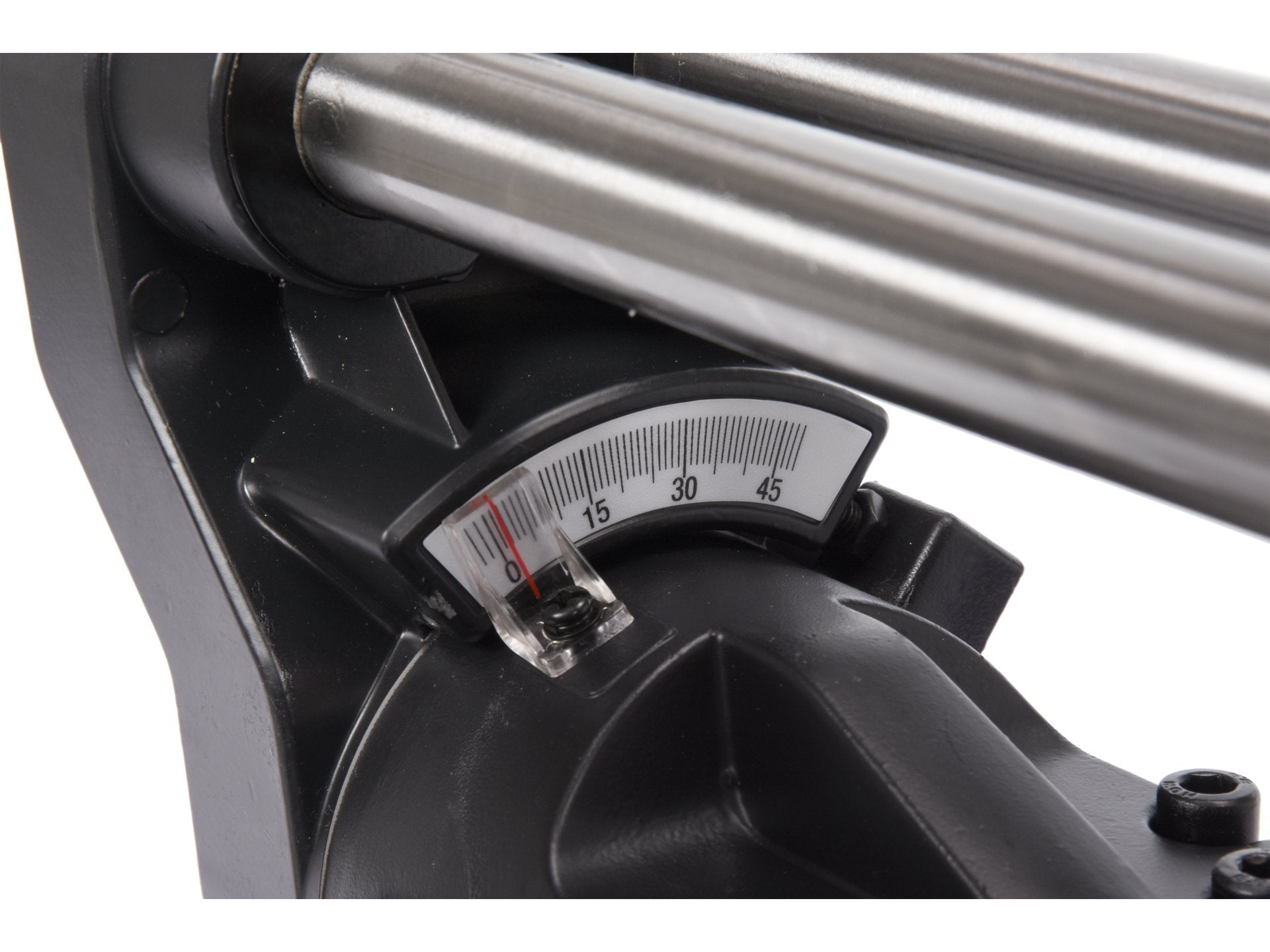

Cross-Cutting Angle Cutting head tilt up to 45° with table base scale
Maximum Cutting Capacity At 0° Rotation / 0° Tilt 75 × 305 mm for wood; 5 × 305 mm for metal
Maximum Cutting Capacity At 45° Rotation / 0° Tilt 75 × 210 mm for wood; 5 × 210 mm for metal
Maximum Cutting Capacity At 0° Rotation / 45° Tilt 40 × 305 mm for wood; 3 × 305 mm for metal
Maximum Cutting Capacity At 45° Rotation / 45° Tilt 40 × 210 mm for wood; 3 × 210 mm for metal
Minimum Processed Material Dimensions 200 × 20 × 20 mm for wood; 200 × 20 × 5 mm for metal
Laser Yes
Laser Class 2
Laser Power <1 mW
Laser Wavelength 650 nm
Laser Pointer Colour Red
Blade Guard Smooth-operating pivoting blade guard integrated with the on/off switch
Dust Connection Spigot for included dust collection bag or external dust extraction system
Wire Length 3 m
Electric Insulation Class II
Protection Grade IPX0
Acoustic Pressure 93.0 ± 3.0 dB(A)
Acoustic Power 105.0 ± 3.0 dB(A)
Net Weight 12.4 kg
Package Weight 17.0 kg
Package Dimensions 79.0 × 49.0 × 41.0 cm
Volume 158.711
Unit Of Measure PCE

Package Contents

  • 1 × mitre saw
  • 1 × dust collection bag
  • 1 × circular saw blade, 255 × 25.4 mm
  • 2 × workbench extensions
  • 1 × work table clamp
  • 1 × work table locking screw
