YATO Router 18V 3-in-1, Brushless Motor, Body – YT-82194

SKU: 100514-0001
(0)
€87,26 inc. VAT
Available to order
Ships Within 5-10 Working Days

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

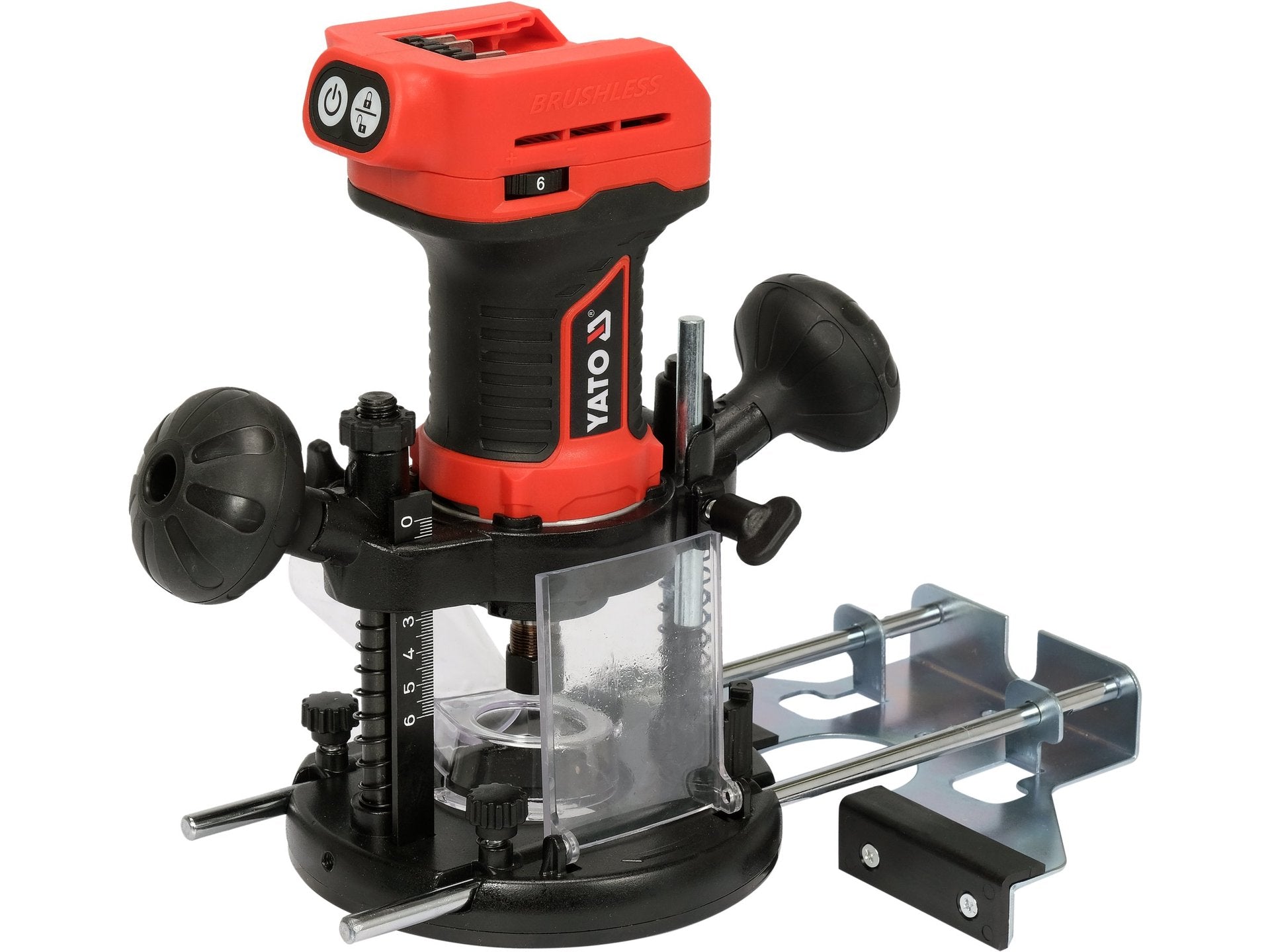

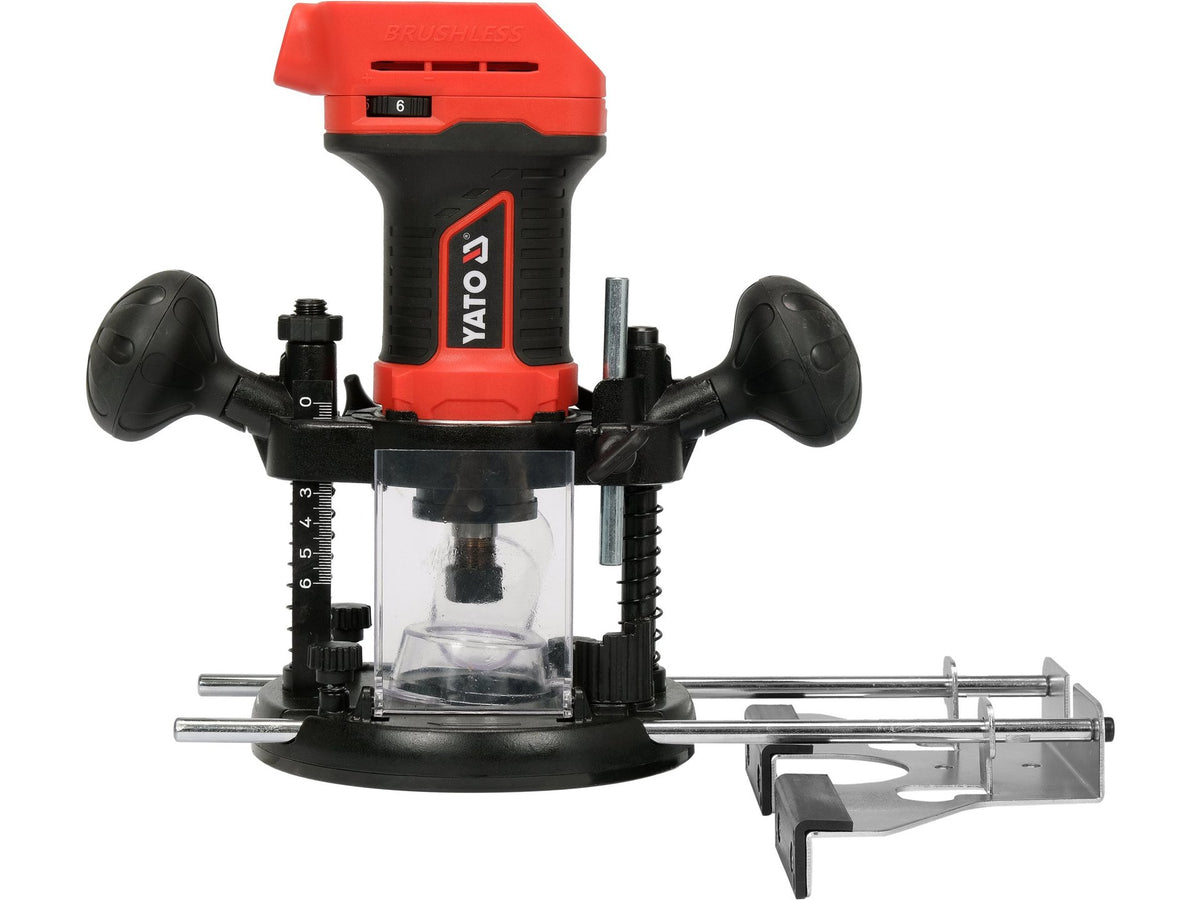

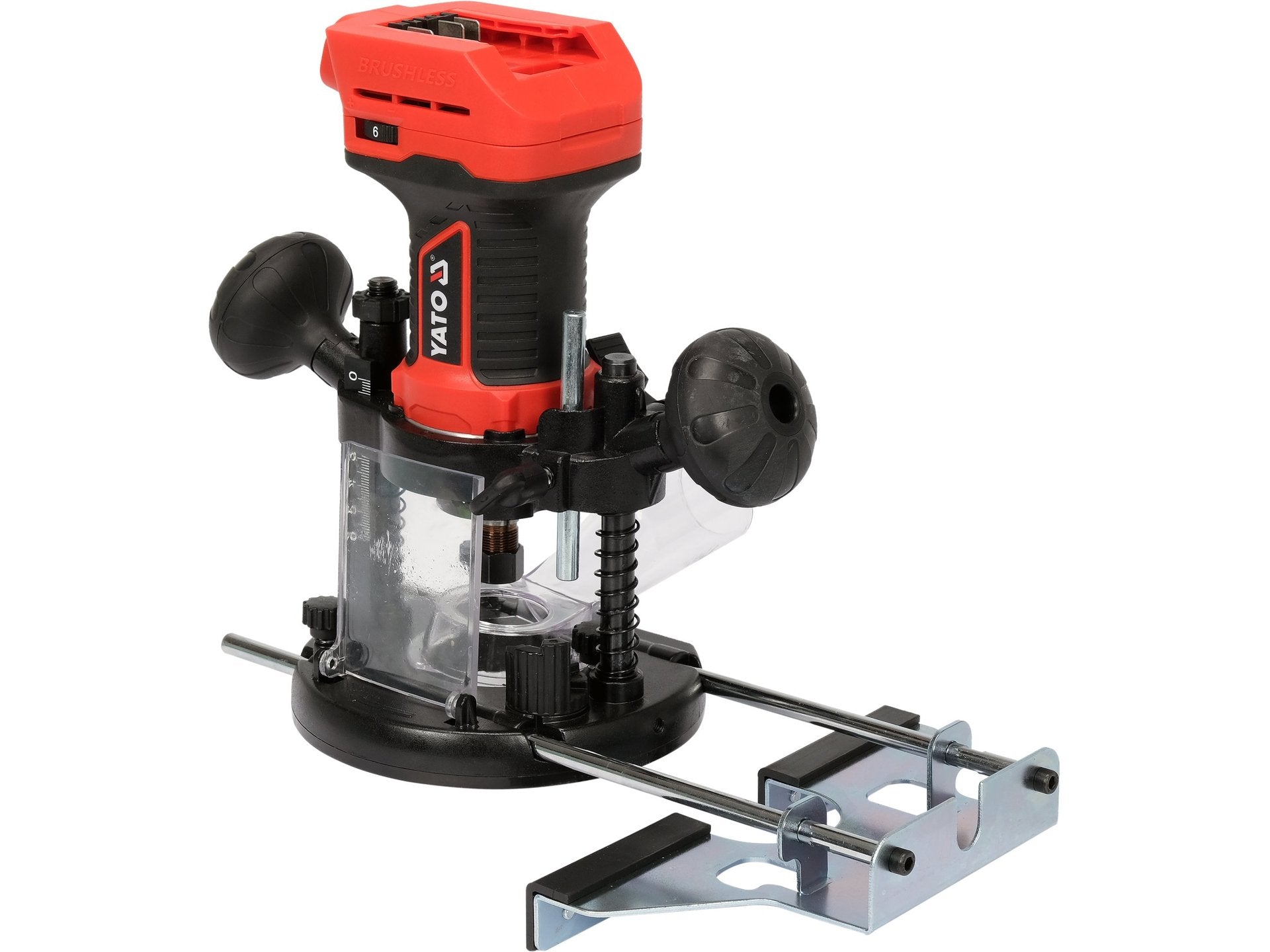

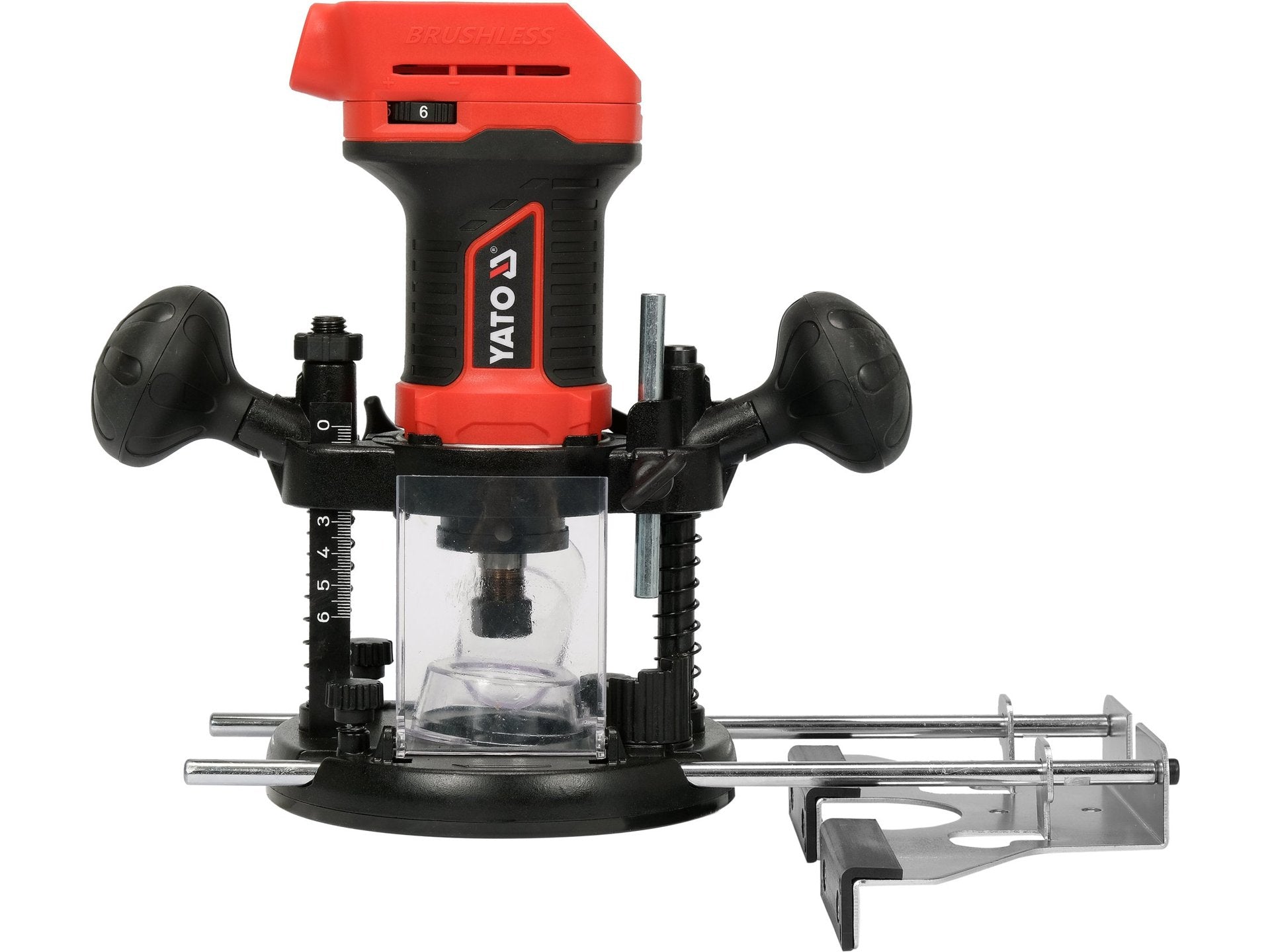

This YATO 18 V brushless cordless router body is designed for carpentry workshops, routing, edge milling, straight grinding and vertical drilling. It supports straight and curved cuts with adjustable 8,000–26,000 min⁻¹ speed, soft start and overheat protection. Battery and charger are not included.

Key Features

  • 3-In-1 Functionality: Designed for use as a router, straight grinder and edge router for carpentry workshop tasks, carpentry work and vertical drilling.
  • Cutting Capability: Suitable for making straight and curved cuts.
  • Additional Grinding Use: Can be used as a multi-sander for grinding tiles with a stone, such as widening holes for electrical outlets.
  • Brushless Motor: Powered by a brushless motor for cordless 18 V operation.
  • Adjustable Speed: Speed control range of 8,000–26,000 min⁻¹ for different routing and grinding applications.
  • Tool Protection: Soft start and overheat protection support controlled operation and tool durability.
  • Body Only: Battery quantity is none and charger is not included.

Technical Specifications

Parameter Value
Brand YATO
SKU 100514-0001
Unit Of Measure PCE
Functions Router, straight grinder, edge router
Cutting Shape Straight, curved
Rotations 8,000–26,000 min⁻¹
Voltage 18 V d.c.
Battery Type Li-Ion
Battery Quantity None
Charger Included No
Motor Type Brushless
Toolholder Size 6 or 8 mm
Cutting Unit Stroke 55 mm
Speed Adjustment Yes
Soft Start Yes
Overheat Protection Yes
Electric Insulation Class III
Protection Grade IPX0
Acoustic Pressure 78.0 ± 3.0 dB(A)
Acoustic Power 89.0 ± 3.0 dB(A)
Vibrations 2.47 ± 1.5 m/s²
Product Weight 1.78 kg
Package Weight 3.17 kg
Package Dimensions 27.5 × 21.0 × 16.0 cm
Volume 10.75

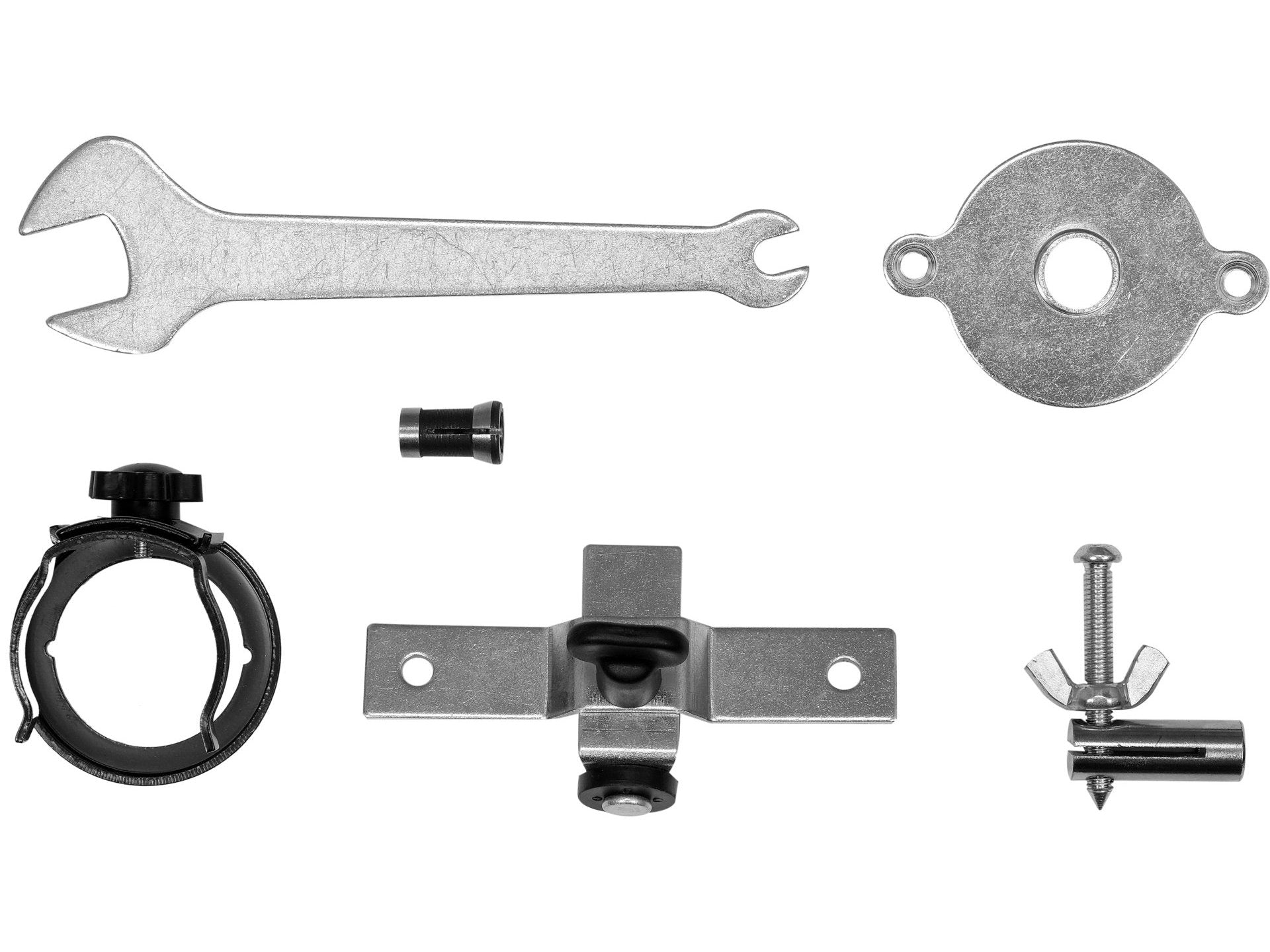

Package Contents

  • 1 × router body
  • 2 × guide
  • 1 × dust extraction connection
  • 1 × reducing sleeve
