Home » CIRCULAR SAW 185MM 1500W
YATO

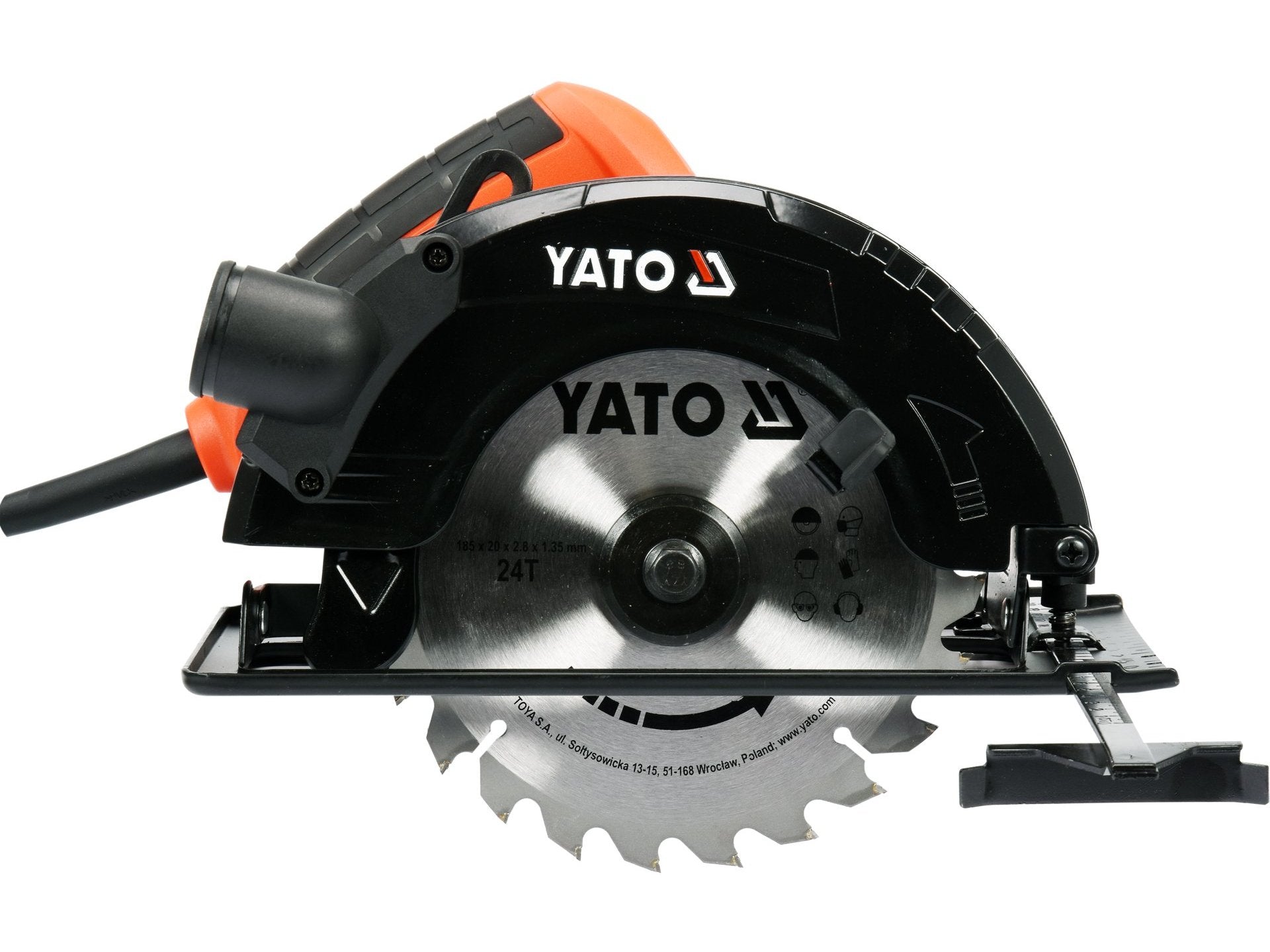

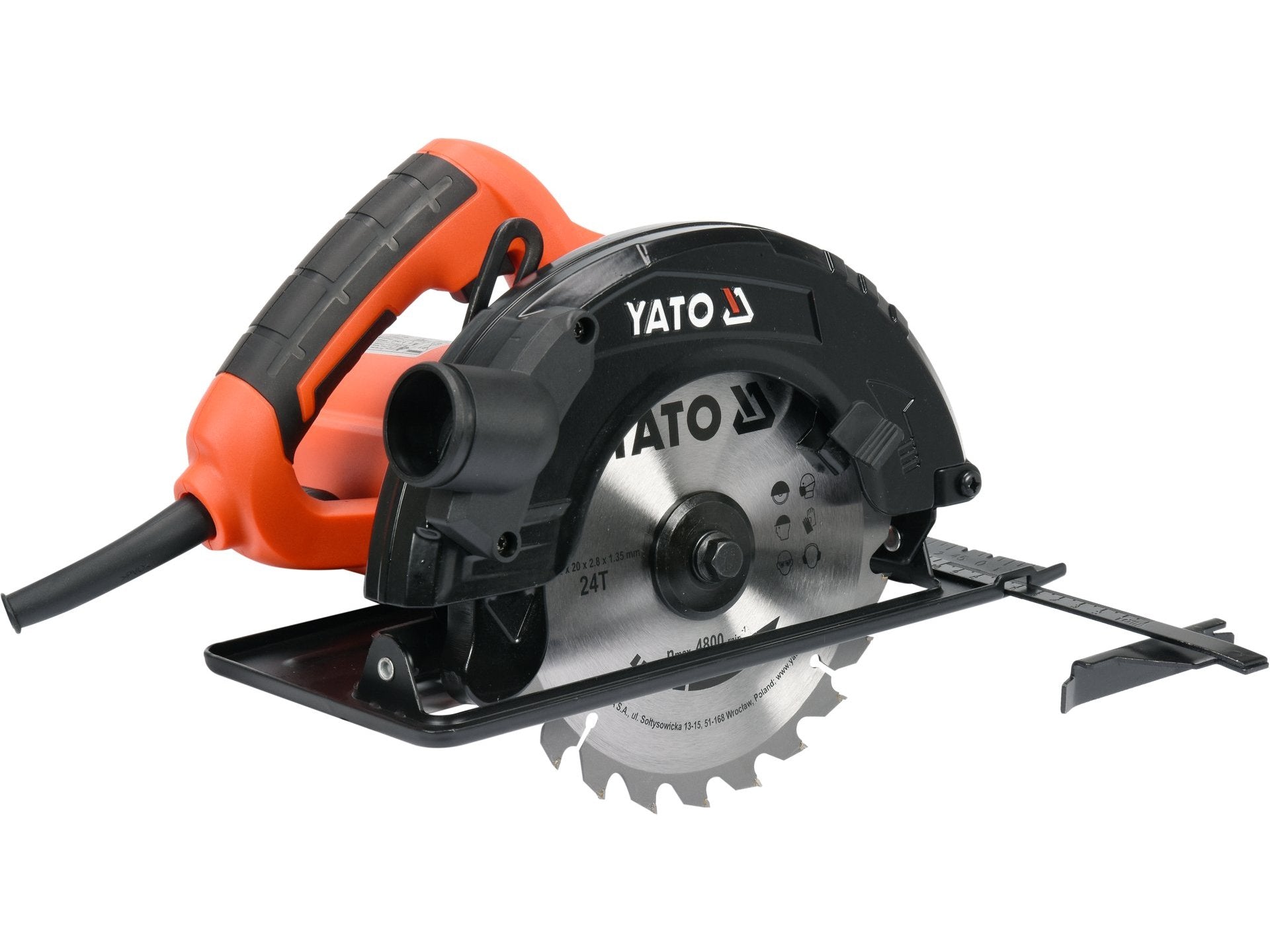

CIRCULAR SAW 185MM 1500W

SKU: 100504-0001
(0)
€64,87 inc. VAT
In stock
Usually ships within 24-48 hours

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

The YATO 185 mm circular saw is a 1500 W mains-powered tool for straight, angled and rip cuts in wood and wood-like materials. It is suitable for carpentry, roofing and formwork work, with adjustable depth, 0–45° angle regulation and dust extraction compatibility.

Key Features

  • Cutting Applications: Designed for straight cuts, angled cuts and rip cuts in hard wood, soft wood and wood-like materials.
  • Professional Use: Recommended for carpentry, roofing and formwork work.
  • Motor Performance: 1500 W commutator motor with 4800 min⁻¹ rotational speed for cutting and sawing tasks.
  • Adjustable Cutting: Cutting depth adjusts up to 65 mm, with 65 mm at 90° and 45 mm at 45°.
  • Angle Adjustment: Cutting angle regulation from 0° to 45° using the front scale.
  • Stable Base: Stable, level steel foot supports controlled cutting.
  • Dust Extraction: Connection prepared for an external dust extraction system or industrial vacuum cleaner with 34 mm inner connection diameter; hose and adapter are not included.
  • Handling Comfort: Comfortable rubber grip and 3 m rubber cable support practical workshop and site use.
  • Guided Cutting: Graduated guide helps make straight cuts parallel to the material edge at a set width.
  • Blade Compatibility: Supplied with a 185 mm, 24-tooth blade with 20 mm mounting hole; compatible spare discs include YT-60625, YT-60627, YT-60628 and YT-60631.

Technical Specifications

Parameter Value
Brand YATO
Product Type Circular saw
SKU 100504-0001
Unit Of Measure PCE
Power 1500 W
Motor Type Commutator motor
Rotational Speed 4800 min⁻¹
Voltage 220–240 V a.c.
Frequency 50 Hz
Maximum Cutting Depth 65 mm at 90°; 45 mm at 45°
Cutting Angle Regulation 0–45°
Cutting Disc Outer Diameter 185 mm
Cutting Disc Internal Diameter 20 mm
Cutting Disc Maximum Thickness 2.8 mm
Number Of Teeth 24
Base Stable, level steel foot
Grip Rubber grip
Cable Rubber cable, 3 m
Dust Extraction Connection Suitable for external dust extraction or industrial vacuum cleaner; 34 mm inner connection diameter; hose and adapter not included
Laser No
Electric Insulation Class II
Protection Grade IPX0
Acoustic Pressure 95.1 ± 3.0 dB(A)
Acoustic Power 106.1 ± 3.0 dB(A)
Vibrations 2.86 ± 1.5 m/s²
Tool Weight 4.23 kg
Packaged Weight 5.6 kg
Package Dimensions 32.5 × 25.5 × 19 cm
Volume 18.291
Suitable Materials Hard wood, soft wood and wood-like materials
Recommended Use Carpentry, roofing and formwork work
Compatible Spare Discs YT-60631 140T for laminates; YT-60628 14T for wood with nails; YT-60625 48T for steel; YT-60627 60T for PVC; YT-60907 60T for aluminum

Package Contents

  • 1 × circular saw
  • 1 × 185 mm cutting disc with 24 teeth and 20 mm mounting hole
  • 1 × graduated guide
