UNI-T Thermal Camera, 320×240, -40–400 °C, Wi-Fi – UTi730V

SKU: 003233
(0)
€1.282,25 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

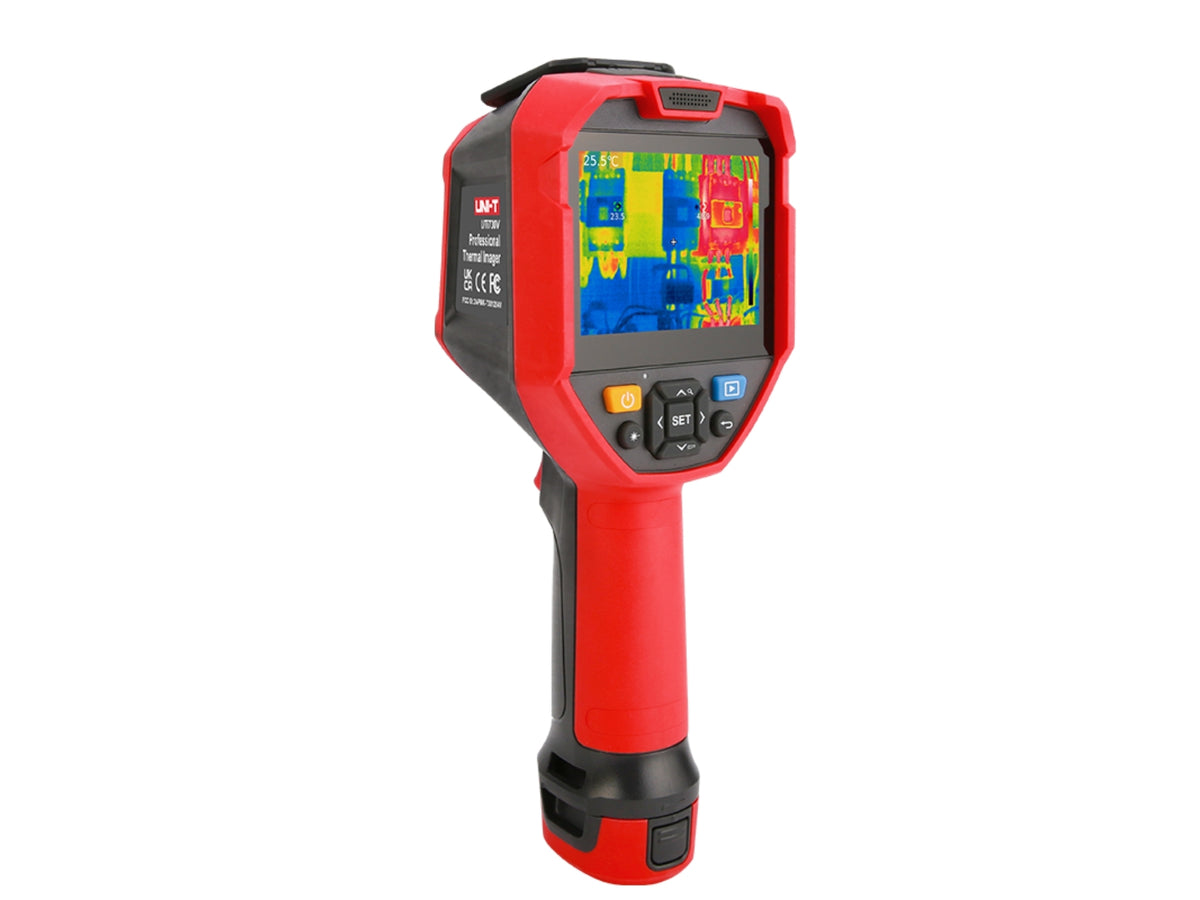

The UNI-T UTi730V is a professional thermal imaging camera with 320 × 240 infrared resolution, a 5 MP visible-light camera and a -40°C to 400°C measurement range. Its touchscreen analysis, T-Mix fusion, laser distance measurement, Wi-Fi streaming and dual-battery package support detailed industrial and field inspections.

Key Features

  • 320 × 240 Thermal Imaging – Provides 76,800 infrared pixels for detailed temperature inspection and analysis.
  • Multi-Mode Imaging – Supports thermal, visible, T-Mix fusion and picture-in-picture display modes.
  • On-Screen Analysis – Analyses up to five points, one line, three rectangles and three circular areas.
  • Wireless Inspection – Supports Wi-Fi live streaming, PC software and mobile app analysis.
  • Laser Distance Measurement – Integrates laser targeting and distance measurement up to approximately 30 m.

Product Specifications

Product Type Professional Thermal Imaging Camera
Infrared Resolution 320 × 240 Pixels
Infrared Pixels 76,800
Visible-Light Camera 5 MP
Pixel Size 12 μm
Thermal Sensitivity (NETD) ≤65 mK
Frame Rate ≤9 Hz
Field of View 56° × 42°
Spatial Resolution (IFOV) Approximately 3 mrad
Spectral Range 8–14 μm
Focus Focus-Free
Display 3.5-Inch IPS Touchscreen, 640 × 480 Pixels
Digital Zoom 2× and 4×
Image Modes Thermal, Visible, Fusion (T-Mix) and Picture-in-Picture
Colour Palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow and Lava
On-Screen Analysis 5 Points, 1 Line, 3 Rectangles and 3 Circles
Isotherm Automatic and Manual
Temperature Tracking Automatic High and Low Temperature Tracking
Temperature Alarm LCD Indication, LED Light and Buzzer
Recording Image, Video and Voice Recording
Image Format Radiometric JPG
Video Format AVI
Storage 32 GB MicroSD Card
Wireless Connectivity Wi-Fi with Live Streaming
Analysis Software PC Software and Mobile App
USB Interface Type-C
Laser Functions Laser Pointer and Distance Measurement up to Approximately 30 m
Additional Lighting Integrated LED Light
Ingress Protection IP54
Drop Protection 2 m
Certifications CE, UKCA, FCC, RoHS
Battery UT-M17 5200 mAh Detachable Lithium-Ion Battery Pack
Operating Time At Least 4 Hours per Battery with Wi-Fi Off
Dimensions 260 × 97 × 99 mm
Net Weight Approximately 654 g

Measurement Specifications

Parameter Specification
Temperature Measurement Range -40°C to 400°C
Measurement Accuracy ±2°C or ±2%, Whichever Is Greater
Thermal Sensitivity ≤65 mK
Infrared Resolution 320 × 240 Pixels
Spectral Range 8–14 μm

Applications

  • Electrical system and switchgear inspection
  • Mechanical equipment and preventive maintenance
  • HVAC and building energy assessment
  • Electronic product development and thermal evaluation
  • Industrial fault detection and field reporting

Included Components

  • UNI-T UTi730V Thermal Imaging Camera
  • UT-M17 5200 mAh Detachable Battery Pack × 2
  • 32 GB MicroSD Card
  • Type-C USB Cable
  • Quick Start Guide
  • Document Download Guide
  • Toolbox
