UNI-T TDR Cable Tester Kit, 500 m, RJ11/RJ45/Coax & PoE – UT685B KIT

SKU: 003249
(0)
€108,76 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

The UNI-T UT685B KIT combines a 500m TDR cable tester with a UT683R receiver for testing, diagnosing and tracing twisted-pair, telephone and coaxial cables. It identifies wiring faults, cable length, fault distance and PoE standards for network installation and low-voltage cable maintenance.

Key Features

  • 500 m TDR Testing – Measures cable length and distance to faults
  • Wiremap Diagnosis – Identifies opens, shorts, crossed wires and split pairs
  • PoE Identification – Detects IEEE 802.3af, 802.3at and 802.3bt
  • Cable Tracing Kit – Includes the adjustable-sensitivity UT683R receiver
  • Multiple Connections – Supports RJ45, RJ11 and coaxial F connectors

Product Specifications

Product Type TDR cable tester and wire-tracing kit
Supported Twisted-Pair Cables CAT5e, CAT6, CAT6A and CAT8
Supported Shielding Types UTP, FTP and SSTP
Supported Coaxial Cables 50 Ω, 75 Ω and 93 Ω
Test Interfaces RJ45, RJ11 and coaxial F connector
Display 2.8-inch backlit LCD with graphical wiremap display
Fault Detection Open, short, crossed wires, crossed pairs, split pairs and incorrect wiring
Network Functions Ethernet port detection, hub-port blinking and PoE detection
Tone Signal 125 kHz digital modulation, 10 Vpp
Length Units Metres and feet
NVP Adjustment Adjustable for cable-length calibration
Input Protection 70 V DC
Tester Power Supply 1.5 V AA alkaline battery × 3
Tester Auto Power-Off Approximately 10 minutes; approximately 60 minutes in tracing mode
Tester Dimensions 181 × 80 × 39 mm
Tester Net Weight Approximately 360 g

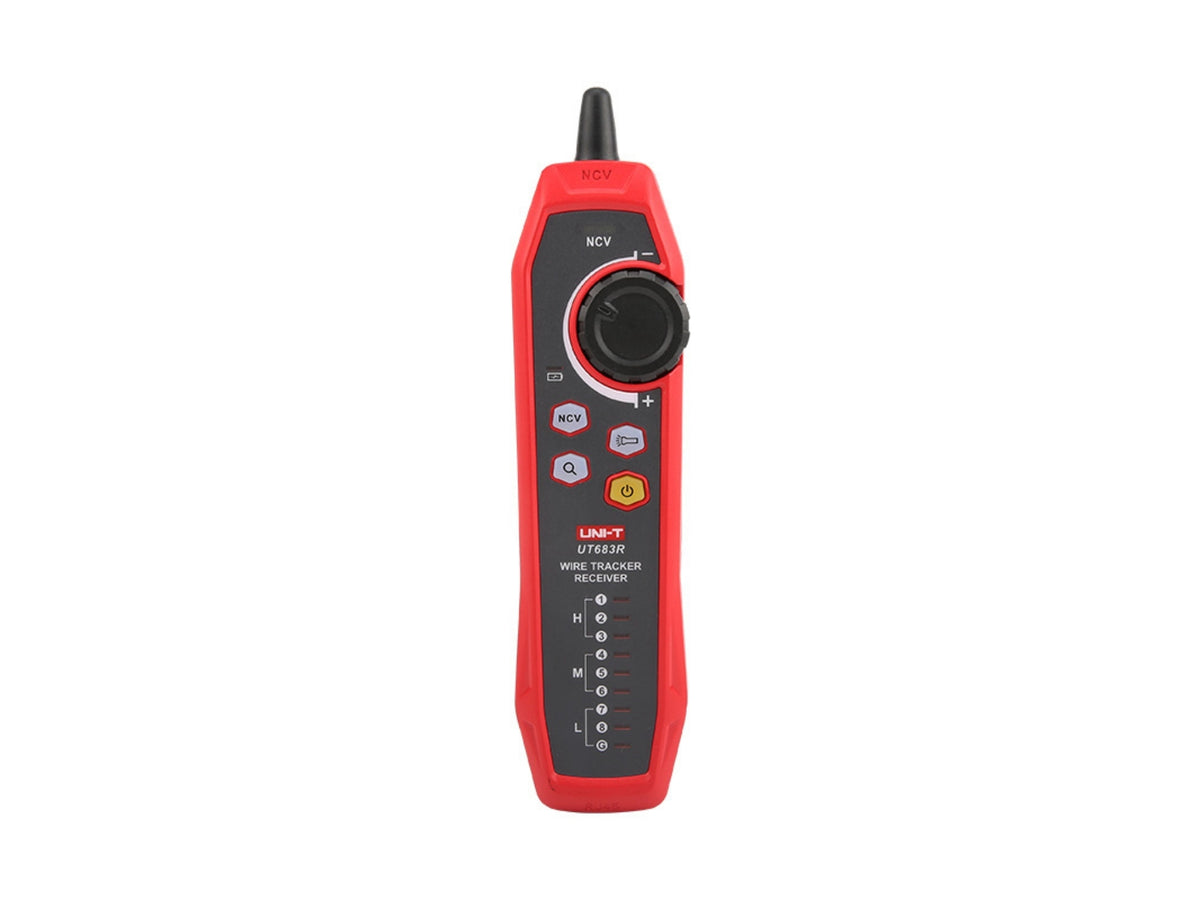

Receiver Model UT683R
Receiver Functions Cable tracing, adjustable sensitivity, NCV detection, flashlight and earphone support
Receiver NCV Reference Indication for AC voltage above approximately 40 V
Receiver Battery Built-in 1050 mAh rechargeable Li-ion battery
Receiver Dimensions 197 × 48 × 34 mm
Receiver Net Weight Approximately 127 g
Operating Temperature 0°C to 45°C
Certifications CE, UKCA and RoHS

Measurement Specifications

Cable Length Range Up to 500 m
Length Resolution 0.3 m
Length and Fault Analysis Cable length, open-circuit location and pair-by-pair details
Wiremap Test Continuity, open, short, miswire, crossed pair and split pair
PoE Standards IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
PoE Pair Detection Pairs 1,2–3,6 and 4,5–7,8

Applications

  • Network installation and structured-cabling verification
  • Ethernet and telephone cable troubleshooting
  • PoE network inspection and maintenance
  • Coaxial cable testing and fault location
  • Low-voltage cable tracing and identification

Tool Compatibility

  • Directly supports RJ45, RJ11 and coaxial F-connector cables
  • UT683R receiver works with the tone signal generated by the UT685B tester
  • Complete wiremap testing requires the supplied far-end wiremap adapter
  • Earphones are supported by the receiver but are not included

Included Components

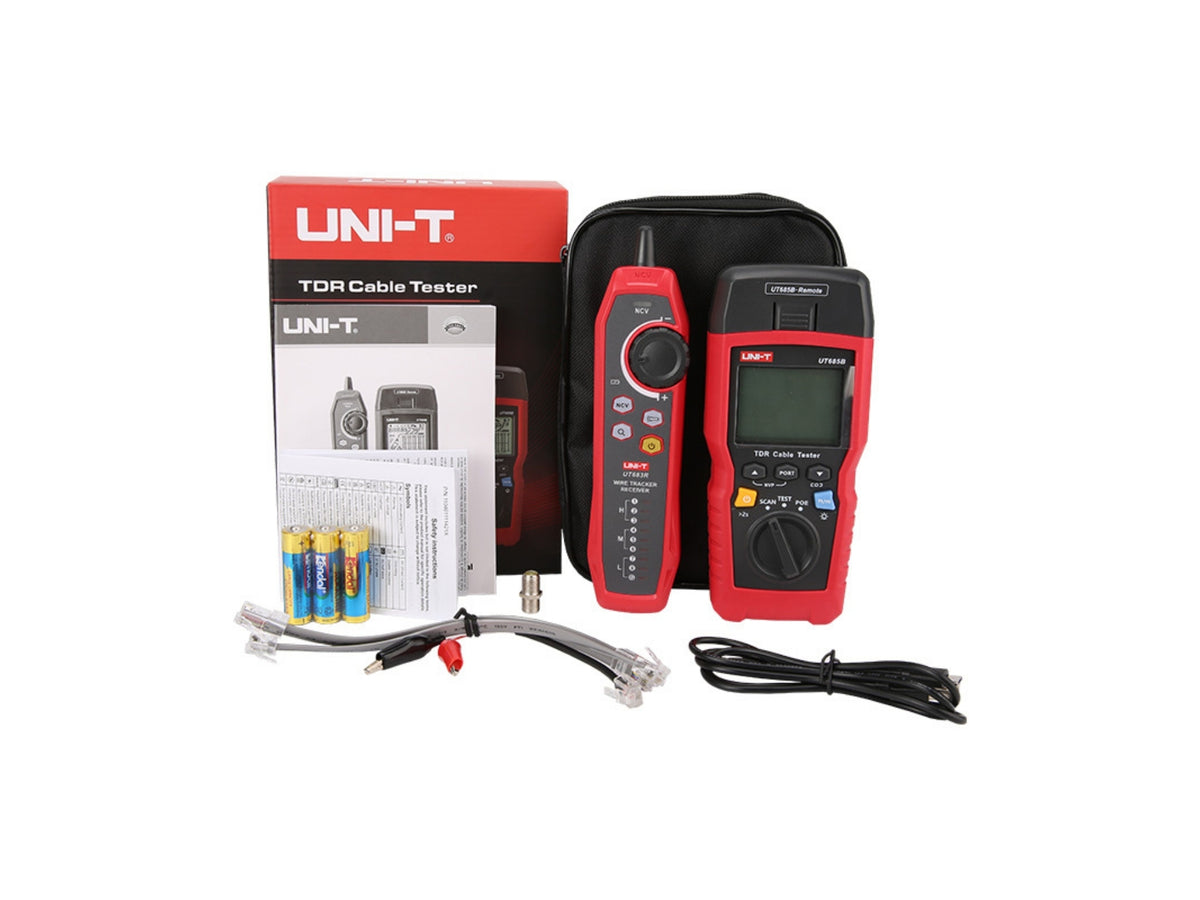

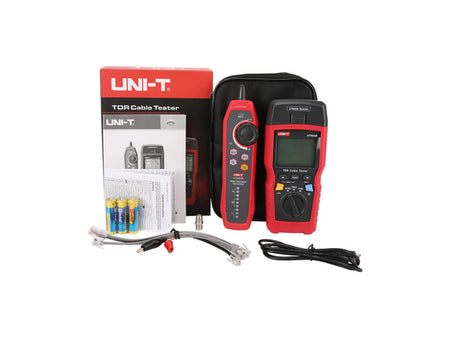

  • UT685B TDR cable tester × 1
  • UT683R wire-tracing receiver × 1
  • 1.5 V AA alkaline battery × 3
  • RJ45 adapter cable × 1
  • RJ11 adapter cable × 1
  • RJ11-to-alligator-clip adapter cable × 1
  • F-female to F-female connector × 1
  • Micro-USB receiver charging cable × 1
  • User manual × 1
  • Portable carrying bag × 1
