UNI-T Wire Tracker, Telephone/Twisted-Pair, ≥3000 m – UT682D
Regular price
€18,30
VAT included
Couldn't load pickup availability
Got questions, ask an expert!

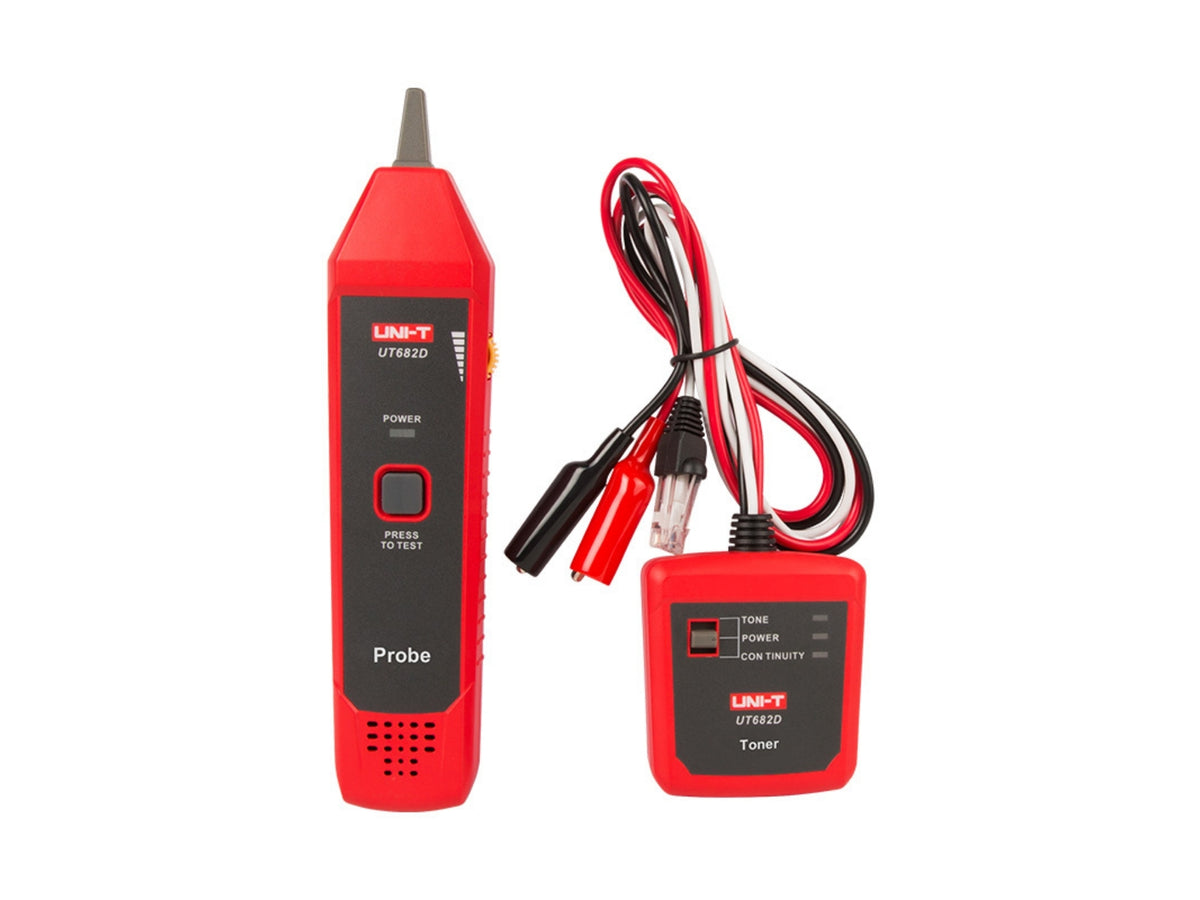

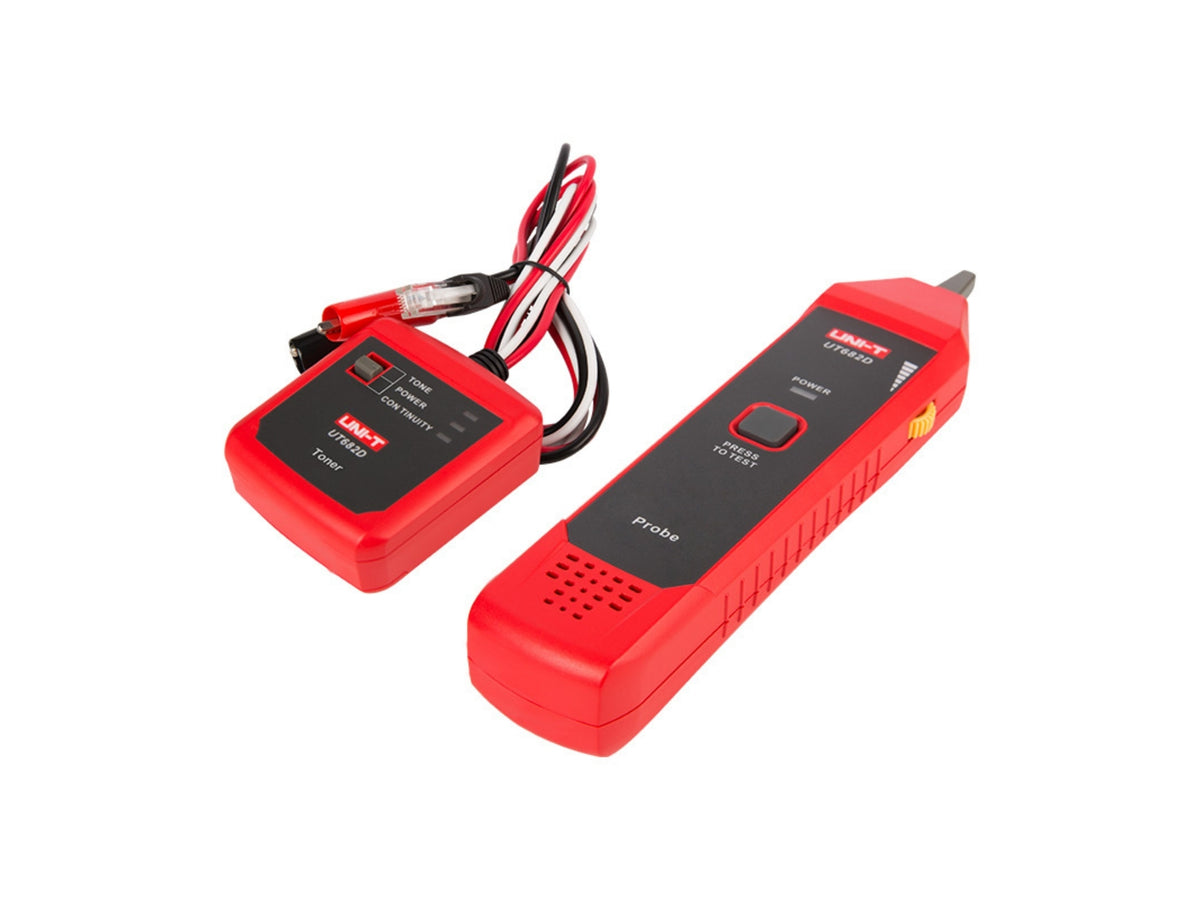

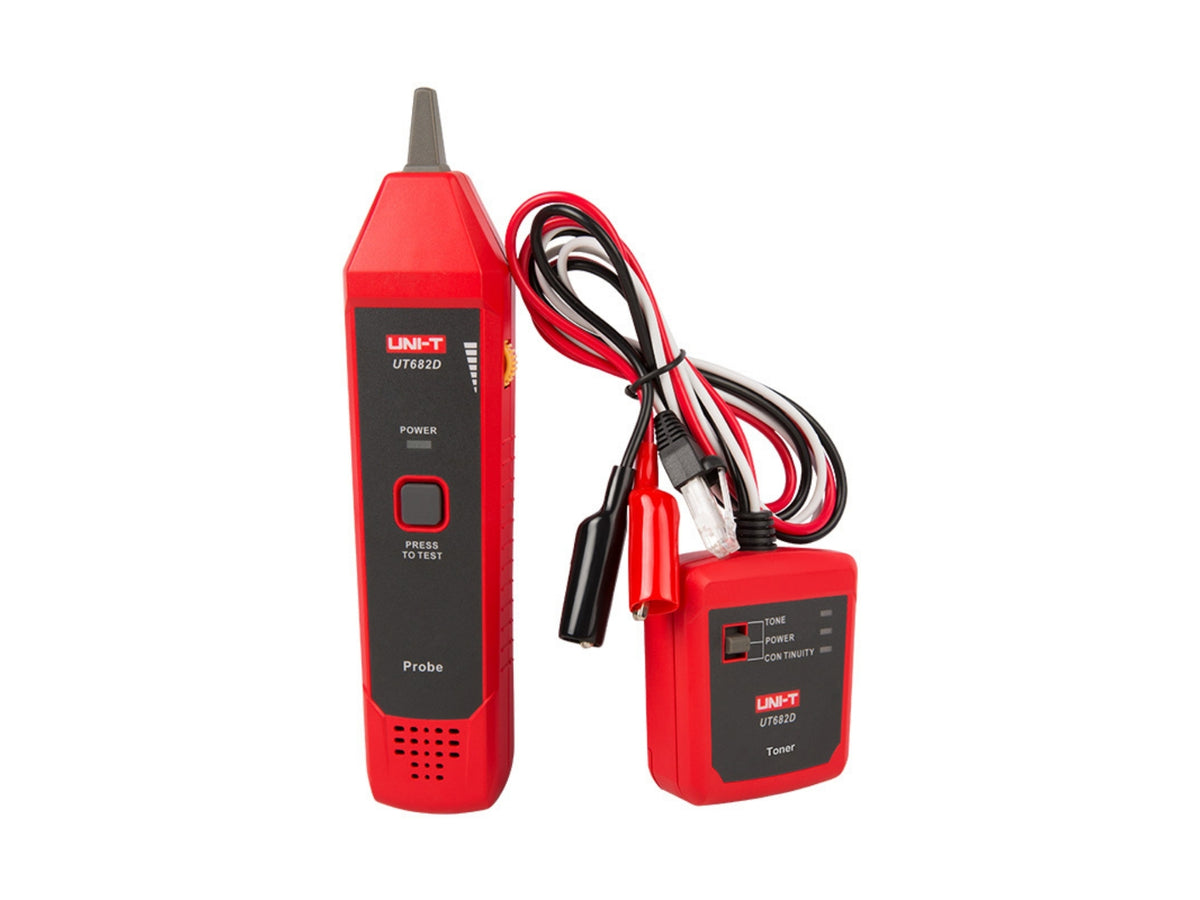

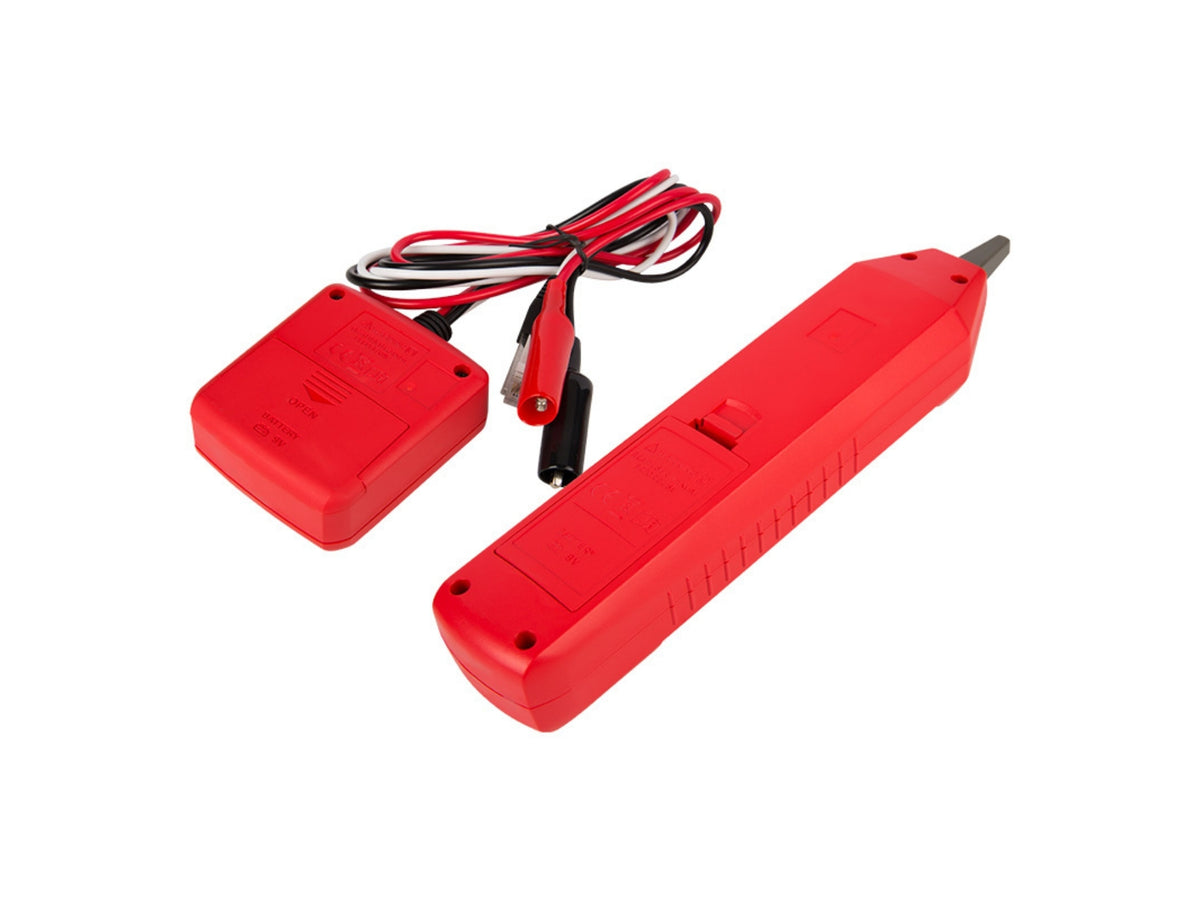

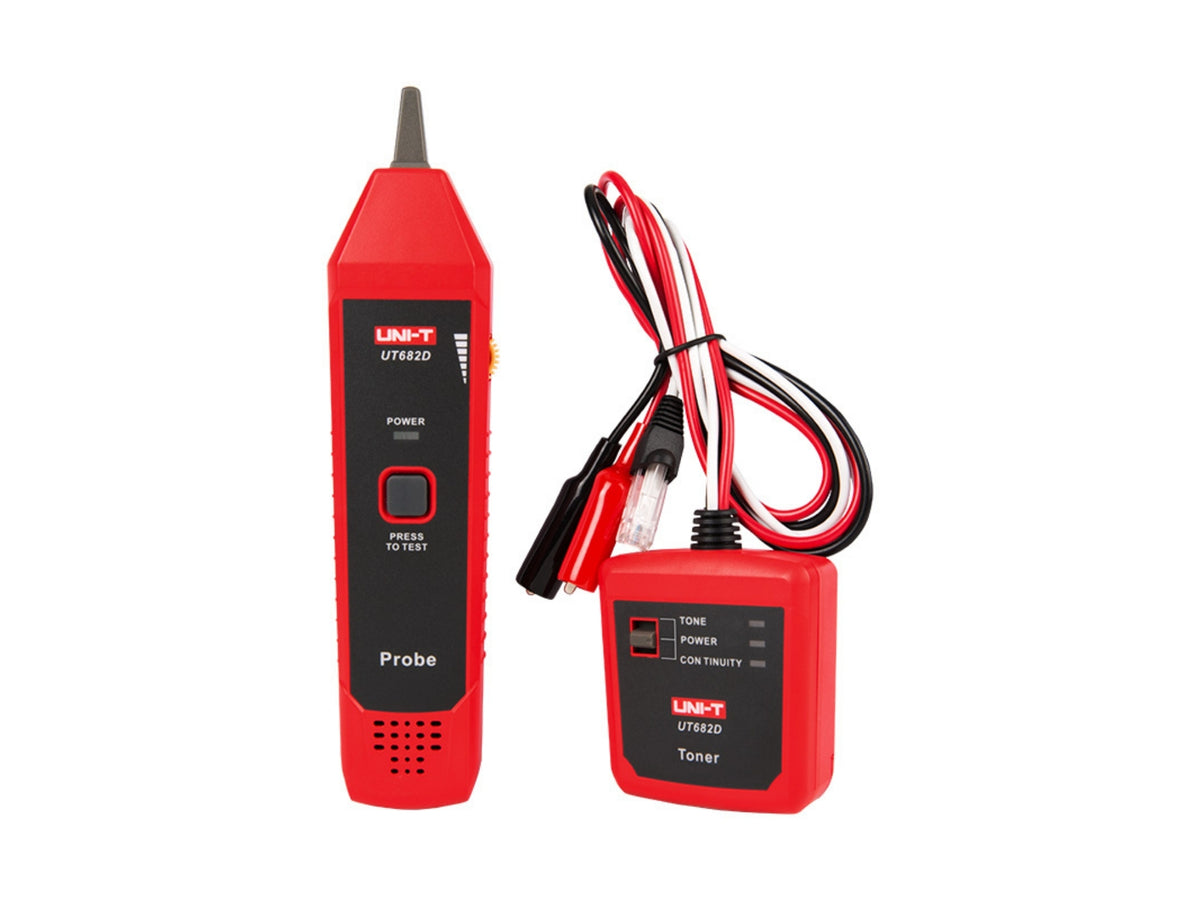

The UNI-T UT682D is a transmitter-and-receiver wire tracker for tracing telephone lines, twisted-pair cables and electric wires without opening their insulation. It supports telephone-line polarity testing from ±5 to 52V, jack identification and telephone-line tracing over distances of at least 3000m.
Key Features
- Traces telephone lines, twisted-pair cables and electric wires without opening insulation
- Telephone-line tracking distance of at least 3000m
- Telephone-line polarity test using DCV function from ±5V to ±52V
- Distinguishes telephone-line and LAN-cable jacks
- Transmitter and receiver supplied with separate 9V battery power
Product Specifications
| Product Type | Wire Tracker / Tone and Probe |
|---|---|
| Model | UT682D |
| Supported Wire Types | Telephone line, twisted-pair cable and electric wire |
| Telephone-Line Tracking Distance | ≥3000m |
| Telephone-Line Polarity Test | DCV function, ±5V to ±52V |
| Telephone/LAN Identification | Jack distinction |
| Transmitter Output Voltage | 8V DC with a new battery |
| Transmitter Input Protection | 60V DC |
| Receiver Maximum Standby Current | Approximately 10mA |
| Receiver Maximum Operating Current | <40mA AC RMS |
| Power Supply | 9V batteries × 2 |
| Operating Temperature | 0–40°C |
| Storage Temperature | -10–50°C |
| Operating Humidity | 20–75%RH |
| Altitude | ≤2000m |
| Transmitter Dimensions | 74 × 68 × 28mm |
| Receiver Dimensions | 208 × 47 × 33mm |
| Transmitter Weight | 150g |
| Receiver Weight | 130g |
| Certifications | CE, UKCA |
Applications
- Telephone-line tracing and polarity checks
- Twisted-pair cable identification
- Electrical wire tracing
- Communication-cable installation and maintenance
- Audio/video and low-voltage wiring service work
Included Components
- UT682D transmitter
- UT682D receiver
- 9V batteries × 2
- User manual
