UNI-T Digital Multimeter, 2000 Counts, 1000 V, 20 A, Capacitance & Transistor Test – UT58A
Regular price
€30,37
VAT included
Couldn't load pickup availability
Got questions, ask an expert!

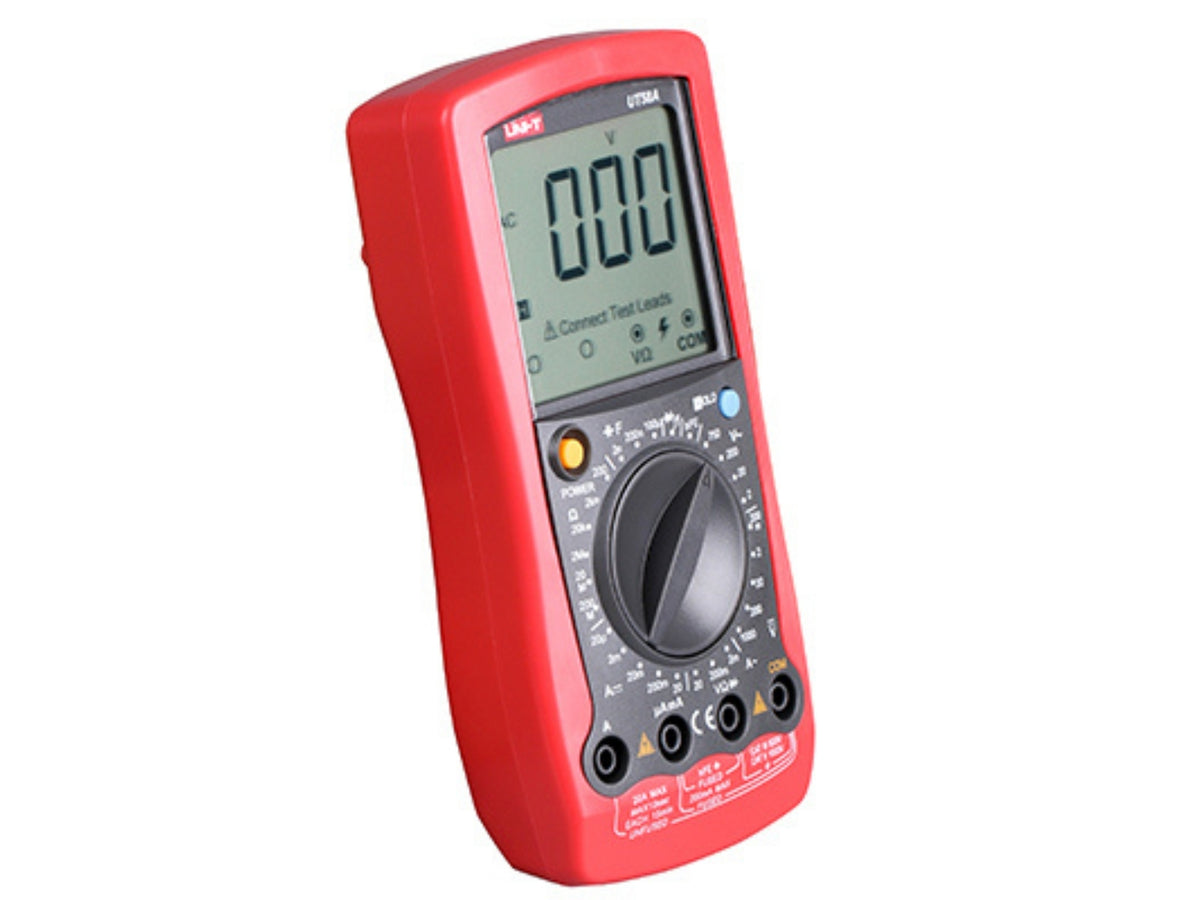

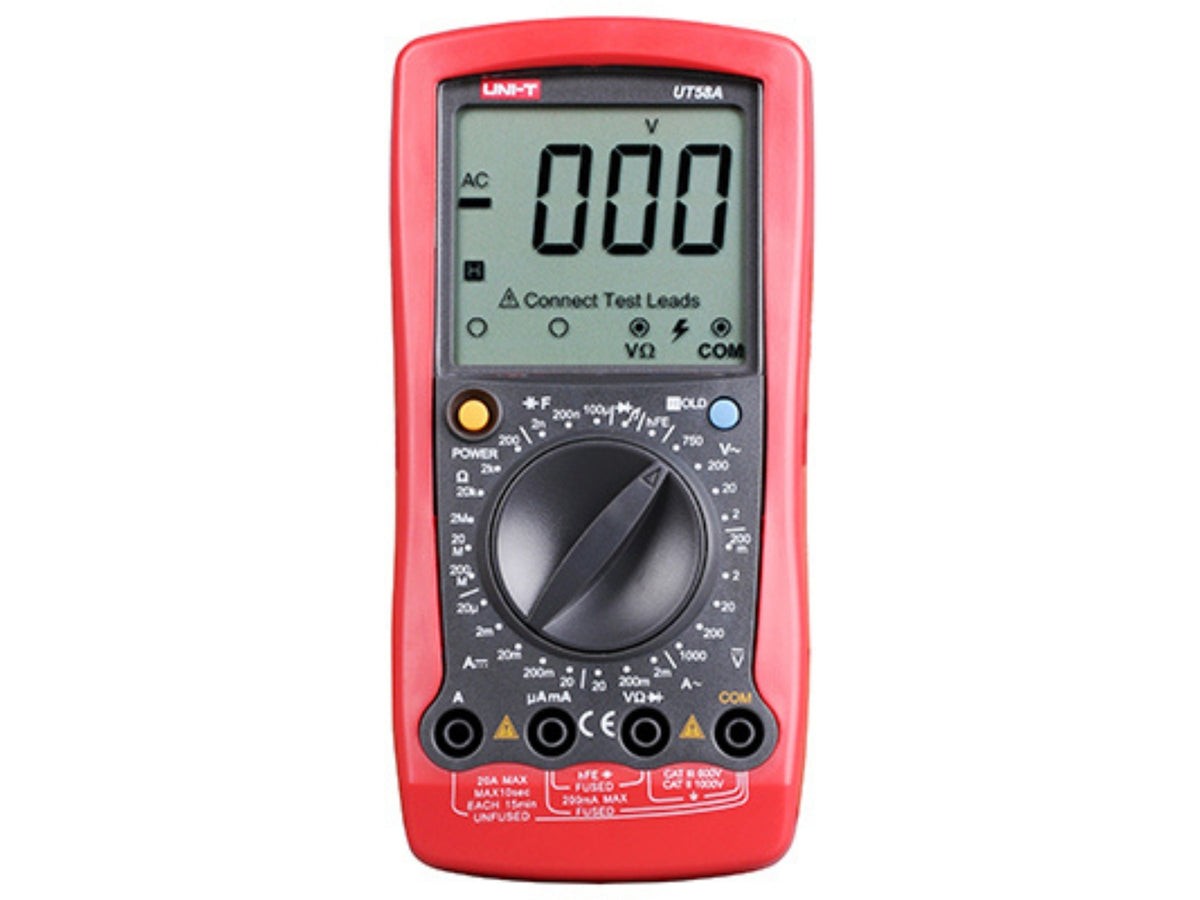

The UNI-T UT58A is a manual-ranging digital multimeter for measuring AC/DC voltage, AC/DC current, resistance and capacitance. Its large display, 20A current capacity and component-testing functions make it suitable for electrical, electronic and appliance maintenance.
Key Features
- Manual-ranging operation with a 2000-count digital display
- Measures DC voltage up to 1000V and AC voltage up to 750V
- Measures AC and DC current up to 20A
- Measures resistance up to 200MΩ and capacitance up to 100μF
- Includes diode, transistor and audible continuity testing
Product Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT58A |
| Meter Type | Manual-ranging digital multimeter |
| Display Count | 2000 counts |
| Measurement Response | Average responding |
| DC Voltage Range | 200mV / 2V / 20V / 200V / 1000V |
| DC Voltage Accuracy | ±(0.5% + 1 digit) |
| AC Voltage Range | 2V / 20V / 200V / 750V |
| AC Voltage Accuracy | ±(0.8% + 3 digits) |
| DC Current Range | 20μA / 2mA / 20mA / 200mA / 20A |
| DC Current Accuracy | ±(0.8% + 1 digit) |
| AC Current Range | 2mA / 200mA / 20A |
| AC Current Accuracy | ±(1% + 3 digits) |
| Resistance Range | 200Ω / 2kΩ / 20kΩ / 2MΩ / 20MΩ / 200MΩ |
| Resistance Accuracy | ±(0.8% + 1 digit) |
| Capacitance Range | 2nF / 200nF / 100μF |
| Capacitance Accuracy | ±(4% + 3 digits) |
| Component Testing | Diode and transistor test |
| Continuity Test | Audible buzzer |
| Additional Functions | Data hold, automatic power-off, low-battery indication and input-port connection guidance |
| Input Impedance | ≥10MΩ |
| Certifications | CE and RoHS |
| Power Supply | 1 × 9V battery (6F22) |
| LCD Size | 60 × 54mm |
| Dimensions | 179 × 88 × 39mm |
| Net Weight | Approximately 350g with protective holster |
Applications
- Electrical installation and maintenance measurements
- Electronic circuit and component testing
- Domestic appliance servicing and troubleshooting
- Workshop, laboratory and educational use
Included Components
- UNI-T UT58A digital multimeter
- Test leads
- Multi-purpose test socket
- Protective holster
- 9V battery
- User documentation
- Instruction Manual Download
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
