UNI-T Sound Level Meter, 30-130 dB, A & C Weighting, Data Logging – UT352

SKU: 003098
(0)
€121,75 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

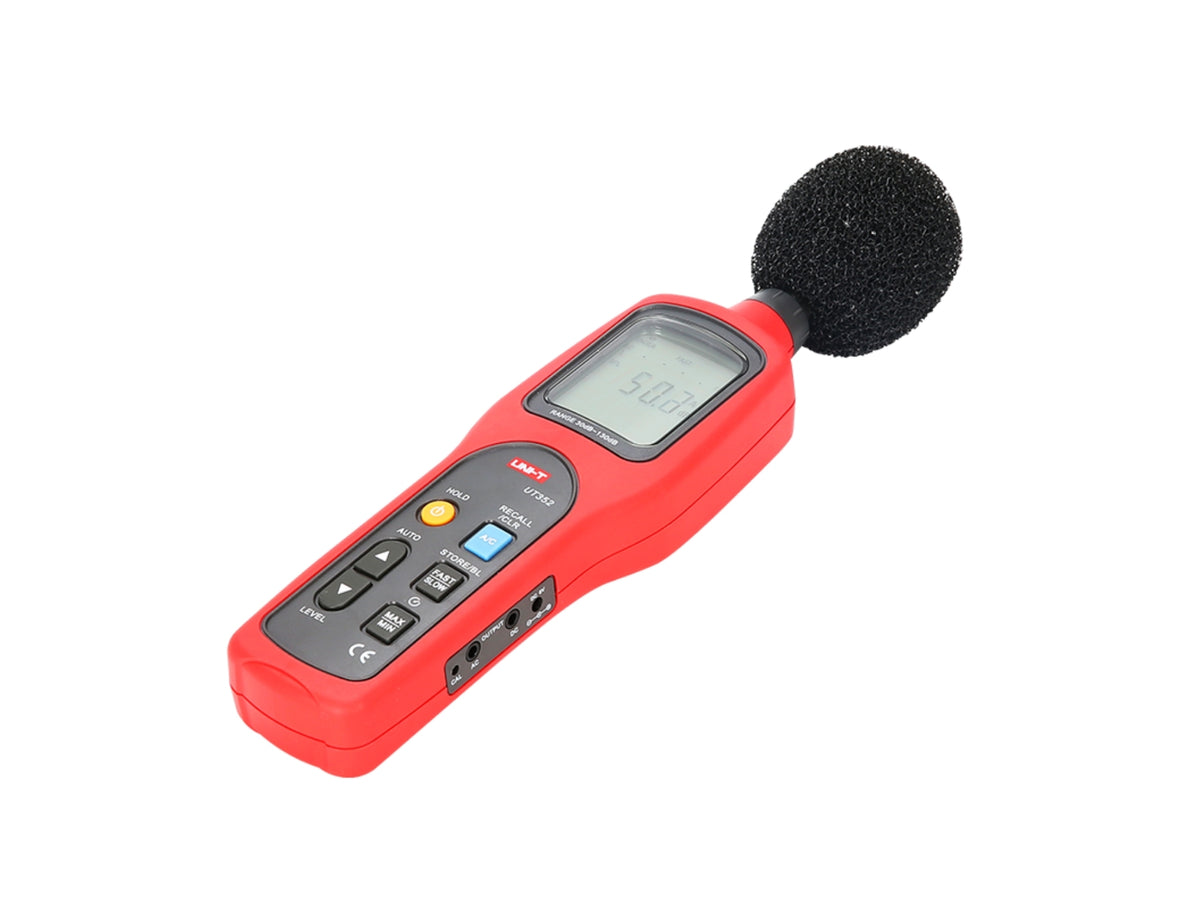

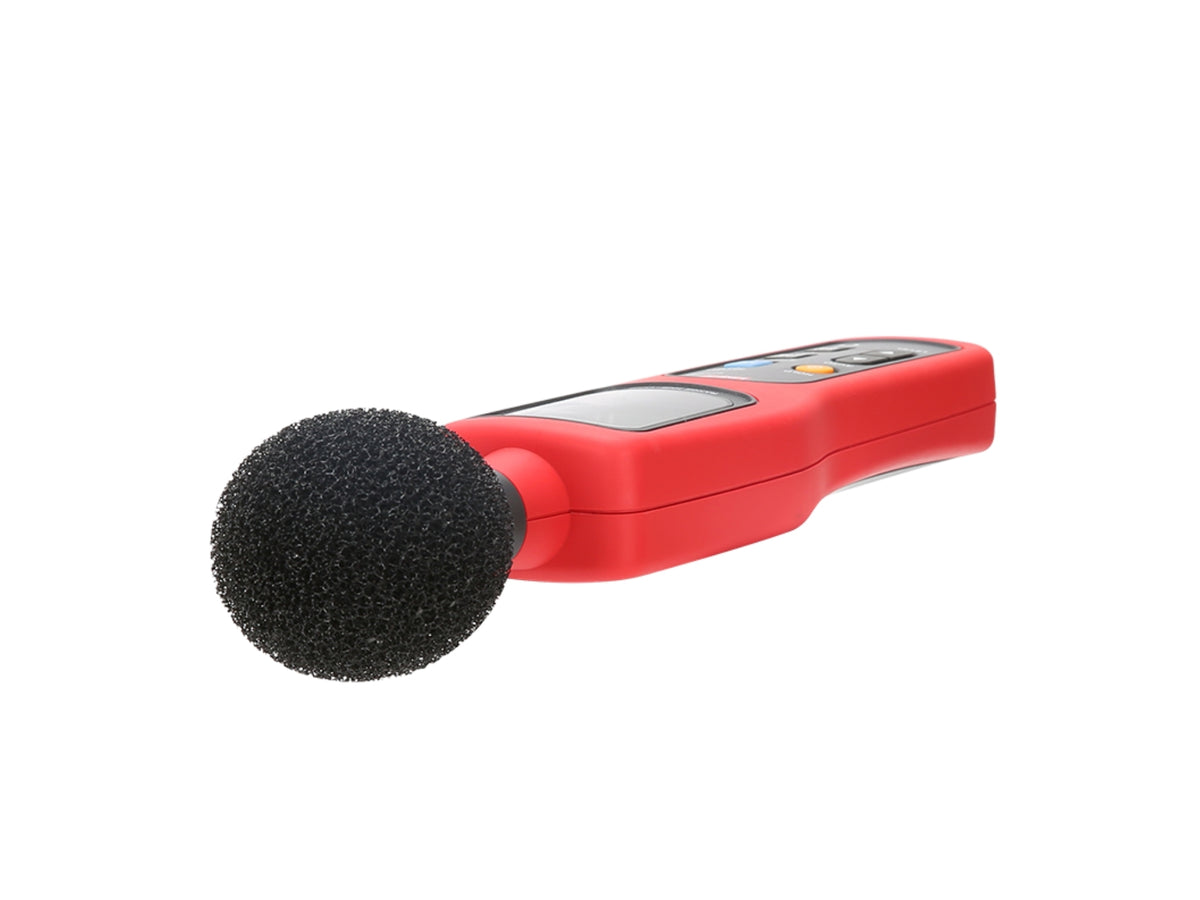

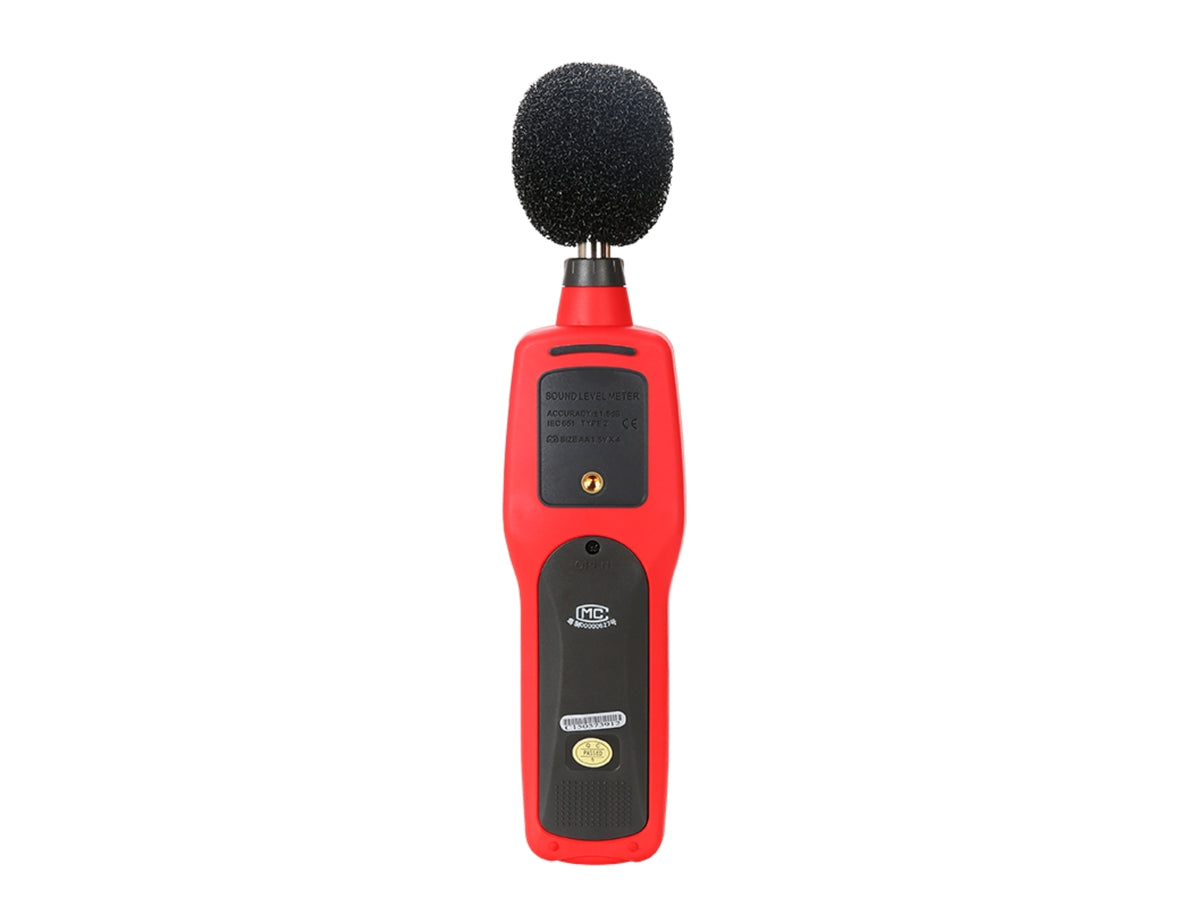

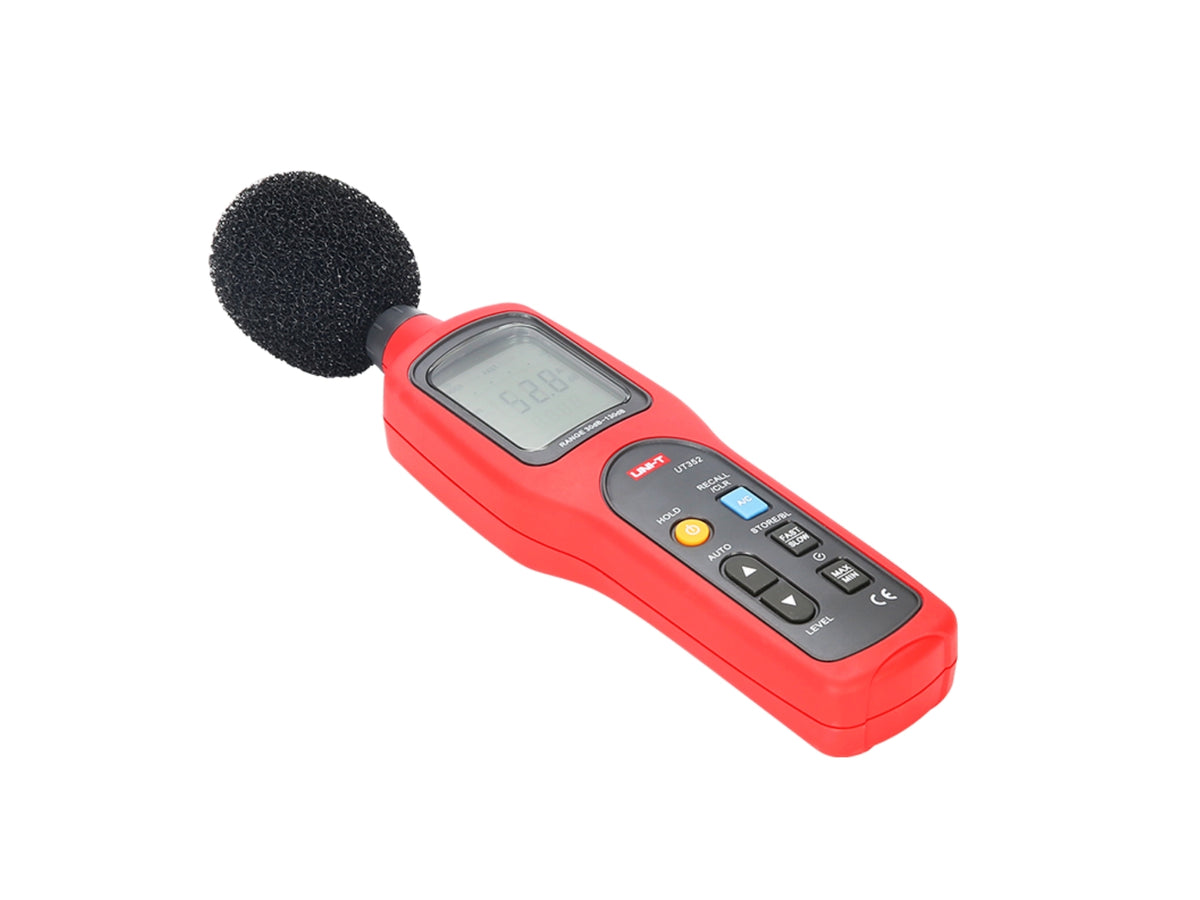

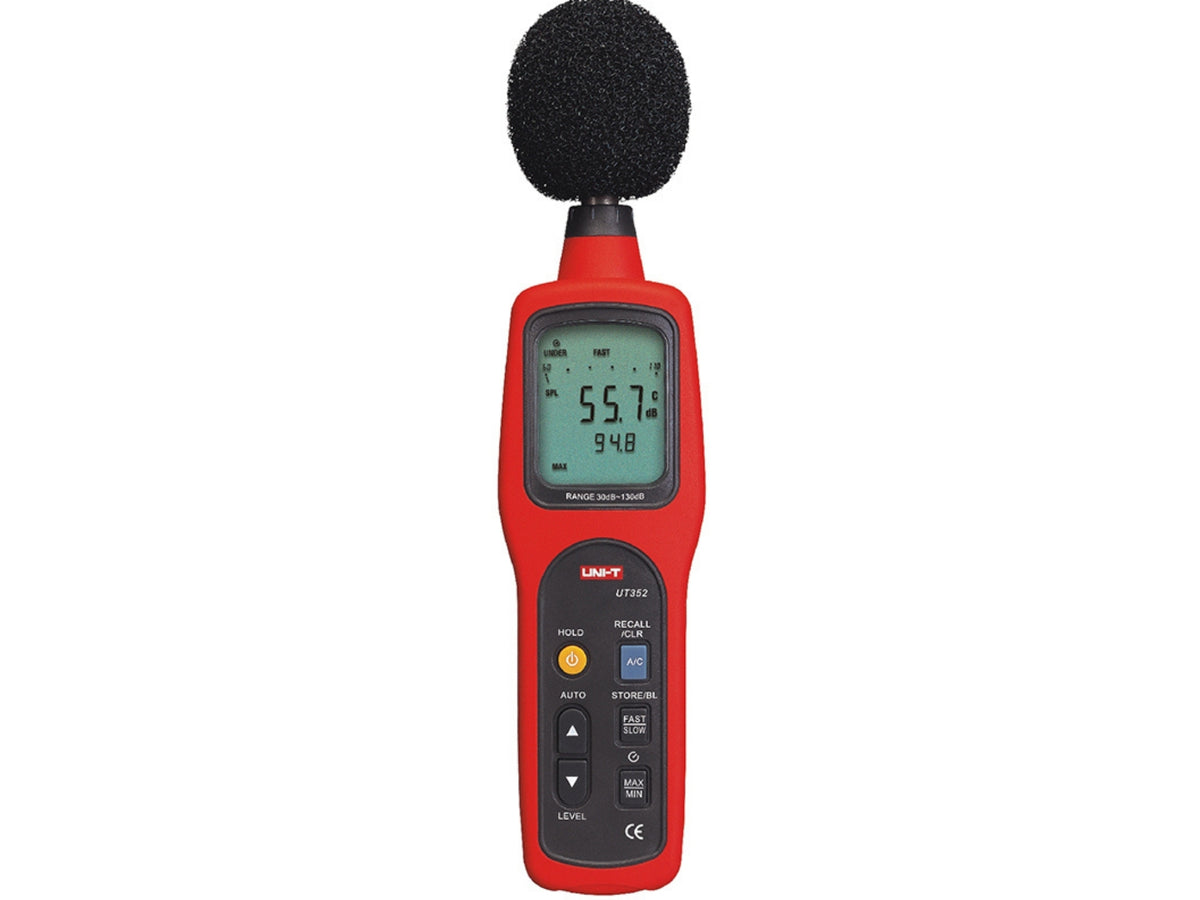

The UNI-T UT352 is a digital sound level meter covering a 30–130 dB measurement range with ±1.5 dB accuracy. It provides A/C frequency weighting, FAST/SLOW response, 63-record storage and AC/DC analogue outputs for industrial and environmental noise assessment.

Key Features

  • Measures sound levels from 30 dB to 130 dB with ±1.5 dB accuracy
  • Selectable A and C frequency weighting for environmental and high-level noise assessment
  • FAST 125 ms and SLOW 1-second response settings
  • Stores up to 63 readings with MAX, MIN and data hold functions
  • AC and DC analogue outputs for connection to analysers and recording equipment

Product Specifications

Parameter Range / Specification Basic Accuracy
Sound Level Range 30 dB to 80 dB ±1.5 dB
Sound Level Range 50 dB to 100 dB ±1.5 dB
Sound Level Range 60 dB to 110 dB ±1.5 dB
Sound Level Range 80 dB to 130 dB ±1.5 dB
Frequency Range 31.5 Hz to 8 kHz —
Frequency Weighting A and C weighting
FAST Response 125 ms; 8 samples per second
SLOW Response 1 second; 1 sample per second
Microphone 1/2-inch condenser microphone
Ranging Mode Automatic or manual ranging
Data Storage 63 readings
AC Analogue Output 0.707 Vrms at full scale; output impedance approximately 600 Ω
DC Analogue Output 2 V at full scale; 10 mV/dB; output impedance approximately 100 Ω
Display Functions MAX, MIN, data hold, LCD backlight and analogue bar graph
Range Indication OVER and UNDER indications
Automatic Power-Off Supported; function can be disabled
Continuous Operating Time Up to approximately 20 hours
Power Supply 4 × 1.5 V AA batteries or compatible external power source
Certification CE
LCD Dimensions 53 × 41 mm
Product Dimensions 273 × 70 × 39 mm
Product Weight Approximately 330 g
Product Colour Red and grey

Applications

  • Industrial machinery and production-area noise measurement
  • Workplace, building and environmental noise assessment
  • Vehicle, marine and electrical equipment noise testing
  • Quality control, equipment maintenance and acoustic analysis

Included Components

  • UNI-T UT352 sound level meter
  • Microphone windscreen
  • Protective carrying case
  • 4 × 1.5 V AA batteries
  • User manual and warranty documentation
