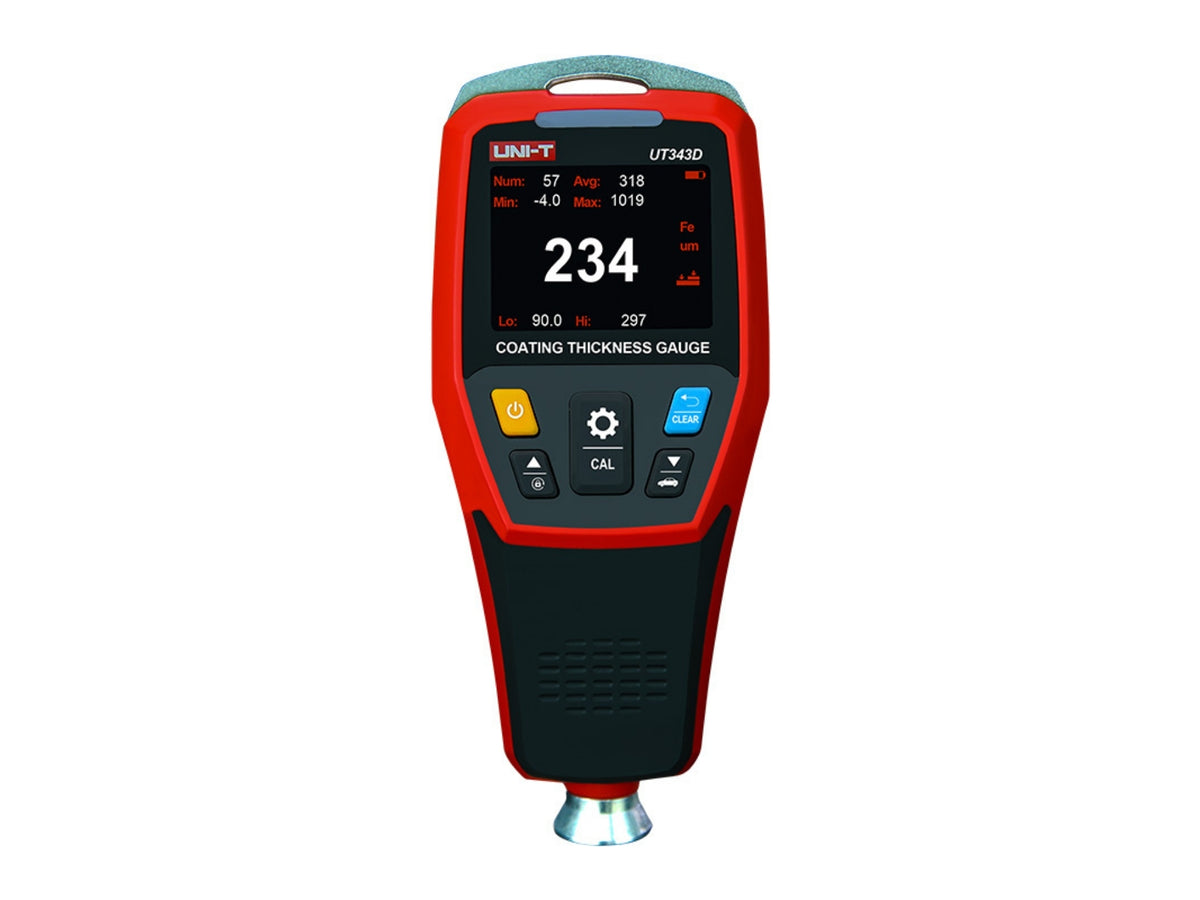

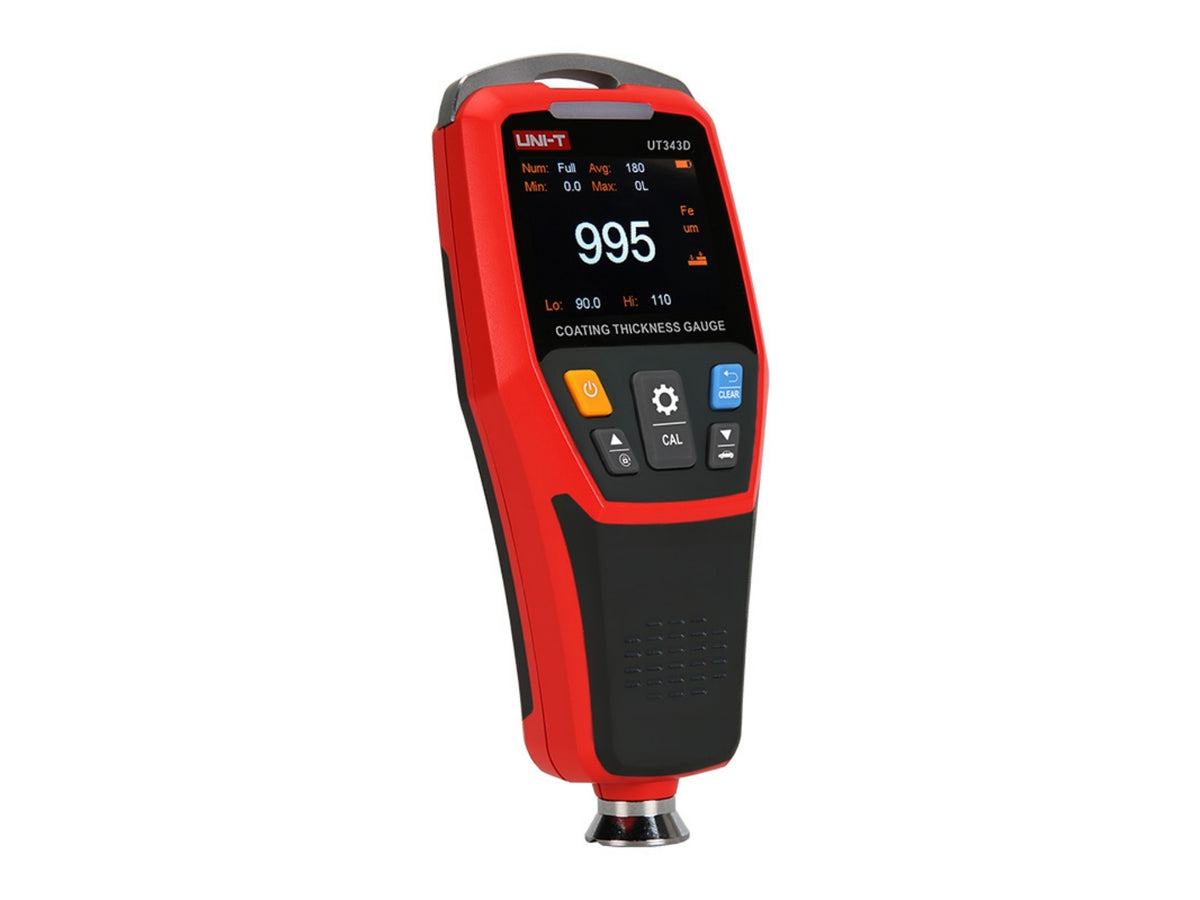

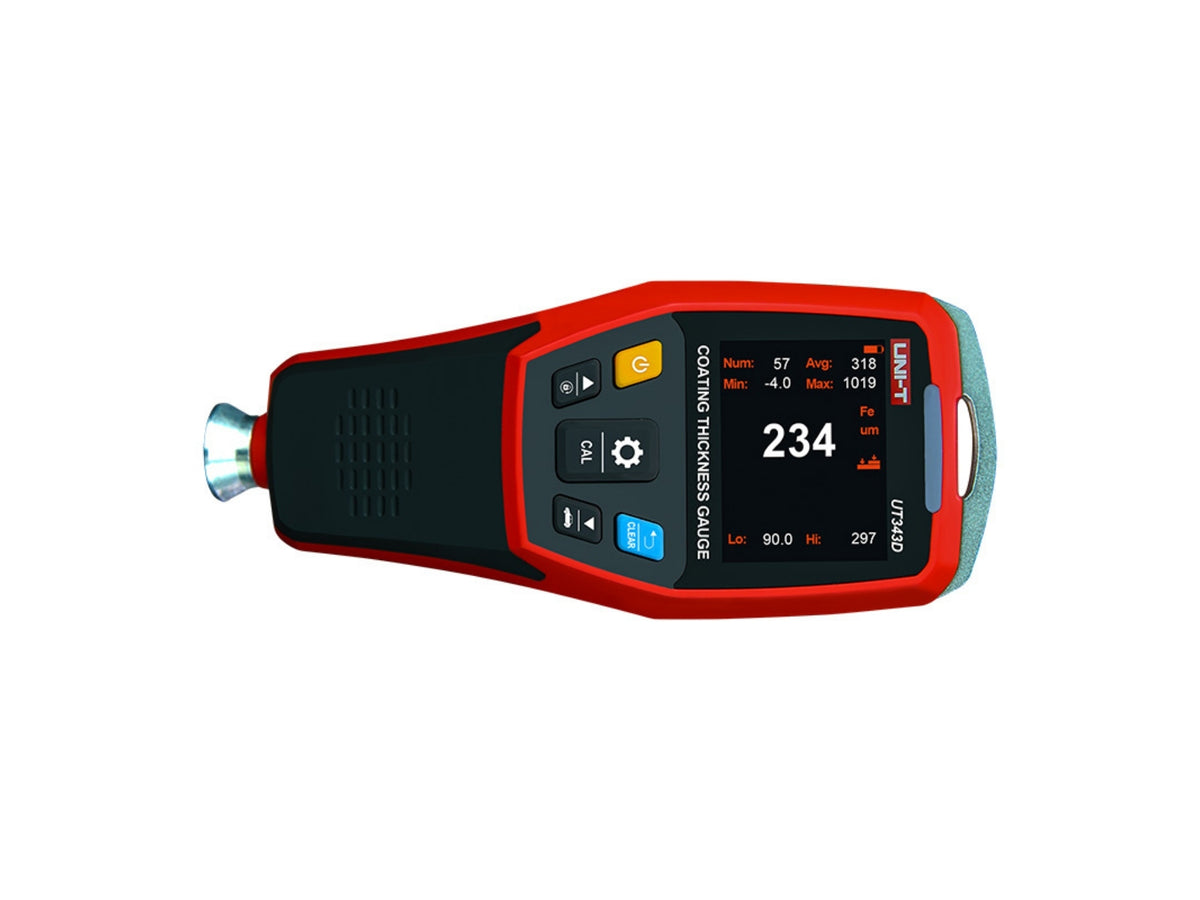

The UNI-T UT343D measures coating thickness from 0 to 1250μm on ferrous and non-ferrous metal substrates. It combines single or continuous measurement, MAX/MIN/AVG modes, quick test alarms, 500-set data storage and USB PC analysis for coating inspection and quality control.
| Product Type | Coating Thickness Gauge |
|---|---|
| Model | UT343D |
| Metal Type | Ferrous / Non-ferrous |
| Measuring Range | 0–1250μm |
| Accuracy | ±(3%H + 1)μm |
| Resolution | 0.1μm (0–99.9μm); 1μm (100–1250μm) |
| Measurement Method | Single / Continuous |
| Measurement Modes | MAX / MIN / AVG |
| Display | 2.0-inch TFT LCD, 320 × 240 pixels |
| Data Storage | 500 groups |
| Connectivity | USB communication and PC analysis software |
| Unit Selection | μm / mil |
| Power Supply | 1.5V AA batteries × 2 |
| Product Dimensions | 153.5 × 64.5 × 41mm |
| Net Weight | 175g |
| Certifications | CE, UKCA |
Connect the UT343D to a computer through its Micro USB interface for compatible PC analysis software and stored measurement data transfer.
