Home » UNI-T Phase Sequence & Motor Rotation Indicator, 90–600 V – UT261B
UNI-T

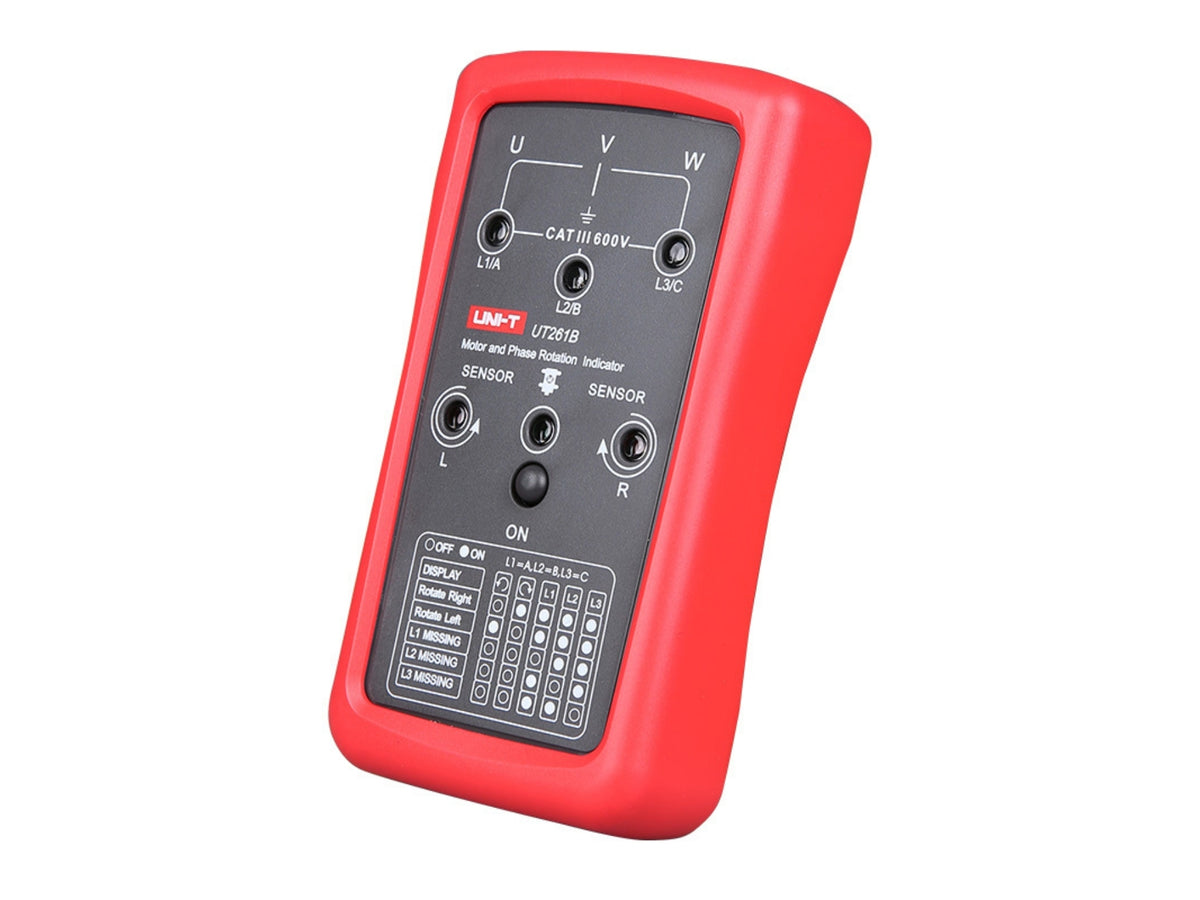

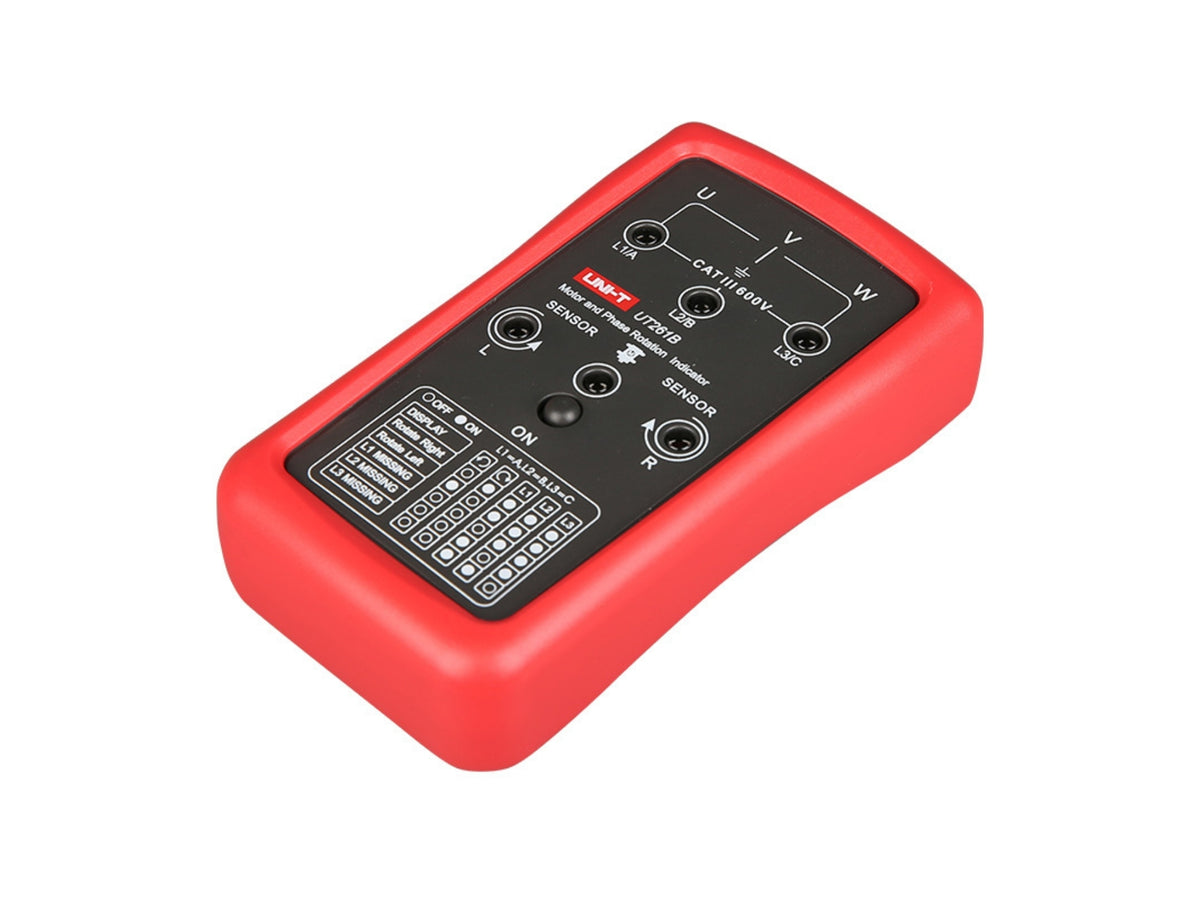

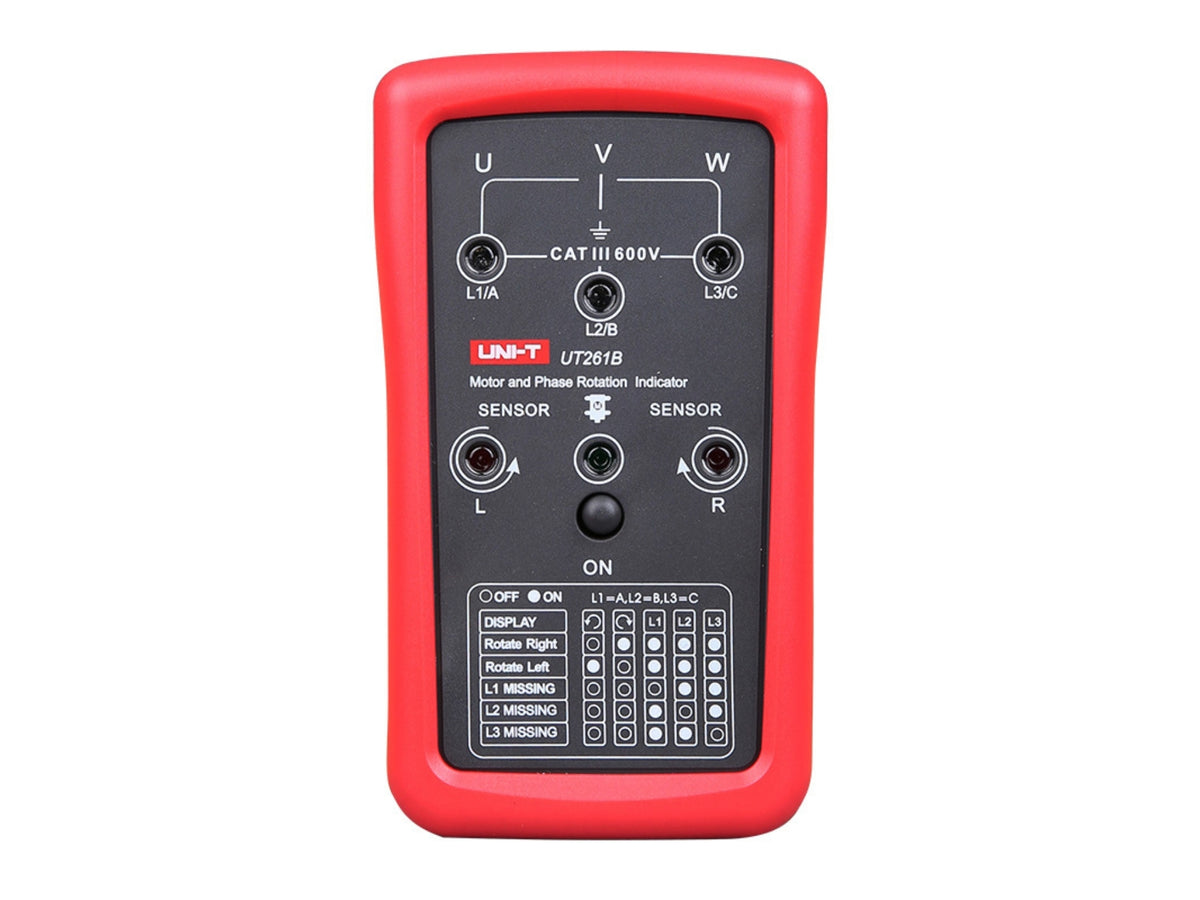

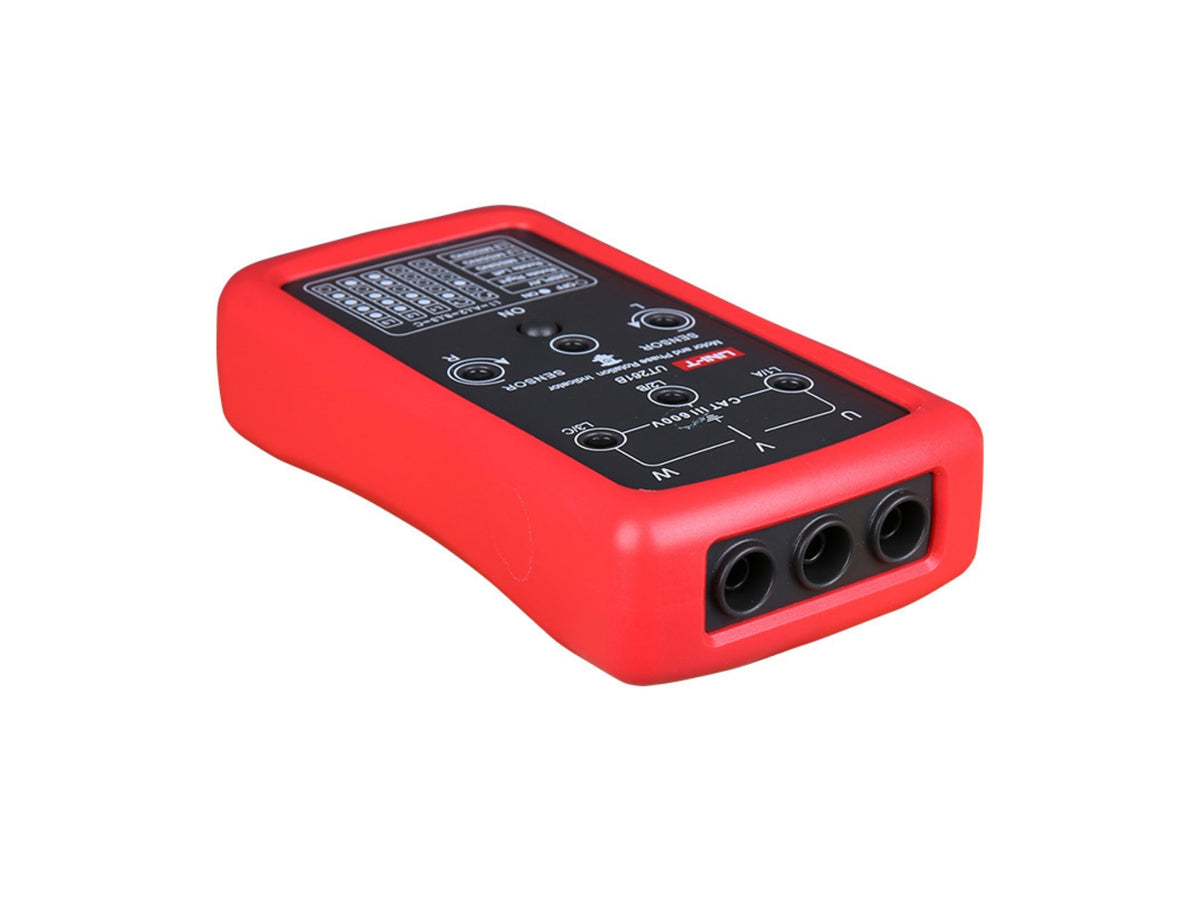

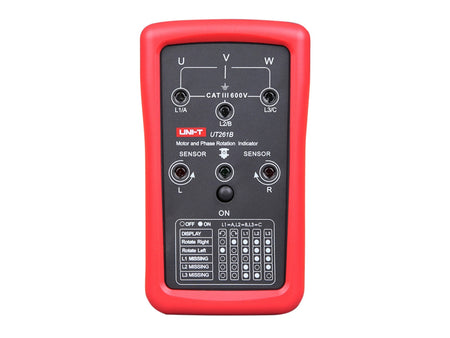

UNI-T Phase Sequence & Motor Rotation Indicator, 90–600 V – UT261B

SKU: 003179
(0)
€49,42 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

UNI-T UT261B detects three-phase phase sequence, missing phase, and motor rotation direction across 90–600V AC and 15–400Hz. LED indication, non-contact motor rotation detection, CAT III 600V protection, and rugged 2m drop resistance support electrical installation and maintenance.

Key Features

  • 90–600V AC phase sequence testing
  • 15–400Hz frequency range
  • Missing phase indication
  • Motor rotation direction indication
  • Non-contact motor rotation detection
  • LED status indication
  • CAT III 600V and IP40 protection
  • 2m drop resistance

Product Specifications

Model UT261B
Product Type Phase sequence and motor rotation indicator
AC Voltage Range 90–600V
Frequency Range 15–400Hz
Phase Sequence Indication LED
Missing Phase Indication LED
Motor Rotation Indication LED
Safety Rating CAT III 600V
Ingress Protection IP40
Power Supply 1 × 9V 6F22 battery
Product Size 123 × 71 × 29mm
Net Weight Approx. 180g

Applications

  • Three-phase power installation checks
  • Motor rotation verification
  • Missing-phase troubleshooting
  • Electrical panel commissioning
  • Industrial equipment maintenance

Included Components

  • 9V battery
  • Three alligator-clip test leads
  • Carrying bag
  • User manual
