| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT220 |
| Meter Type | Digital AC clamp meter |
| AC Current Range | Up to 2000A |
| AC Current Accuracy | ±(2.5% + 5 digits) |
| DC Current Measurement | No |
| AC Voltage Range | Up to 750V |
| AC Voltage Accuracy | ±(1.2% + 5 digits) |
| DC Voltage Range | Up to 1000V |
| DC Voltage Accuracy | ±(0.8% + 1 digit) |
| Resistance Range | Up to 20MΩ |
| Resistance Accuracy | ±(1% + 2 digits) |
| Display Count | 2000 counts |

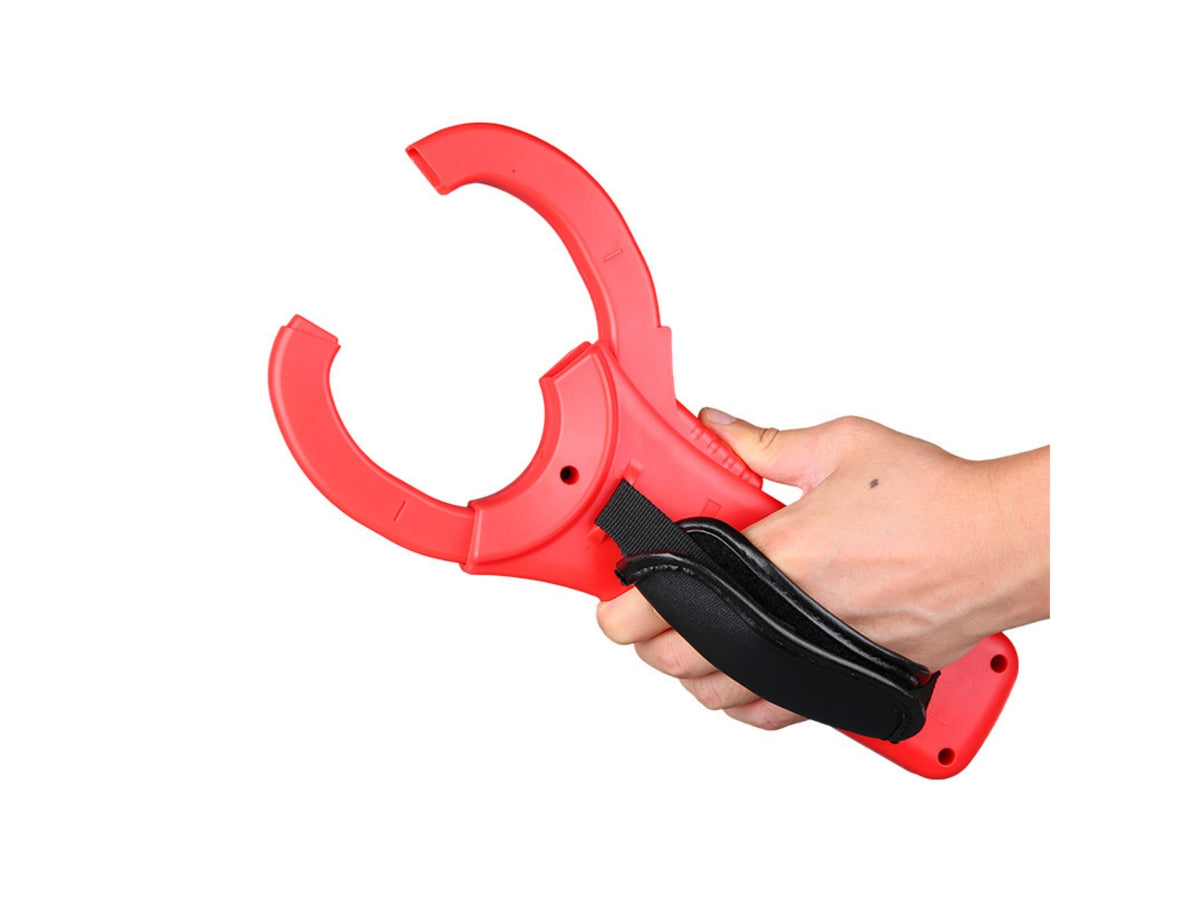

| Jaw Opening | 63mm |
| Ranging | Automatic |
| Additional Test Functions | Diode test and audible continuity test |
| Additional Functions | Data hold, maximum/minimum values and low-battery indication |
| True RMS | No |
| Input Impedance | ≥10MΩ |
| Safety Category | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA and cETLus |
| Power Supply | 1 × 9V battery (6F22) |
| Display Size | 43 × 30mm |
| Dimensions | 298 × 107 × 47mm |
| Net Weight | Approximately 389g |
