UNI-T Digital AC Clamp Meter, 400 A, 4000 Counts, Capacitance & NCV – UT213A
Regular price
€37,45
VAT included
Couldn't load pickup availability
Got questions, ask an expert!

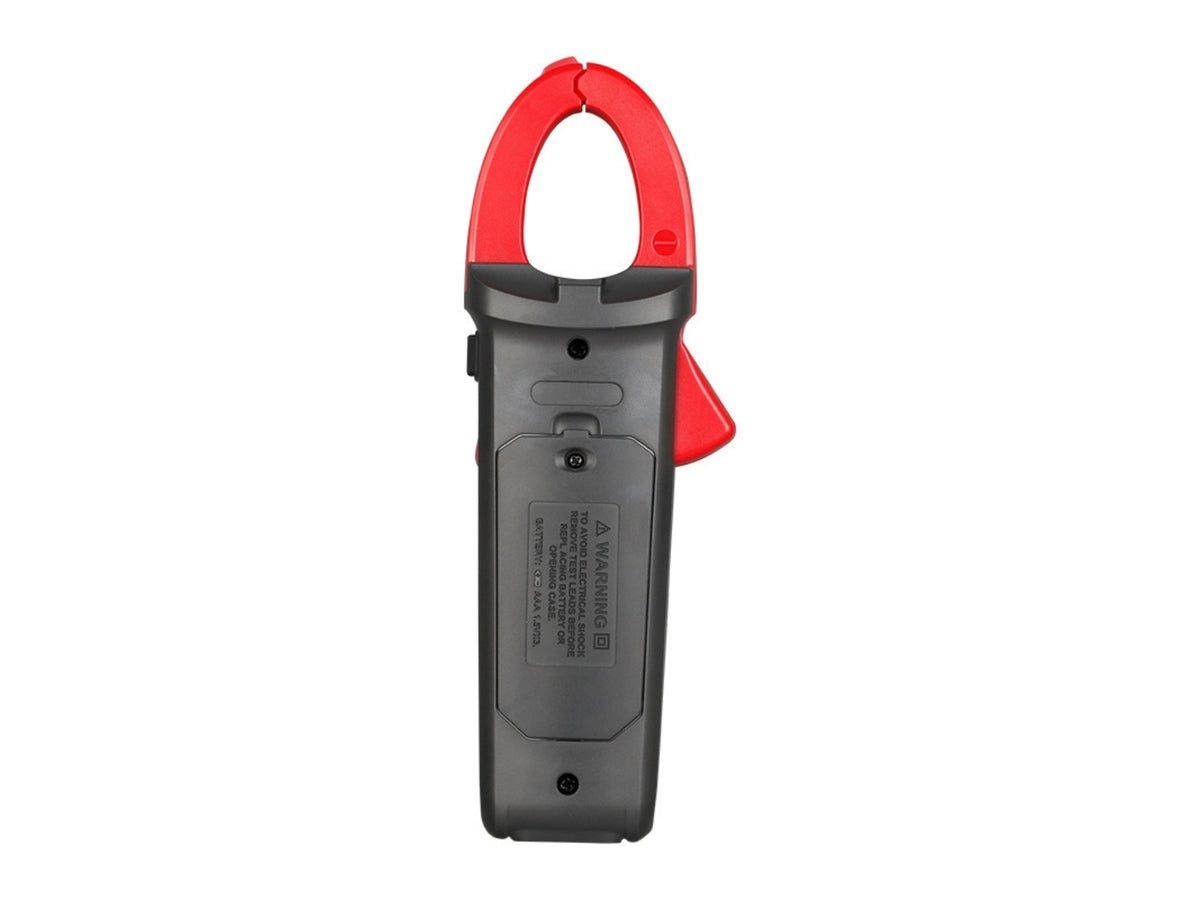

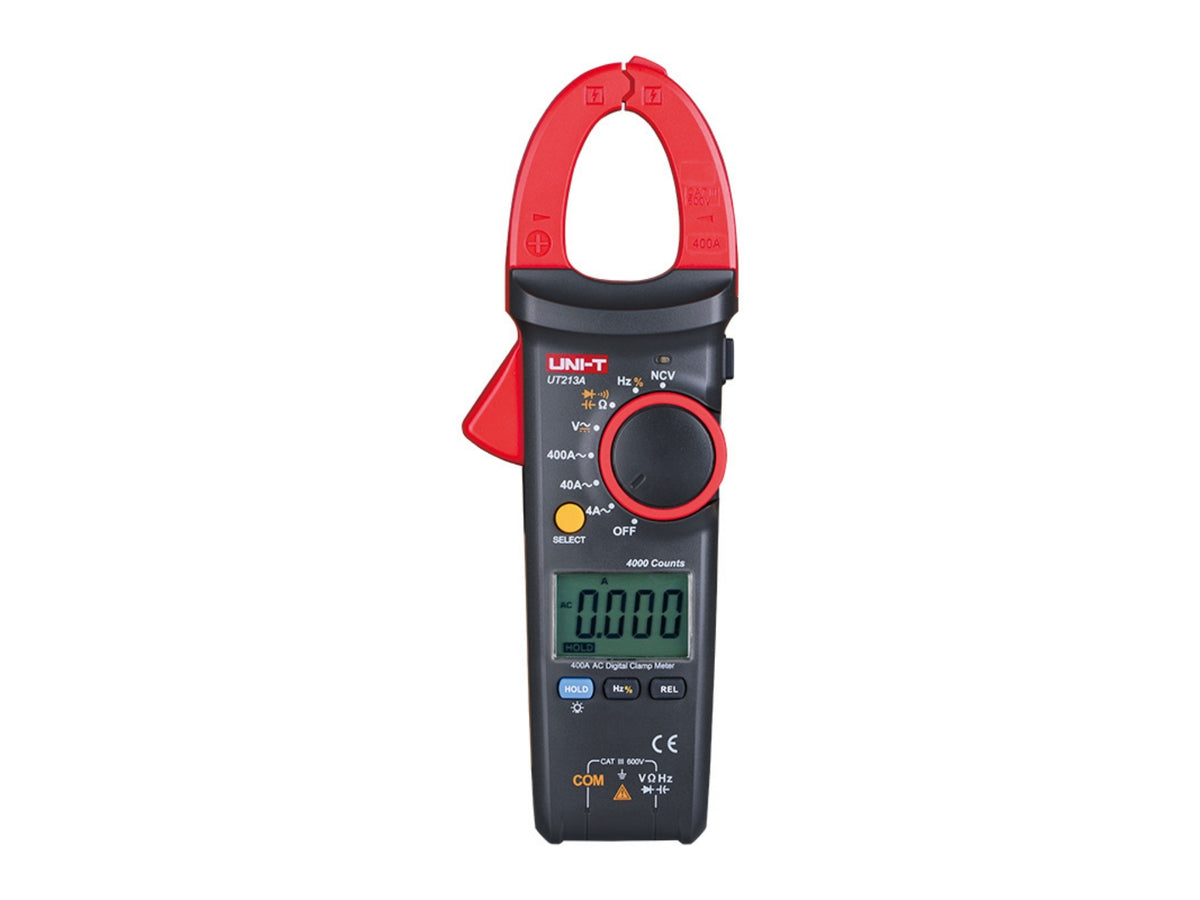

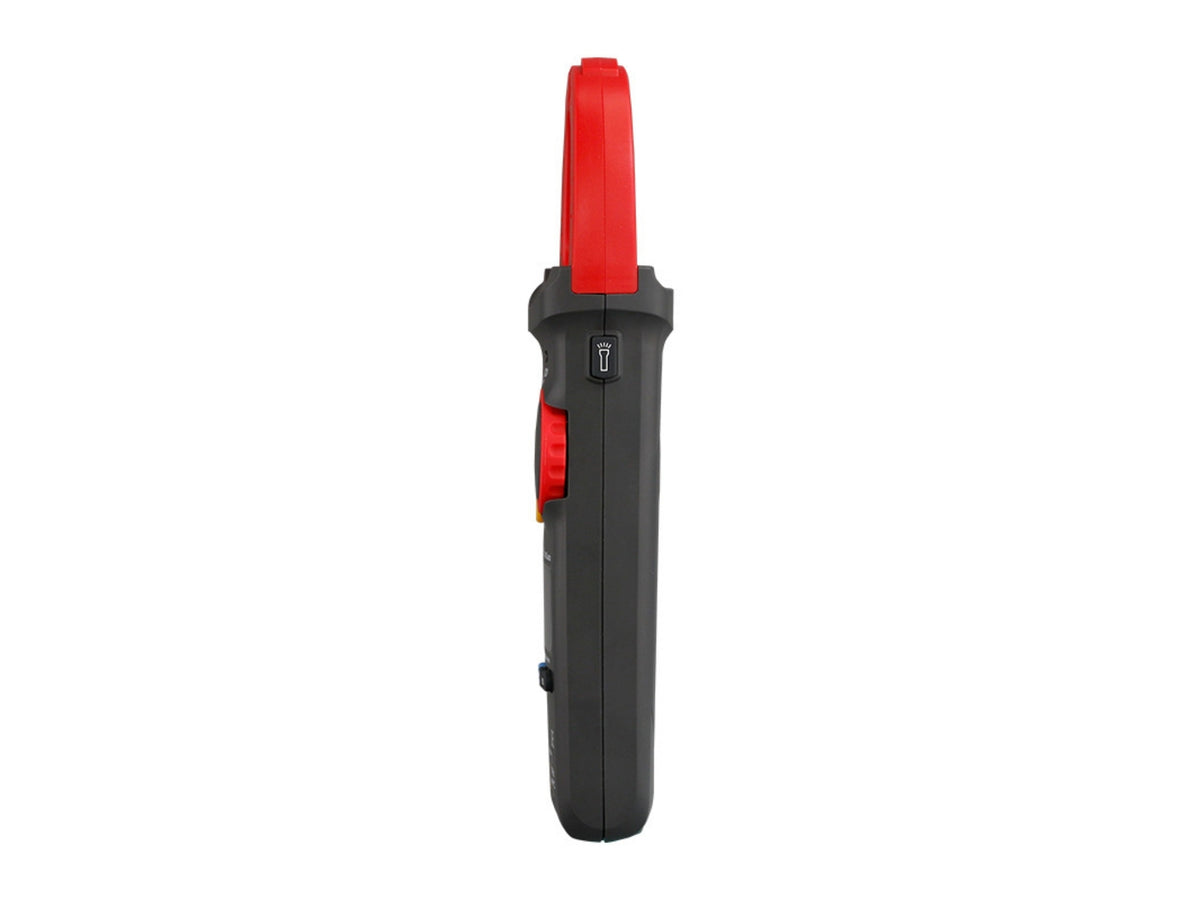

The UNI-T UT213A is an automatic-ranging digital clamp meter for measuring alternating current up to 400A through a 30mm jaw. It also measures AC/DC voltage, resistance, capacitance and frequency, with NCV detection for everyday electrical inspection and maintenance.
Key Features
- Measures alternating current up to 400A through a 30mm jaw
- Measures AC/DC voltage, resistance, capacitance and frequency
- Non-contact voltage detection for identifying energised conductors
- Automatic ranging with data hold and relative measurement modes
- Integrated LCD backlight and work light for low-light environments
Product Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT213A |
| Meter Type | Digital AC clamp meter |
| AC Current Range | 4A / 40A / 400A |
| AC Current Accuracy | ±(1.8% + 9 digits) |
| DC Current Measurement | No |
| AC Voltage Range | 4V / 40V / 400V / 600V |
| AC Voltage Accuracy | ±(1.2% + 5 digits) |
| DC Voltage Range | 400mV / 4V / 40V / 400V / 600V |
| DC Voltage Accuracy | ±(0.8% + 1 digit) |
| Resistance Range | 400Ω to 40MΩ |
| Capacitance Range | 50nF to 100μF |
| Frequency Range | 10Hz to 1MHz |
| Display Count | 4000 counts |
| Measurement Response | Average responding |
| Jaw Opening | 30mm |
| Ranging | Automatic |
| Voltage Detection | NCV non-contact voltage detection |
| Additional Test Functions | Diode test and audible continuity test |
| Additional Functions | Data hold, relative mode, LCD backlight, work light and automatic power-off |
| Input Impedance | ≥10MΩ |
| Safety Category | CAT III 600V |
| Certifications | CE, UKCA and cETLus |
| Power Supply | 3 × 1.5V AAA batteries |
| Dimensions | 220 × 75 × 40mm |
| Net Weight | Approximately 280g |
Applications
- Electrical installation inspection and troubleshooting
- Distribution-board and electrical panel maintenance
- HVAC/R electrical system servicing
- Commercial and light-industrial equipment maintenance
Included Components
- UNI-T UT213A digital AC clamp meter
- Test leads
- 3 × 1.5V AAA batteries
- Carrying bag and user documentation
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
