UNI-T True RMS Mini AC Clamp Meter, 200 A, 2000 Counts, 16 mm Jaw – UT210B

SKU: 003109
(0)
€26,22 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

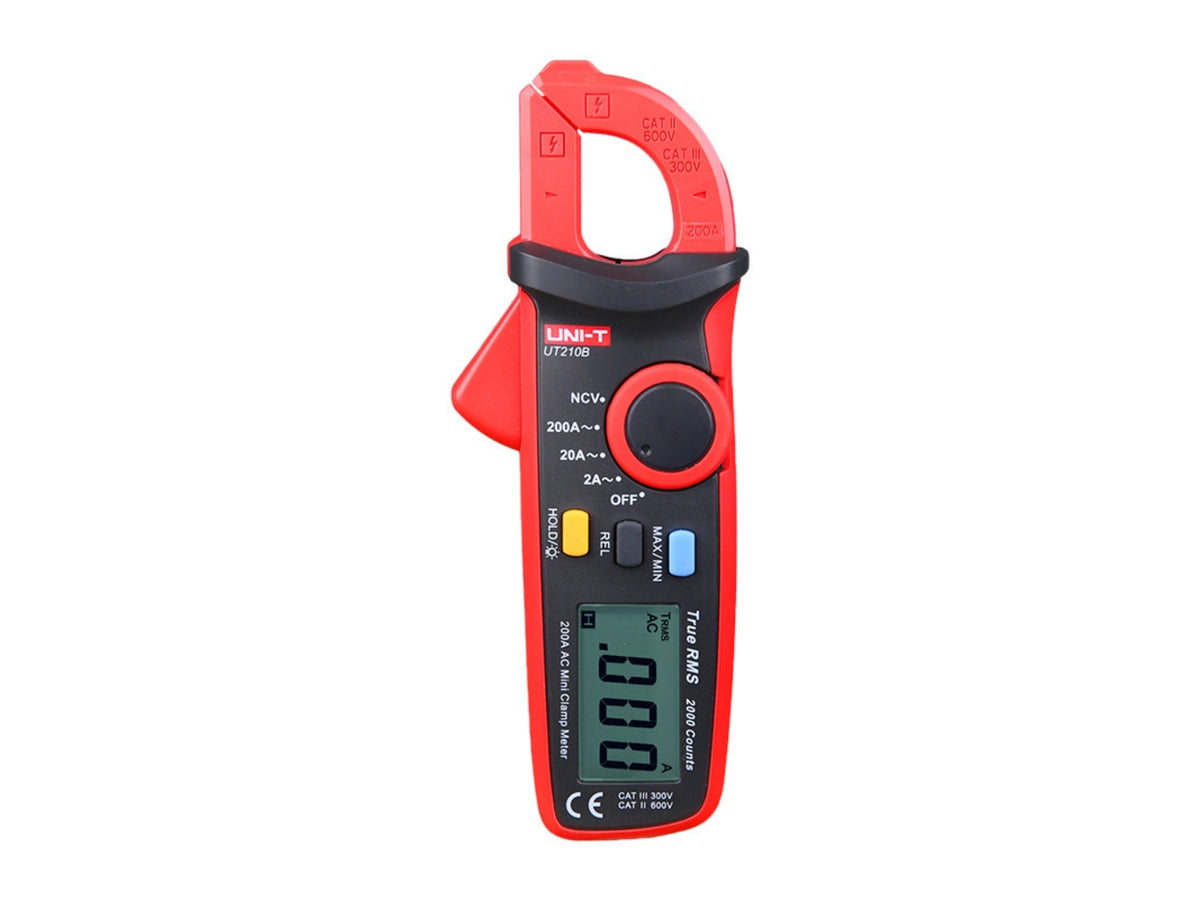

The UNI-T UT210B is a compact True RMS clamp meter for non-contact AC current measurement up to 200A. Its narrow jaw, NCV detection and MAX/MIN functions make it suitable for electrical maintenance and measurements in confined spaces.

Key Features

  • True RMS measurement provides reliable AC current readings on both sinusoidal and non-sinusoidal signals.
  • Measures AC current across 2A, 20A and 200A ranges without disconnecting the conductor.
  • Compact body and approximately 16mm jaw opening provide easier access to conductors in confined panels and crowded wiring.
  • Integrated NCV function enables non-contact detection of nearby AC electric fields.
  • MAX/MIN, relative and Data Hold functions are supported by a 2000-count backlit display and automatic power-off.

Product Specifications

AC Current Measurement
Measurement Type True RMS AC current
Current Ranges 2A / 20A / 200A AC
Maximum Current 200A AC
Resolution 1mA / 10mA / 100mA
Basic Accuracy ±(2.5% + 20 digits)
Sampling Rate Approximately 2–3 readings per second
Display and Functions
Maximum Display 2000 counts
Jaw Opening Approximately 16mm
NCV Detection Non-contact AC electric-field detection
Measurement Functions MAX/MIN, relative mode and Data Hold
LCD Backlight Yes
Automatic Power-Off After approximately 15 minutes
Low-Battery Indication Yes
Input Protection Full-range overload protection
General
Safety Category CAT II 600V / CAT III 300V
Power Supply 2 × 1.5V AAA batteries
LCD Size 39.3 × 26.5mm
Product Dimensions 158 × 60 × 33.5mm
Net Weight Approximately 150g, including batteries
Product Colour Red and grey
Certifications CE, UKCA and cETLus

Applications

  • AC current measurement in compact distribution boards and control panels.
  • Maintenance of household appliances and small electrical equipment.
  • Inspection of motor controls, power supplies and branch circuits.
  • Electrical installation, troubleshooting and routine maintenance in confined spaces.

Included Components

  • UNI-T UT210B True RMS mini AC clamp meter
  • 2 × 1.5V AAA batteries
  • User manual

Function Note: The UT210B measures AC current only. It does not measure DC current, voltage or resistance.
