| Specification | Details |
|---|---|
| Brand | UNI-T |

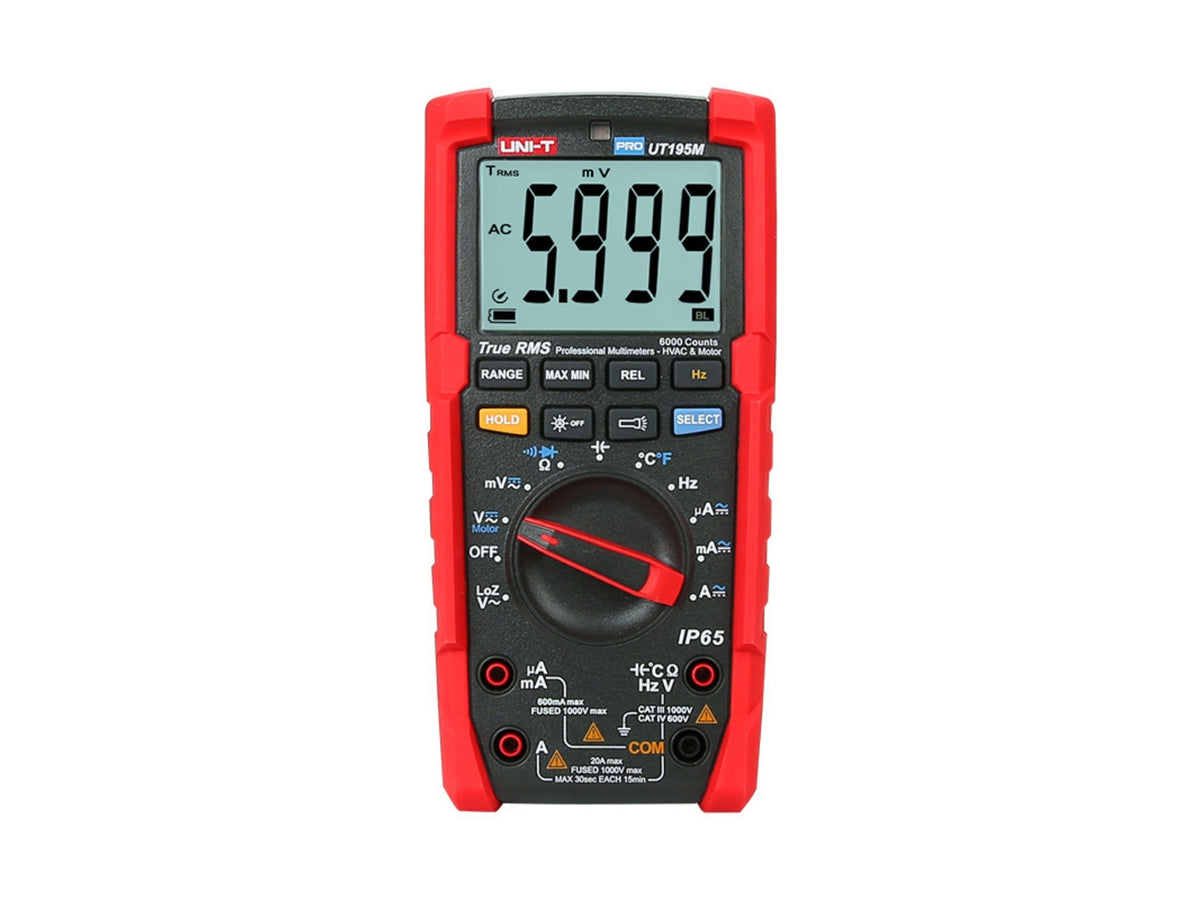

| Model | UT195M |
| Product Type | Industrial True RMS digital multimeter |
| Display Count | 6000 |
| Display Type | Single LCD with automatic backlight |
| True RMS | Yes |
| DC Voltage | Up to 1000 V, ±(0.2% of reading + 5 digits) |
| AC Voltage | Up to 1000 V, ±(1% of reading + 3 digits) |
| LoZ AC Voltage | Up to 600 V, ±(2% of reading + 3 digits) |
| DC Current | Up to 20 A, ±(0.8% of reading + 3 digits) |
| AC Current | Up to 20 A, ±(1% of reading + 3 digits) |
| 20 A Measurement Duration | Maximum 30 seconds |
| Resistance | Up to 60 MΩ, ±(0.8% of reading + 2 digits) |
| Capacitance | Up to 60 mF, ±(3% of reading + 5 digits) |
| Frequency | 60 Hz–40 MHz, ±(0.1% of reading + 4 digits) |
| Temperature Range | -40°C to 1000°C / -40°F to 1832°F |
| Temperature Accuracy | ±(1.5% of reading + 4°C) / ±(2% of reading + 5°F) |
| Three-Phase Motor Sequence Test | Up to 600 V |
| AC Frequency Response | 45 Hz–1 kHz |
| Diode and Continuity Test | Yes |
| Range Selection | Automatic or manual |
| Measurement Functions | MAX/MIN, relative mode and data hold |
| Measurement Sampling Rate | Approximately 3 readings per second |
| Flashlight | Yes |
| Automatic Power-Off | Yes |
| Low-Battery Indication | Yes |
| Ingress Protection | IP65 |
| Drop Protection | 2 m |
| Safety Rating | CAT III 1000 V / CAT IV 600 V |
| Pollution Degree | 2 |
| Power Supply | 1 × 9 V battery |
| LCD Size | 66 × 51 mm |
| Product Dimensions | 195 × 95 × 58 mm |
| Product Net Weight | 437 g |
| Product Colour | Red and grey |
| Certifications | CE, UKCA, GS, cTUVus |
