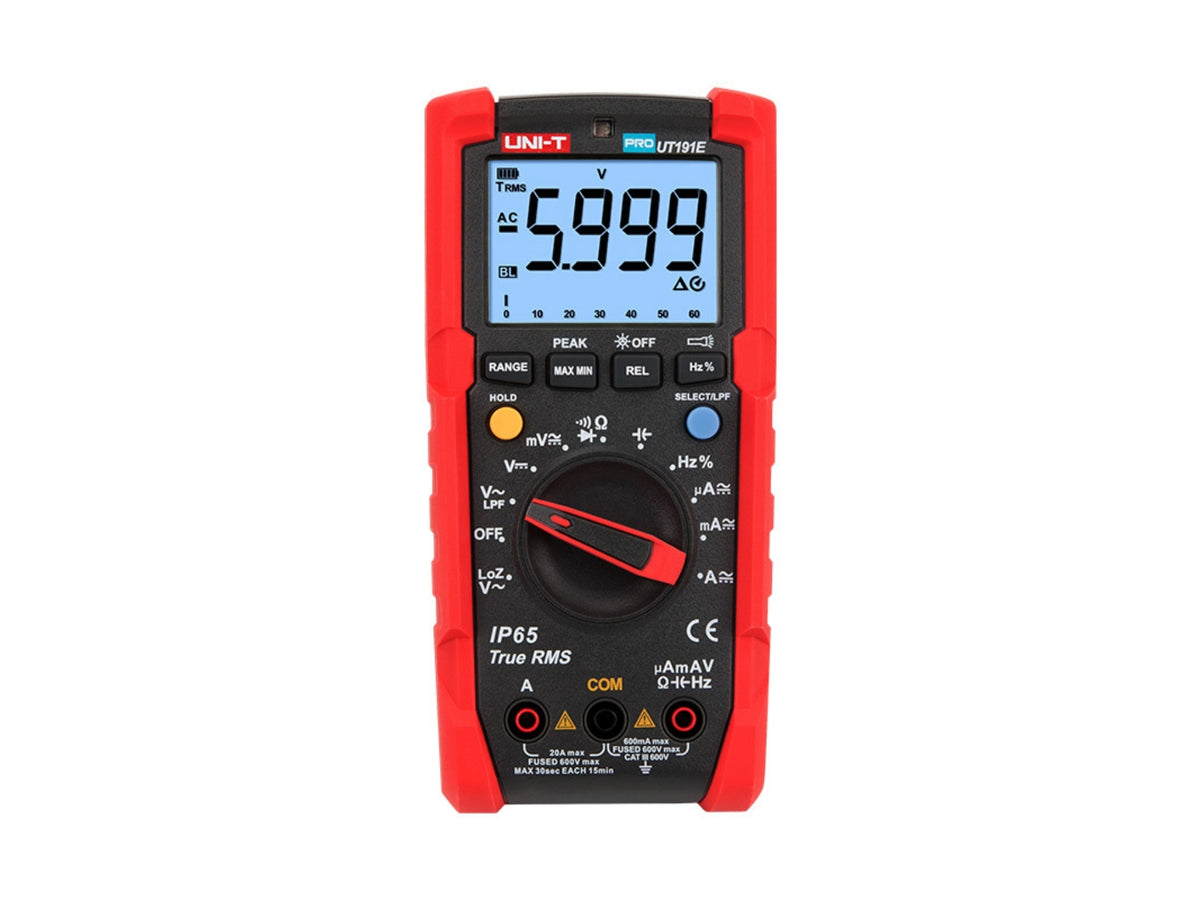

UNI-T Digital Multimeter, 600 V, 20 A, True RMS & IP65 – UT191E
Regular price
€63,73
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
The UNI-T UT191E is a professional True RMS digital multimeter for AC/DC voltage up to 600V, AC/DC current up to 20A, resistance up to 60MΩ and capacitance up to 60mF. Its CAT III 600V, IP65 and 2m drop-proof design supports demanding industrial electrical maintenance and troubleshooting.
Key Features
- Professional True RMS digital multimeter with 6000-count display
- AC/DC voltage measurement up to 600V and AC/DC current measurement up to 20A
- LoZ ACV and LPF ACV functions for identifying ghost voltage and filtering interference
- Peak measurement, 31-section analogue bar and 3-times-per-second sampling
- CAT III 600V, IP65 and 2m drop-proof design for industrial service work
Product Specifications
| Product Type | Professional True RMS Digital Multimeter |
|---|---|
| Model | UT191E |
| Display Count | 6000 |
| Sampling Rate | 3 times/second |
| DC Voltage | Up to 600V; accuracy ±(0.5% + 3) |
| AC Voltage | Up to 600V; accuracy ±(0.7% + 3) |
| LoZ AC Voltage | Up to 600V; accuracy ±(2% + 5) |
| LPF AC Voltage | Up to 600V; accuracy ±(2% + 5) |
| DC Current | Up to 20A; accuracy ±(0.8% + 3) |
| AC Current | Up to 20A; accuracy ±(1% + 3) |
| Resistance | Up to 60MΩ; accuracy ±(0.8% + 2) |
| Capacitance | Up to 60mF; accuracy ±(3% + 5) |
| Frequency | 10Hz–1MHz; accuracy ±(0.1% + 4) |
| Duty Cycle | 0.1%–99.9%; accuracy ±(2% + 5) |
| AC Voltage Frequency Response | 45Hz–400Hz |
| Safety Rating | CAT III 600V |
| Ingress Protection | IP65 |
| Drop Protection | 2m drop test |
| Power Supply | 9V battery |
| LCD Size | 58 × 42mm |
| Product Dimensions | 180 × 87 × 59mm |
| Net Weight | 428g |
| Certifications | CE, UKCA, GS, cTUVus |
Applications
- Industrial electrical maintenance
- Electrical installation and control-panel inspection
- Motor, drive and inverter troubleshooting
- Power-system and equipment servicing
- Workshop and field diagnostics in damp or dusty environments
Included Components
- UT191E digital multimeter
- Test leads
- 9V battery
- Carrying bag
- User manual
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
