UNI-T Industrial True RMS Digital Multimeter, 60000 Counts, 1000 V, 10 A, Data Logging – UT171B

SKU: 003123
(0)
€248,69 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

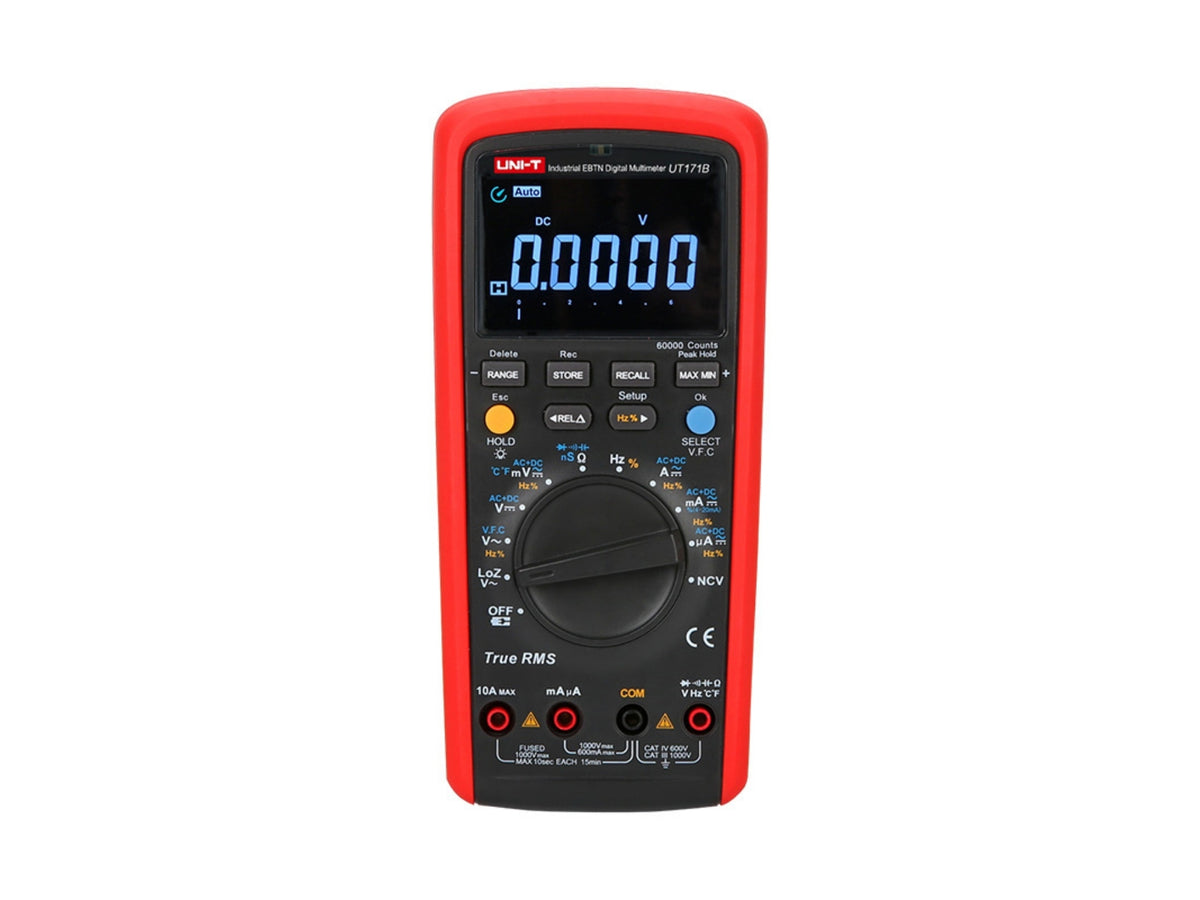

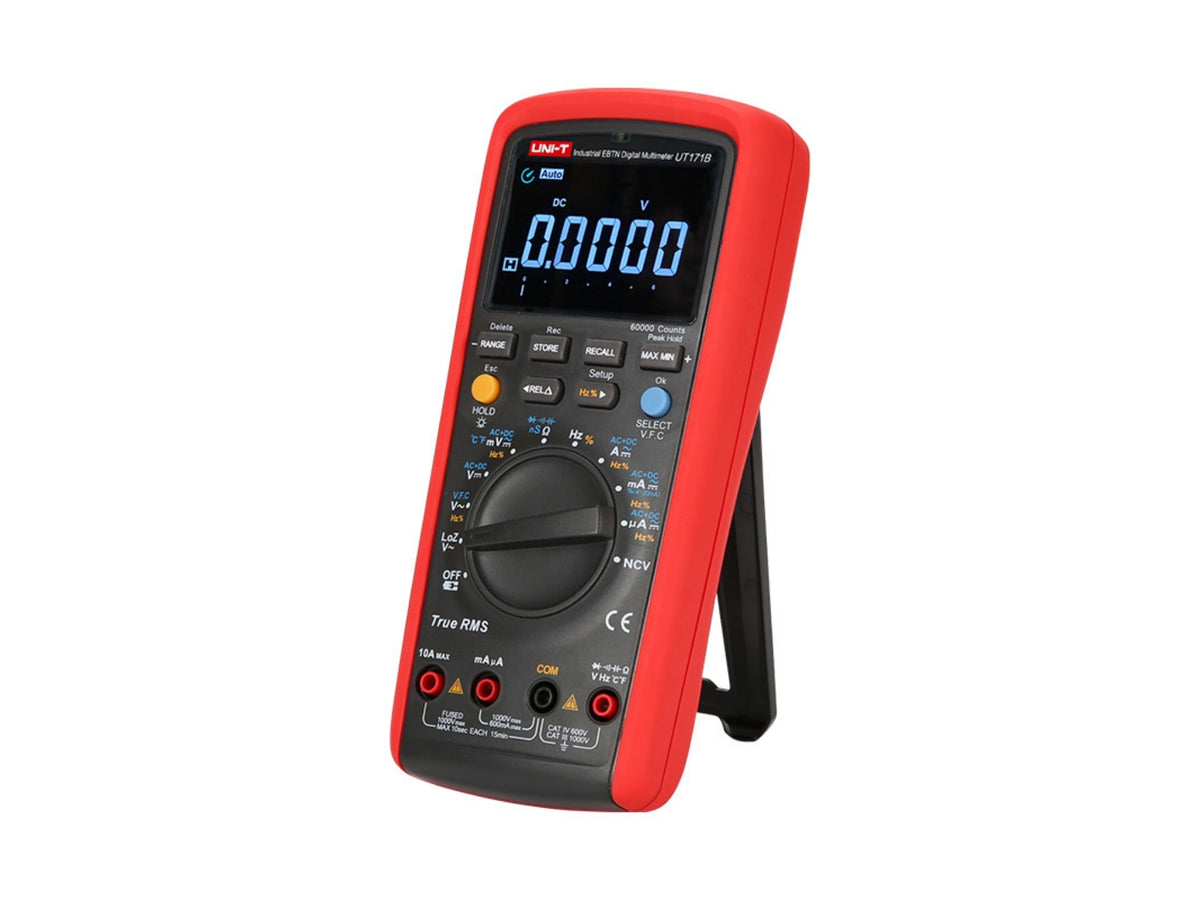

The UNI-T UT171B is a 60,000-count industrial True RMS digital multimeter with 0.025% basic DC voltage accuracy and 100kHz AC bandwidth. It supports LoZ, VFC, AC+DC and 4–20mA loop measurements, with onboard storage and USB communication for professional electrical and process maintenance.

Key Features

  • 60,000-count display with 0.025% basic DC voltage accuracy
  • True RMS measurement with 100kHz AC bandwidth and VFC low-pass filtering
  • LoZ, AC+DC and 4–20mA loop measurement modes for industrial troubleshooting
  • Stores up to 9999 readings with USB communication and optional Bluetooth connectivity
  • Rechargeable design with CAT III 1000V / CAT IV 600V safety rating

Product Specifications

Specification Details
Brand UNI-T
Model UT171B
Meter Type Industrial True RMS digital multimeter
Display Count 60,000 counts
DC Voltage Range 600mV / 6V / 60V / 600V / 1000V
Basic DC Voltage Accuracy ±(0.025% + 5 digits)
AC Voltage Range 600mV / 6V / 60V / 600V / 1000V
AC Voltage Accuracy ±(0.4% + 40 digits)
AC Bandwidth Up to 100kHz
DC Current Range 600μA / 6000μA / 60mA / 600mA / 6A / 10A
DC Current Accuracy ±(0.15% + 2 digits)
AC Current Range 600μA / 6000μA / 60mA / 600mA / 6A / 10A
AC Current Accuracy ±(0.75% + 5 digits)
Resistance Range 600Ω to 60MΩ
Conductance Range Up to 60nS
Capacitance Range 6nF to 60mF
Frequency Range 10Hz to 10MHz
Temperature Range -40°C to 1000°C / -40°F to 1832°F
Measurement Response True RMS
Special Measurement Modes AC+DC, VFC low-pass filter, LoZ AC voltage and 4–20mA loop percentage
LoZ Input Impedance Approximately 3kΩ
Voltage Detection NCV non-contact AC voltage detection
Additional Test Functions Diode, continuity and duty-cycle measurement
Additional Functions Peak hold, maximum/minimum values, relative mode, data hold and test-lead misconnection warning
Data Storage 9999 readings
Communication USB; Bluetooth with optional UNI-T adapter
Display Backlit EBTN display with 31-segment analogue bar graph
Ranging Automatic and manual
Safety Category CAT III 1000V / CAT IV 600V
Certifications CE and cETLus
Power Supply 7.4V rechargeable lithium-ion battery
Dimensions 206 × 95 × 55mm
Net Weight Approximately 384g

Applications

  • Industrial electrical system inspection and troubleshooting
  • Variable-frequency drive and motor-system maintenance
  • Process-control and 4–20mA current-loop testing
  • Electrical commissioning and preventive maintenance

Included Components

  • UNI-T UT171B industrial True RMS digital multimeter
  • Rechargeable lithium-ion battery
  • Test leads
  • Point-contact temperature probe
  • USB interface cable

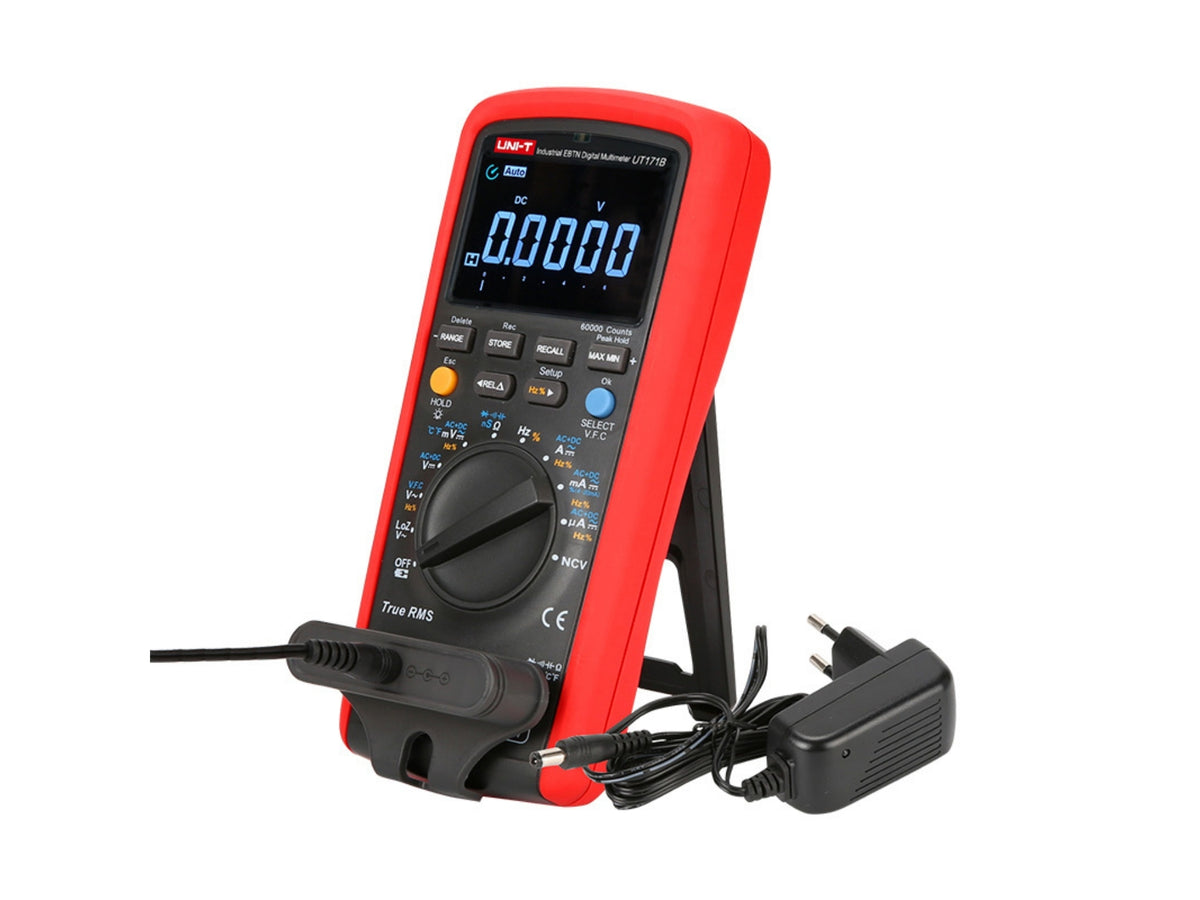

  • Power adapter
  • Carrying bag and user documentation
