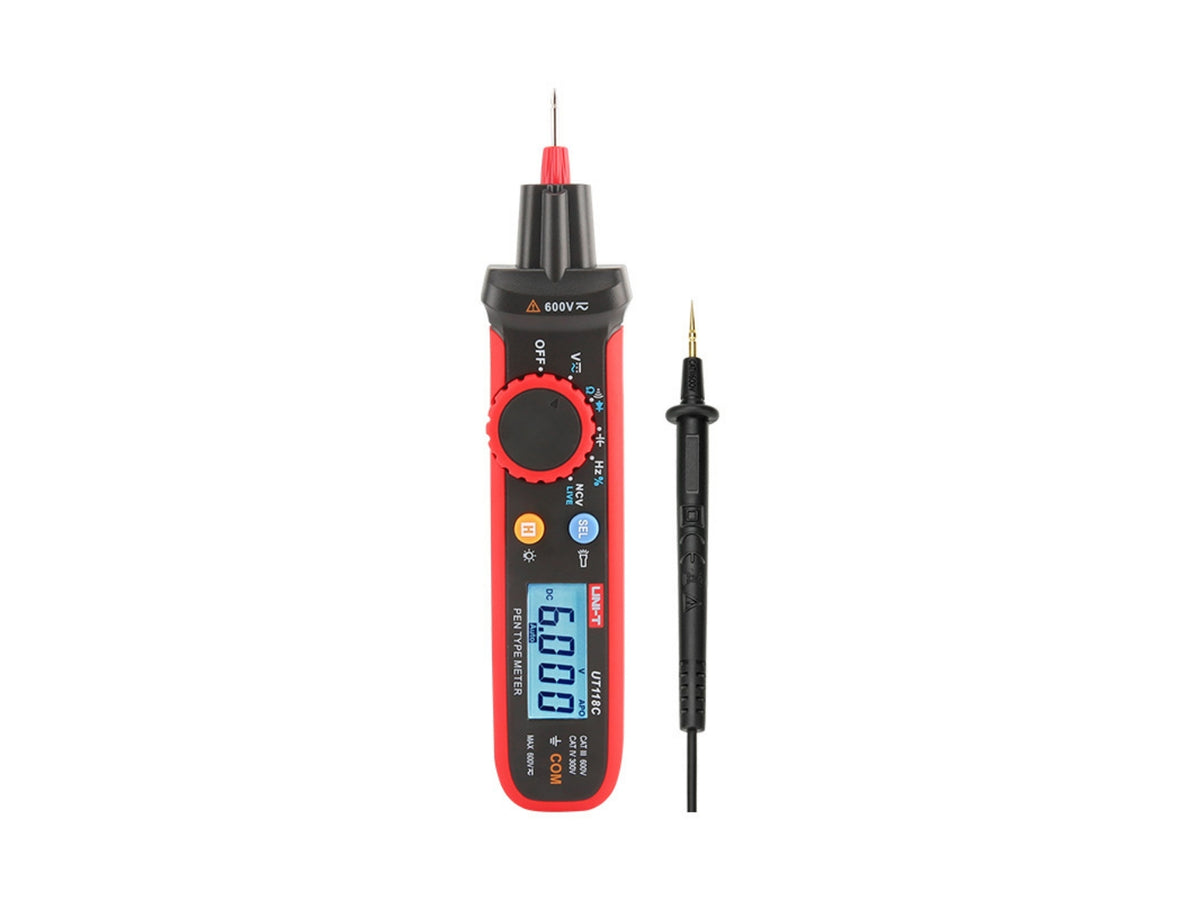

UNI-T Pen-Type Digital Multimeter, 600 V, True RMS & NCV – UT118C
Regular price
€30,00
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
The UNI-T UT118C is a 6000-count True RMS pen-type multimeter for measuring up to 600 V AC/DC voltage, 60 MΩ resistance, 60 mF capacitance and 999.9 kHz frequency. Its compact probe design, NCV/LIVE detection and CAT III 600 V / CAT IV 300 V rating suit appliance repair, electrical inspection and confined-space testing.
Key Features
- True RMS Measurement – Measures AC and DC voltage up to 600 V.
- Multifunction Testing – Measures resistance, capacitance, frequency and duty cycle.
- NCV & LIVE Detection – Identifies live wires with visual and audible alerts.
- Pen-Type Design – Features an adjustable sharp probe tip for confined test points.
- Electrical Safety – Rated CAT III 600 V and CAT IV 300 V.
Product Specifications
| Display Count | 6000 |
|---|---|
| Measurement Type | True RMS |
| Range Selection | Automatic |
| Display | 36 × 15 mm HTN LCD |
| Alert Indicator | Dual-colour visual and audible indication |
| Additional Functions | NCV detection, LIVE test, data hold, diode test, continuity test and automatic component identification |
| Convenience Features | Integrated flashlight and automatic power off |
| Safety Category | CAT III 600 V / CAT IV 300 V |
| Certifications | CE, cETLus and RoHS |
| Power Supply | 1 × 1.5 V AAA battery |
| Dimensions | 182.5 × 38 × 38.5 mm |
| Colour | Grey and red |
Measurement Specifications
| Measurement | Range | Accuracy |
|---|---|---|
| DC Voltage | 6 V / 60 V / 600 V | ±(1% + 3) |
| AC Voltage | 6 V / 60 V / 600 V | ±(1% + 4) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ | ±(1% + 3) |
| Resistance | 6 MΩ | ±(1.5% + 5) |
| Resistance | 60 MΩ | ±(2.5% + 5) |
| Capacitance | 600 nF / 6 μF / 60 μF / 600 μF | ±(3.5% + 8) |
| Capacitance | 6 mF | ±(5% + 9) |
| Capacitance | 60 mF | ±(10% + 9) |
| Frequency | 99.99 Hz to 999.9 kHz | ±(0.01% + 5) |
| Duty Cycle | 0.1%–99.9% | Range dependent |
Applications
- Residential appliance repair and troubleshooting
- Electrical voltage and live-wire inspection
- Electronic circuit and component testing
- Measurements in confined or poorly illuminated areas
Included Components
- UNI-T UT118C Pen-Type Digital Multimeter
- Test Lead
- 1 × 1.5 V AAA Battery
- User Manual
- Instruction Manual Download
