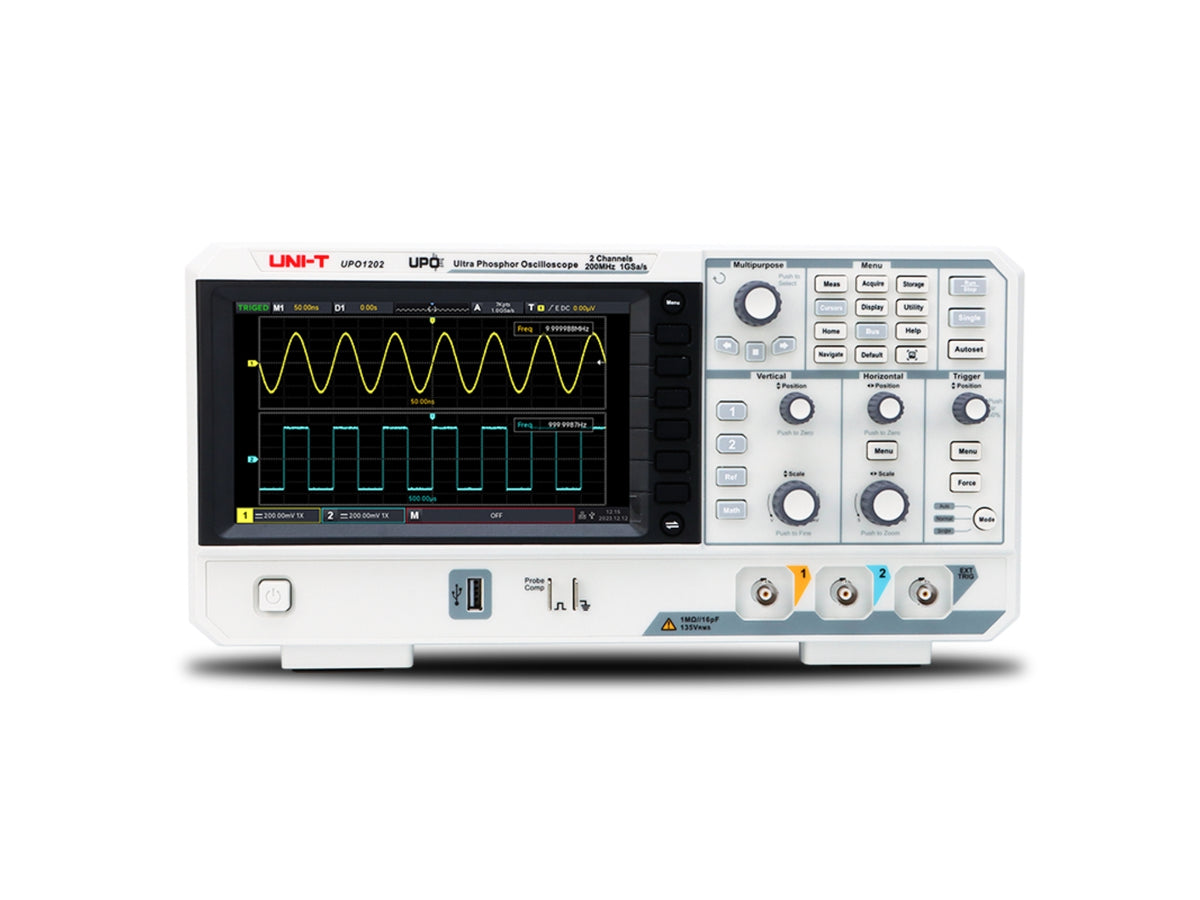

The UNI-T UPO1102 is a dual-channel digital phosphor oscilloscope with 100MHz bandwidth, 1GSa/s sampling and 56Mpts memory depth. Its fast waveform capture, independent channel display and serial bus decoding support electronics development, equipment maintenance and embedded system testing.
| Oscilloscope Type | Digital phosphor oscilloscope |
|---|---|
| Display Technology | UNI-T Ultra Phosphor 2.0 with 256-level intensity grading |
| Display | 7-inch TFT LCD, 800 × 480 pixels |
| Multi-Scopes Function | Independent time base and vertical scale adjustment for each channel |
| Automatic Measurements | 36 waveform parameters with statistical analysis |
| Waveform Recording | Up to 120,000 frames with playback |
| Frequency Counter | 6-digit hardware frequency counter |
| Digital Voltmeter | Independent DVM supporting AC/DC True RMS measurements |
| FFT | Up to 1 Mpts with spectrum and waterfall display modes |
| Serial Bus Decoding | RS-232/UART, I²C and SPI |

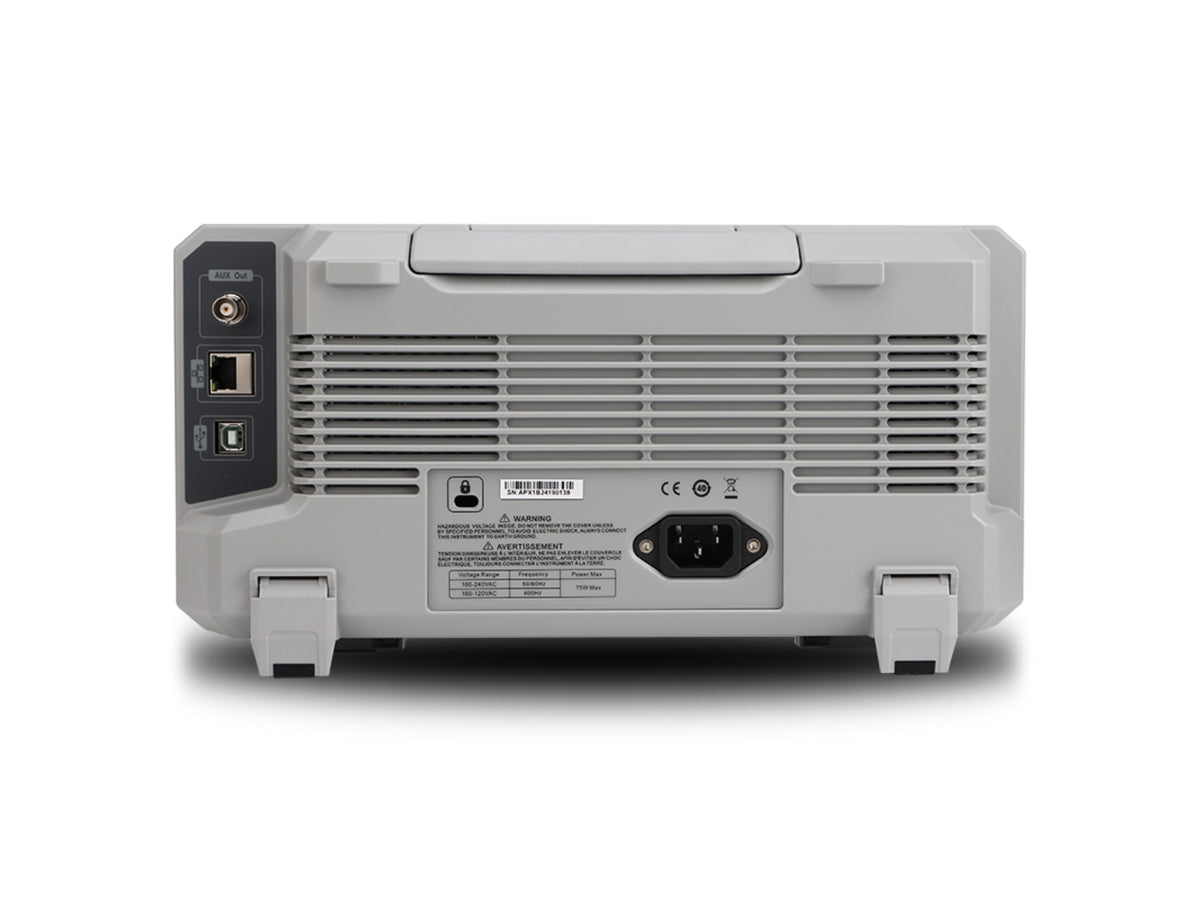

| Interfaces | USB Host, USB Device, LAN, external trigger and AUX output |
| Remote Control | Built-in Web server and SCPI support |
| Optional Bandwidth Upgrade | Upgrade to 200 MHz available separately; not included |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Maximum Power Consumption | 75 VA |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 336 × 164 × 105 mm |
| Net Weight | Less than 2.5 kg |
| Analogue Bandwidth | DC to 100 MHz |
|---|---|
| Analogue Channels | 2 |
| Real-Time Sample Rate | 1 GSa/s with independent sampling per channel |
| Maximum Memory Depth | 56 Mpts |
| Waveform Capture Rate | Up to 100,000 wfms/s normally; 500,000 wfms/s in Fast Acquire mode |
| Rise Time | ≤3.5 ns |
| Vertical Resolution | 8-bit |
| Vertical Scale | 500 μV/div to 20 V/div |
| Time Base Range | 1 ns/div to 1000 s/div |
| Input Coupling | AC, DC and GND |
| Input Impedance | 1 MΩ ±2% in parallel with 16 pF ±3 pF |
| Maximum Input Voltage | 135 Vrms |
| Bandwidth Limit | 20 MHz |
| Trigger Modes | Auto, normal and single |
| Trigger Types | Edge, pulse, slope, video, runt, window, delay, timeout, duration, setup/hold, Nth edge and pattern |
