UNI-T Programmable DC Power Supply, 150 V, 5 A, 200 W – UDP6933B

SKU: 003232
(0)
€783,70 inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

The UNI-T UDP6933B is a single-channel programmable switching DC power supply providing 0–150 V and 0–5 A output within a maximum power envelope of 200 W. Its high-resolution control, automated test functions and multiple remote interfaces make it suitable for laboratory, production and industrial testing systems.

Key Features

  • Flexible 200 W Output – Delivers voltage and current combinations up to 150 V and 5 A within the 200 W power limit.
  • High-Resolution Control – Provides 1 mV voltage and 0.1 mA current setting resolution.
  • Automated Test Functions – Includes List programming, delayed output, preset storage and trend waveform display.
  • Remote System Integration – Supports RS-232, RS-485, USB, LAN and external analogue control.
  • Remote Monitoring – Enables control and data observation through PC software or a web interface.

Product Specifications

Product Type Programmable Switching DC Power Supply
Output Channels 1
Output Voltage 0–150 V
Output Current 0–5 A
Maximum Output Power 200 W
Display 4.3-Inch Colour LCD
Preset Storage 18 × 8 Presets
Automated Functions List Programming and Delayed Output
Data Display Trend Waveform Display
External Measurement External Voltage Measurement
Remote Sense Compensation 1 V

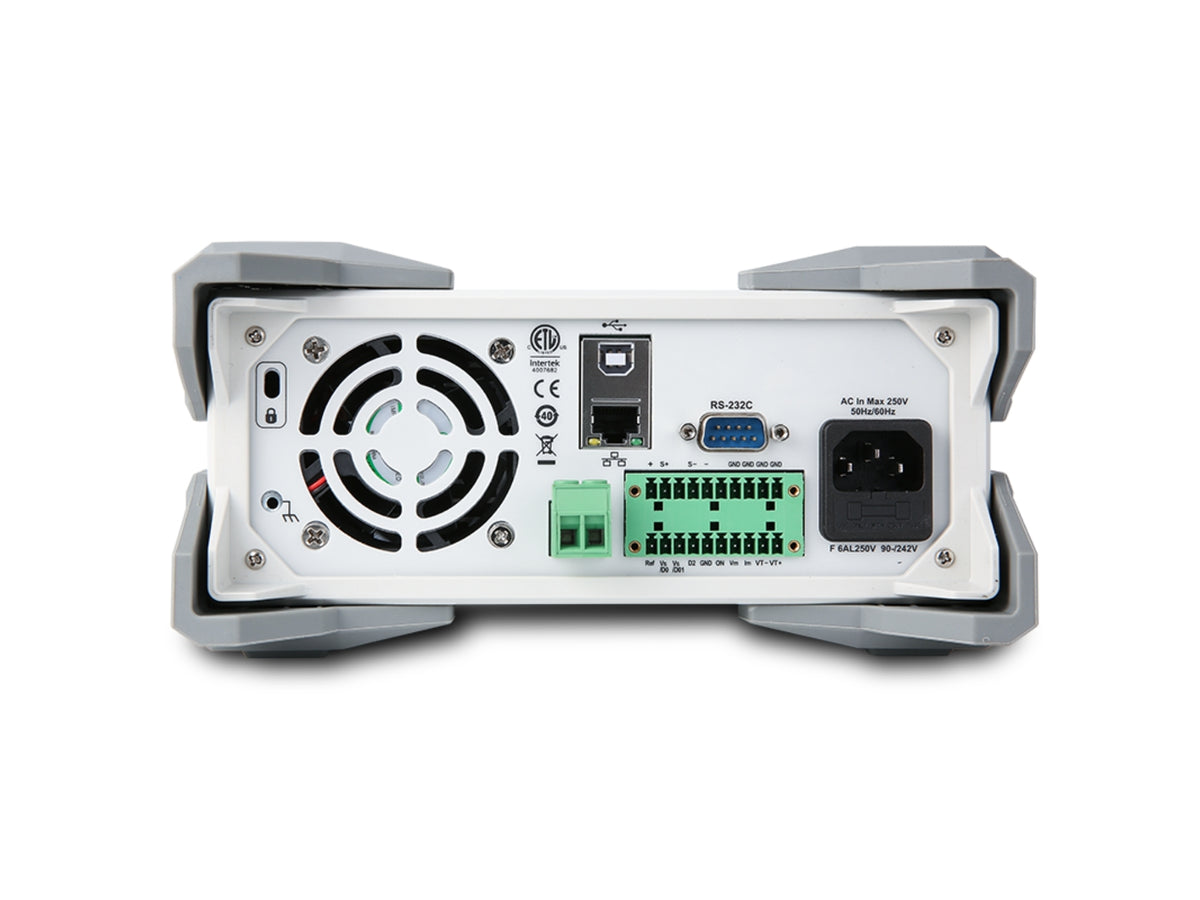

Communication Interfaces RS-232, RS-485, USB Device and LAN
Control Interface External Analogue Control
Remote Control PC Software and Web Access
Programming Support SCPI and Modbus
AC Input 100–240 V AC, 47–63 Hz
Certification CE
Dimensions 215 × 88 × 373.7 mm
Weight Approximately 4.0 kg

Output Performance

Parameter Specification
Voltage Setting Resolution 1 mV
Current Setting Resolution 0.1 mA
Voltage Readback Resolution 1 mV below 100 V; 10 mV at or above 100 V
Current Readback Resolution 0.1 mA
Voltage Setting Accuracy ≤0.04% + 30 mV
Current Setting Accuracy ≤0.1% + 10 mA
Voltage Readback Accuracy ≤0.04% + 30 mV
Current Readback Accuracy ≤0.1% + 10 mA
Voltage Load Regulation ≤0.01% + 20 mV
Current Load Regulation ≤0.01% + 6 mA
Voltage Line Regulation ≤0.01% + 20 mV
Current Line Regulation ≤0.01% + 6 mA
Voltage Ripple and Noise ≤30 mVp-p
Current Ripple and Noise ≤6 mArms

Power Output Limitation

The output voltage and current are governed by the maximum output power of 200 W. The power supply cannot deliver 150 V and 5 A simultaneously; at 150 V the available current is approximately 1.33 A, while 5 A output is available up to approximately 40 V.

Applications

  • DC/DC power module testing
  • Battery charging and development
  • Electronic component and sensor testing
  • Production-line automated testing
  • Laboratory research and equipment development

Included Components

  • UNI-T UDP6933B Programmable DC Power Supply
  • European AC Power Cord
  • USB Data Cable
