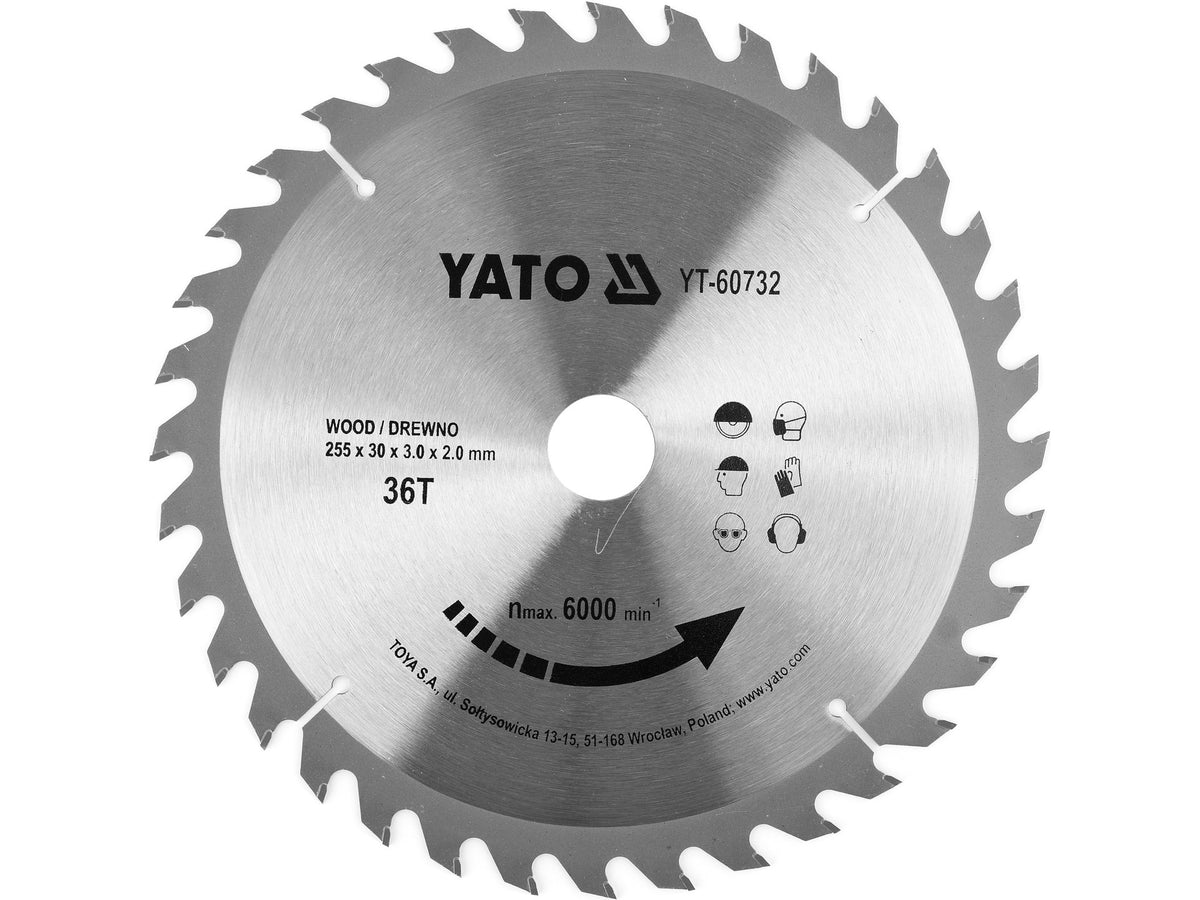

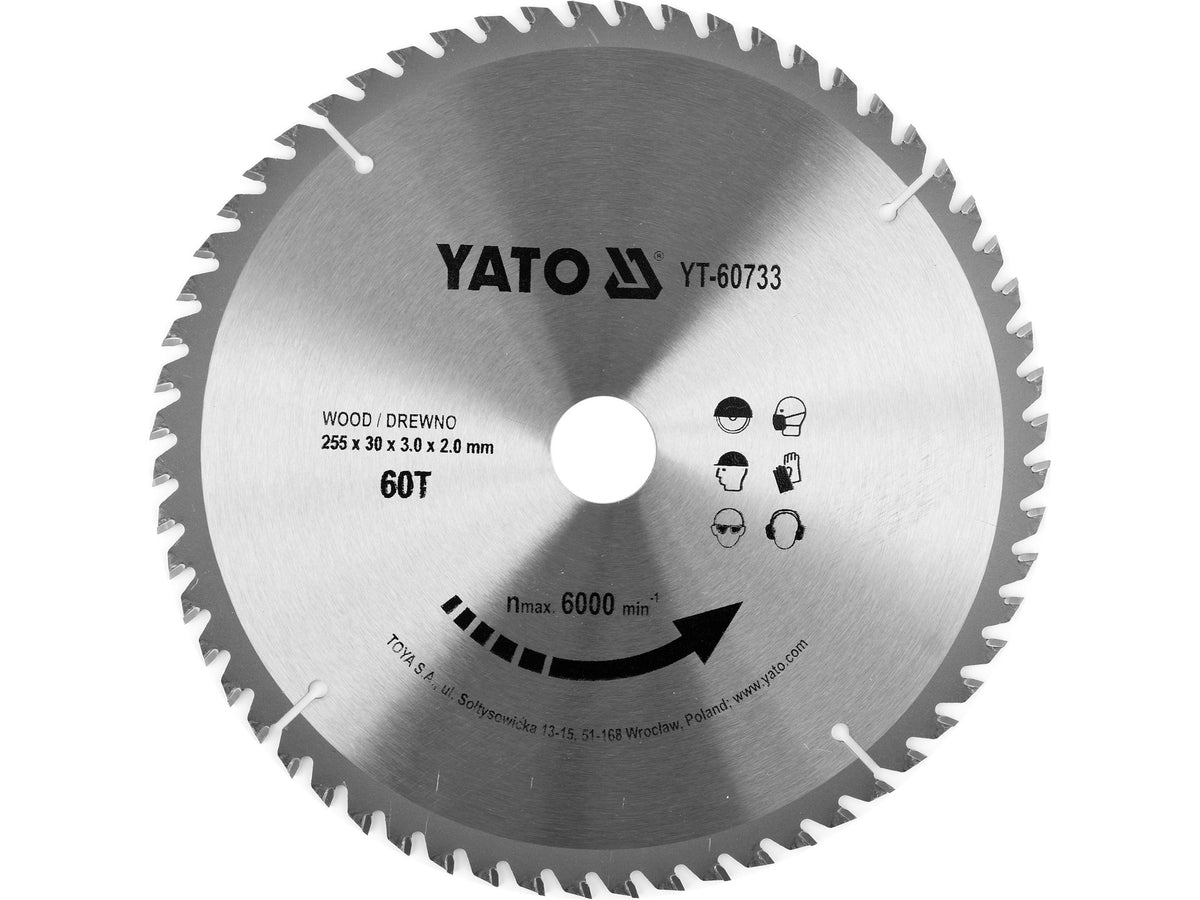

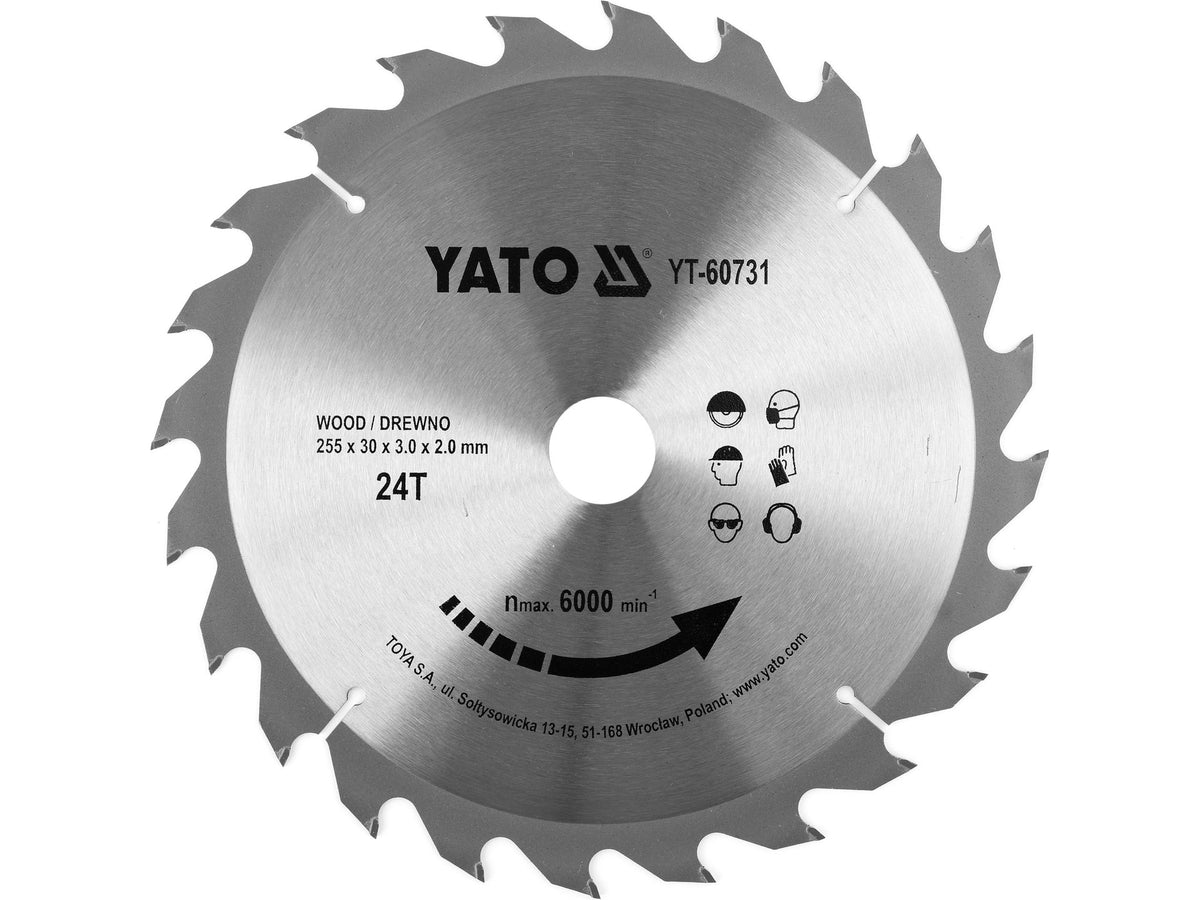

YATO TCT wood saw blade for professional cutting of wet wood, dry wood, wood-based panels, and plastic. It is suitable for cross, rip, and angle cuts, with 24T, 36T, and 60T variants to match different cutting requirements.
| Parameter | Value |
| Brand | YATO |
| Product Type | TCT saw blade for wood |
| Unit Of Measure | PCS |
| Diameter | 255 mm |
| Mounting Hole Diameter | 30 mm |
| Metal Disc Thickness | 2 mm |
| Cutting Segment Thickness | 3 mm |
| Working Part Material | Tungsten carbide |
| Tooth Type | BA-type alternate toothing |
| Tooth Construction | Tungsten carbide overlay with brass-brazed fork |
| Maximum Rotations | 6000 min⁻¹ |
| Cutting Types | Cross cutting, rip cutting, angle cutting |
| Application | Wood, wood-based panels, plastic |
| Suitable Wood Condition | Wet wood and dry wood |
| Compatible With |
100537-0001 (YT-82173), 100535-0001 (YT-82165) |
| SKU Code | Spec / Size | Number Of Teeth | Weight | Dimensions (L×W×H) |
| 100697-0001 | 255 × 24T × 30 mm | 24 | 0.85 kg | 34 × 32 × 2 cm |
| 100697-0002 | 255 × 36T × 30 mm | 36 | 0.88 kg | 34 × 32 × 0.5 cm |
| 100697-0003 | 255 × 60T × 30 mm | 60 | 0.90 kg | 34 × 32 × 0.5 cm |
