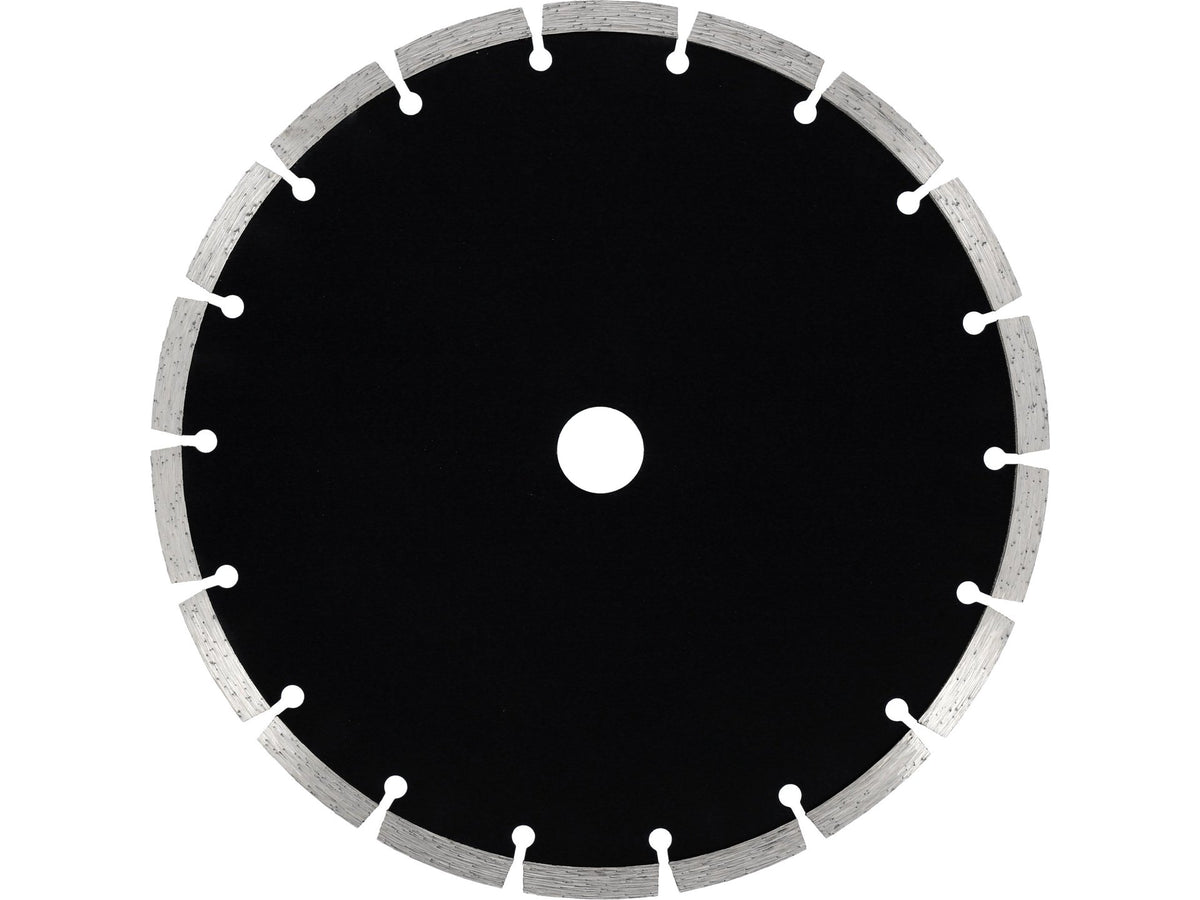

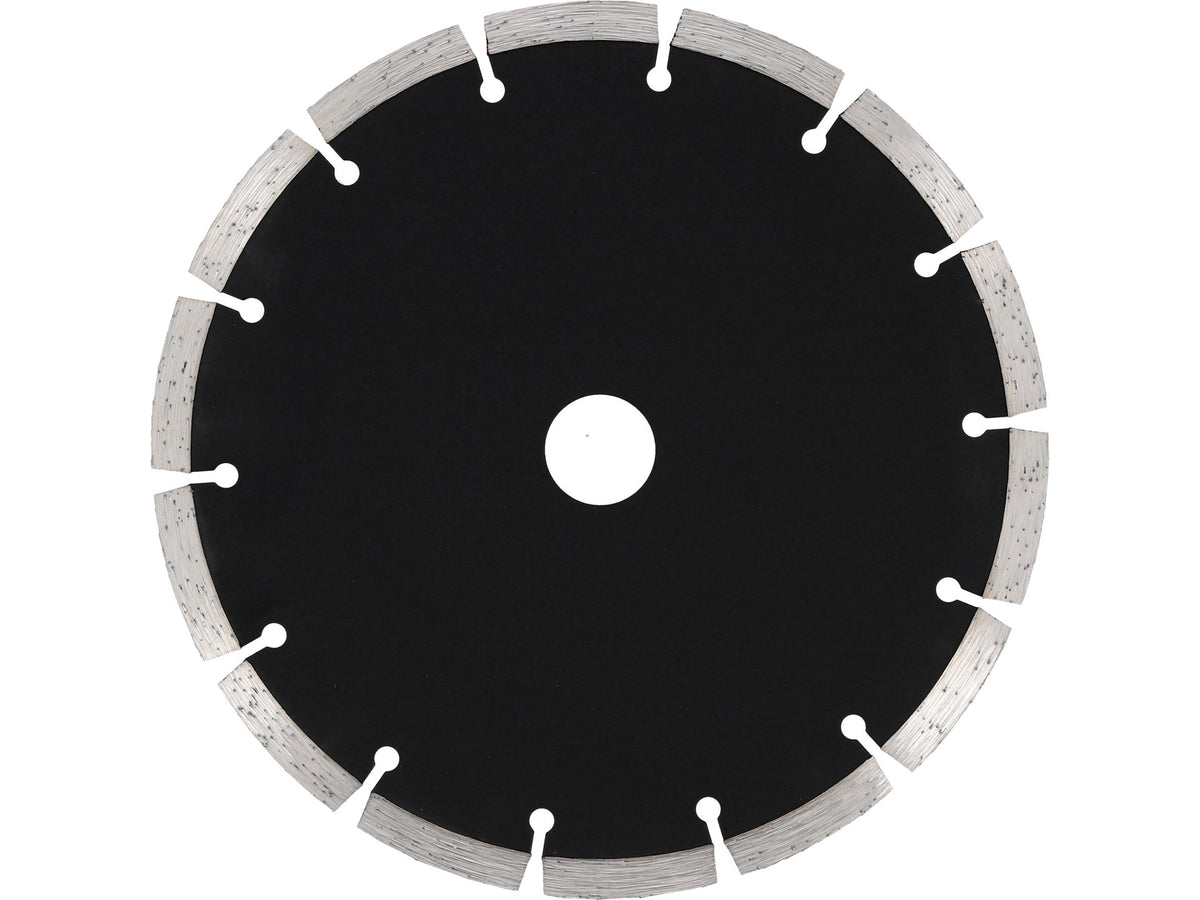

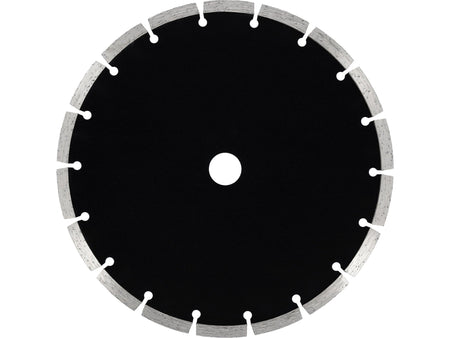

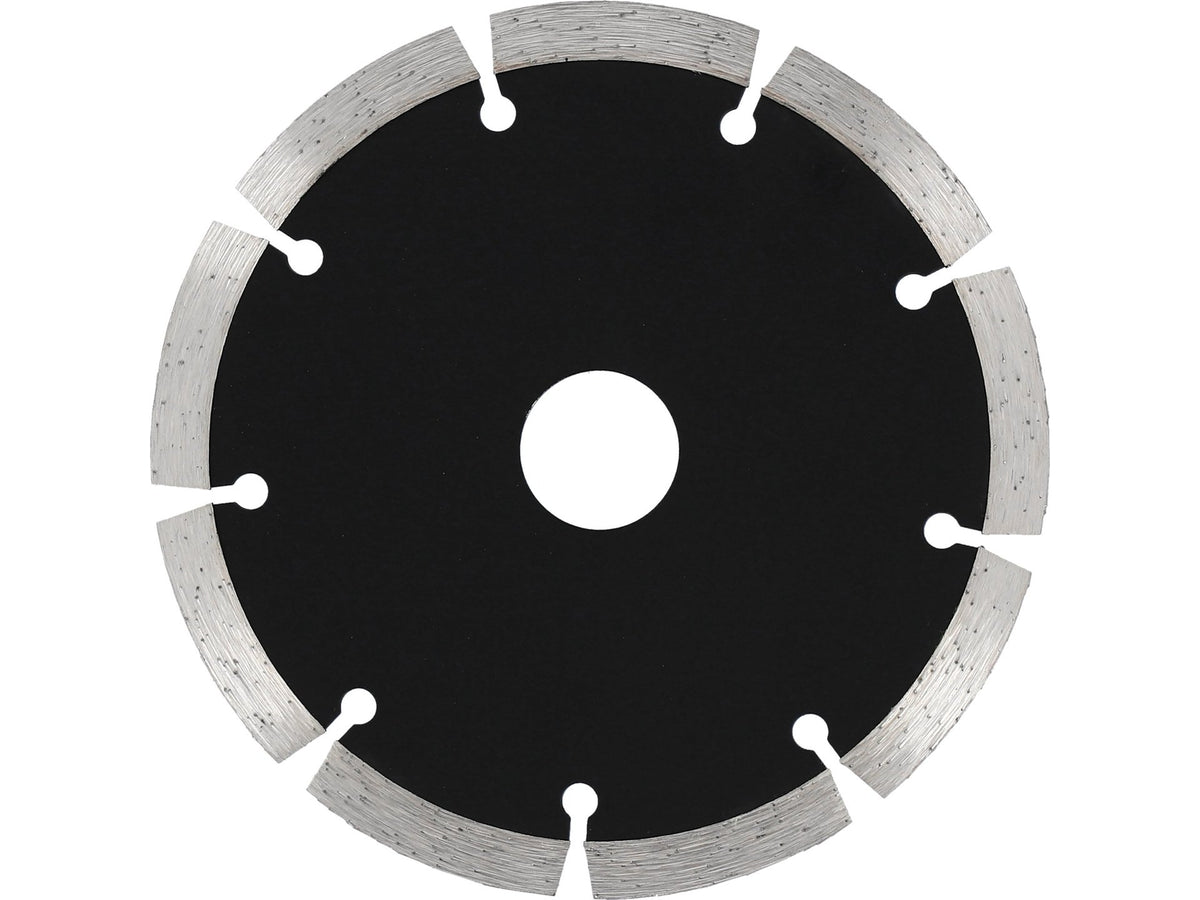

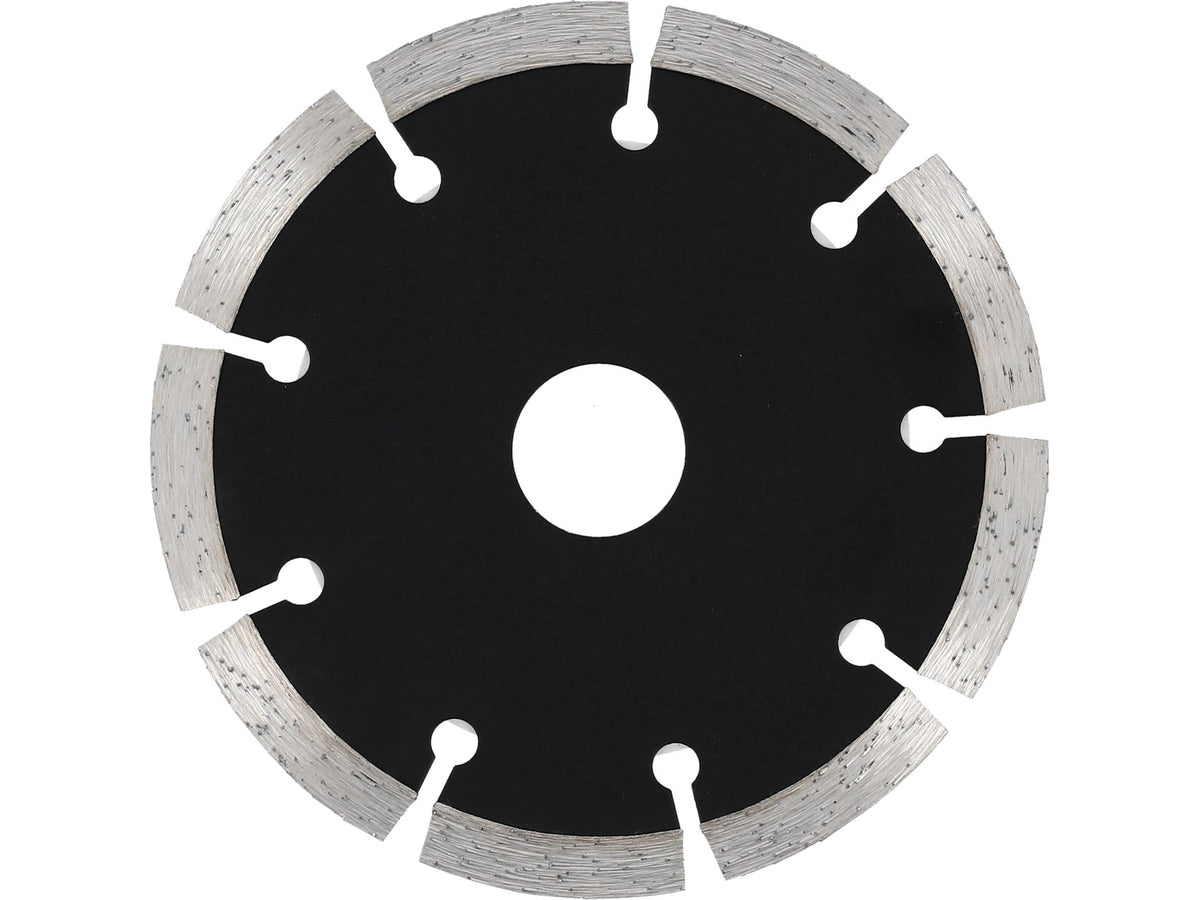

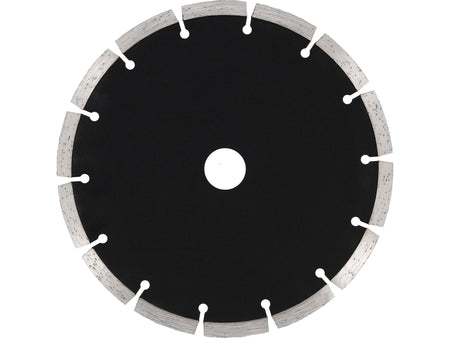

YATO Segmented Diamond Cutting Blade for Concrete & Masonry, 115/125/180/230 mm
Regular price
€1,84
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
Segmented diamond blade for angle grinders, designed for professional dry cutting work on hardened concrete, brick, silicate brick, granite, masonry, stone, and refractory materials. Available in four diameter variants, it provides a suitable option for different grinder sizes and cutting requirements.
Key Features
- Angle Grinder Use: segmented diamond blade designed for angle grinders
- Dry Cutting: suitable for dry cutting applications
- Cutting Materials: intended for hardened concrete, brick, silicate brick, granite, masonry, stone, and refractory materials
- Segment Construction: laser-welded cutting segments with 8 mm segment height
- Variant Range: available in 115 mm, 125 mm, 180 mm, and 230 mm diameters
- Operating Speed: maximum disc linear velocity of 80 m/s across all variants
Technical Specifications
| Parameter | Value |
| Brand | YATO |
| Product Type | Segmented diamond blade for angle grinders |
| Unit Of Measure | PCS |
| Maximum Disc Linear Velocity | 80 m/s |
| Mounting Hole Diameter | 22.2 mm |
| Cutting Segment Height | 8 mm |
| Cutting Segment Chemical Composition | Fe 25%, Cu 53%, Sn 7%, Ni 7%, Co 8%, diamond coating 13% |
| Material | 65Mn steel |
| Work Type | Dry |
| Application | Hardened concrete, brick, silicate brick, granite, masonry, stone, refractory materials |
| Segment Joining Method | Laser welded |
Variant Comparison
| SKU Code | Spec / Size | Maximum Rotations | Cutting Segment Thickness | Weight | Dimensions (L×W×H) |

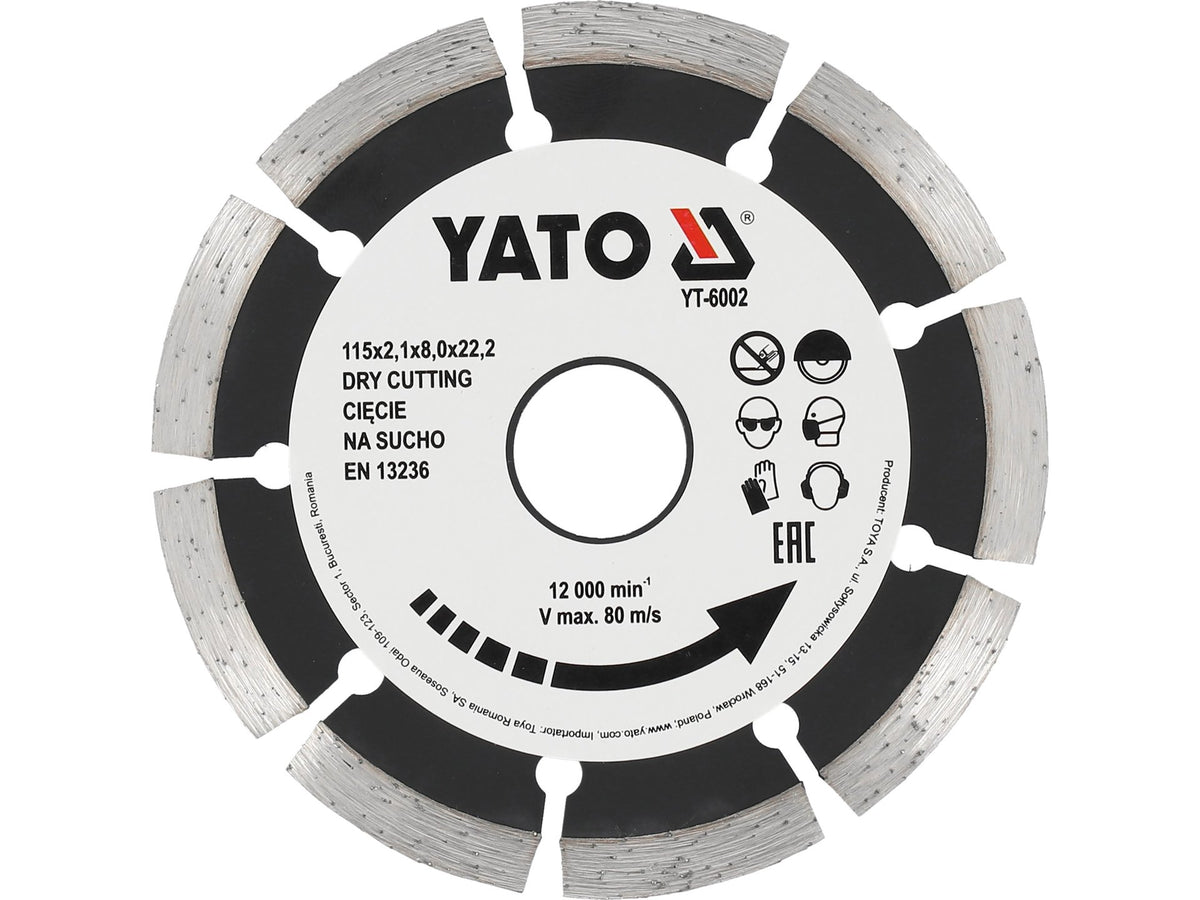

| 100756-0001 | HS 115, 115 mm diameter | 12,000 min⁻¹ | 2.1 mm | 0.15 kg | 41 × 12 × 7 cm |

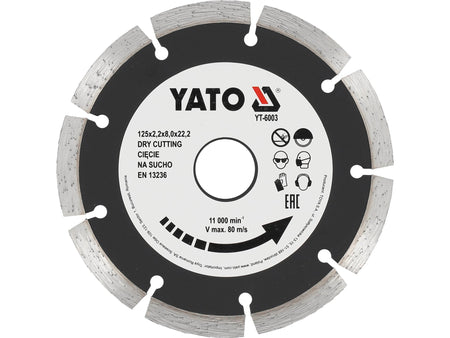

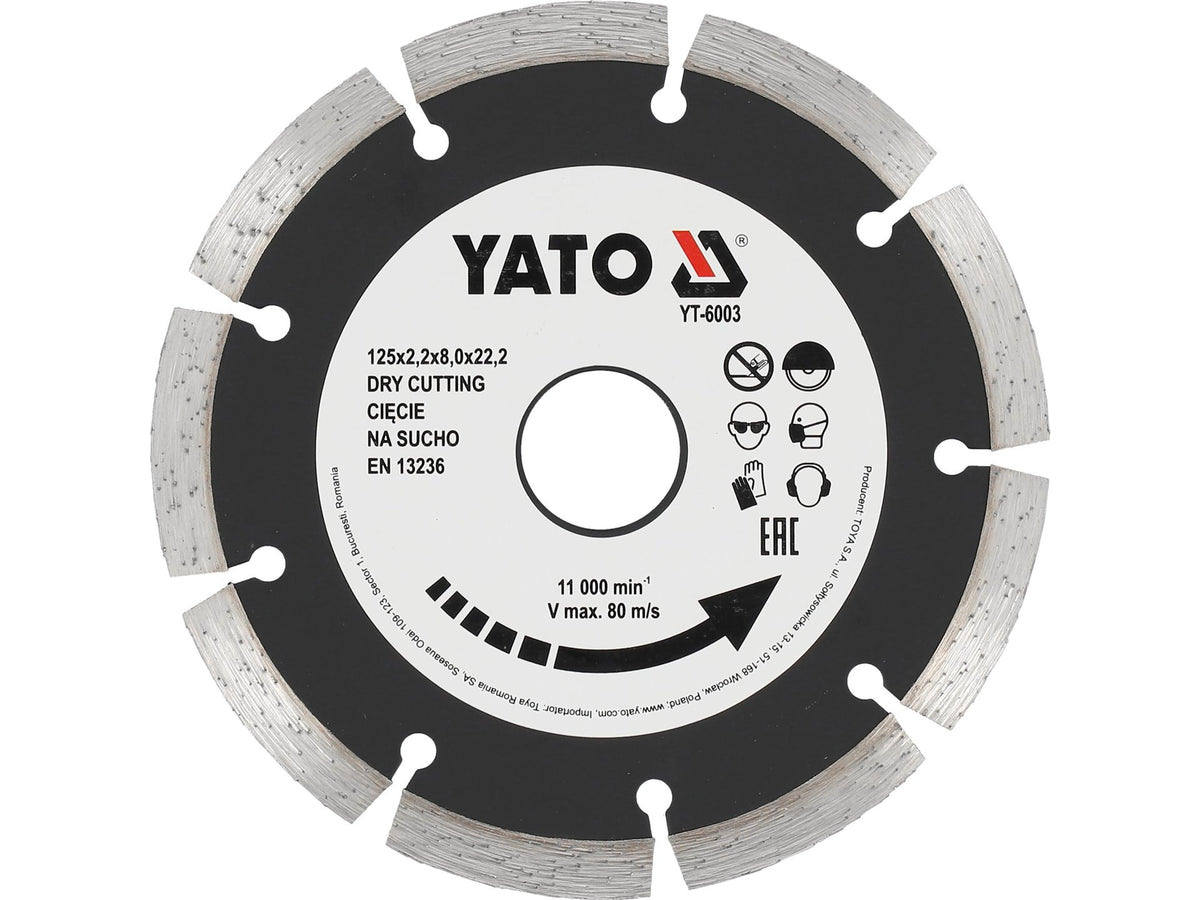

| 100756-0002 | HS 125, 125 mm diameter | 11,000 min⁻¹ | 2.2 mm | 0.17 kg | 62 × 12 × 7 cm |

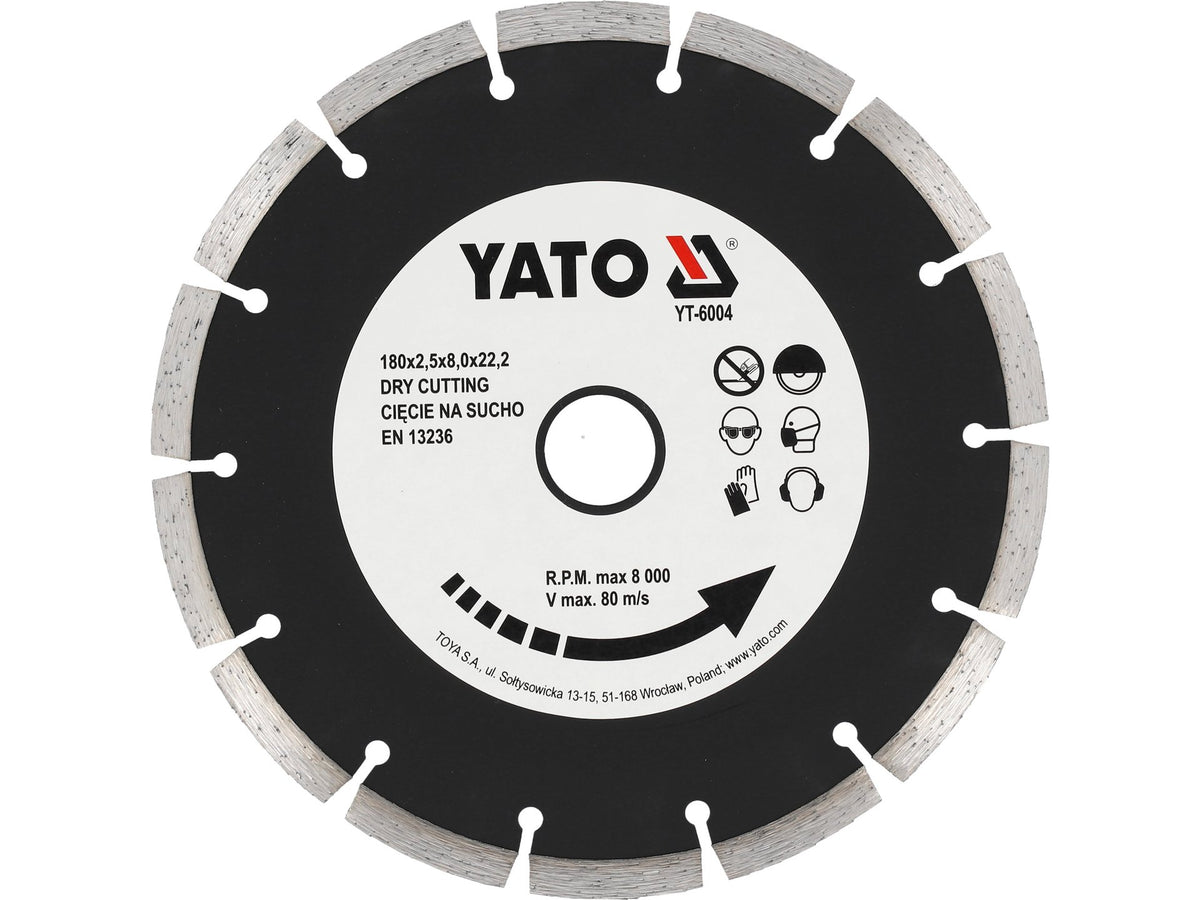

| 100756-0003 | HS 180, 180 mm diameter | 8,000 min⁻¹ | 2.5 mm | 0.41 kg | 81 × 12 × 8 cm |

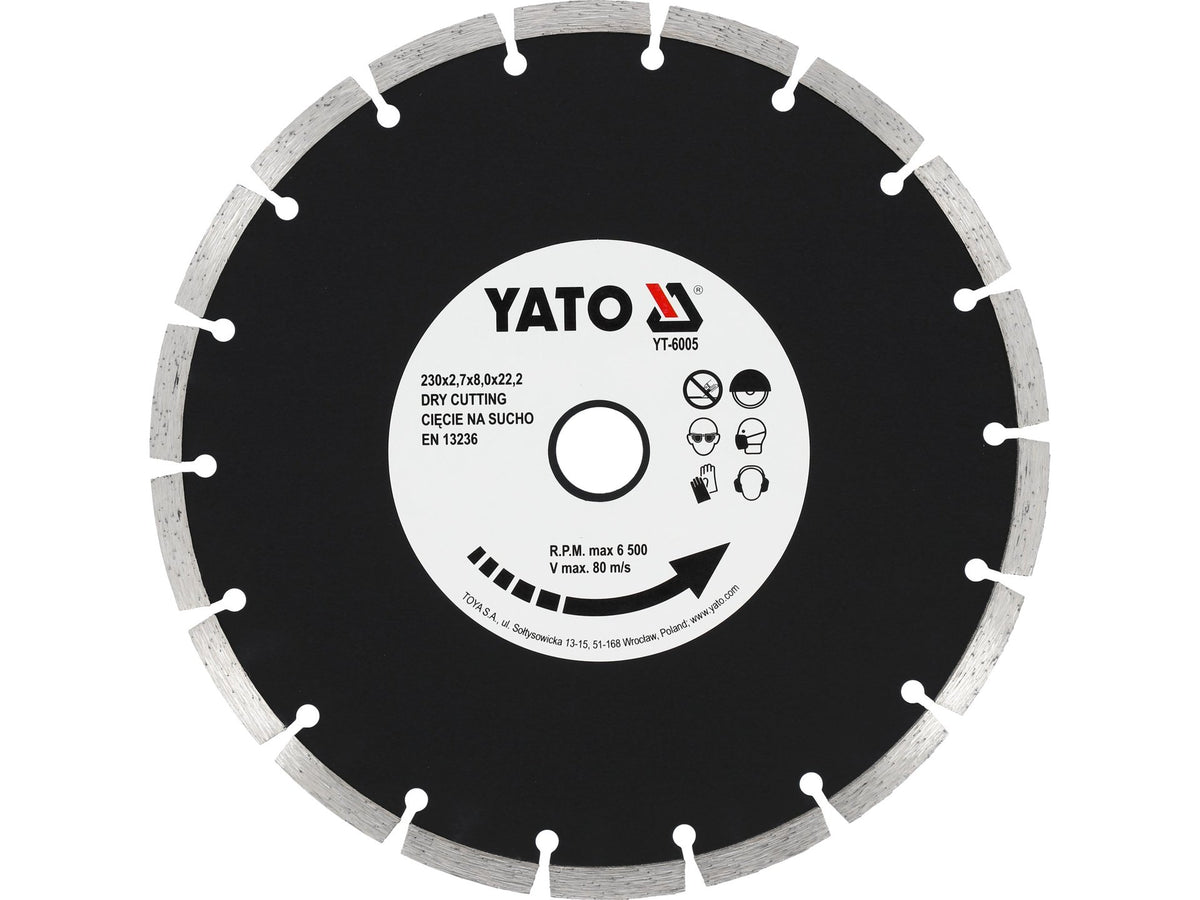

| 100756-0004 | HS 230, 230 mm diameter | 6,500 min⁻¹ | 2.7 mm | 0.73 kg | 101 × 12 × 7 cm |
Package Contents
- 1 × segmented diamond blade in the selected diameter variant
- Instruction Manual Download
24-Month Consumer Legal Guarantee
Consumers receive a minimum 24-month statutory legal guarantee from the date of delivery. No additional PERIPLUS commercial warranty applies unless expressly stated for this product. Mandatory national consumer rights remain fully applicable.
