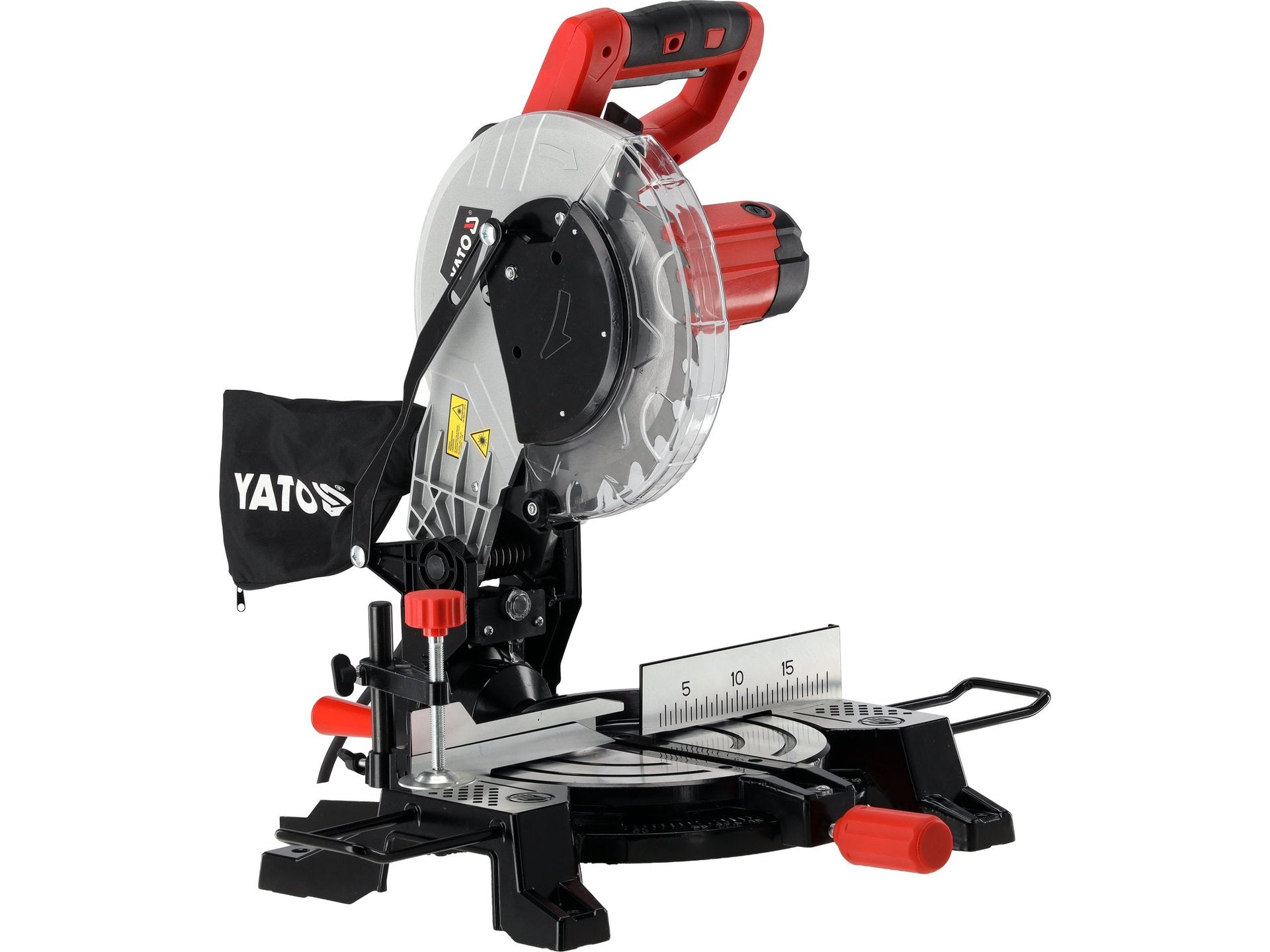

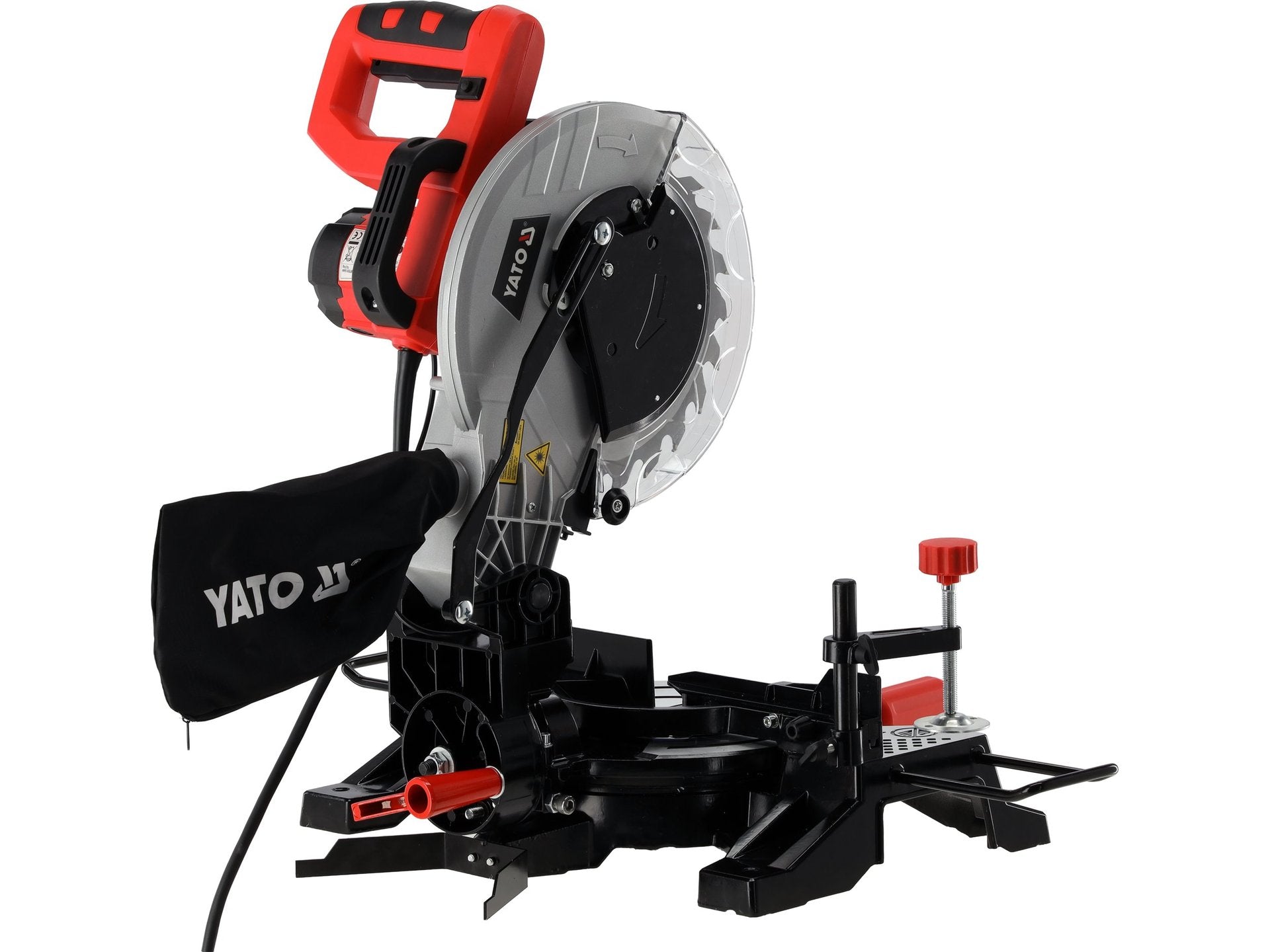

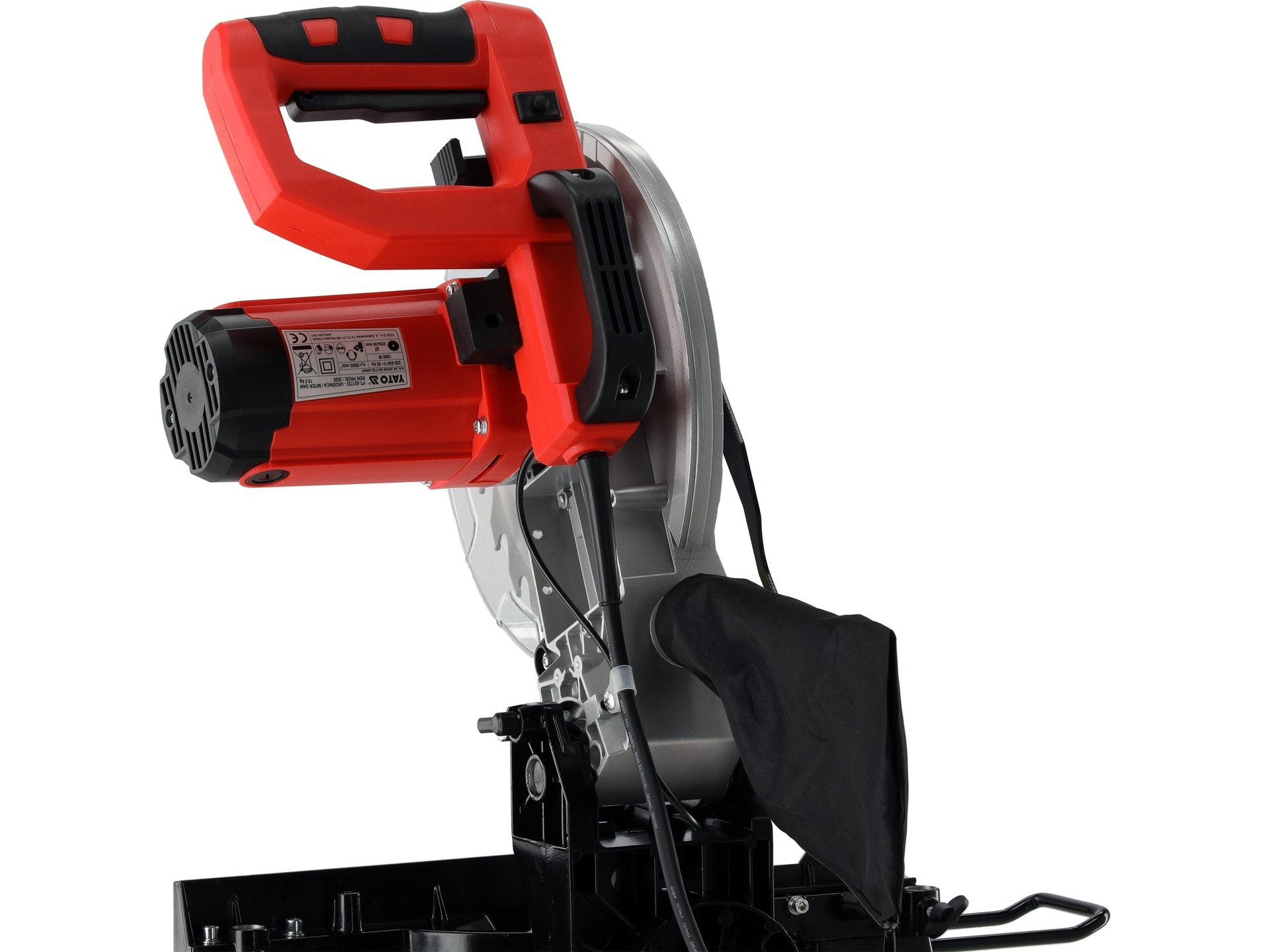

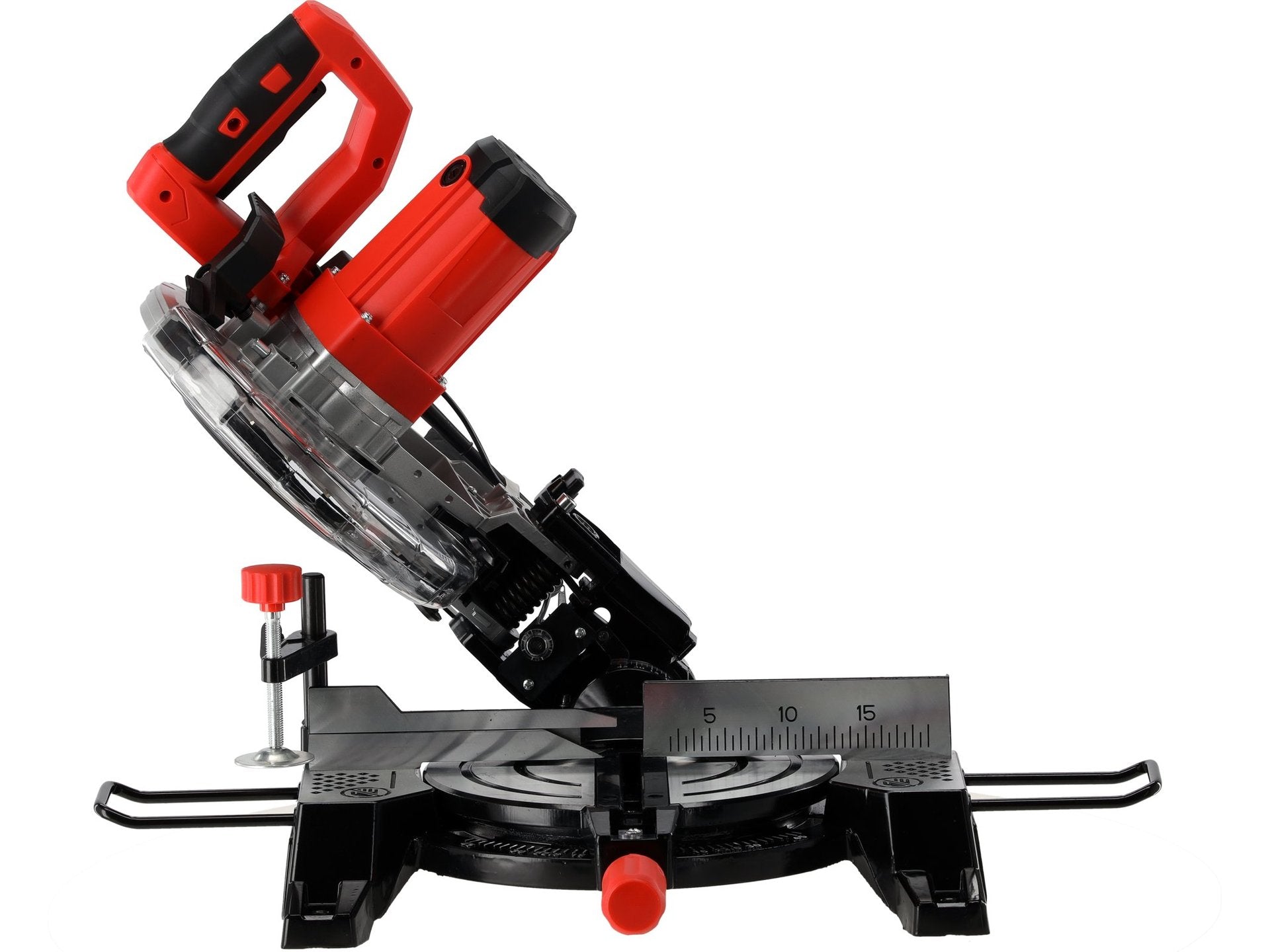

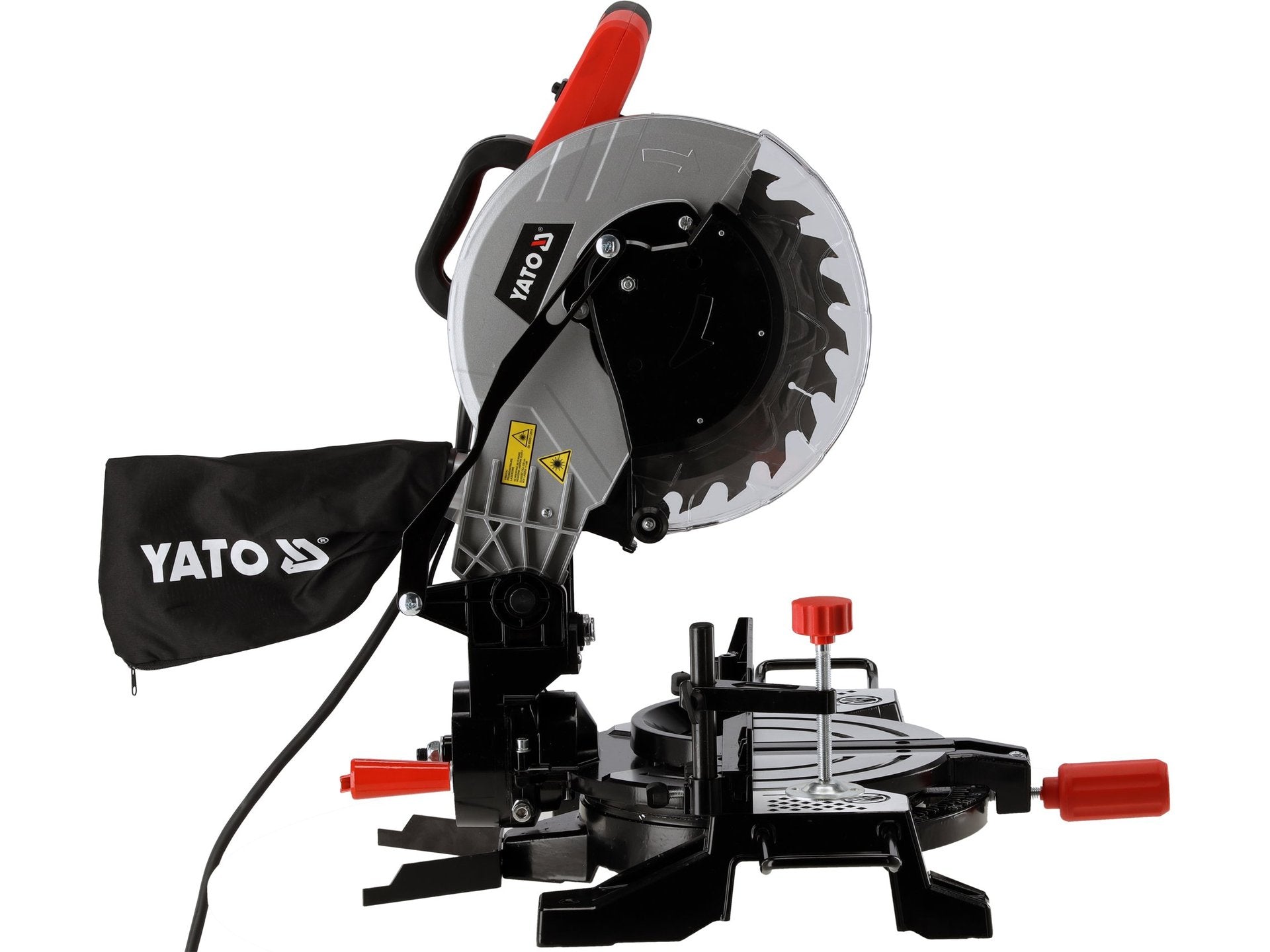

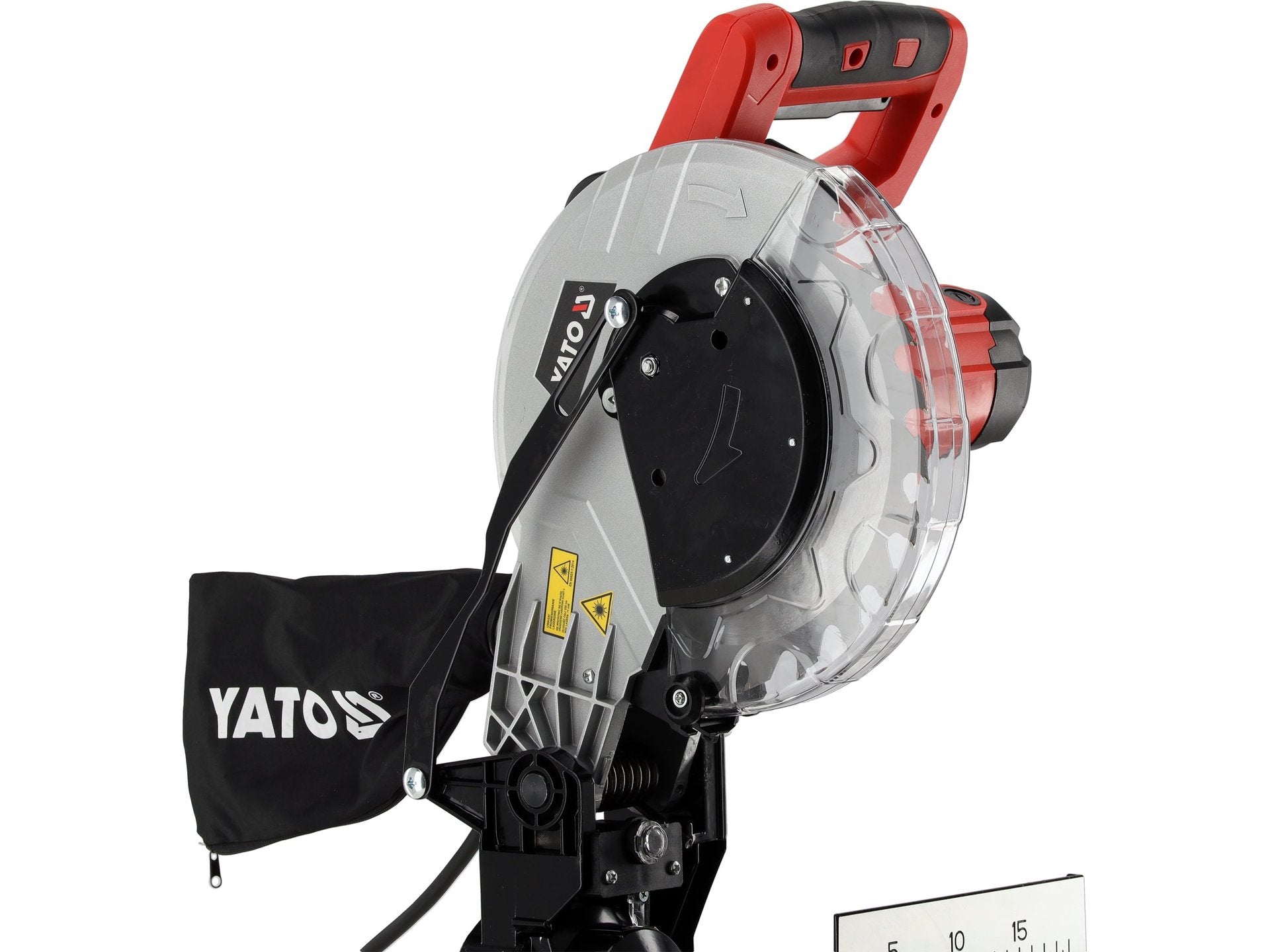

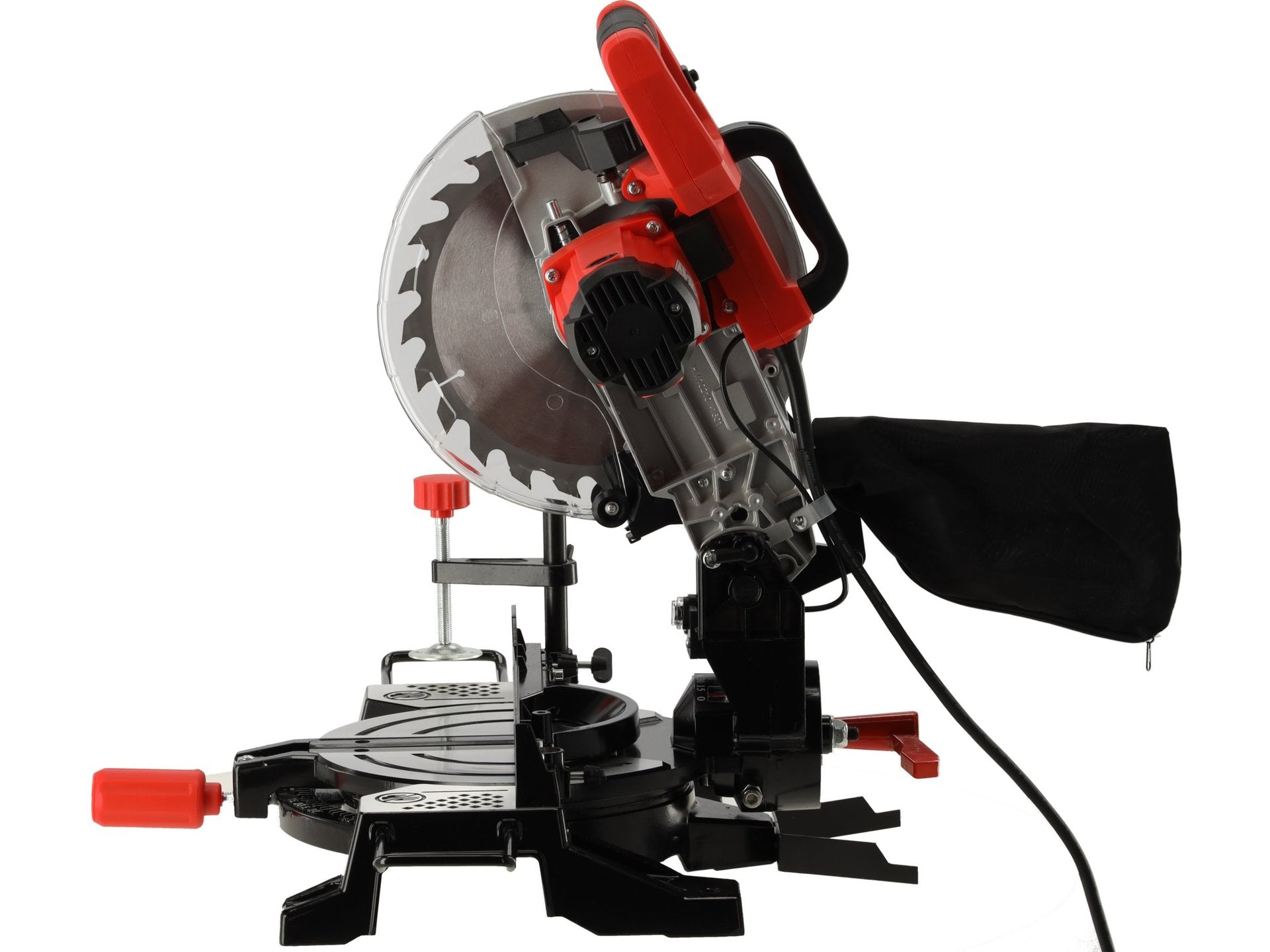

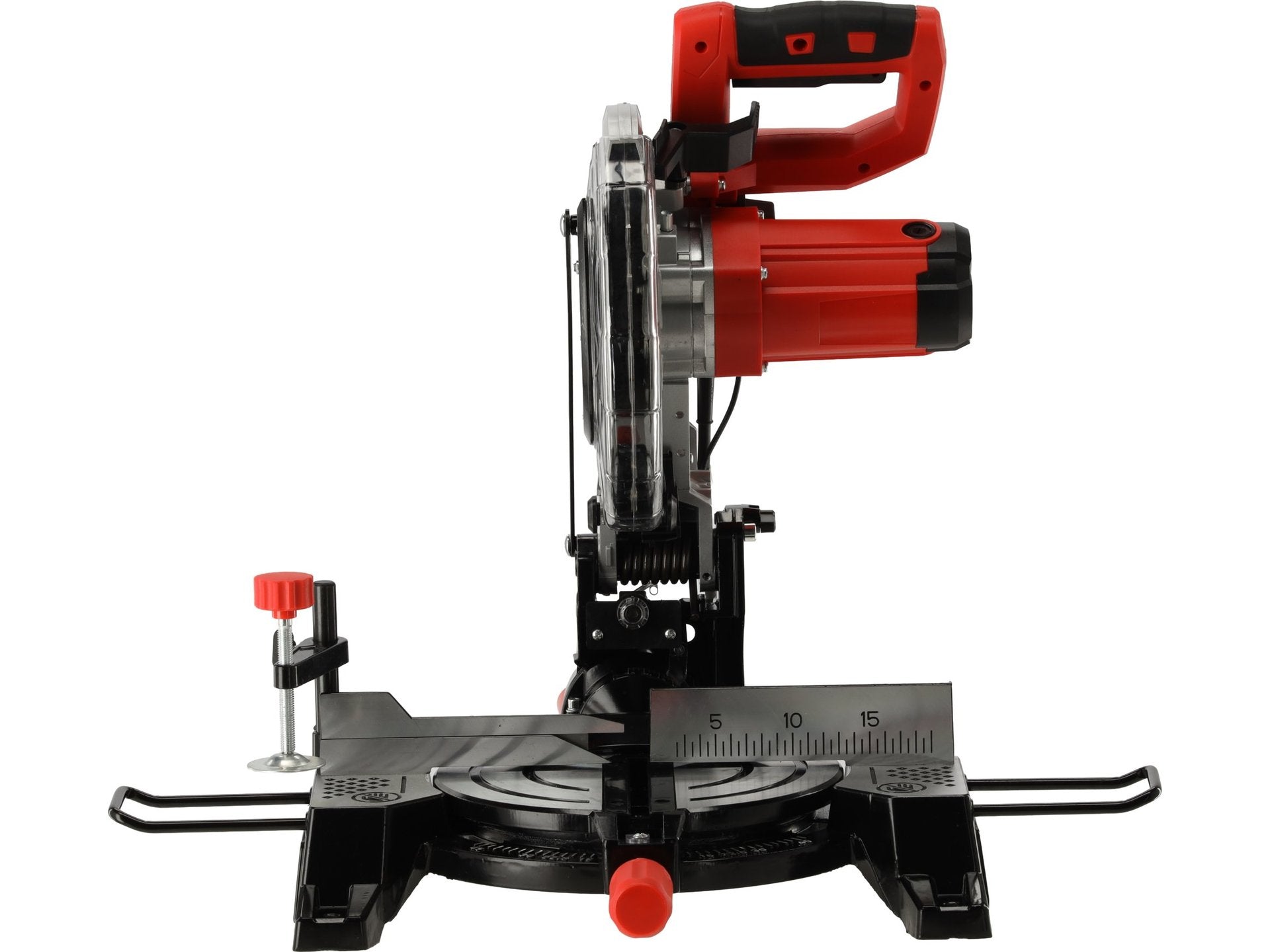

YATO Mitre Saw 255 mm, 1500W, with Laser – YT-821722
Regular price
€128,74
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
This 1500 W miter saw is designed for workshops, installers, and finish carpentry professionals cutting wood and wood-based materials. Its 255 mm blade, laser cutting guide, adjustable table, and tilting head help produce repeatable straight, miter, and angled cuts.
Key Features
- Precise wood cutting: Designed for cutting wood and wood-based materials in workshop, assembly, and finishing work.
- Adjustable cutting angles: Rotating work table and tilting head support straight, miter, and angled cuts up to 45°.
- Laser cutting guide: Class 2 laser indicator assists accurate material positioning along the cutting line.
- Stable work support: Stable base, table extensions, material support plate, and table clamp help guide and secure the workpiece.
- Efficient blade system: 1500 W motor drives a 255 mm blade at 5000 rpm for cutting strips, panels, battens, and similar carpentry elements.
- Practical operation: Spindle lock, movable blade guard, ergonomic transport handle, and dust extraction port support comfortable use and maintenance.
Technical Specifications
| Parameter | Value |
| Brand | YATO |
| SKU | 100538-0001 |
| Product Type | Miter saw with laser |
| Suitable Materials | Wood and wood-based materials |
| Power | 1500 W |
| Rotational Speed | 5000 rpm |
| Saw Blade Size | 255 × 30 × 2.8 mm |
| Included Blade | 255 mm, 24T |
| Maximum Miter Cutting Angle | 45° |
| Head Tilt | Up to 45° |
| Laser Class | Class 2 |
| Laser Wavelength | 650 nm |
| Maximum Cutting Range At 0° Rotation / 0° Tilt | 75 × 125 mm |
| Maximum Cutting Range At 45° Rotation / 0° Tilt | 75 × 85 mm |
| Maximum Cutting Range At 0° Rotation / 45° Tilt | 45 × 125 mm |
| Maximum Cutting Range At 45° Rotation / 45° Tilt | 45 × 85 mm |
| Base | Stable base |
| Work Table | Rotating work table with adjustable cutting angle and table extensions |
| Material Support | Material support plate and table clamp |
| Blade Change Feature | Spindle lock |
| Blade Guard | Movable blade guard |
| Transport Handle | Ergonomic transport handle |
| Dust Extraction | Dust extraction port for connection to a bag or external dust extraction system |
| Sound Pressure Level LpA | 97 ± 3.0 dB(A) |
| Sound Power Level LwA | 110 ± 3.0 dB(A) |
| Weight | 12.5 kg |
| Dimensions | 56 × 42 × 40 cm |
| Volume | 94.08 |
| Unit Of Measure | PCE |
Package Contents
- 1 × miter saw 255 mm 1500 W with laser
- 1 × saw blade 255 mm, 24T
- 1 × dust collection bag
- 1 × work table clamp
- Cutting head adjustment screws
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
