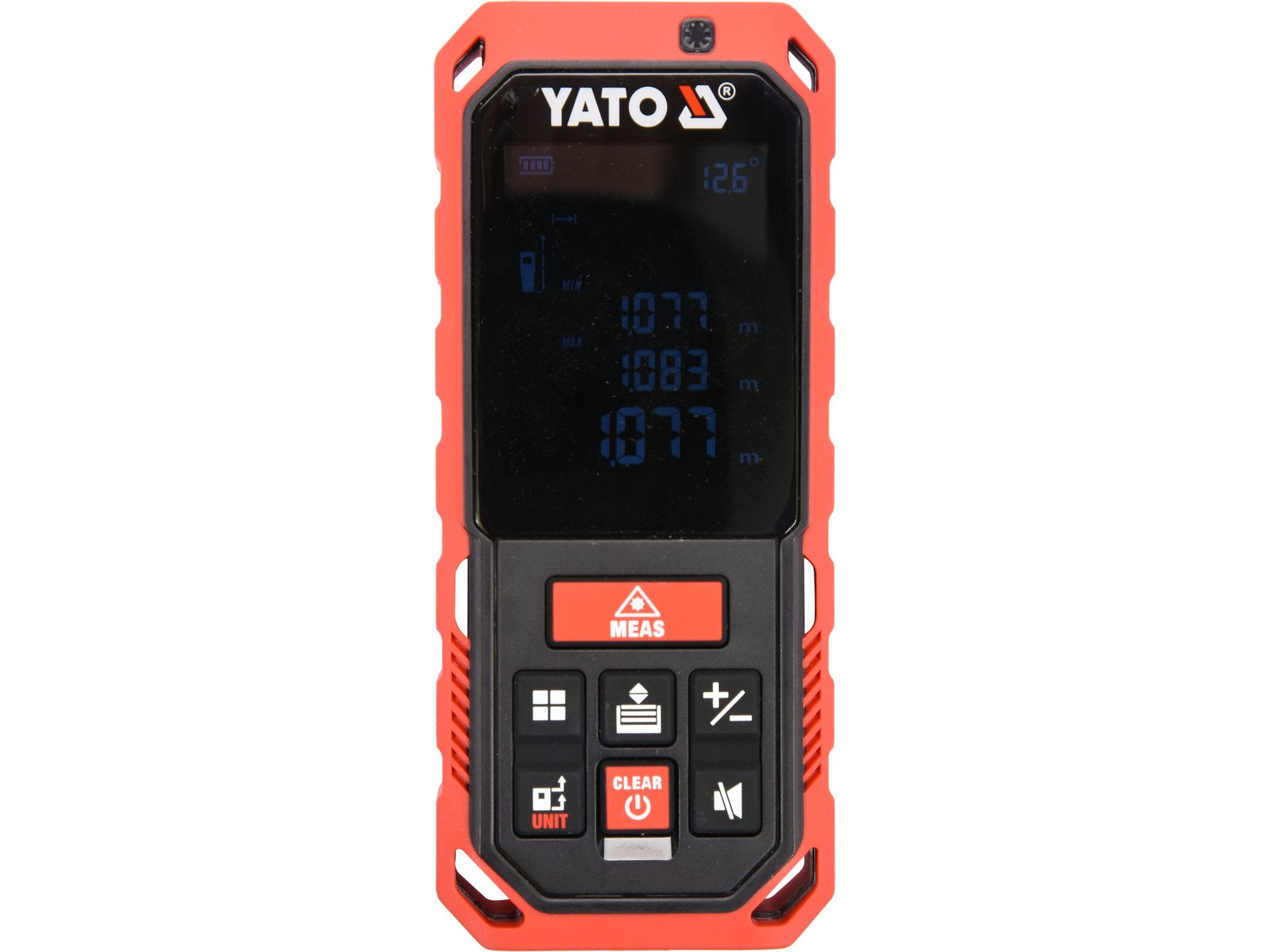

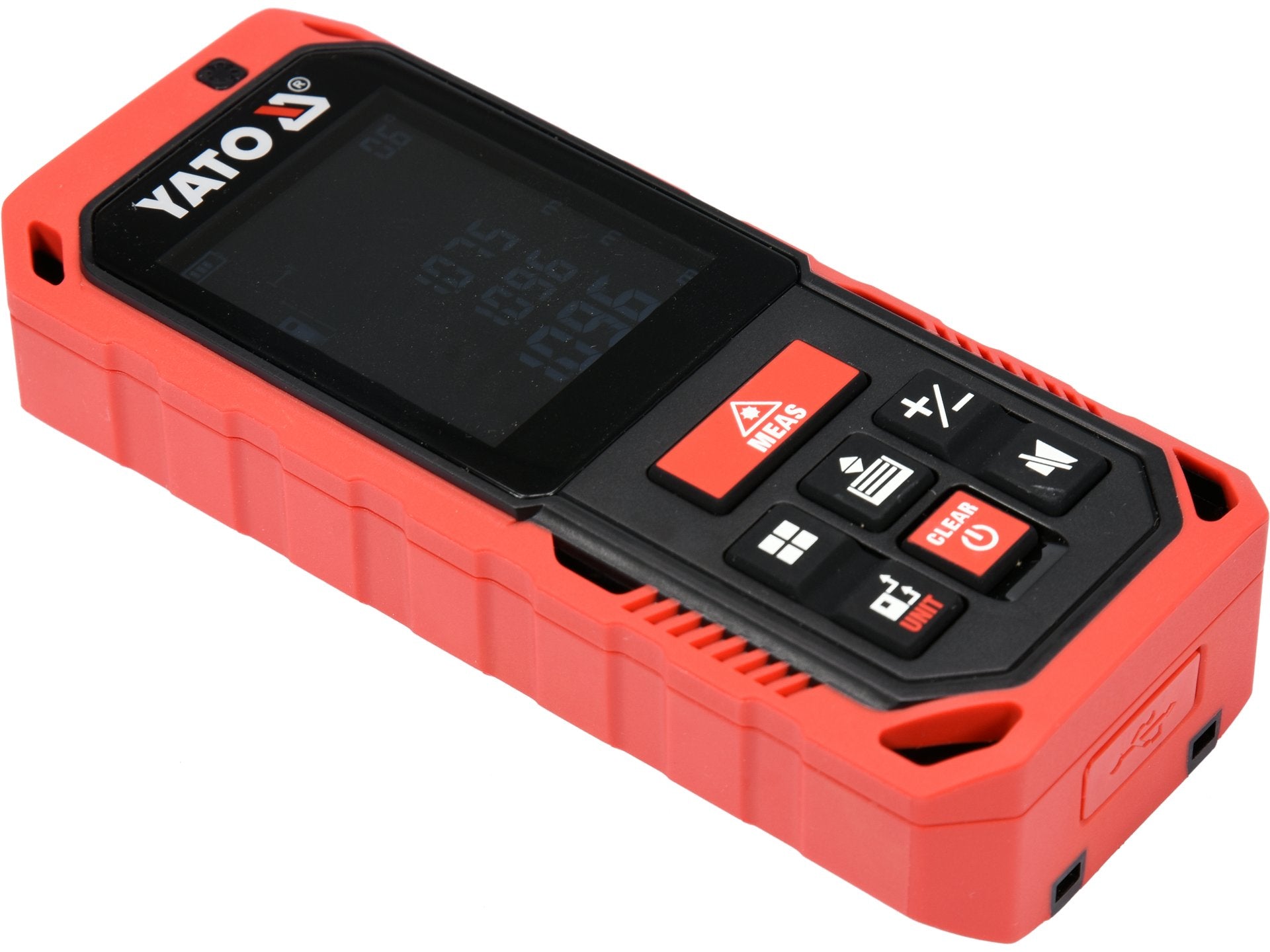

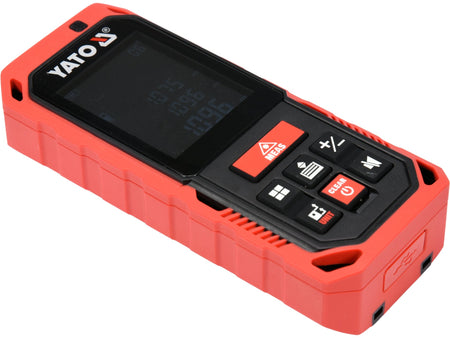

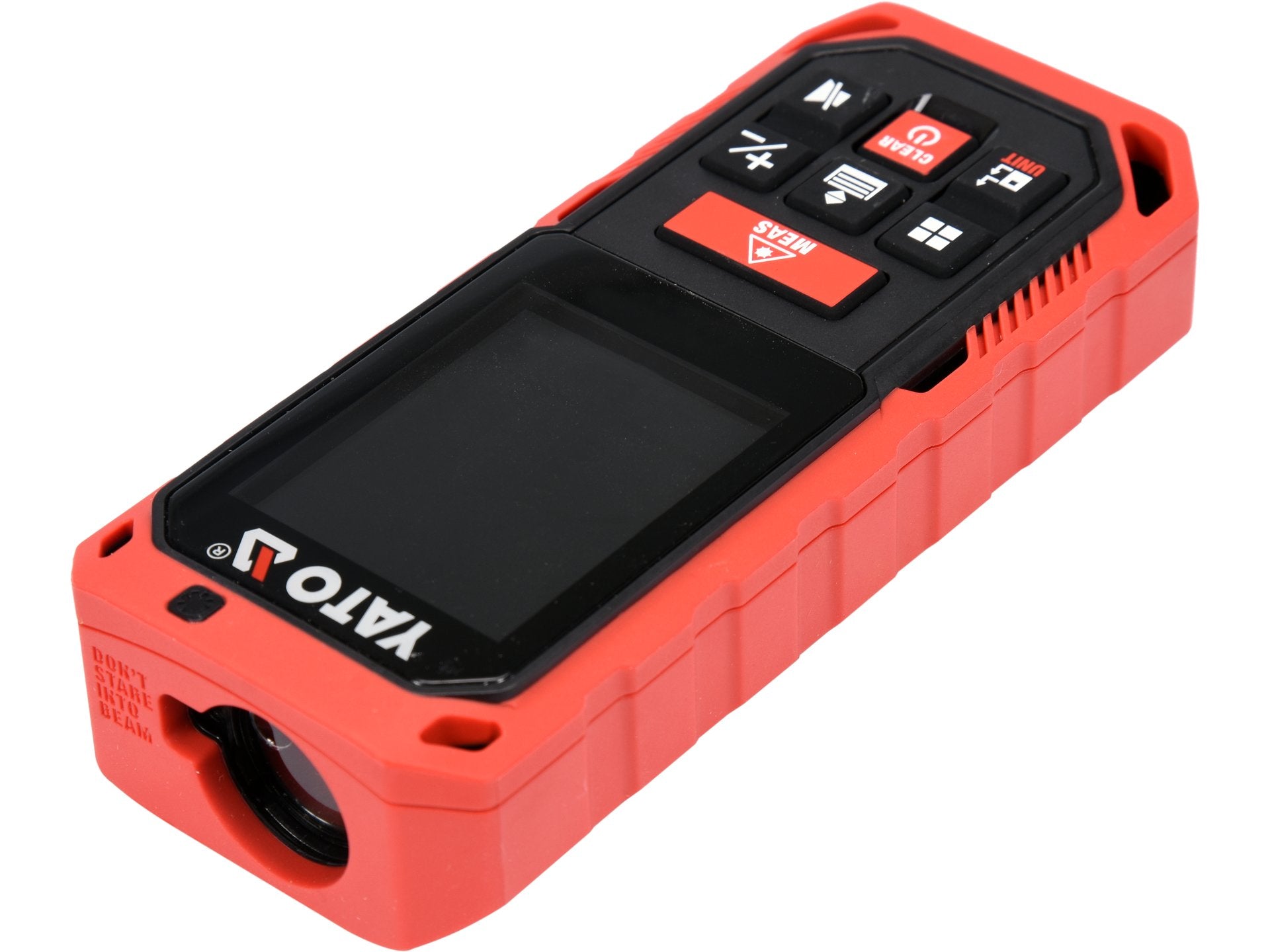

Measure faster, work cleaner, and reduce rework on-site with the YATO YT-73127 laser distance meter. Designed for quick, accurate measurements from 0.2 to 60 m with ±2 mm accuracy, it’s a reliable tool for installers, contractors, survey tasks, interior fit-outs, and general maintenance work where speed and precision matter.
Fast measuring + smart calculation functions
Beyond single distance readings, the YT-73127 supports continuous measurement for tracking moving targets and finding minimum/maximum distances. Built-in calculation modes help you complete common jobsite tasks in seconds:
-
Area and volume calculations (ideal for flooring, painting, HVAC, and material estimating)
-
Add/Subtract distances for quick layout work
-
Pythagorean indirect measurements (3 modes) for measuring heights and diagonals when a direct line isn’t possible
-
Angle of inclination measurement displayed continuously during distance measuring (±1°)
Built for real jobsite conditions
The reinforced housing and IP65 protection help keep dust out and resist water jets, making it suitable for harsh workshop and construction environments. A backlit, four-line LCD improves readability in low light, and the battery status indicator keeps you informed during long tasks.
Flexible setup and measuring reference
Choose the most convenient measurement starting point (3 bases) and switch units between meters, feet, inches, or feet+inches. A 1/4" tripod thread (20UNC) lets you mount it for stable, repeatable measurements (tripod not included).
Power and charging
Powered by 3× AAA batteries (1.5V or 1.2V NiMH) with USB charging support for NiMH batteries, helping reduce downtime and battery waste.
Included in the set
-
USB cable
-
Wrist leash
-
Protective case
Key specifications
-
Measuring range: 0.2–60 m
-
Accuracy: ±2 mm
-
Laser: Class 2, <1 mW, 630–670 nm, red beam
-
Protection: IP65
-
Operating temperature: 0–40°C (storage: -10–50°C)
-
Memory: 20 results
-
Dimensions: 115 × 49 × 26 mm
-
Tripod mount: 1/4" (6.35 mm) 20UNC
A practical choice for anyone who needs dependable measurements, faster estimating, and a rugged tool that’s ready for daily work.
