TG Fully Ground Twist Drill Bit, 6542 HSS M2, 135° Point, Round Shank, for Metal, 1–13 mm

Fully ground HSS M2 (6542) twist drill bit with a 135° split-point geometry and straight round shank for accurate drilling in compatible metals. Available in 25 selected diameters from 1 to 13 mm for electric drills, pillar drills and machining equipment.

Key Features

• Manufactured from HSS M2 (6542) high-speed steel for reliable hardness and wear resistance
• Fully ground construction provides accurate dimensions, a smooth surface and sharp cutting edges

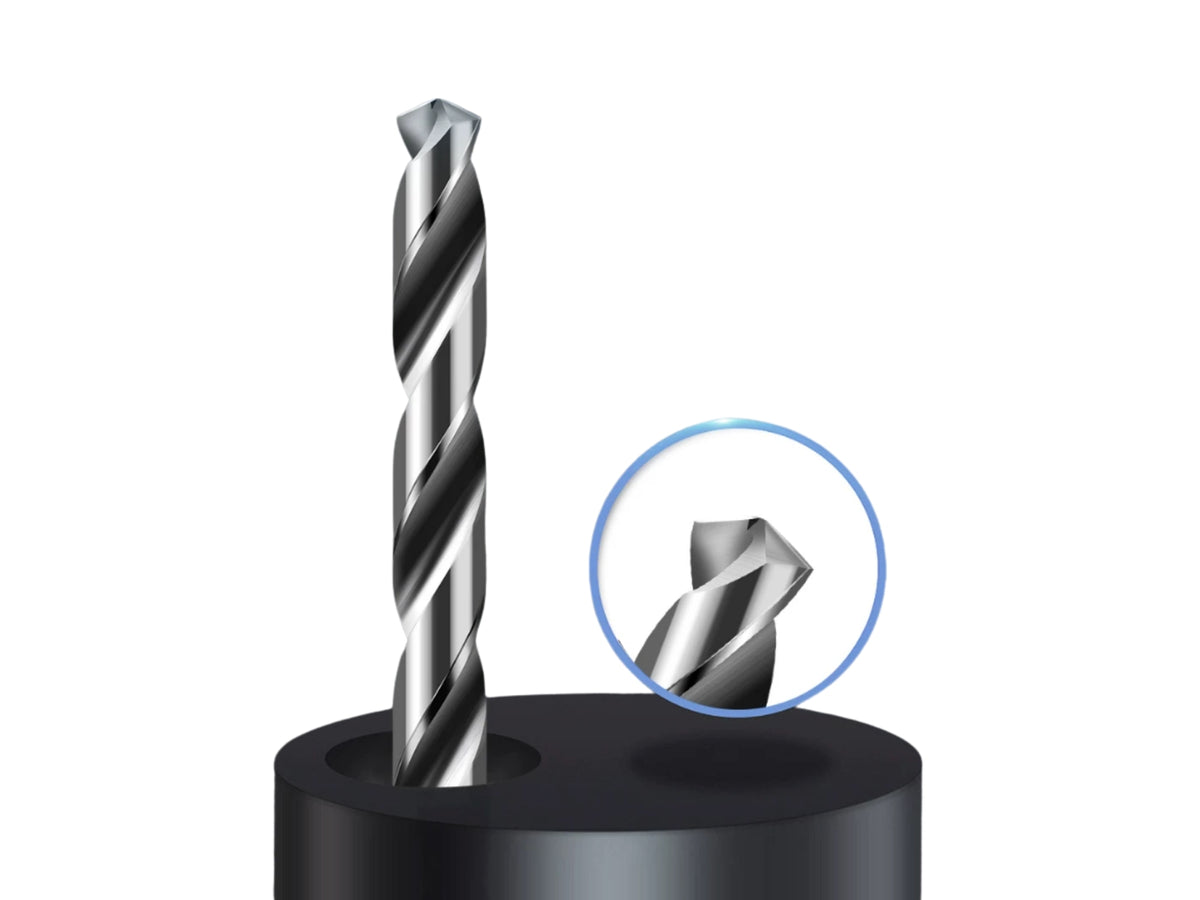

• 135° split-point geometry improves centring and supports stable entry into the workpiece
• Spiral flutes provide space for chip evacuation and cutting-fluid access
• Straight round shank fits compatible three-jaw drill chucks

Product Specifications

Available Variants

Applications

• Aluminium and compatible aluminium alloys
• Copper and compatible non-ferrous metals
• Galvanised steel tube and mild-steel components
• Compatible mould steels and metal workpieces up to approximately HRC 30

Tool Compatibility

• Suitable for compatible electric drills, cordless drills, pillar drills and machining equipment
• Straight round shank requires a compatible three-jaw drill chuck
• The shank diameter corresponds to the selected drill diameter
• Confirm that the chuck capacity accepts the selected diameter; the 13 mm variant requires a chuck with at least 13 mm capacity
• When fitted to an impact drill, use rotary drilling mode rather than percussion mode for metal drilling

Operating Guidance

• Select spindle speed according to the drill diameter, workpiece material and hardness
• Reduce speed as the drill diameter or material hardness increases
• Use suitable cutting fluid when drilling steel and other demanding metals
• Secure the workpiece and drill perpendicular to the surface to reduce vibration
• Clear chips periodically when drilling deeper holes
