YATO Diamond Cutting and Grinding Disc for Ceramic & Porcelain Tiles, 115/125/230 mm
Regular price
€5,03
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
YATO diamond blade for professional cutting and edge work on ceramic, porcelain, stone tiles, glass, and roof tiles. It is suitable for dry or wet use and is available in 115 mm, 125 mm, and 230 mm variants for different cutting requirements.
Key Features
- Precise Cutting: designed for clean cutting and edge work on ceramic and related tile materials.
- Dry Or Wet Use: suitable for both dry and wet cutting applications.
- Tile Edge Work: suitable for 45° tile edge grinding, porcelain stoneware chamfering, and angled valley edge cutting.
- Segment Design: 10 mm cutting segment height supports extended disc service life.
- Cutting Performance: reduced cross-sectional area supports faster, more precise cutting with less grinder load.
- Diamond Segment: segment uses selected A-grade industrial diamond granules and cobalt hardness.
- Disc Stability: centered disc flange helps reduce side run-out and edge irregularities.
Technical Specifications
| Parameter | Value |
| Brand | YATO |
| Product Type | Diamond blade for ceramic cutting |
| Unit Of Measure | PCE |
| Max. Disc Linear Velocity | 80 m/s |
| Mounting Hole Diameter | 22.2 mm |
| Cutting Segment Height | 10 mm |
| Cutting Segment Chemical Composition | Fe 20%, Cu 55%, Sn 7%, Ni 8%, Co 10%, diamond coating 15% |
| Material | 65Mn steel |
| Work Type | Dry, wet |
| Application | Ceramic tiles, glazed tiles, stone tiles, glass, porcelain, ceramics, porcelain stoneware, roof tiles |
Variant Comparison
| SKU Code | Spec / Size | Max. Rotations | Cutting Segment Thickness | Product Weight | Dimensions (L×W×H) |

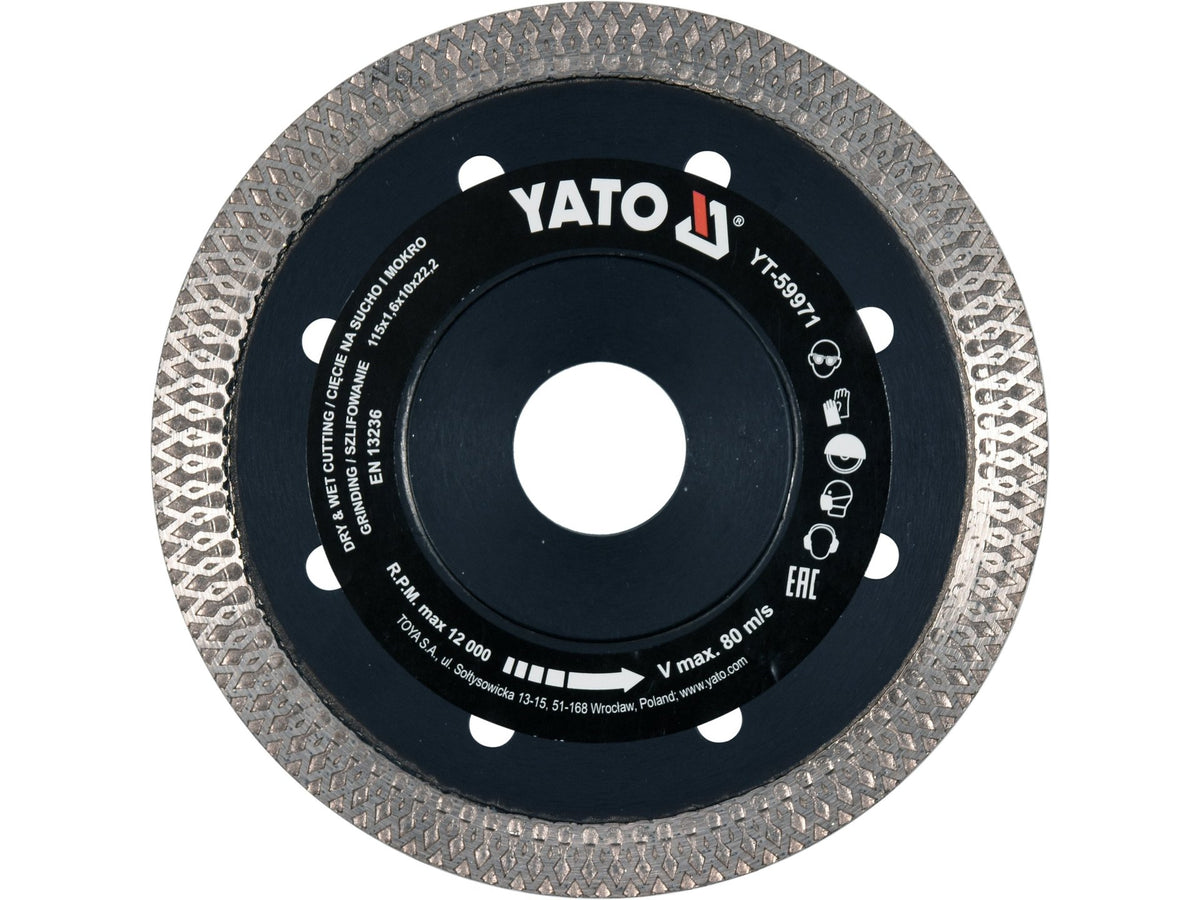

| 100752-0001 | 115 mm | 12000 min⁻¹ | 1.6 mm | 0.15 kg | 19.5 × 15 × 0.5 cm |

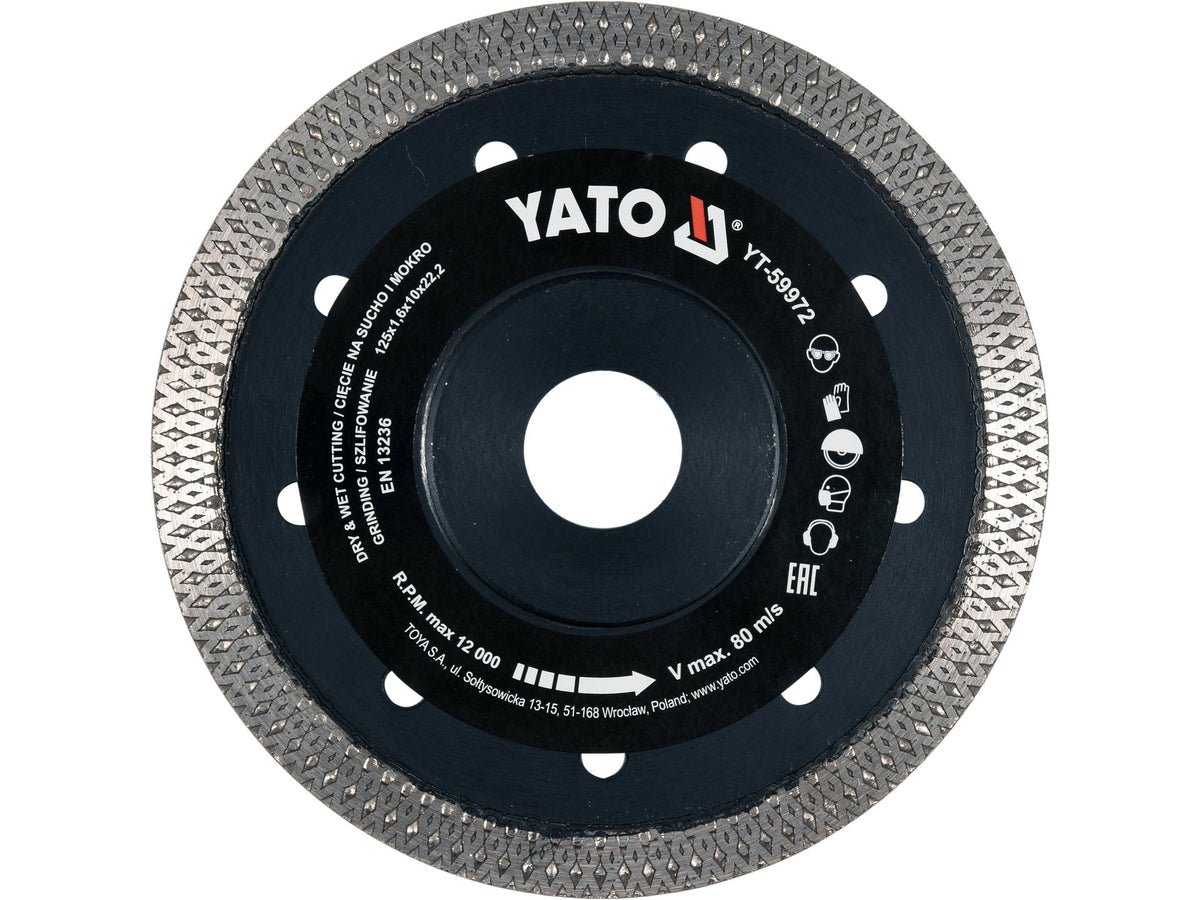

| 100752-0002 | 125 mm | 12000 min⁻¹ | 1.6 mm | 0.17 kg | 0.5 × 16.5 × 20.5 cm |

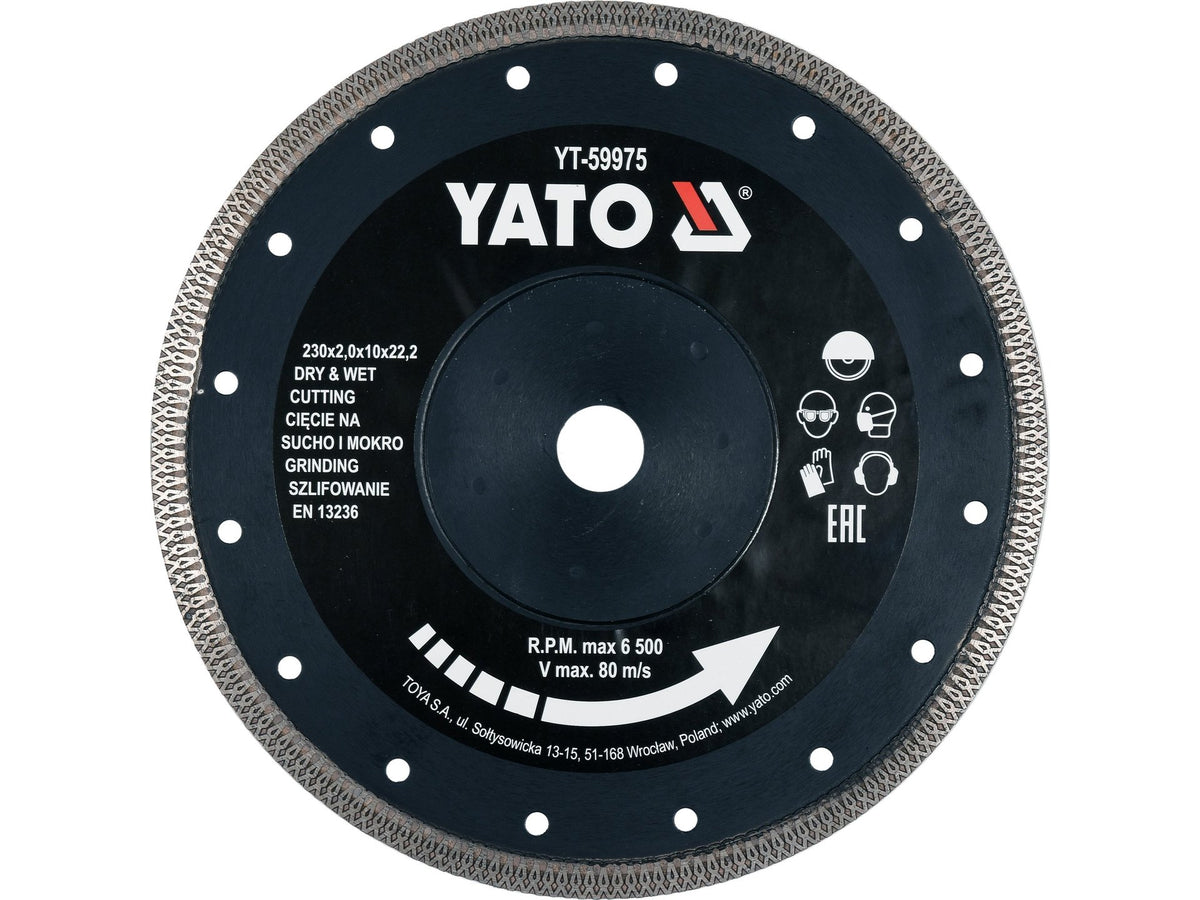

| 100752-0003 | 230 mm | 6500 min⁻¹ | 2 mm | 0.66 kg | 31 × 26.5 × 1 cm |
Package Contents
- 1 × diamond blade in the selected diameter variant
- Instruction Manual Download
24-Month Consumer Legal Guarantee
Consumers receive a minimum 24-month statutory legal guarantee from the date of delivery. No additional PERIPLUS commercial warranty applies unless expressly stated for this product. Mandatory national consumer rights remain fully applicable.
