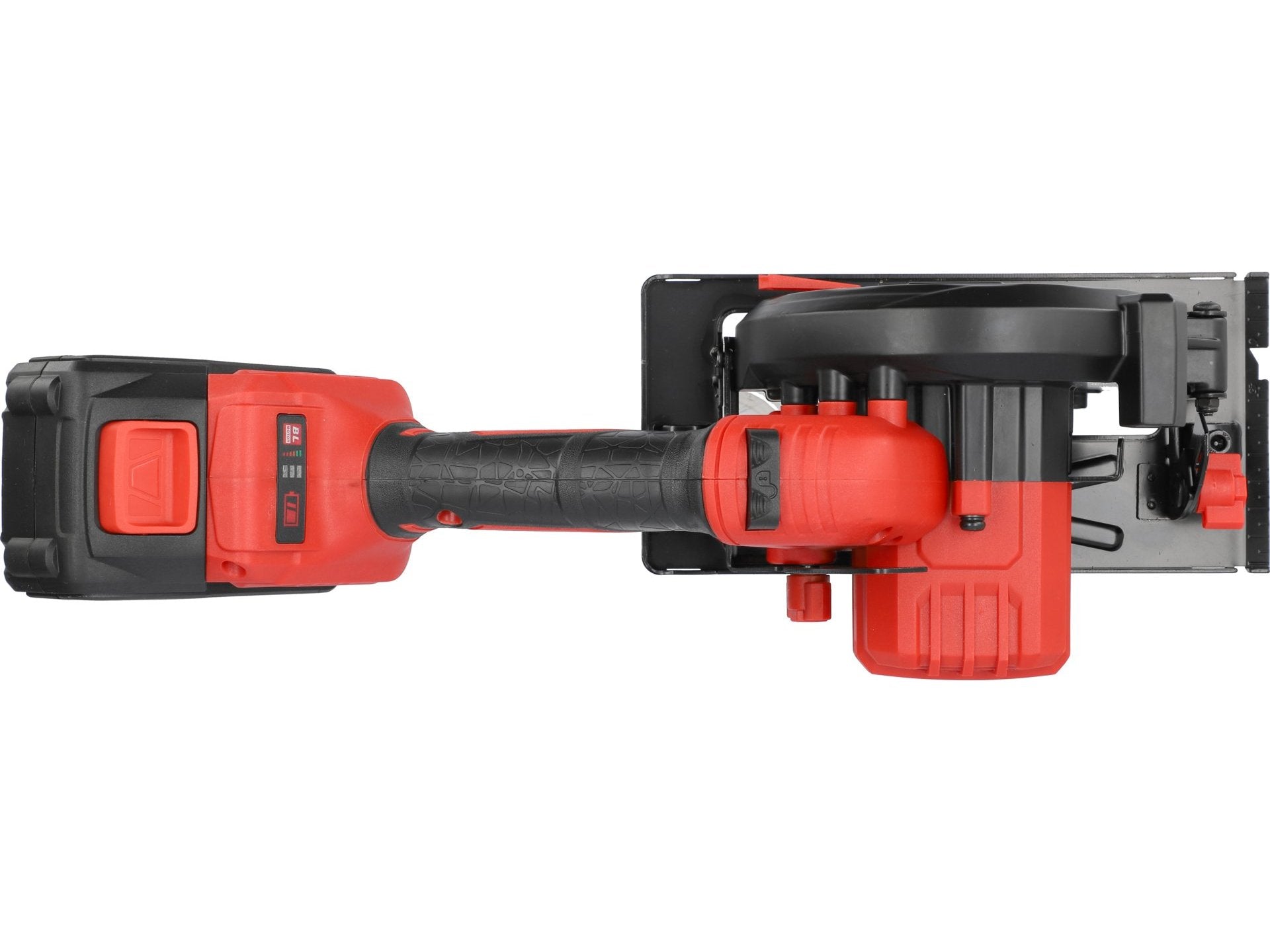

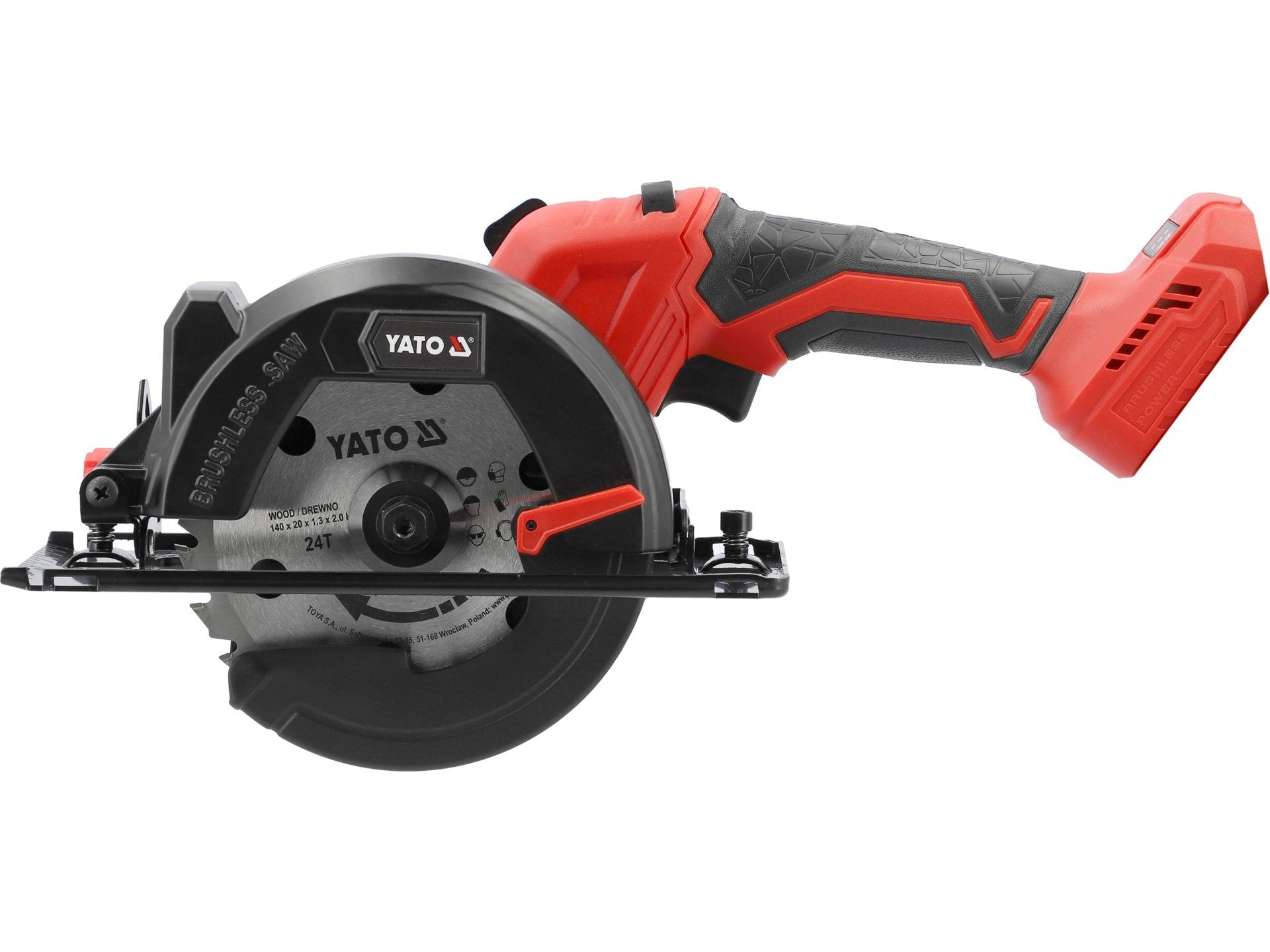

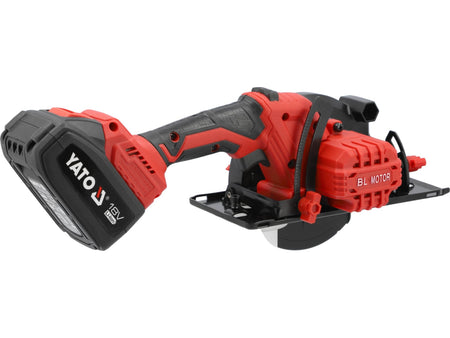

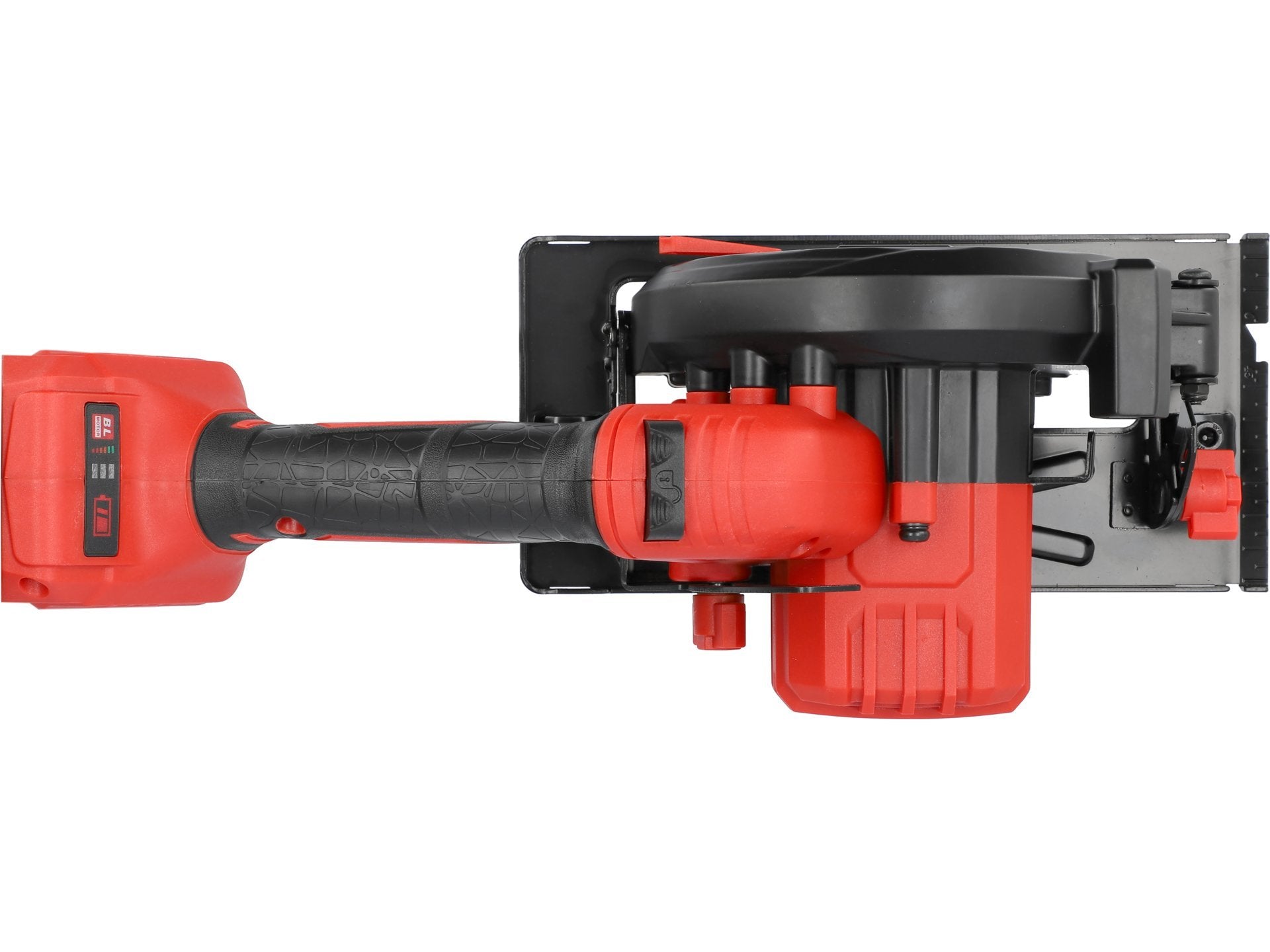

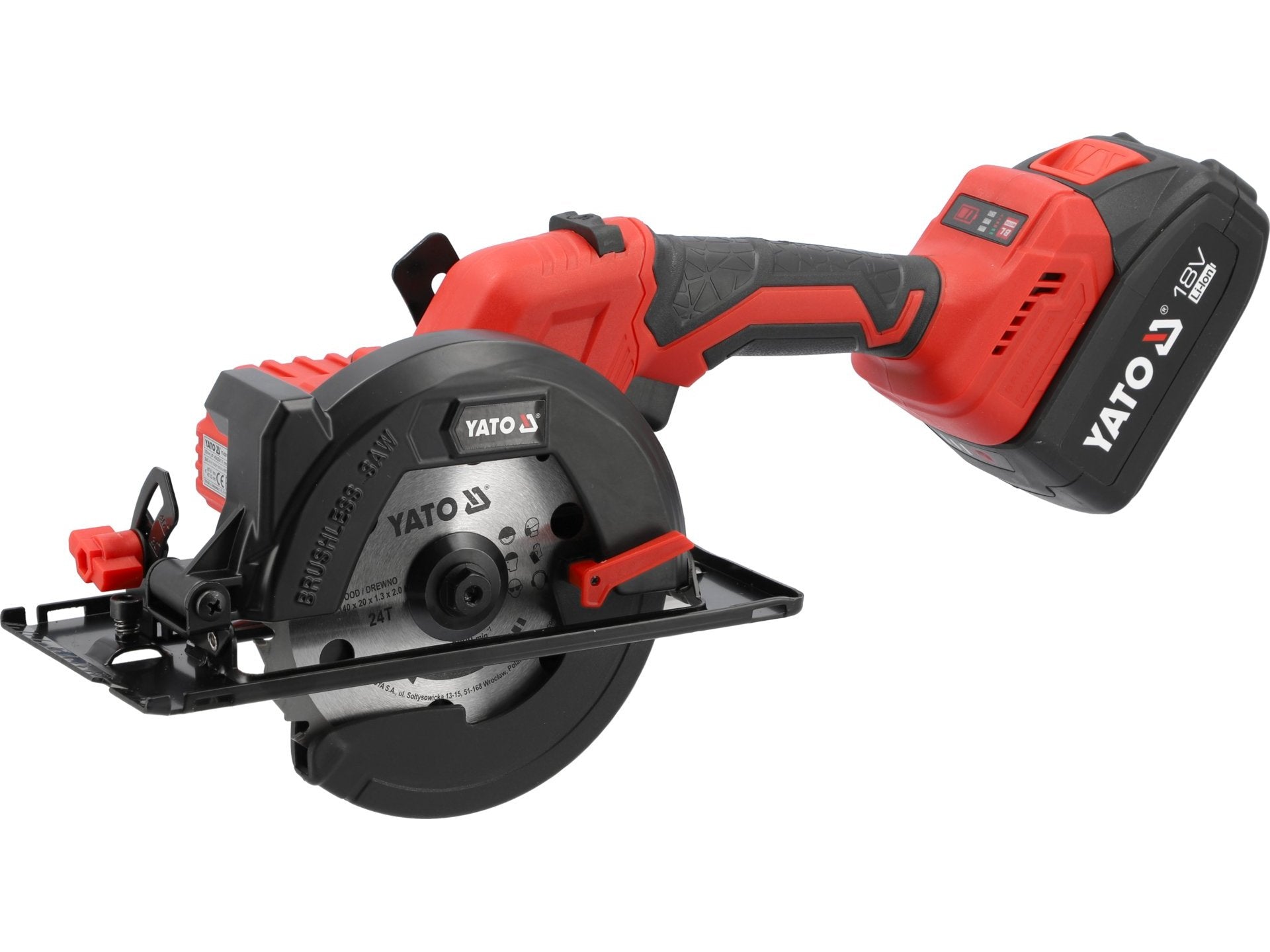

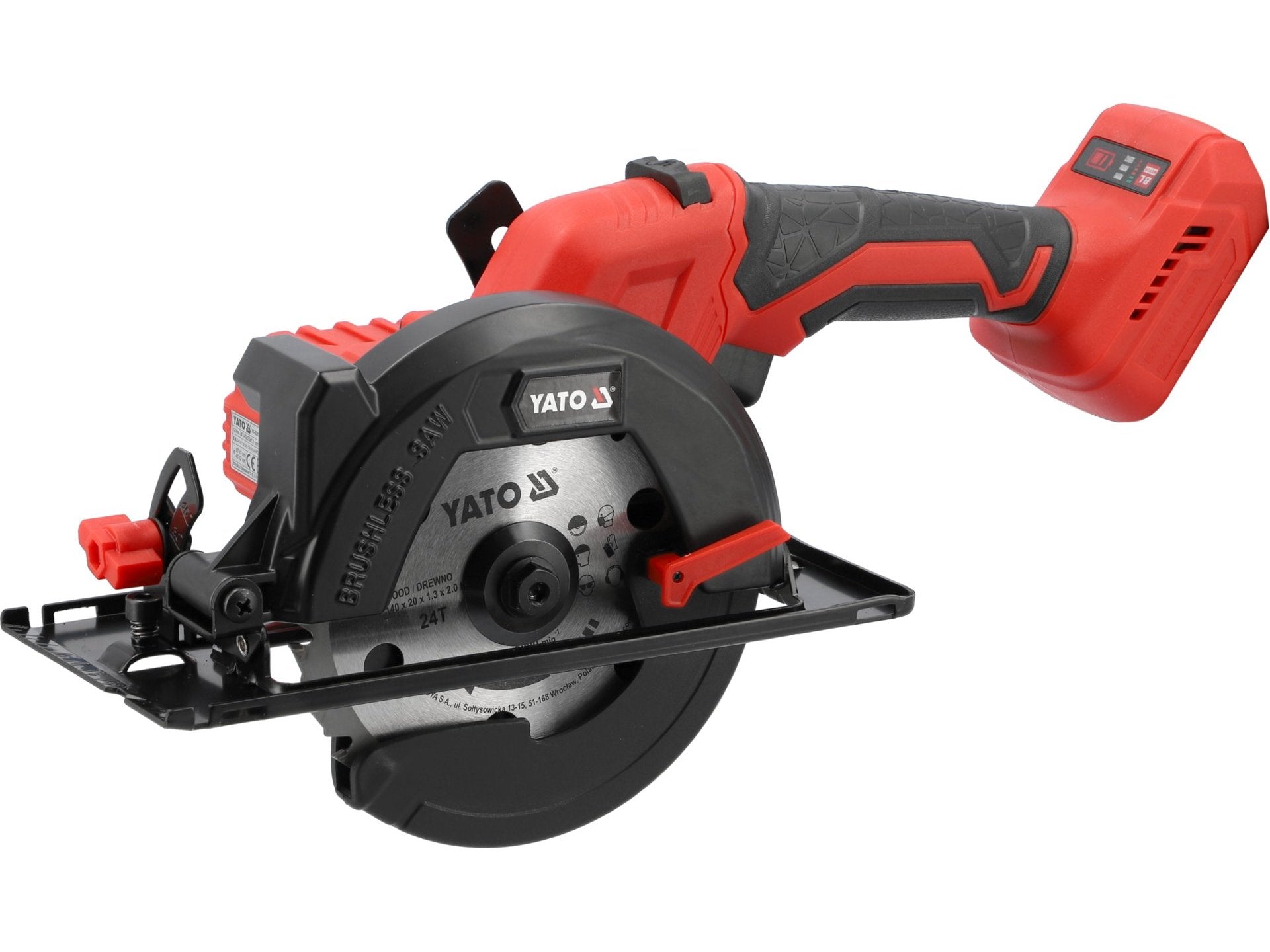

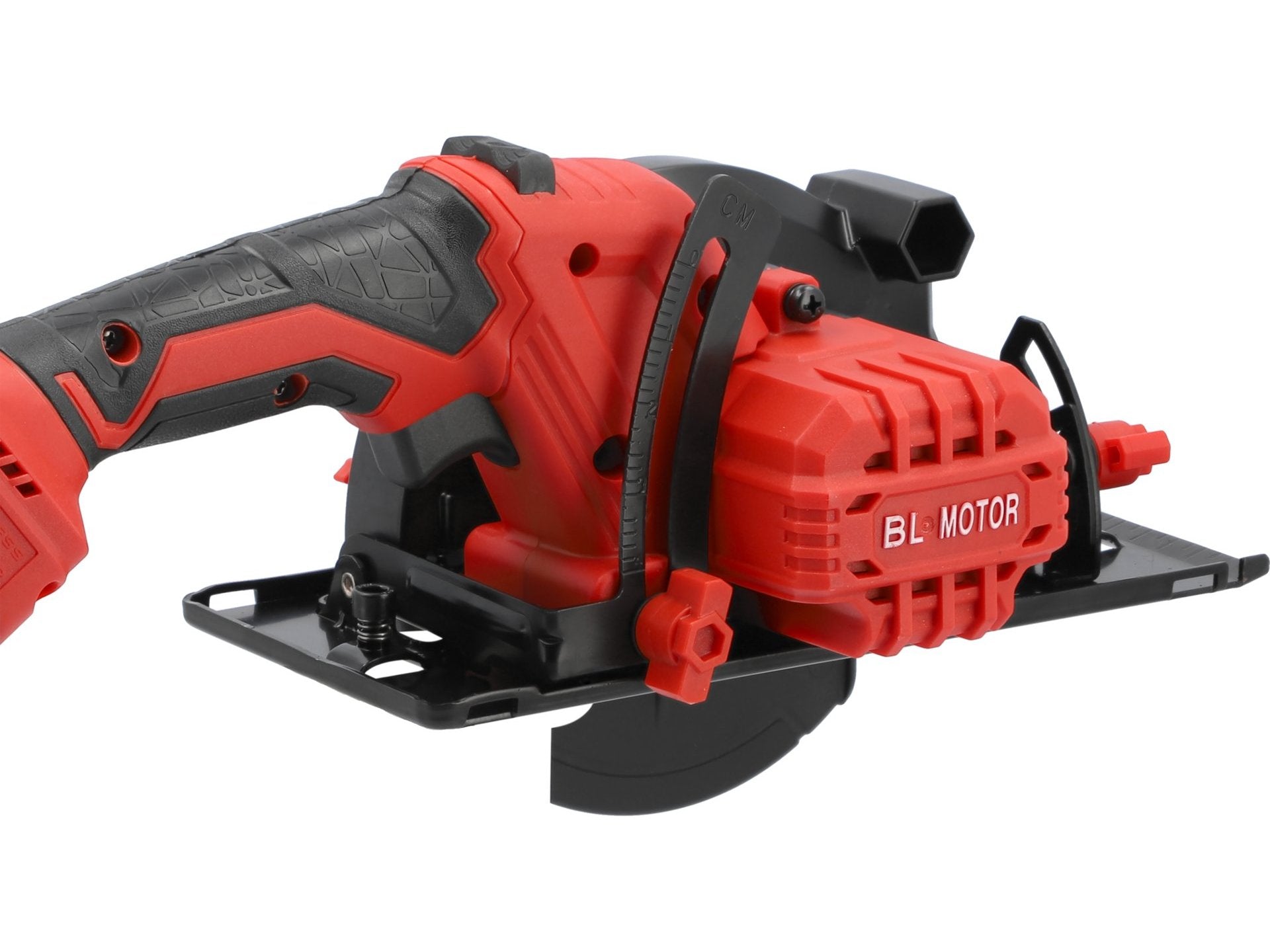

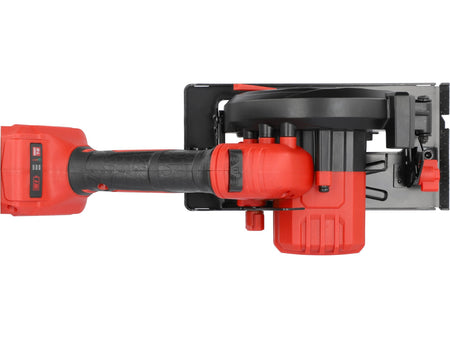

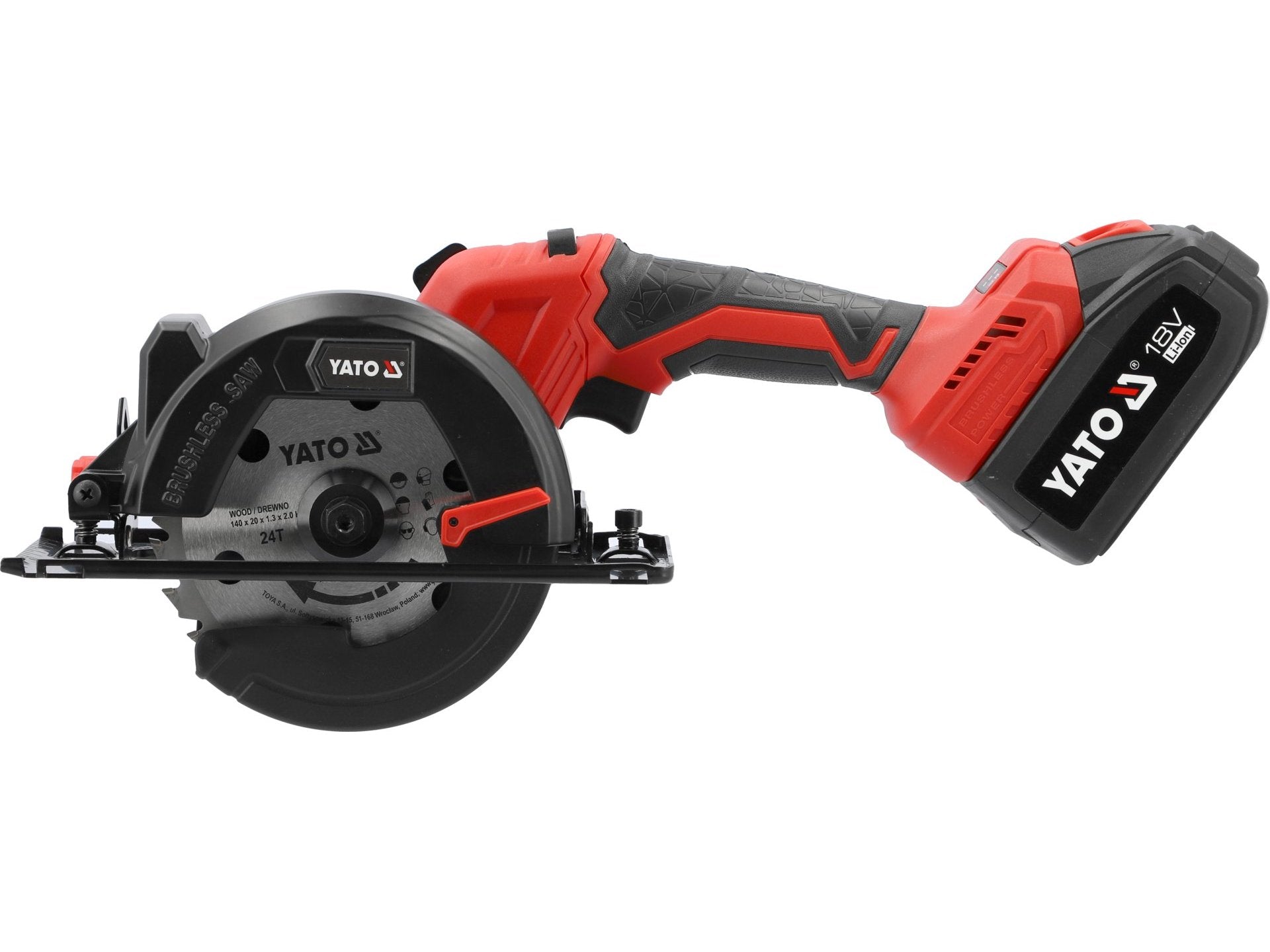

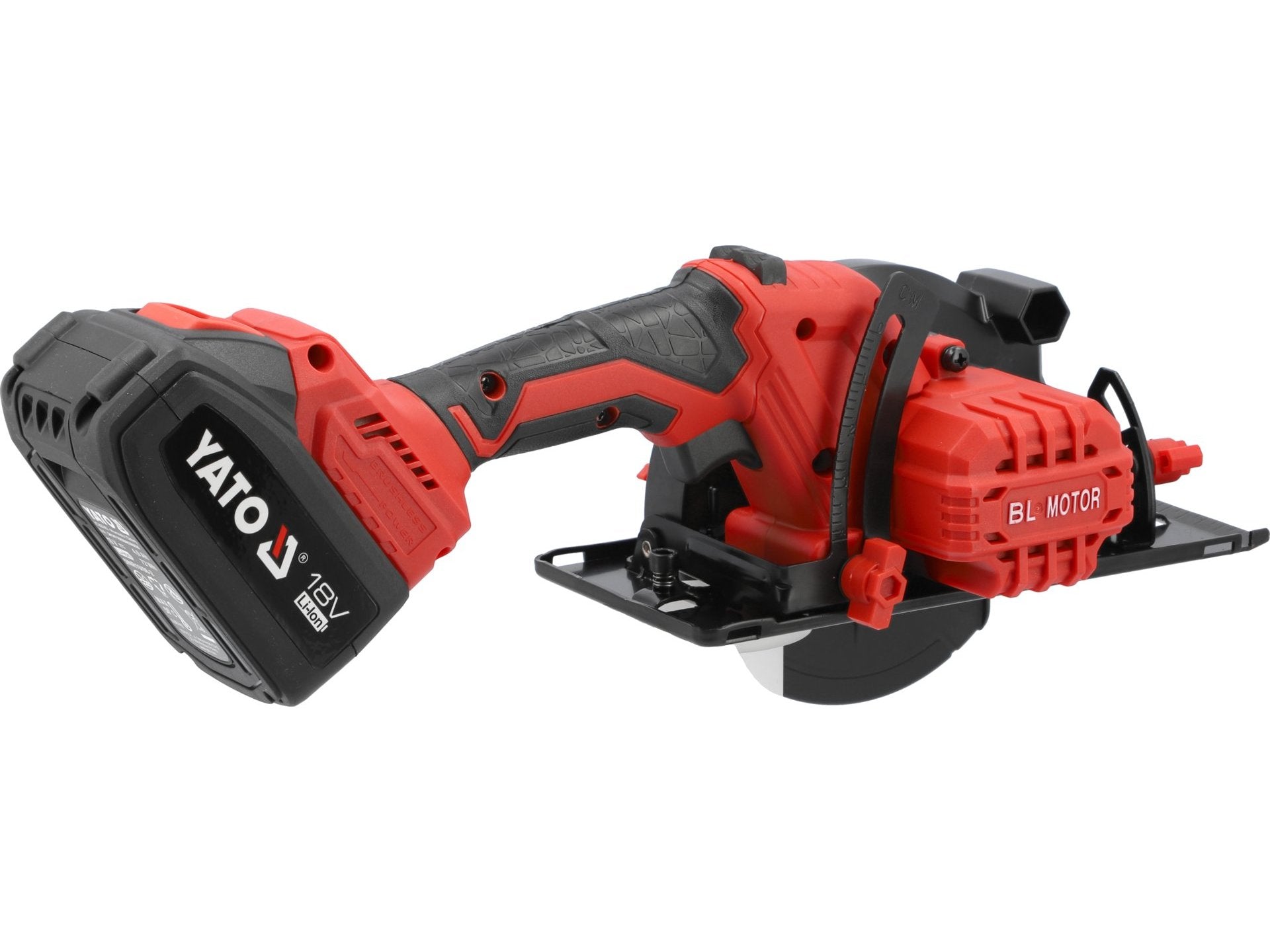

YATO Circular Saw 18V 140 mm, Brushless Motor - Body / 2x4 Ah
Regular price
€77,32
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
Cordless 18 V circular saw for professionals cutting solid wood, plywood, and OSB in assembly, carpentry, and joinery work. It offers 6150 min⁻¹ speed, adjustable 0–45° cutting angle, and a 140 mm disc, with body-only and 2 × 4 Ah battery kit variants available.
Key Features
- Cordless Operation: 18 V cordless circular saw compatible with the YATO 18 V battery system.
- Wood Cutting Applications: Suitable for cutting solid wood, plywood, and OSB in assembly, carpentry, and joinery work.
- Cutting Performance: 6150 min⁻¹ rotation speed with a maximum cutting depth of 51 mm at 90° and 32 mm at 45°.
- Adjustable Cutting Angle: 0–45° angle regulation supports angled cutting requirements.

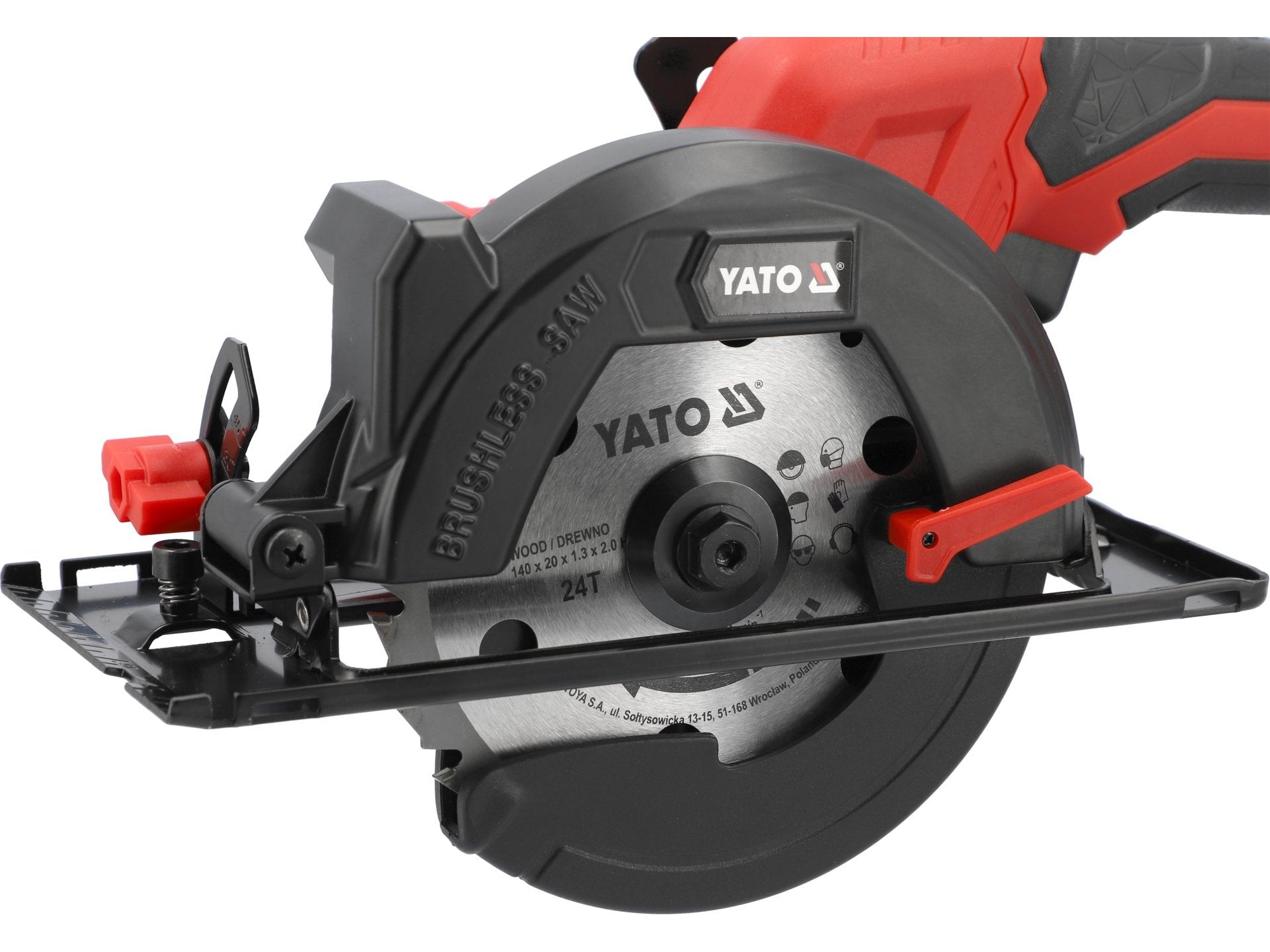

- Blade Specification: Uses a 140 mm cutting disc with 20 mm internal diameter, 1.1 mm maximum thickness.

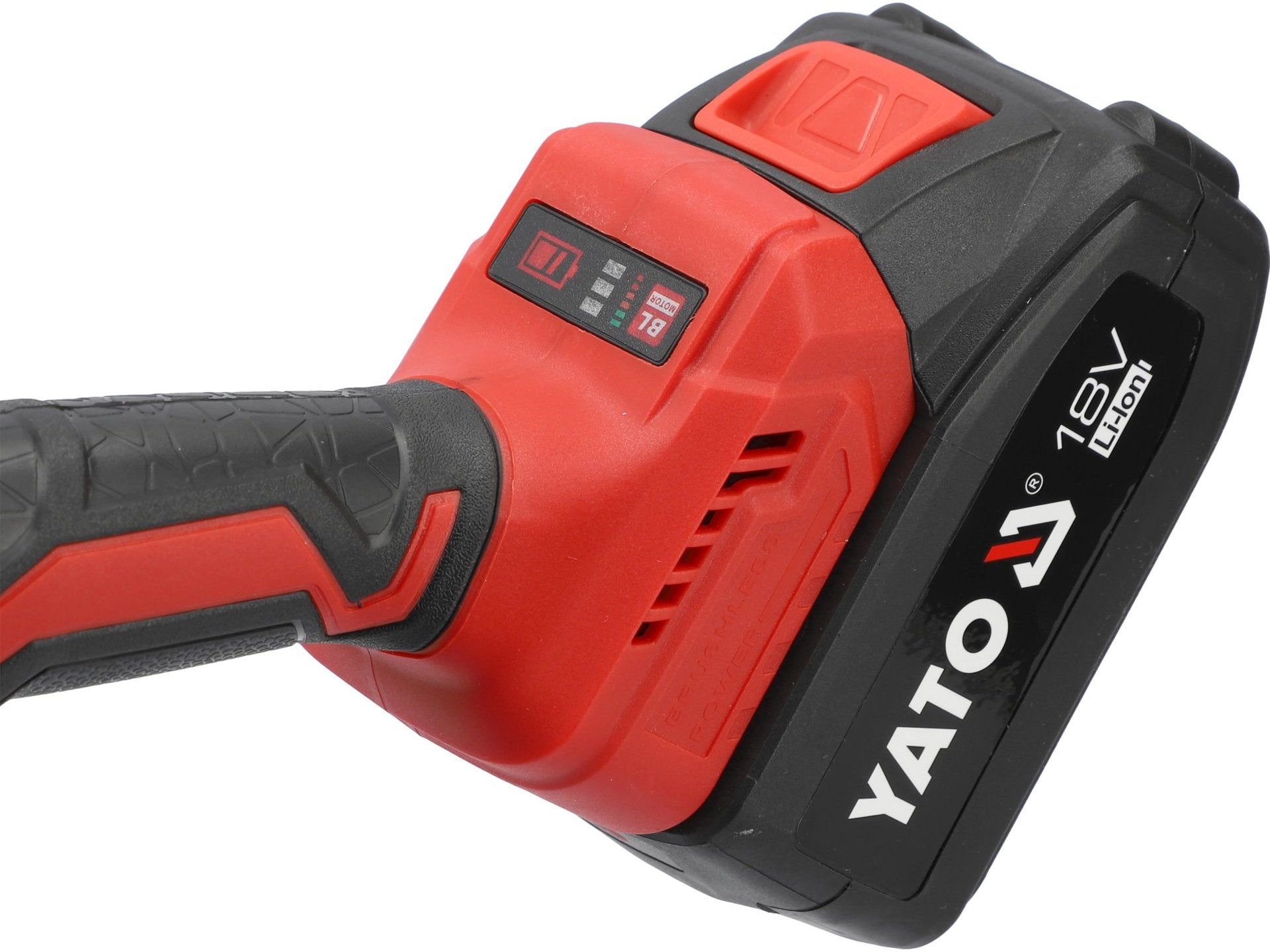

- Variant Options: Available as a body-only unit or as a kit with two 4 Ah Li-Ion batteries and charger.
Technical Specifications
| Parameter | Value |
| Brand | YATO |
| Product Type | Cordless circular saw |
| Application | Cutting solid wood, plywood, and OSB |
| Power Supply | 18 V battery system |
| Voltage | 18 V d.c. |
| Battery Type | Li-Ion |
| Rotations | 6150 min⁻¹ |
| Maximum Cutting Depth | 51 mm at 90°, 32 mm at 45° |
| Cutting Angle Regulation | 0–45° |
| Cutting Disc Outer Diameter | 140 mm |
| Cutting Disc Internal Diameter | 20 mm |
| Cutting Disc Maximum Thickness | 1.1 mm |
| Electric Insulation Class | III |
| Protection Grade | IPX0 |
| Acoustic Pressure | 94.0 ± 3.0 dB(A) |
| Acoustic Power | 102.0 ± 3.0 dB(A) |
| Vibrations | 1.2 ± 1.5 m/s² |
| Tool Weight | 1.9 kg |
Variant Comparison
| Parameter | Body-Only Variant | Kit Variant With 2 × 4 Ah Batteries |
| SKU Code | 100588-0001 | 100588-0002 |
| Variant Identifier | CIRCULAR SAW 18V 140MM BL MOTOR - BODY | CIRCULAR SAW 18V 140MM BL MOTOR - 2X 4AH |

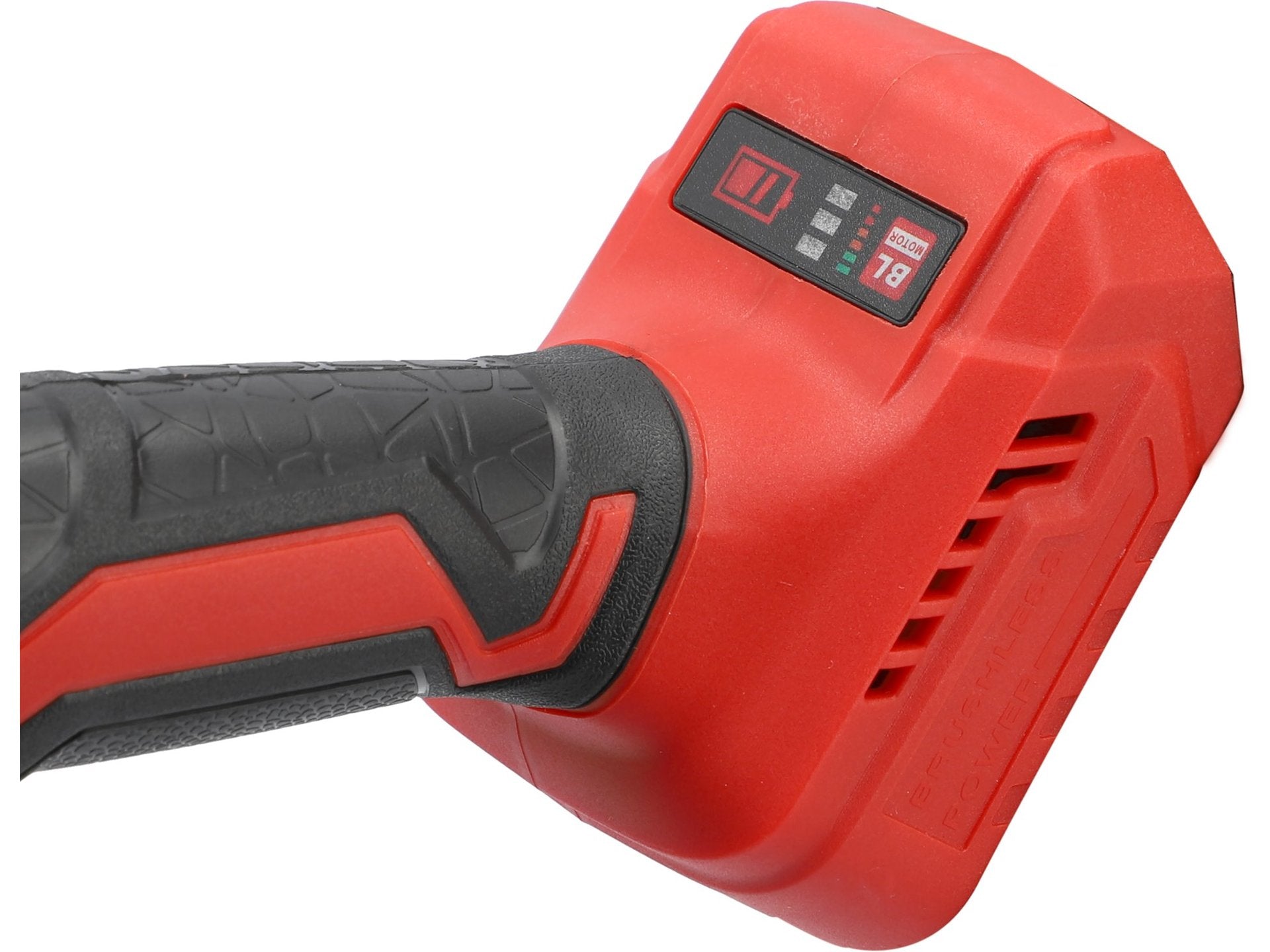

| Motor Type | BL motor | BL motor |
| Unit Of Measure | PCS | KIT |
| Battery Quantity | None supplied | 2 |
| Battery Capacity | N/A | 4000 mAh |
| Charger Included | No | Yes |
| Charging Time | N/A | 2 h |
| Quick Charging | N/A | Yes |
| Charge Level Indicator | N/A | Yes |
| Package Weight | 3.0 kg | 5.38 kg |
| Dimensions (L×W×H) | 39.5 × 16.0 × 14.0 cm | 19.0 × 40.5 × 16.0 cm |
| Volume | 10.29 | 14.75 |
| Set Contents | Saw, guide with scale | Saw, guide with scale, 2 batteries, charger |
Package Contents
- Body-only variant: 1 × circular saw and 1 × guide with scale; battery and charger are not supplied.
- Kit variant: 1 × circular saw, 1 × guide with scale, 2 × 4 Ah Li-Ion batteries, and 1 × charger.
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
