TG Spiral-Flute Step Drill Bit, 6542 HSS, 3-Flat Shank, for Sheet Metal & Plastic, 4-12/4-20/4-32 mm
Regular price
€5,88
VAT included
Couldn't load pickup availability
Got questions, ask an expert!
This 6542 HSS spiral-flute step drill bit is suitable for drilling, enlarging and deburring holes in compatible sheet materials. Choose 4–12 mm, 4–20 mm or 4–32 mm, each supplied individually with a size-specific 3-flat shank.
Key Features
- 6542 High-Speed Steel: Provides good hardness, heat resistance and wear resistance for general sheet-metal drilling.
- Spiral-Flute Design: Supports efficient chip evacuation and reduced cutting resistance during progressive drilling.
- Three Size Ranges: Available in 4–12 mm, 4–20 mm and 4–32 mm variants with 2 mm diameter increments.
- Marked Cutting Steps: Clearly marked diameters help the operator select the required hole size.
- Size-Specific 3-Flat Shank: Provides secure clamping in a compatible three-jaw drill chuck.

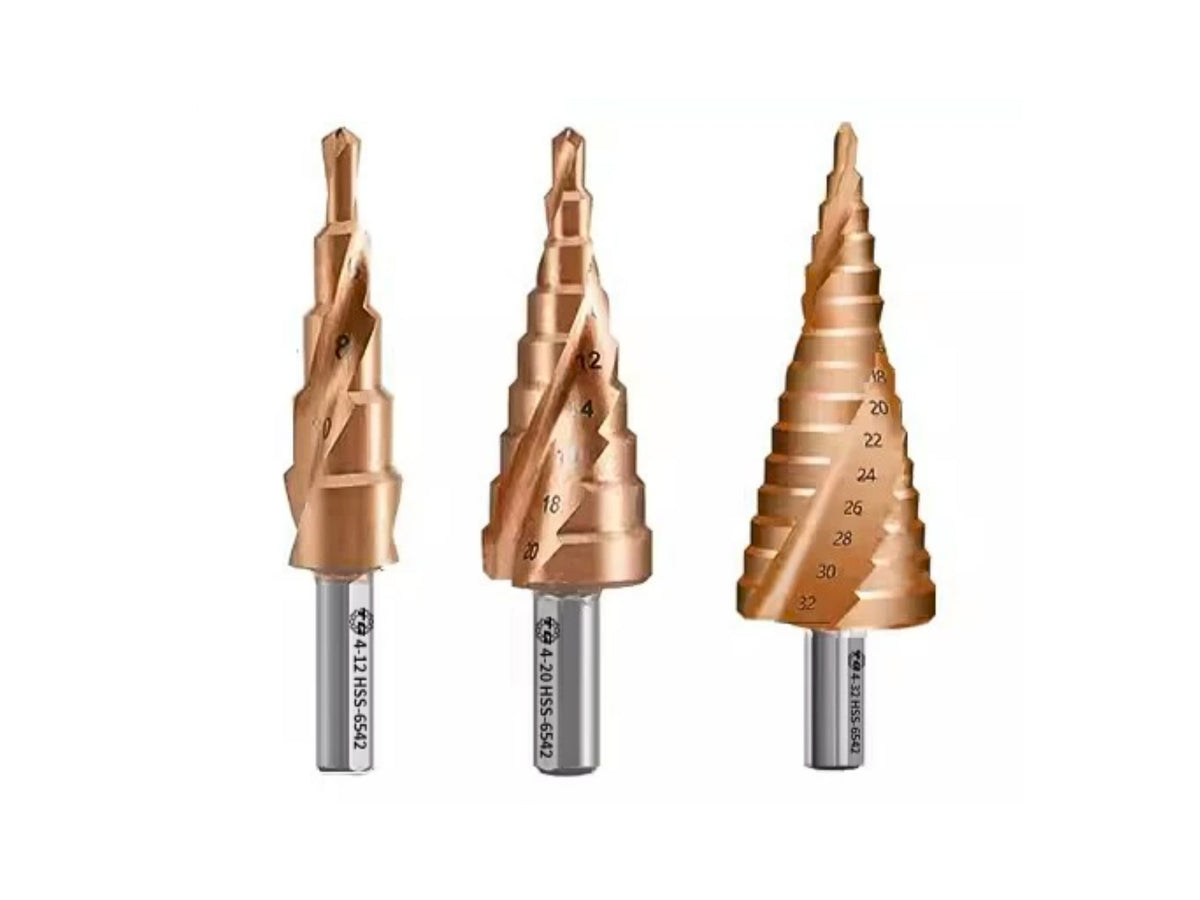

Available Variants
| Product Code | Drilling Range | Steps | Step Height | Cutting Length | Shank Diameter |
|---|---|---|---|---|---|

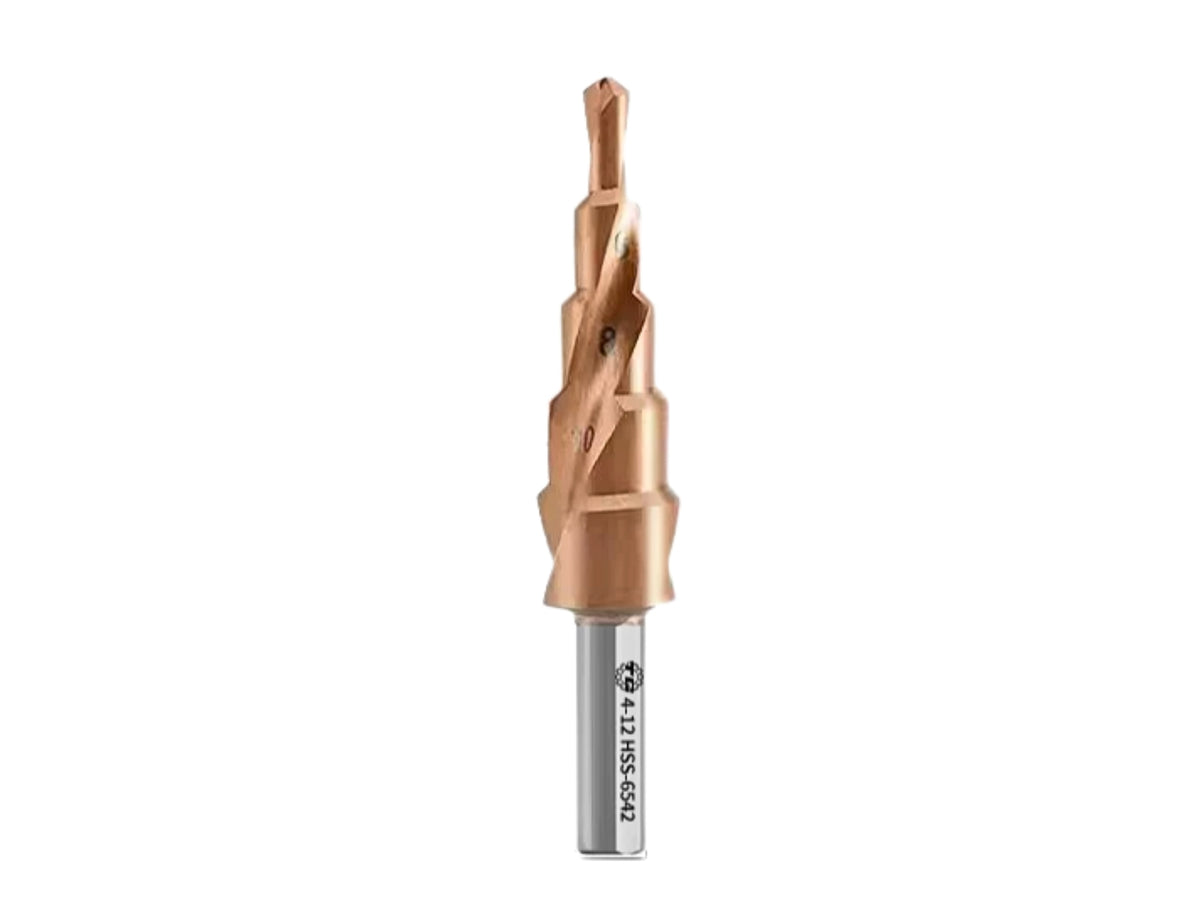

| 000506-4-12 | 4–12 mm | 5 | 8 mm | 43 mm | 6 mm |

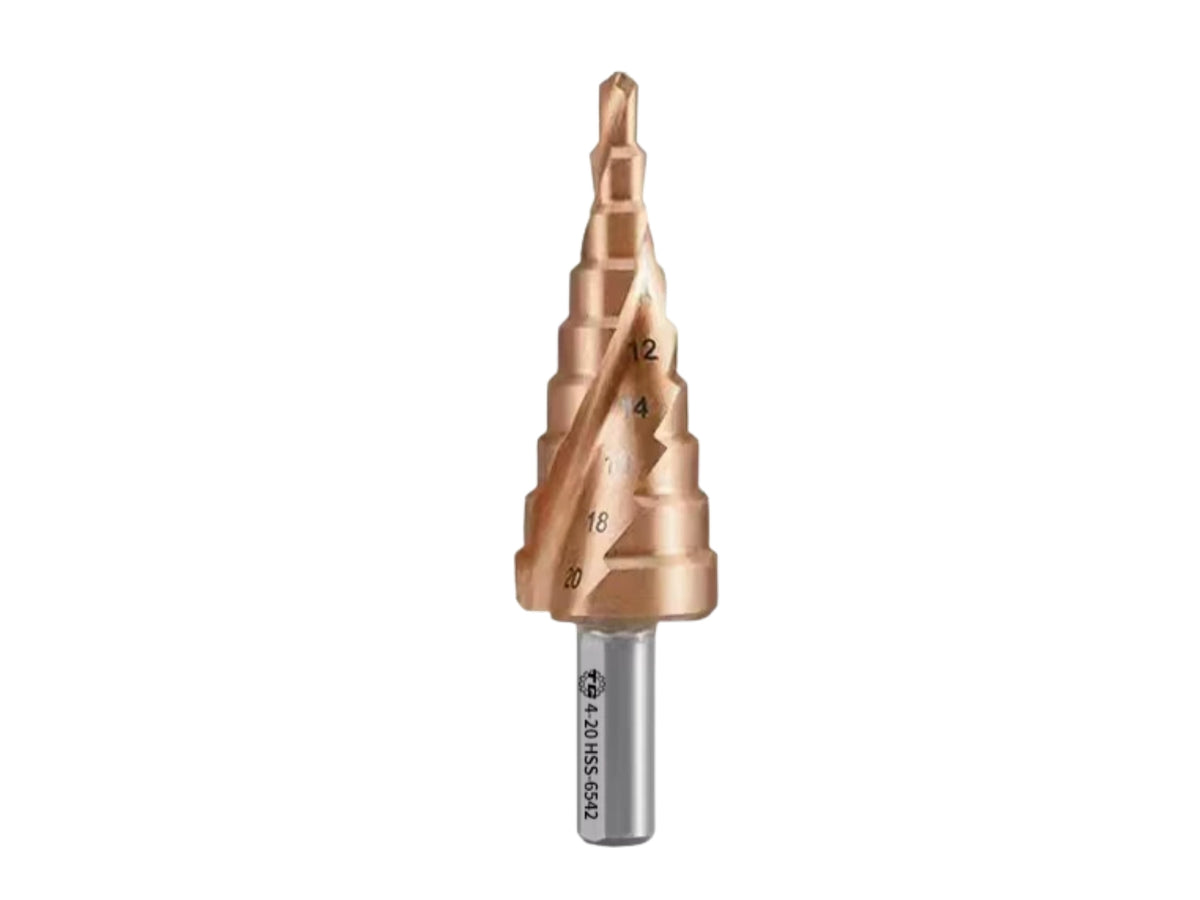

| 000506-4-20 | 4–20 mm | 9 | 4.5 mm | 52 mm | 8 mm |

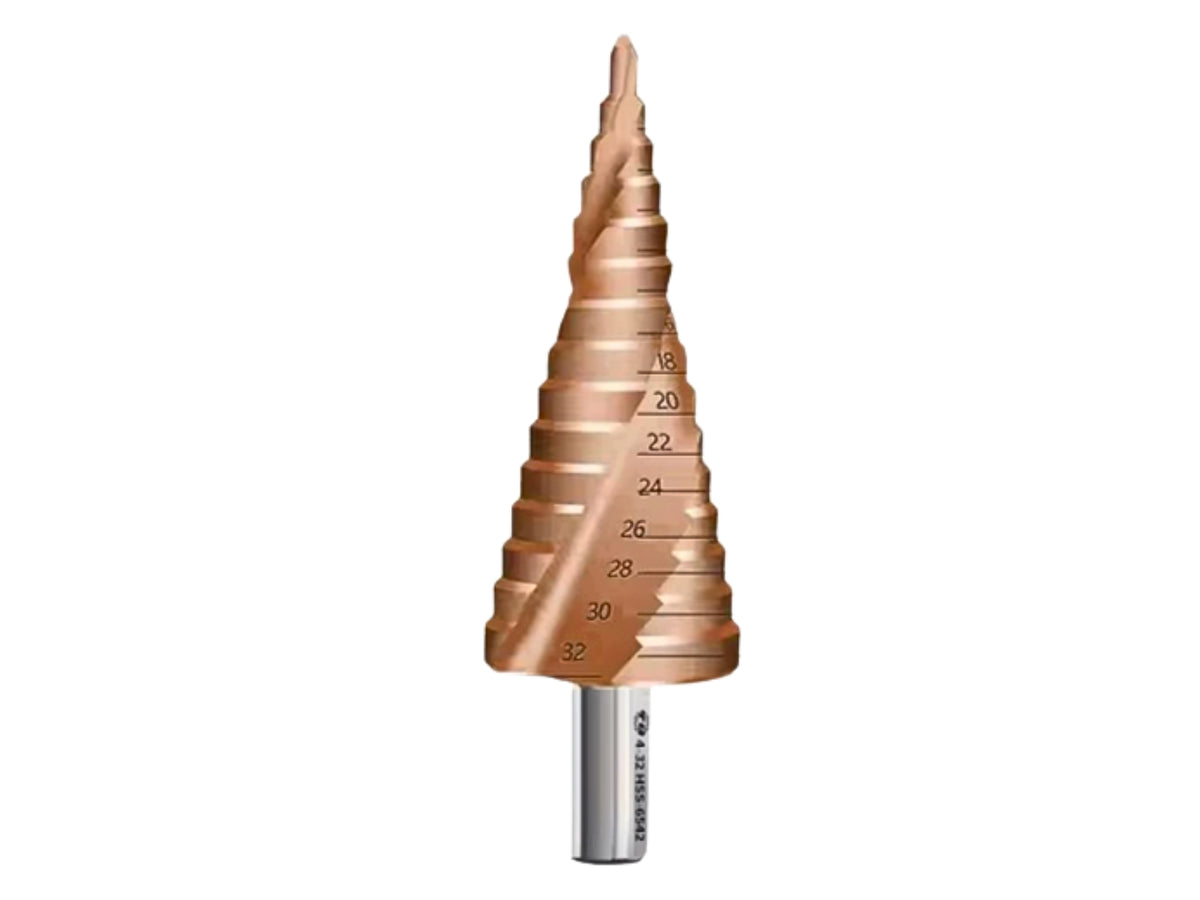

| 000506-4-32 | 4–32 mm | 15 | 4 mm | 78 mm | 10 mm |
Product Specifications
| Specification | Details |
|---|---|
| Material | 6542 high-speed steel |
| Surface Finish | Gold-coloured coated finish |
| Flute Type | Spiral flute |
| Diameter Increment | 2 mm |
| Shank Type | 3-flat anti-slip shank |
| Compatible Interface | Three-jaw drill chuck matching the selected 6 mm, 8 mm or 10 mm shank |
| Compatible Machines | Cordless drills, handheld electric drills and bench drills with a suitable chuck |
| Sales Unit | 1 pc |
Applications
- Drilling and enlarging holes in carbon-steel and iron sheet
- Working with compatible aluminium, copper and plastic sheet
- Occasional drilling in relatively thin 304 stainless steel, with reduced tool life expected
- Deburring and lightly countersinking existing holes
Included Components
- 1 × 6542 HSS spiral-flute step drill bit in the selected size
24-Month Consumer Legal Guarantee
Consumers receive a minimum 24-month statutory legal guarantee from the date of delivery. No additional PERIPLUS commercial warranty applies unless expressly stated for this product. Mandatory national consumer rights remain fully applicable.
