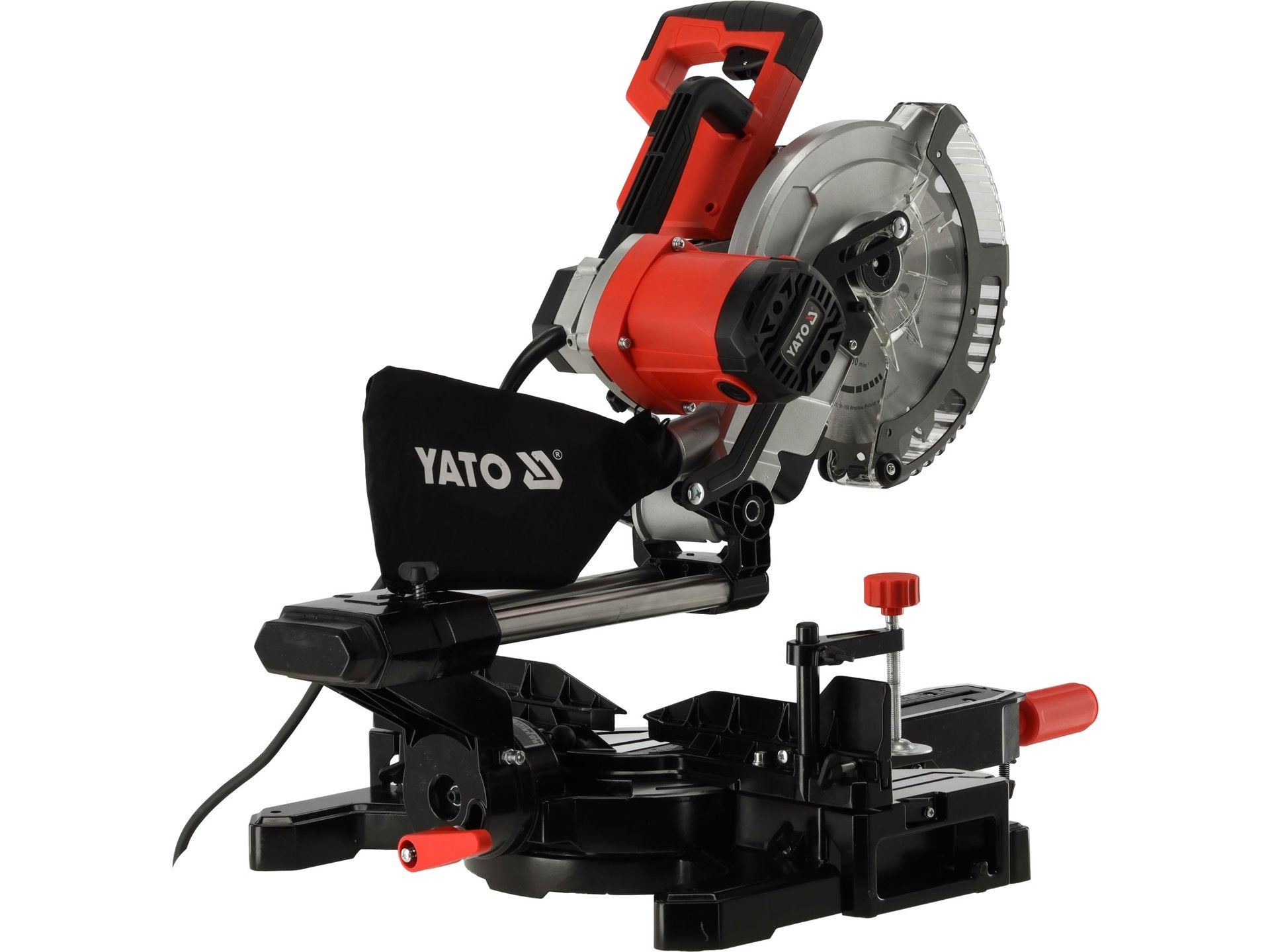

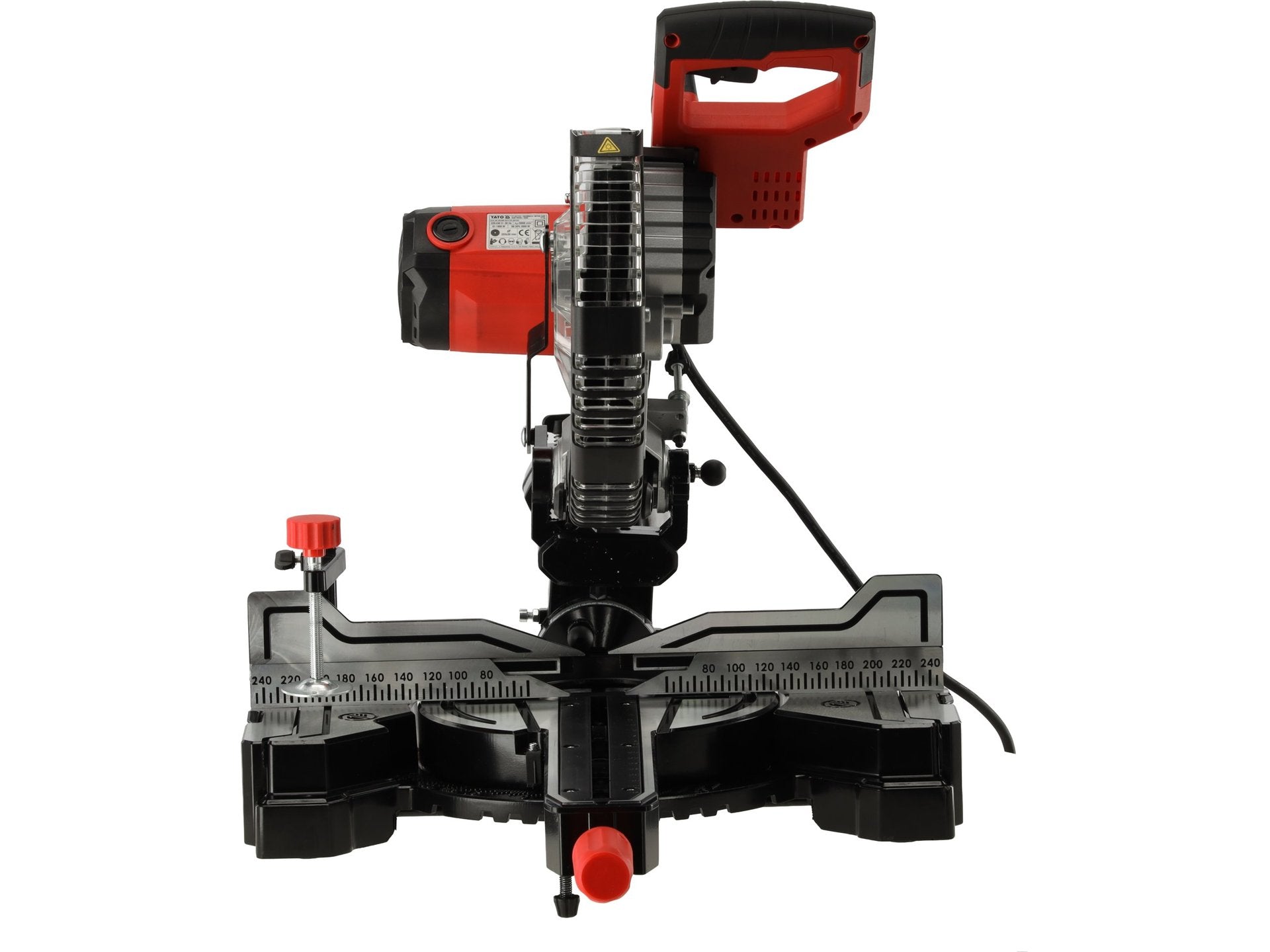

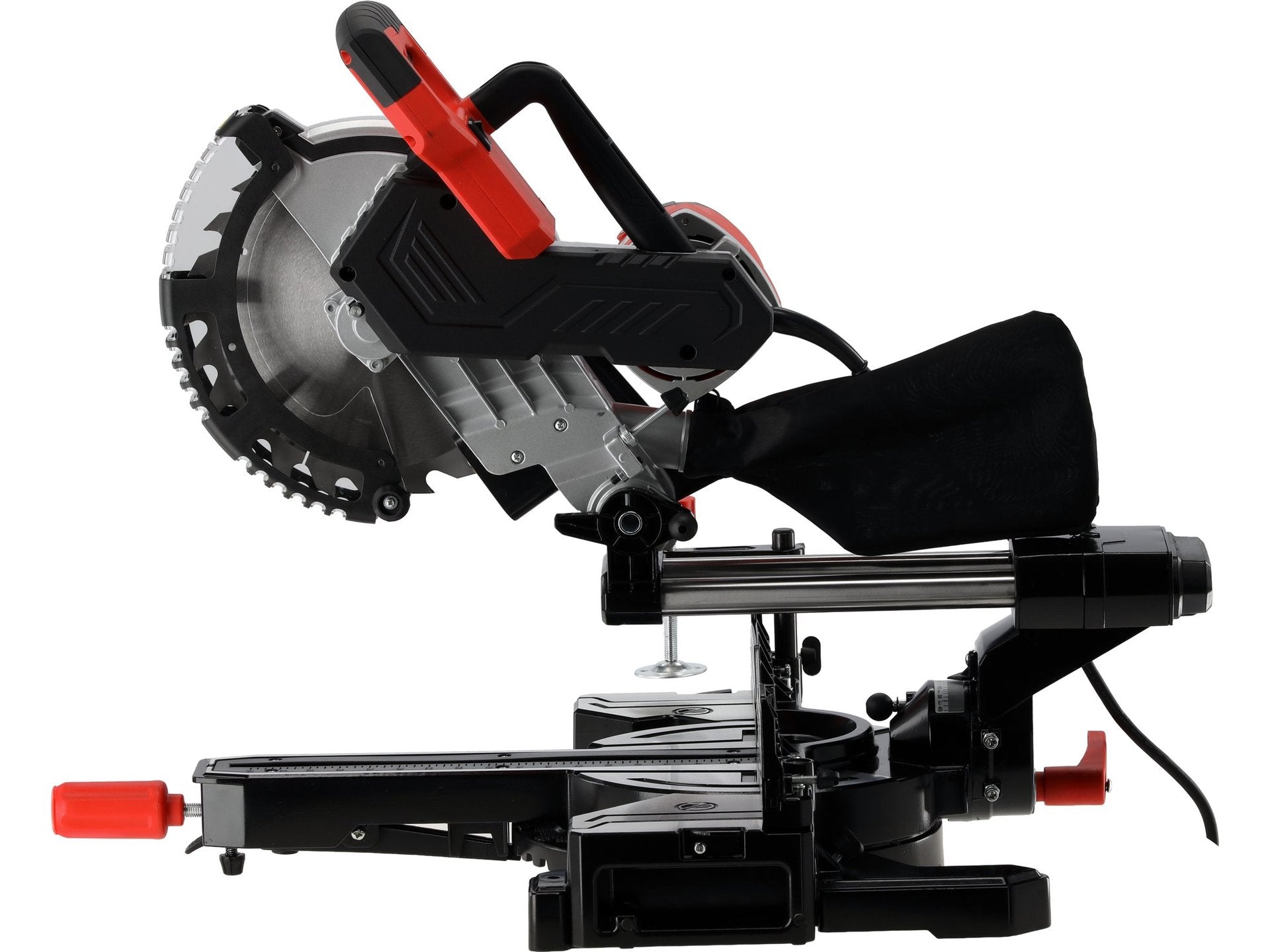

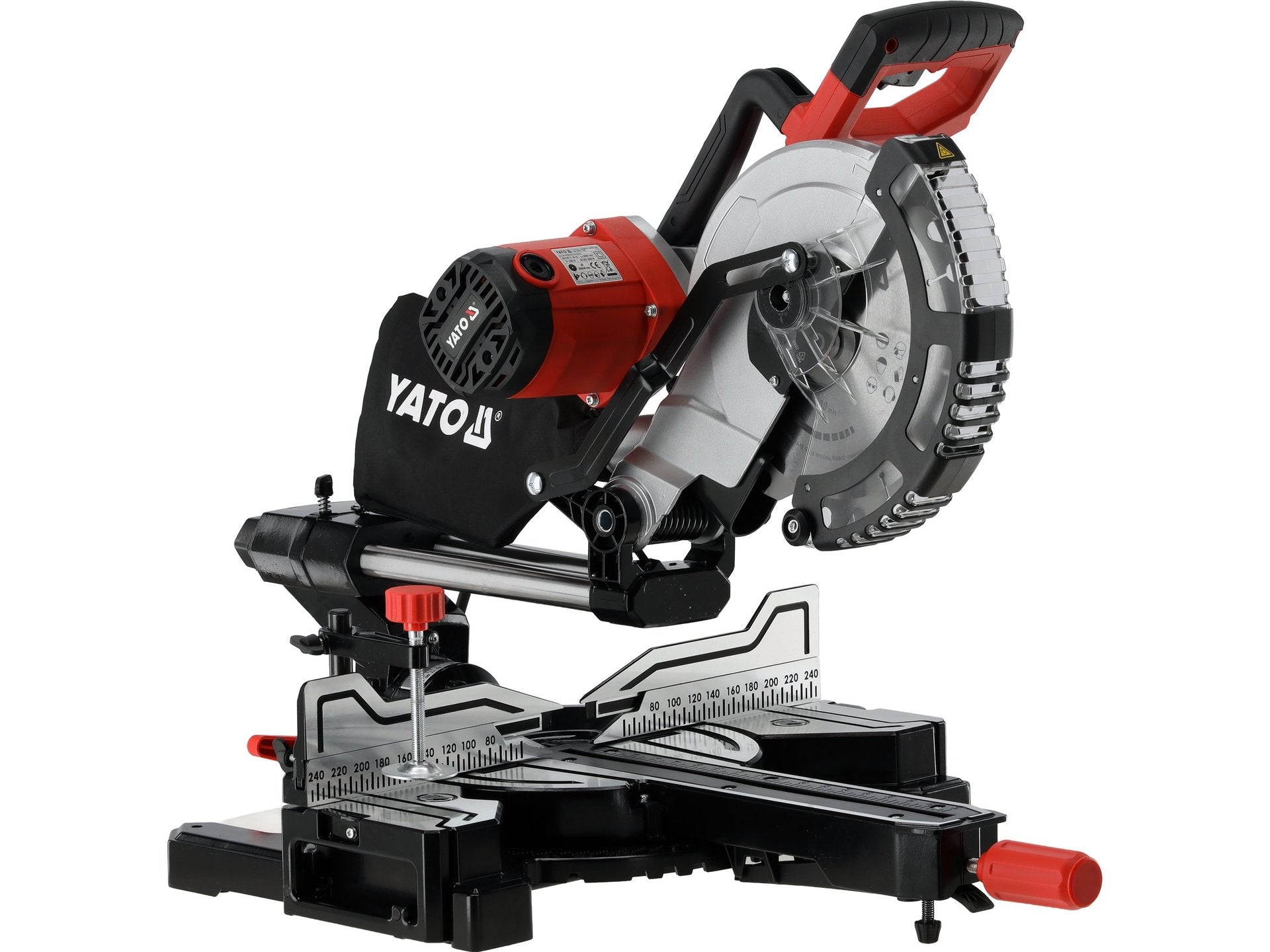

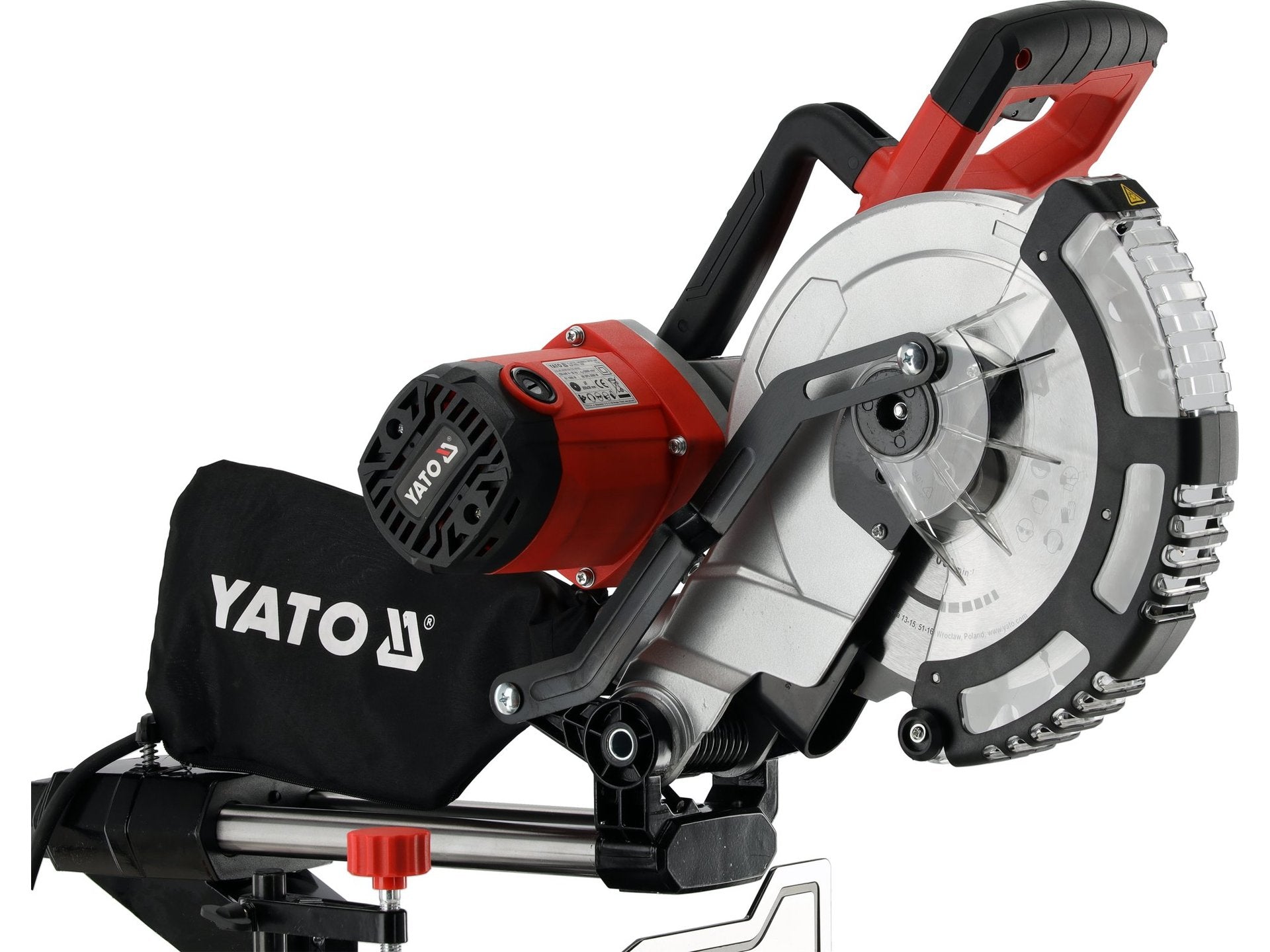

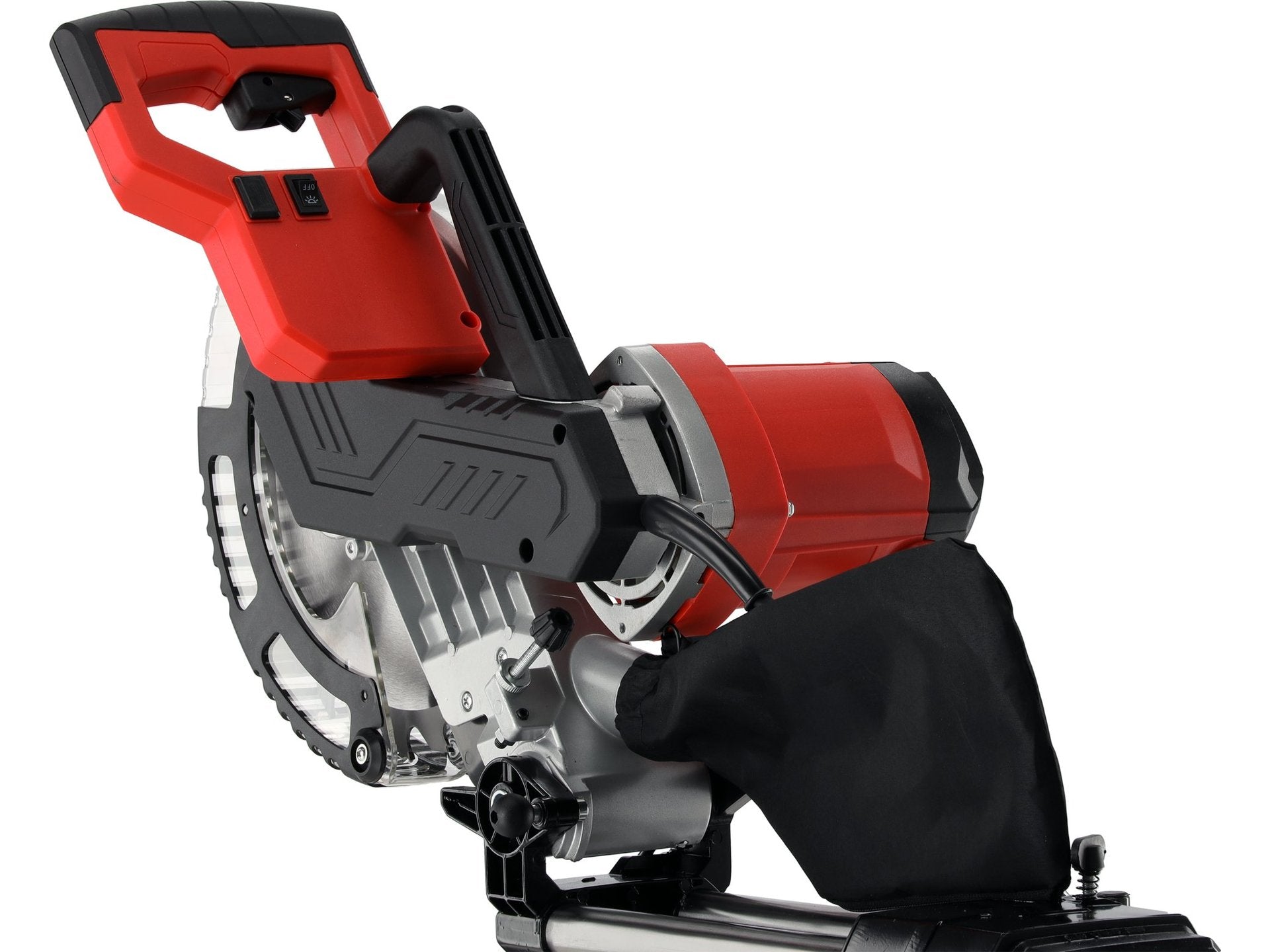

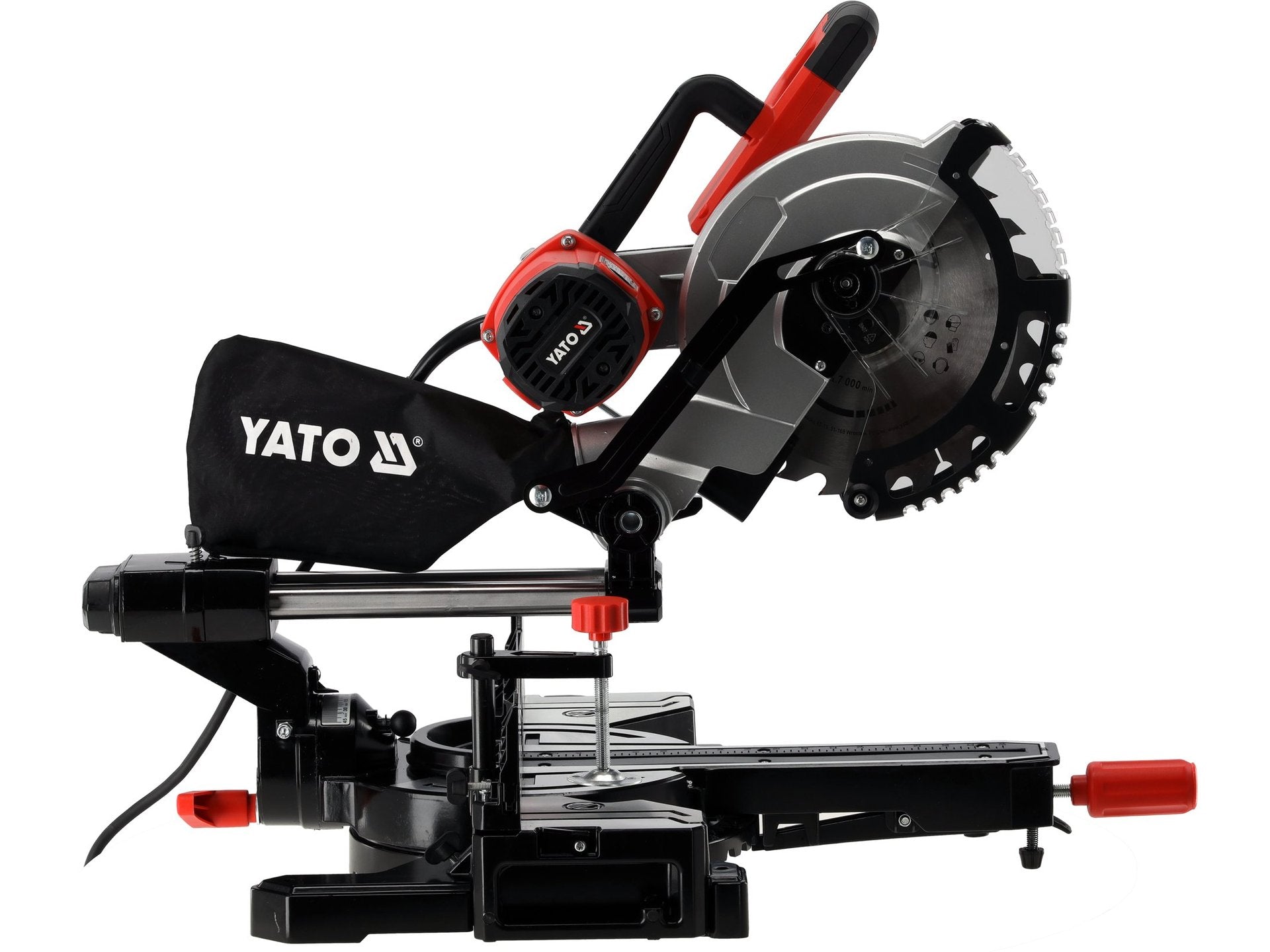

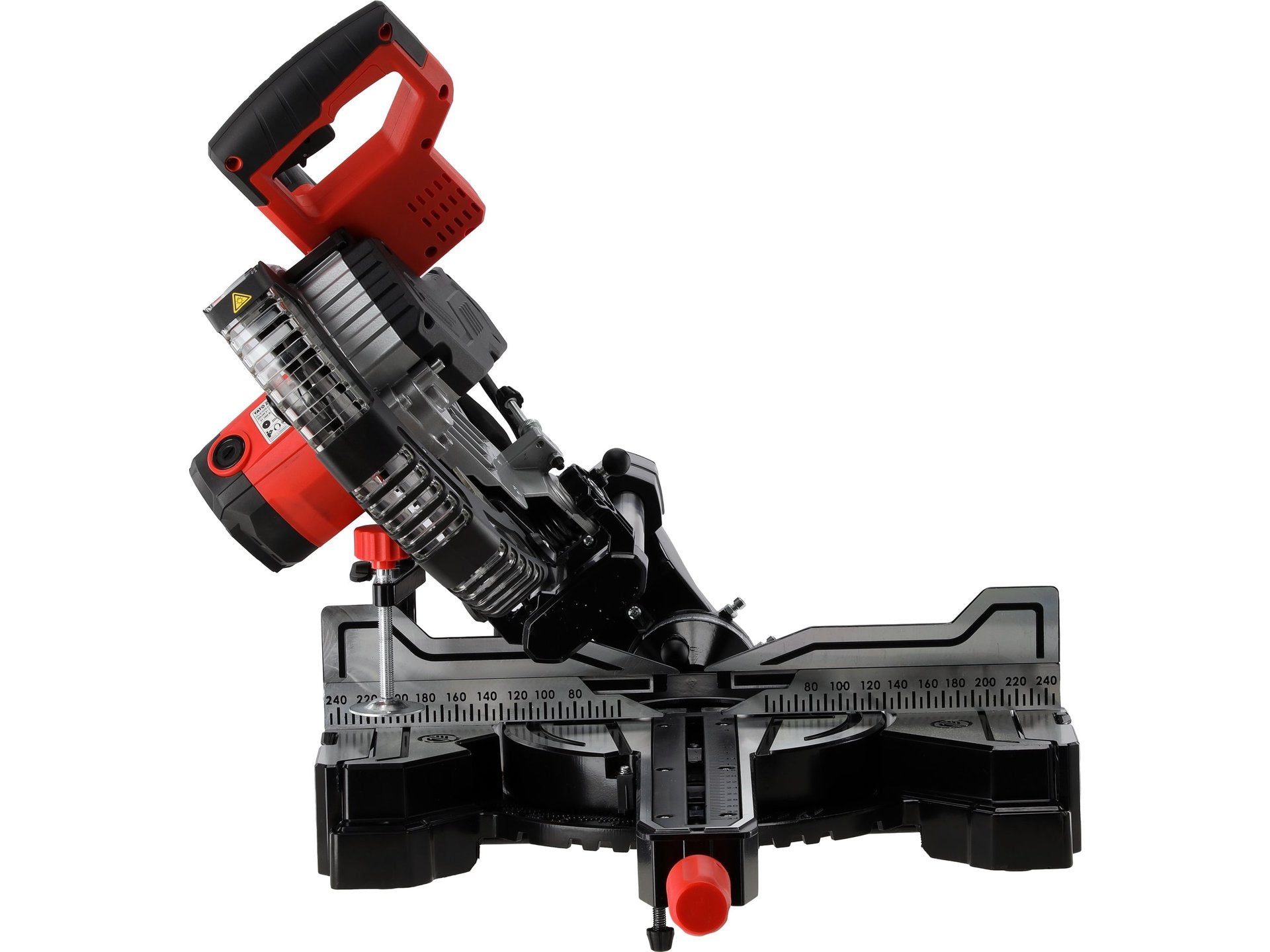

This 255 mm sliding miter saw with laser is designed for professional cutting of wood and wood-based materials. It suits carpentry, installation, and finishing work where repeatable straight, miter, and compound angle cuts are required. The sliding head, dual bevel function, material clamp, and dust collection support controlled workshop use.
| Parameter | Value |
| Brand | YATO |
| SKU | 100537-0001 |
| Product Type | Sliding miter saw with laser |
| Intended Materials | Wood and wood-based materials |
| Suitable Applications | Carpentry, installation, finishing work, trim installation, panels, beams, countertops, structural elements, and workshop use |
| Maximum Power | 2000 W |
| No-Load Speed | 5000 rpm |
| Saw Blade Size | 255 x 30 x 2.8 mm |
| Included Blade | 24 T saw blade |
| Miter Cutting Range | -45° to +45° |
| Head Tilt | Left and right up to 45° |
| Cutting Capacity 0° / 0° | 90 x 340 mm |
| Cutting Capacity 45° Miter / 0° | 90 x 240 mm |
| Cutting Capacity 45° Left Bevel | 45 x 340 mm |
| Cutting Capacity 45° Miter + 45° Left Bevel | 45 x 240 mm |
| Cutting Capacity 45° Right Bevel | 37 x 340 mm |
| Cutting Capacity 45° Miter + 45° Right Bevel | 37 x 240 mm |
| Laser Class | Class 2 |
| Laser Wavelength | 650 nm |
| Laser Power | Below 1 mW |
| Work Cycle | S6 20%, intermittent operation |
| Sound Pressure Level LpA | 94.2 ± 3.0 dB(A) |
| Sound Power Level LwA | 107.2 ± 3.0 dB(A) |
| Head Feed | Sliding head on guide rails with feed lock |
| Work Table | Rotating table with angle scale and detents for common settings |
| Workpiece Support | Table extensions and material clamp |
| Dust Extraction | Dust collection system with dust bag or external extraction connection |
| Spindle Lock | Yes |
| Device Weight | 15 kg |
| Listed Weight | 18 kg |
| Dimensions | 80 x 50 x 44 cm |
| Volume | 176.0 |
| Unit Of Measure | PCE |
