This 18 V brushless cordless reciprocating saw is designed for professional cutting of wood and metal in workshop, service, assembly, construction, renovation, and field applications. It offers adjustable 0–3000 min⁻¹ speed, a 22 mm stroke, and a choice of tool-only body or 4 Ah battery kit for flexible procurement.
Key Features
-
Brushless Motor: Designed for efficient cordless operation and stable torque.
-
Adjustable Speed: 0–3000 min⁻¹ speed range allows cutting speed to be matched to the material and task.
-
Cutting Capacity: Cuts wood up to 150 mm and metal up to 6 mm.
-
22 Mm Stroke: Saw blade stroke supports fast, controlled reciprocating cutting.
-

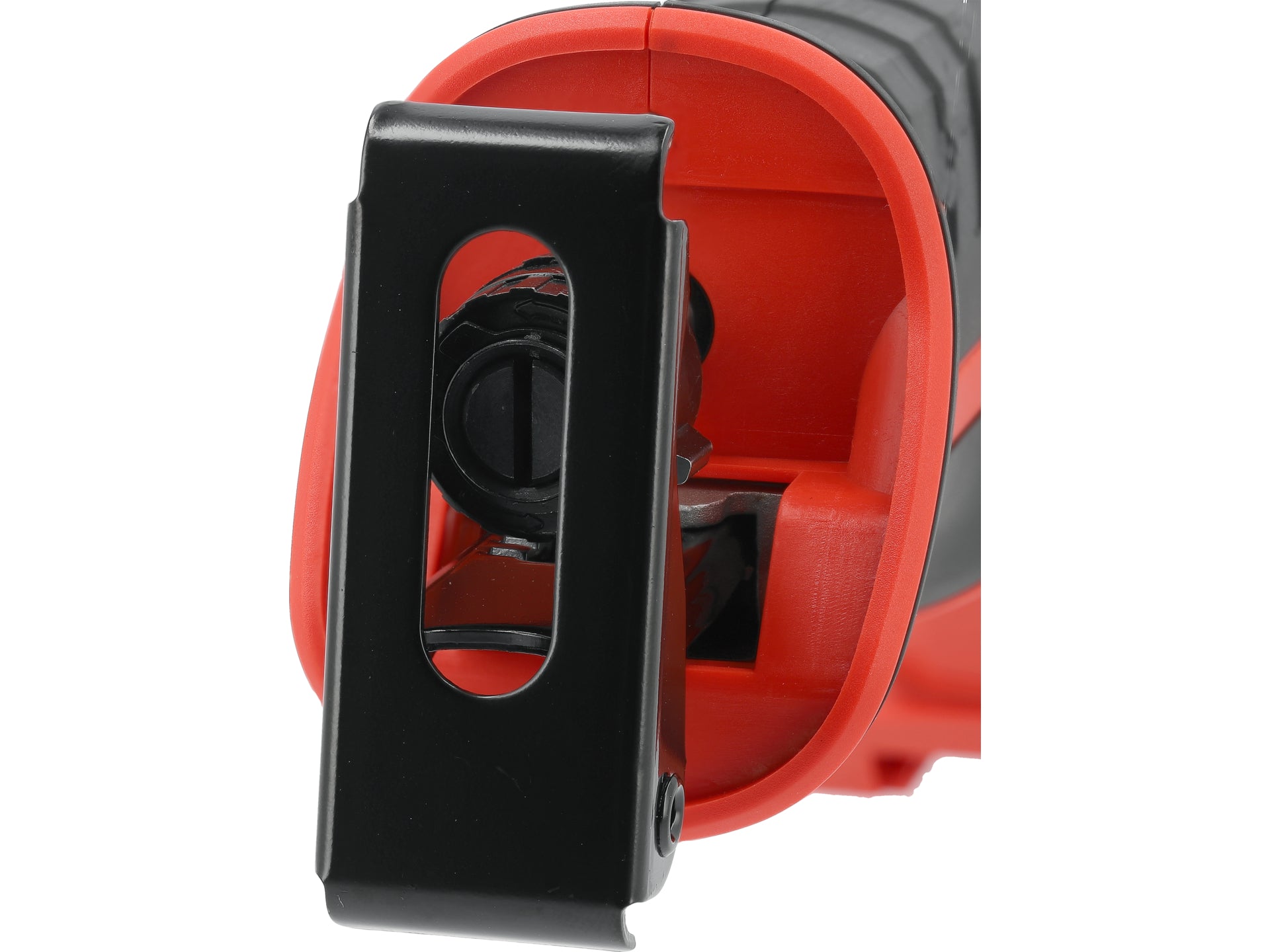

Standard Toolholder: 1/2" (12.7 mm) standard toolholder for compatible reciprocating saw blades.
-
Cordless 18 V Platform: Li-Ion battery operation supports workshop, service, assembly, construction, renovation, and field applications.
-
Variant Choice: Available as a tool-only body or as a set with 4 Ah battery and charger.
Technical Specifications
| Parameter |
Value |
| Brand |
YATO |
| Unit Of Measure |
PCE |
| Product Type |
Cordless reciprocating saw |
| Voltage |
18 V d.c. |
| Battery Type |
Li-Ion |
| Rotations / Speed |
0–3000 min⁻¹ |
| Speed Adjustment |
Yes |
| Motor Type |
Brushless |
| Maximum Cutting Thickness In Wood |
150 mm |
| Maximum Cutting Capacity In Metal |
6 mm |
| Toolholder Type |
Standard |
| Toolholder Size |
1/2" (12.7 mm) |
| Saw Blade Stroke |
22 mm |
| Electric Insulation Class |
III |
| Protection Grade |
IPX0 |
| Acoustic Pressure |
87.3 ± 5.0 dB(A) |
| Acoustic Power |
95.3 ± 5.0 dB(A) |
| Vibrations |
7.2 ± 1.5 / 9.4 ± 1.5 m/s² |
| Tool Weight |
1.5 kg |
Variant Comparison
| SKU Code |
Spec / Size |
Battery Capacity |
Battery Quantity |
Charger Included |
Charging Time |
Quick Charging |
Package Weight |
Dimensions (L×W×H) |
| 100513-0001 |
Tool-only body |
Not included |
None |
No |
N/A |
N/A |
2.17 kg |
41 × 18 × 12 cm |
| 100513-0002 |
4 Ah kit |
4000 mAh |
1 |
Yes |
2 h |
Yes |
3.42 kg |
41 × 18 × 18 cm |
Package Contents
- Tool-only body variant: 1 × reciprocating saw body; battery and charger are not included.
- 4 Ah kit variant: 1 × reciprocating saw, 1 × 4000 mAh Li-Ion battery, and 1 × charger.
