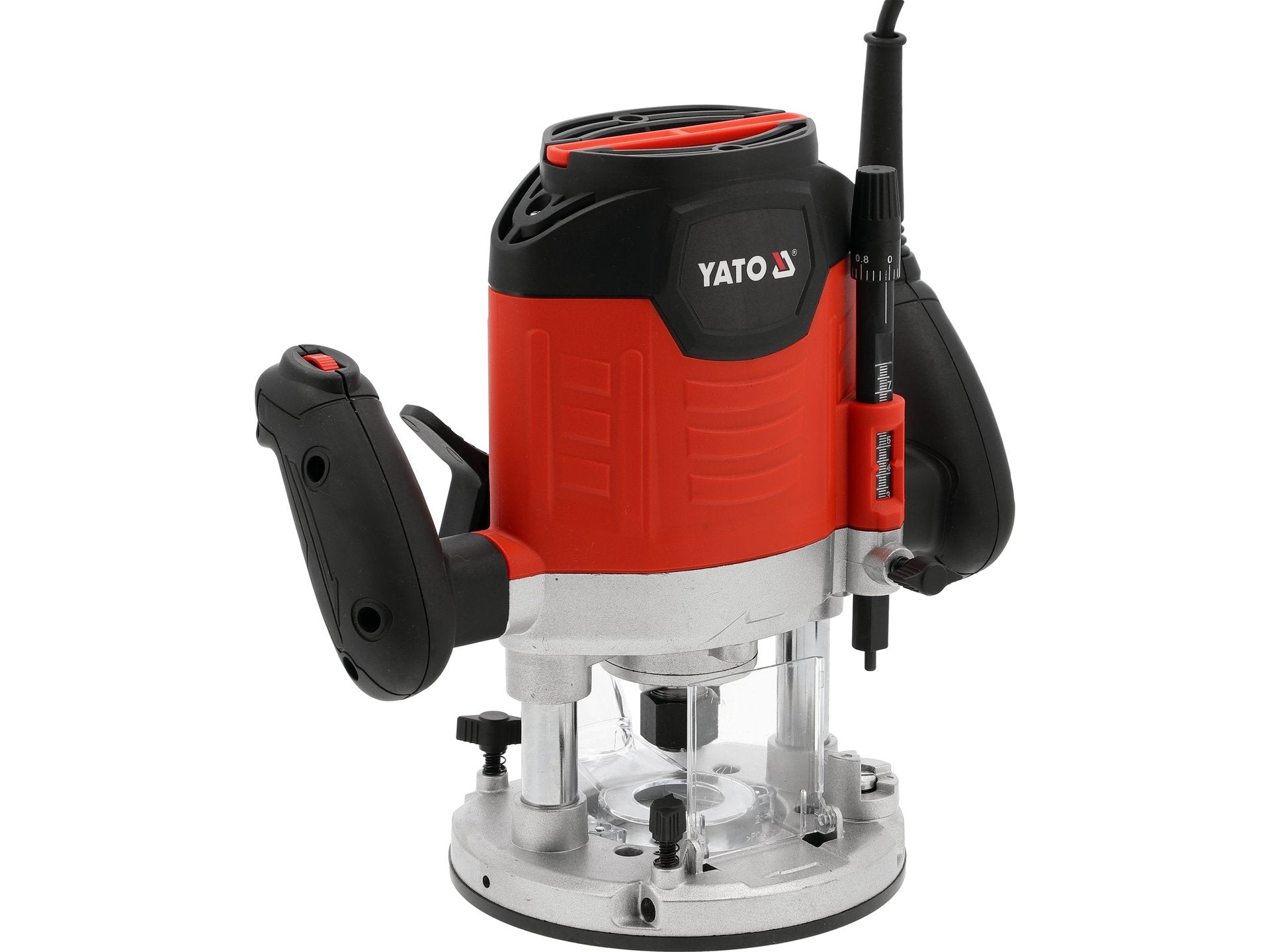

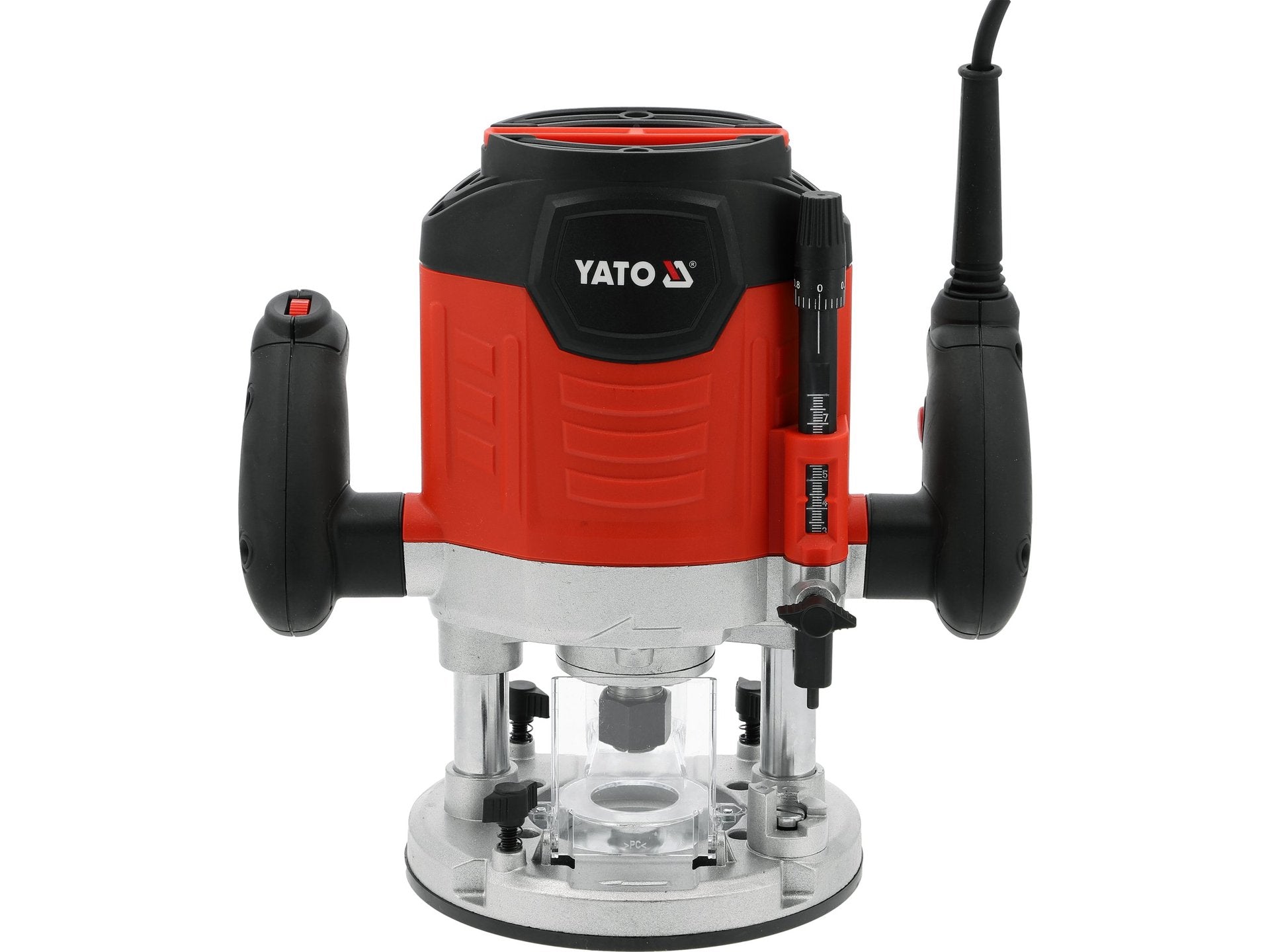

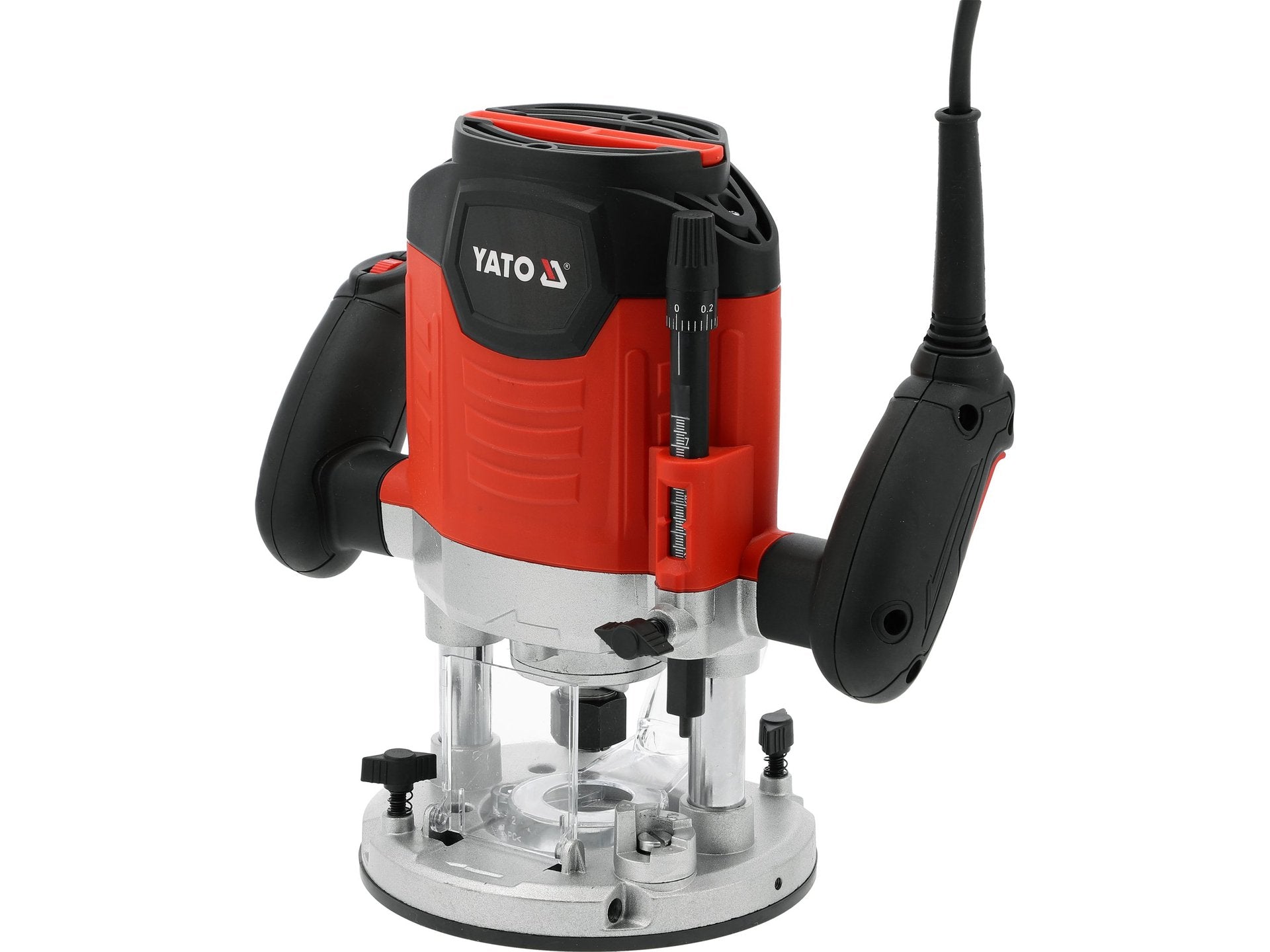

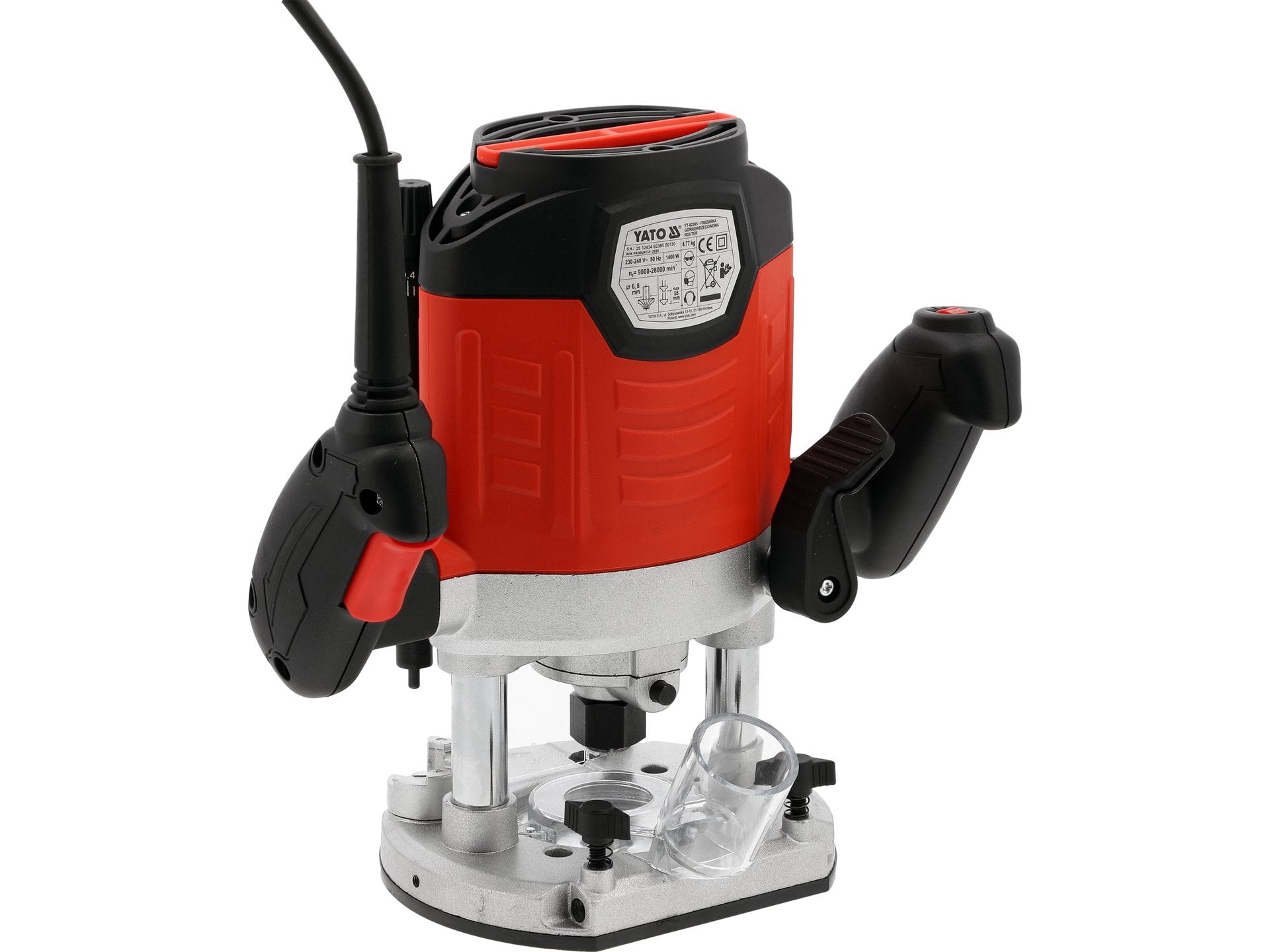

This YATO 1400 W router is designed for carpentry and roofing workshops working with wood and wood-derived materials. It supports edge shaping, groove milling, and woodworking joints with adjustable speed, soft start, speed stabilization, and precise depth control.
Key Features
-
Professional woodworking use: designed for carpentry and roofing workshop tasks including edge shaping, groove milling, and woodworking joints.
-
Material suitability: intended for processing wood and wood-derived materials.
-
Electronic speed control: adjustable rotational speed from 9000 to 28000 min⁻¹ depending on the material and cutter diameter.
-
Controlled operation: soft start and speed stabilization support comfortable tool control and precise work progress.
-

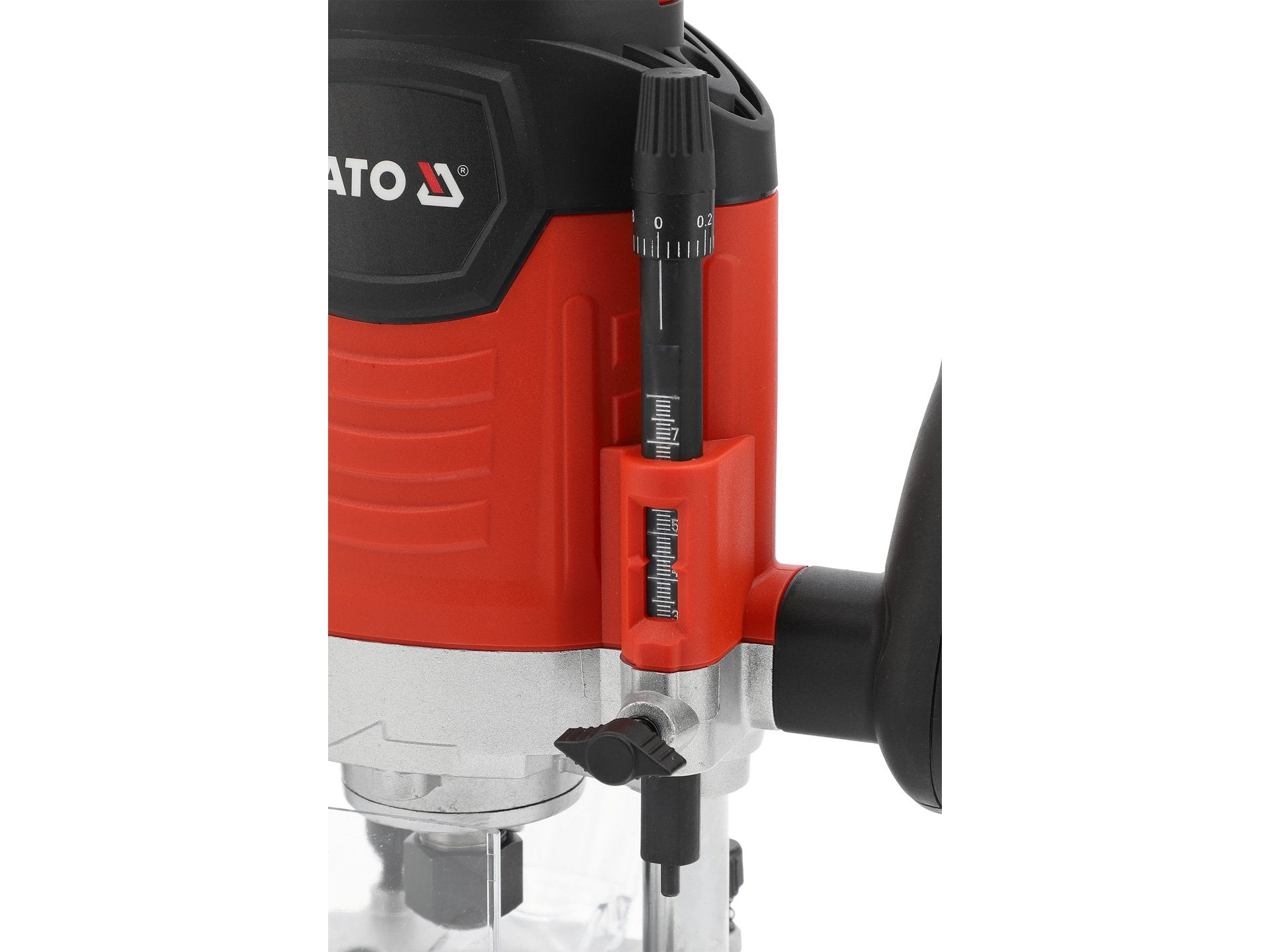

Precise depth setting: depth gauge with micrometric knob allows accurate milling depth adjustment with the value shown in the housing window.
-

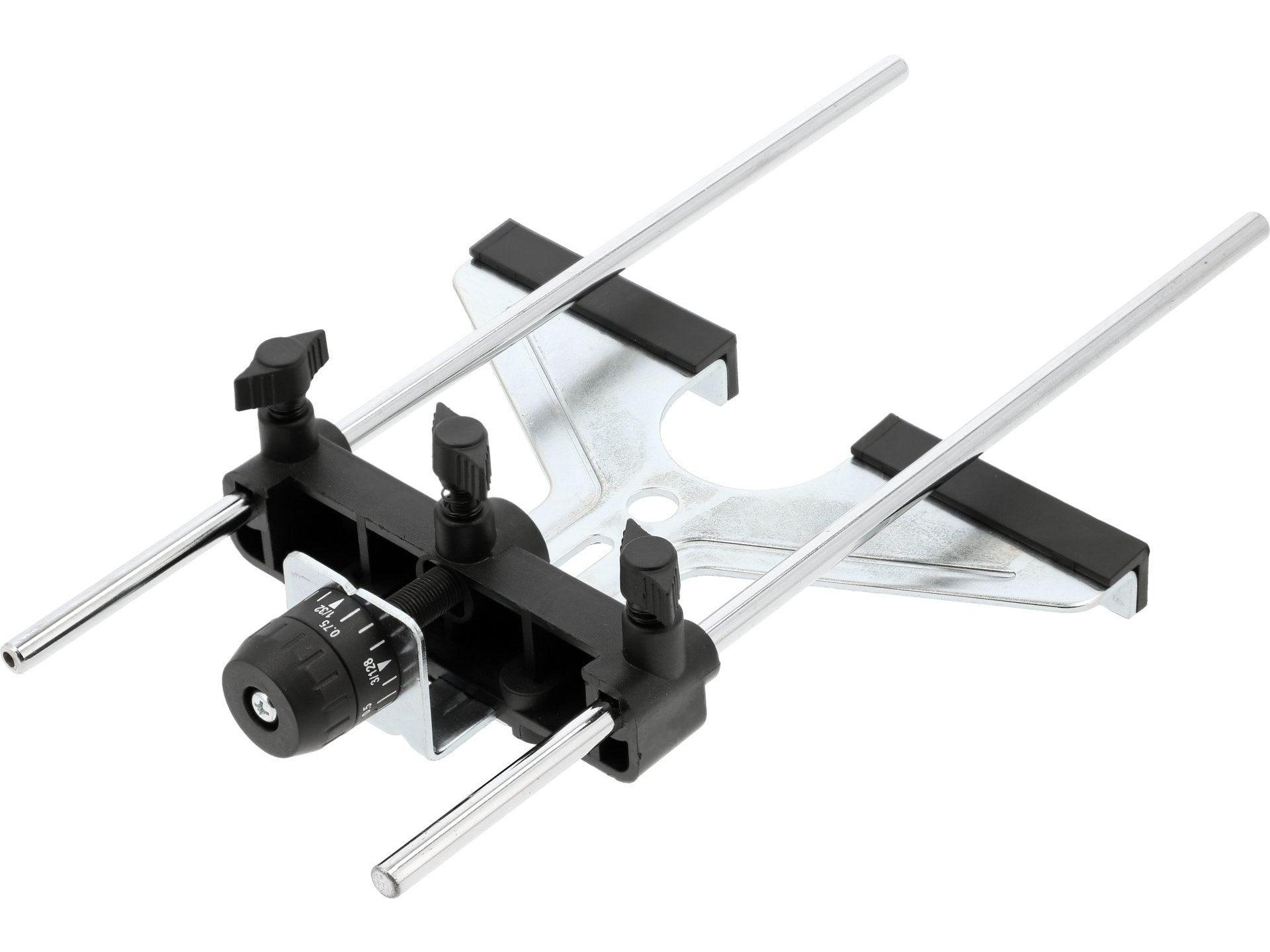

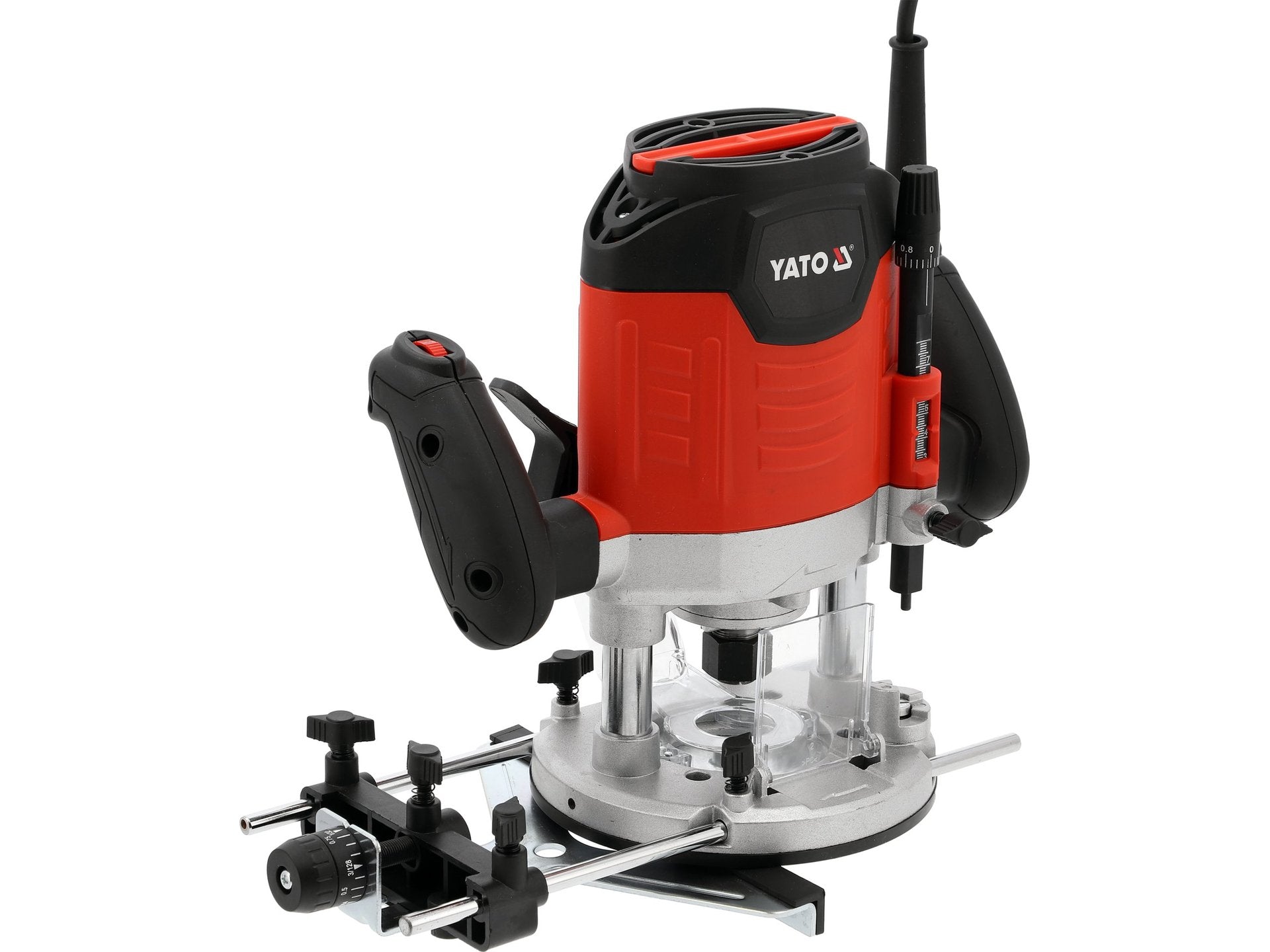

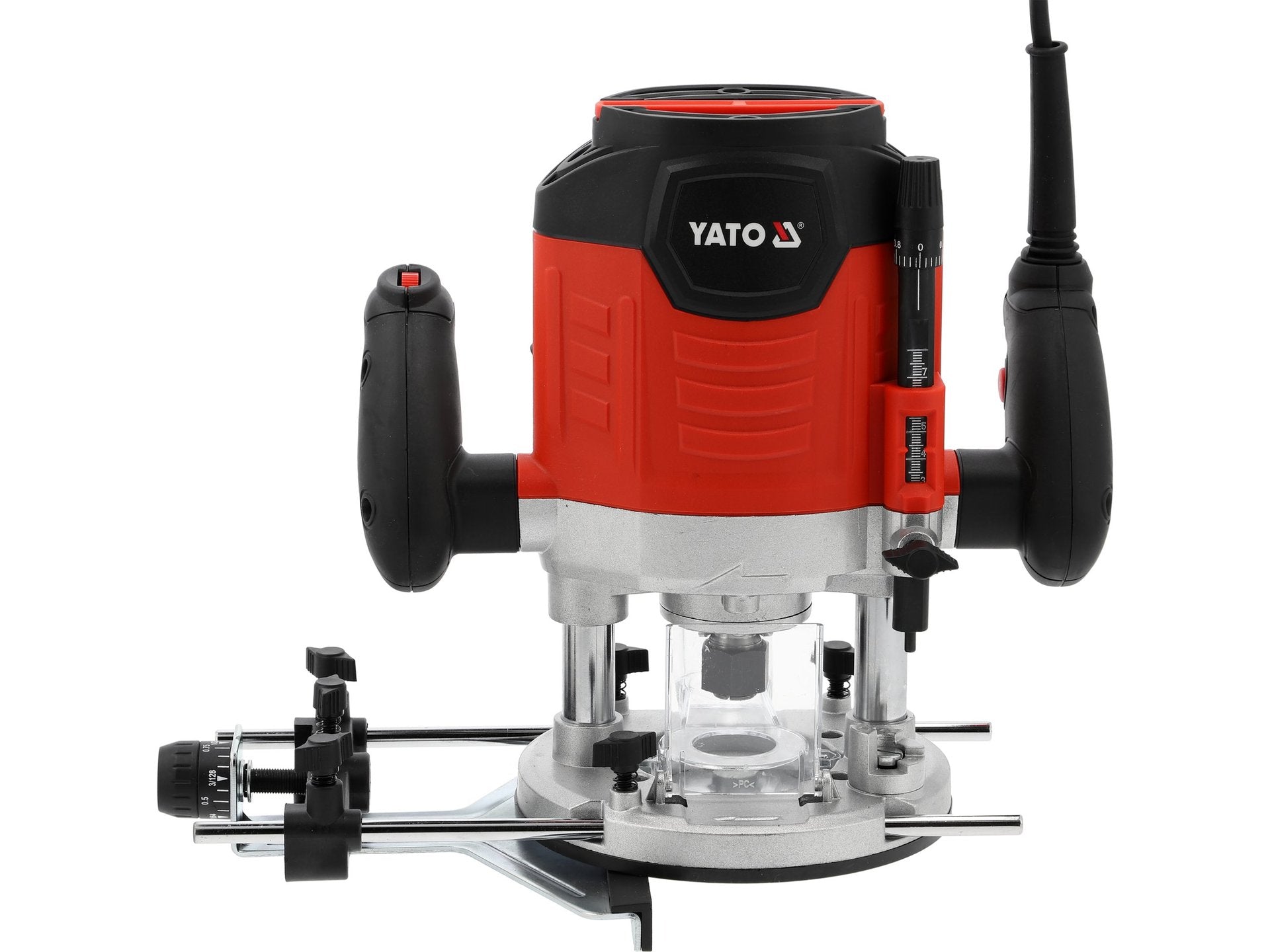

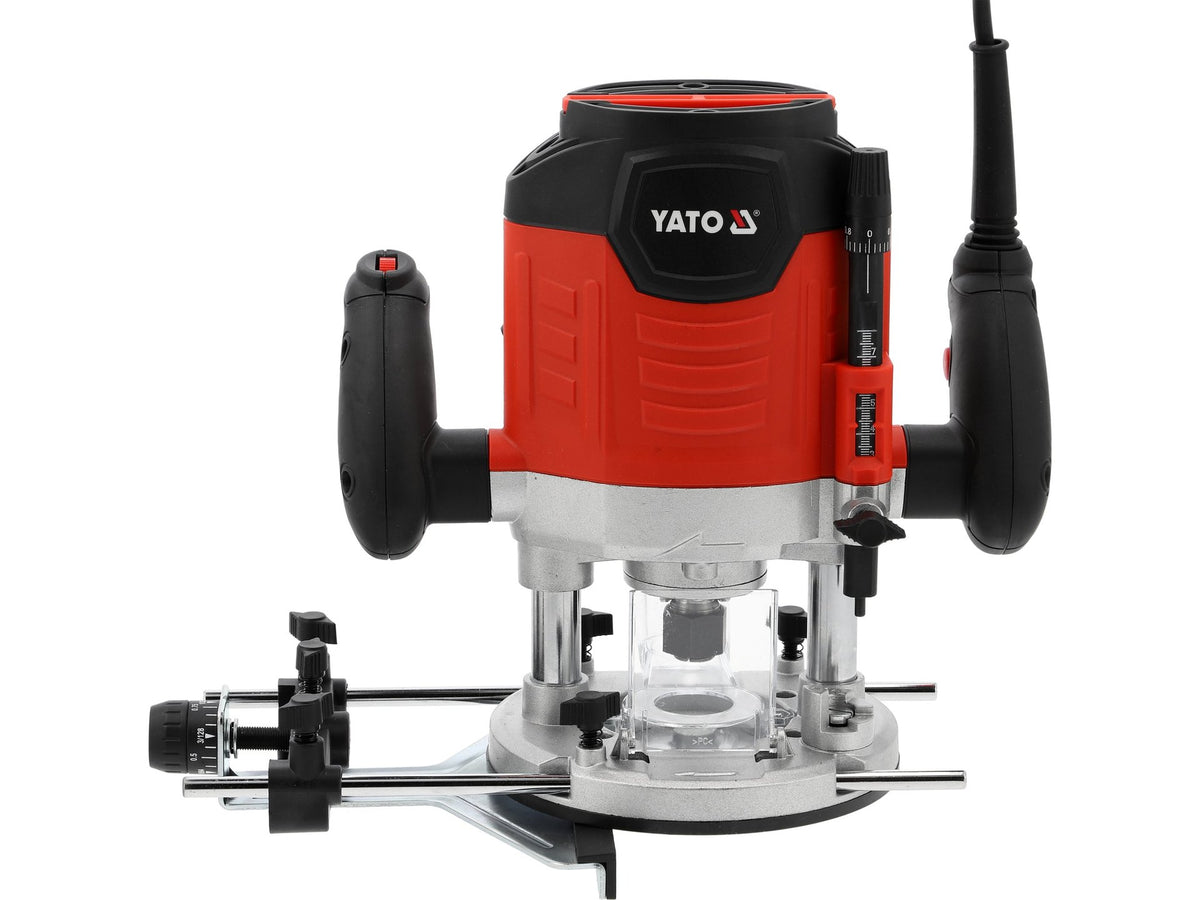

Guided milling: parallel guide stabilizes tool movement for straight cutting lines, while the circular guide supports repeatable arcs and rounded edges.
-
Dust extraction connection: enables connection to an industrial vacuum cleaner to help maintain workplace cleanliness.
Technical Specifications
| Parameter |
Value |
| Brand |
YATO |
| SKU |
100521-0001 |
| Product Type |
Router / milling machine |
| Unit Of Measure |
PCE |
| Power |
1400 W |
| Voltage |
230–240 V a.c. |
| Frequency |
50 Hz |
| Rotational Speed |
9000–28000 min⁻¹ |
| Speed Adjustment |
Yes |
| Electronic Rotation Adjustment |
Yes |
| Toolholder Size |
6 or 8 mm |
| Cutting Unit Stroke |
55 mm |
| Soft Start |
Yes |
| Speed Stabilization |
Yes |
| Wire Length |
3 m |
| Electric Insulation Class |
II |
| Protection Grade |
IP20 |
| Acoustic Pressure |
91.0 ± 3.0 dB(A) |
| Acoustic Power |
99.0 ± 3.0 dB(A) |
| Vibrations |
4.23 ± 1.5 m/s² |
| Net Weight |
4.77 kg |
| Shipping Weight |
6.0 kg |
| Dimensions |
29.0 × 29.0 × 23.0 cm |
| Volume |
22.584 |
| Suitable Materials |
Wood and wood-derived materials |
| Typical Applications |
Shaping edges, milling grooves, and woodworking joints |
Package Contents
- 1 × router
- 2 × guides
- 1 × dust extraction connection
- 1 × reducing sleeve
