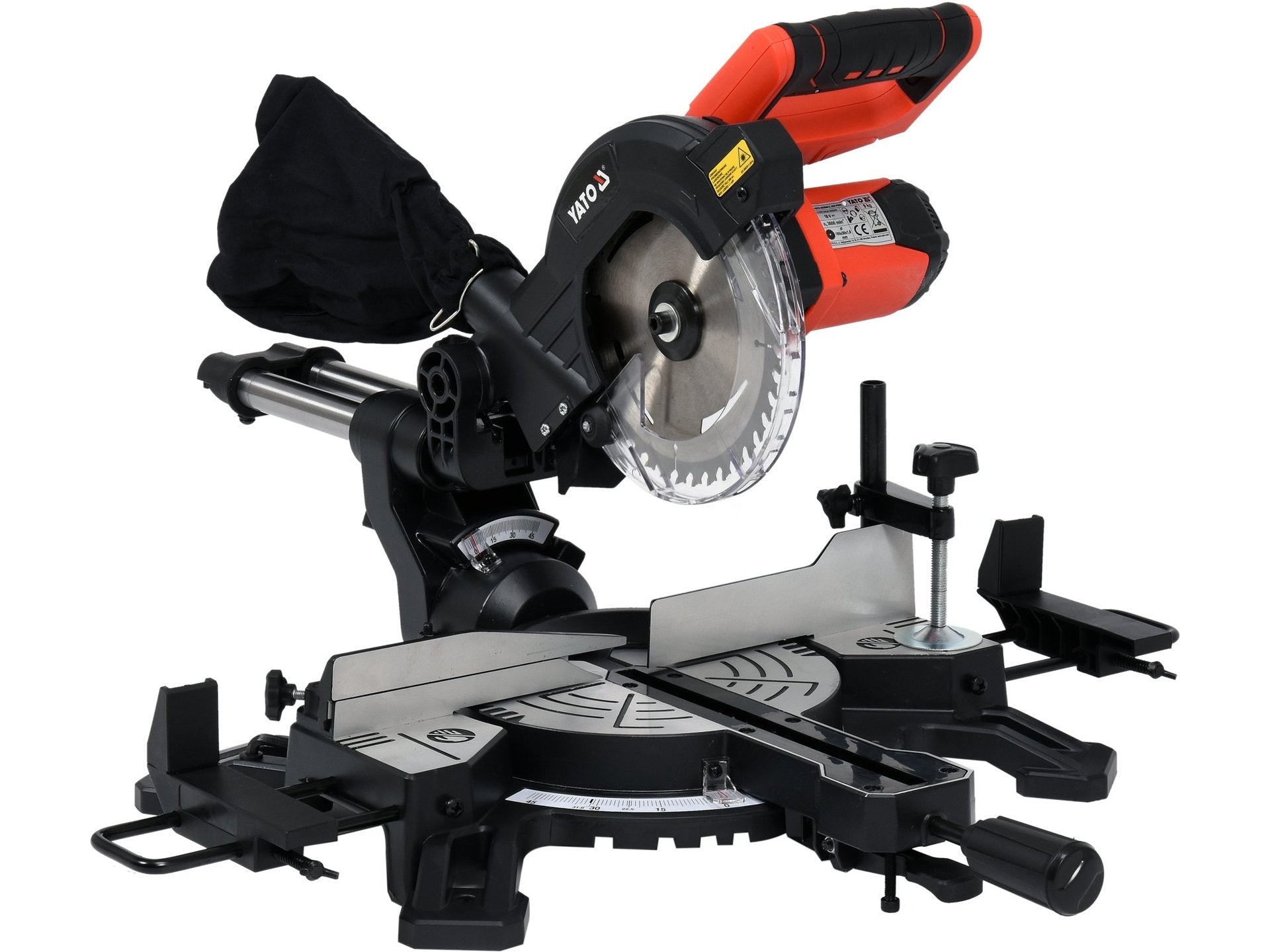

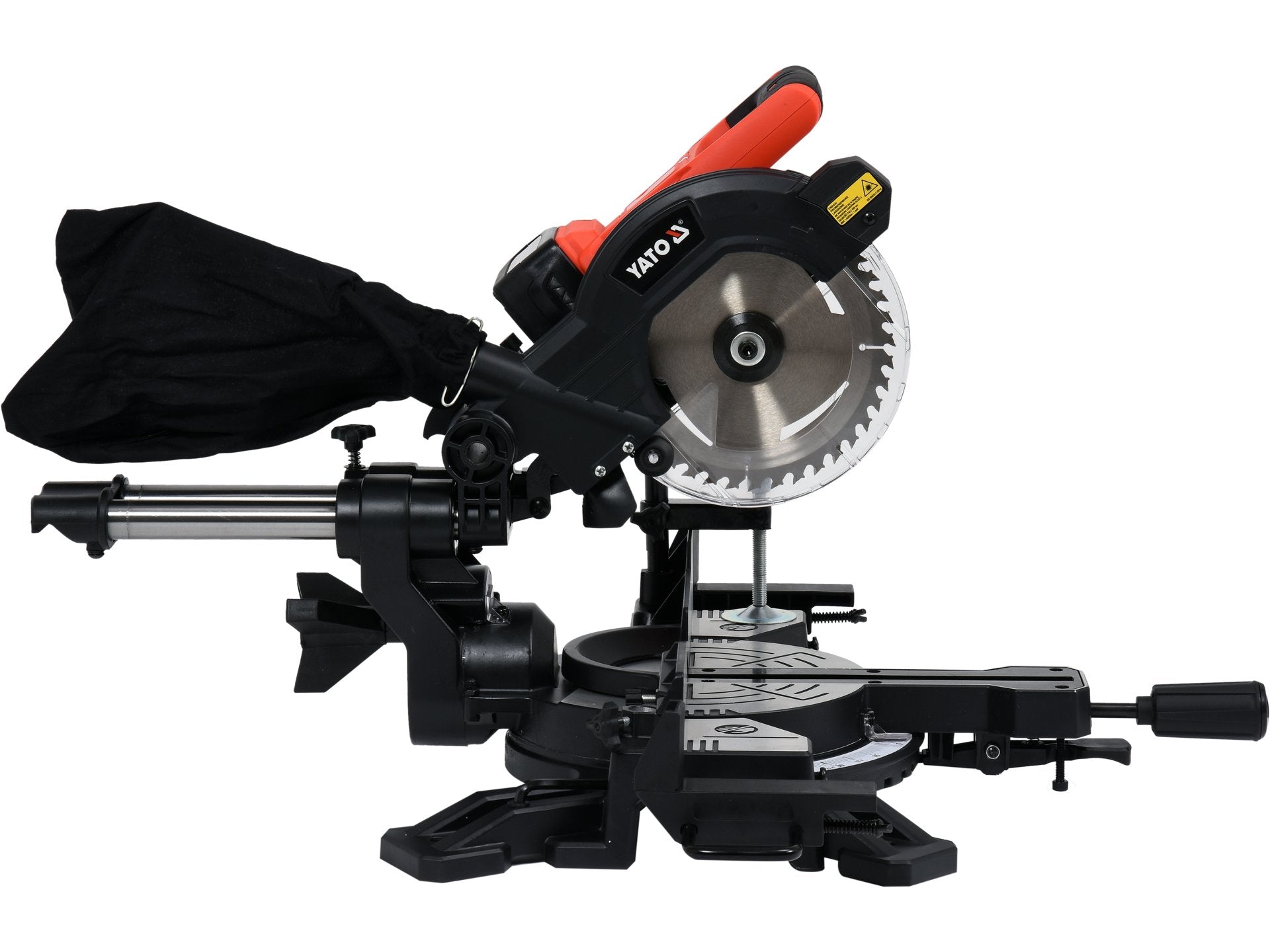

Cordless 18 V 185 mm mitre saw for trade users cutting wood, panels, laminates, plastics, and fitting materials. It supports straight, angle, bevel, sliding, and plunge cuts with a laser guide, dust collection option, and body-only or 4 Ah battery kit variants.
Key Features
-

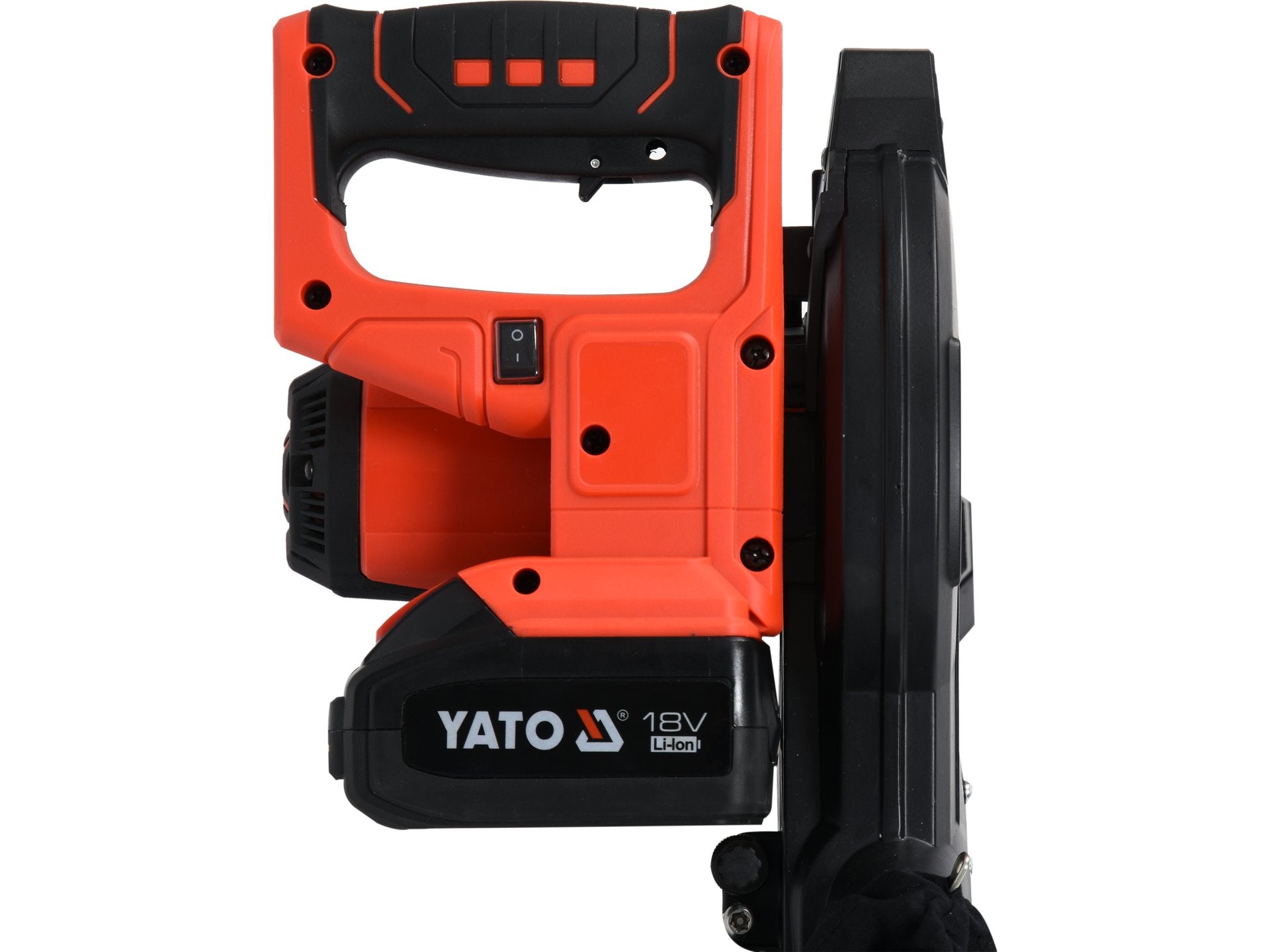

Cordless operation: 18 V mitre saw for renovation, construction, and fitting work.
-
Material suitability: Designed for cutting skirting boards, panels, soffits, parquet, PVC mouldings, cable trays, scantlings, battens, wood, laminates, and plastics.
-

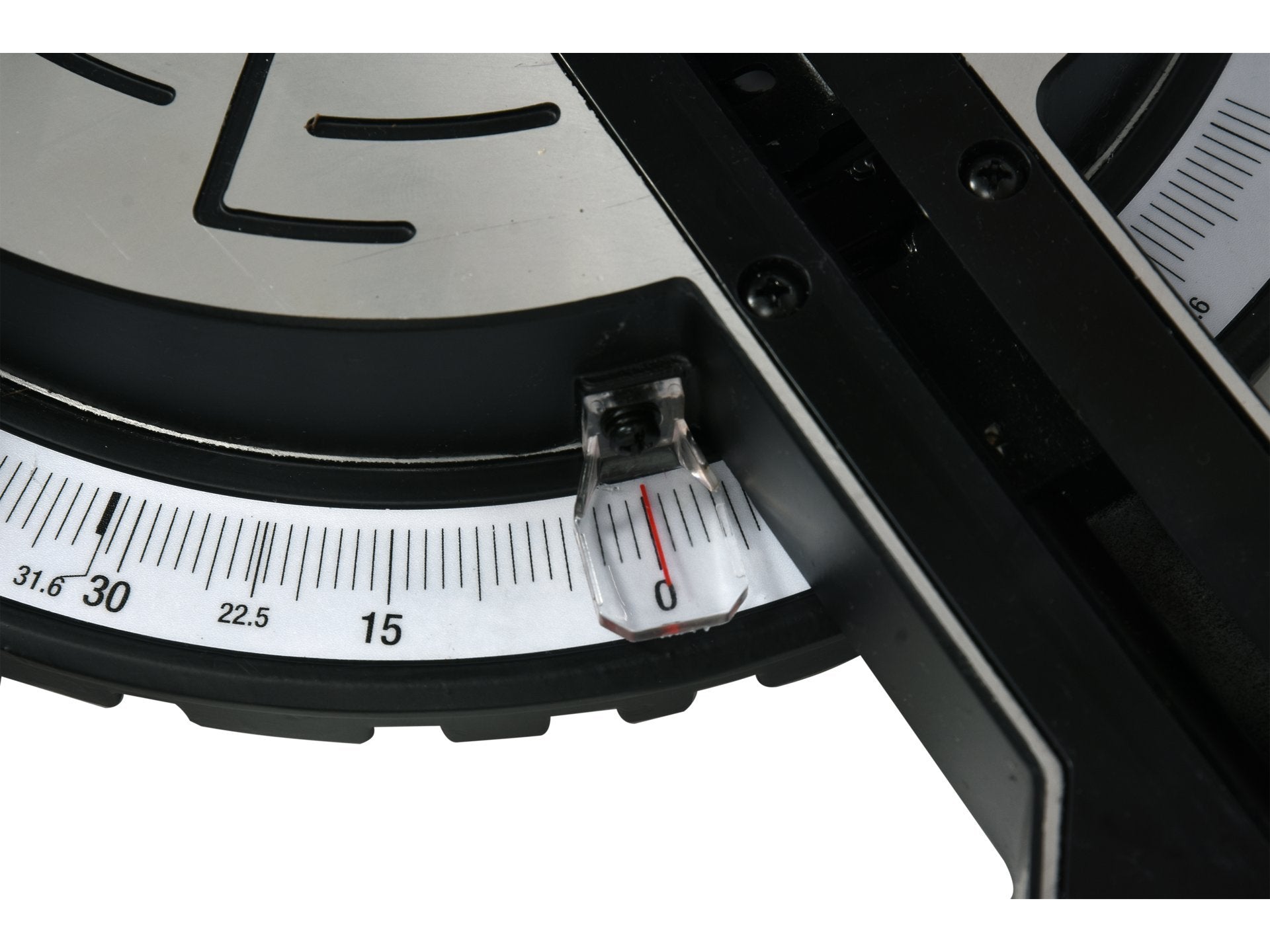

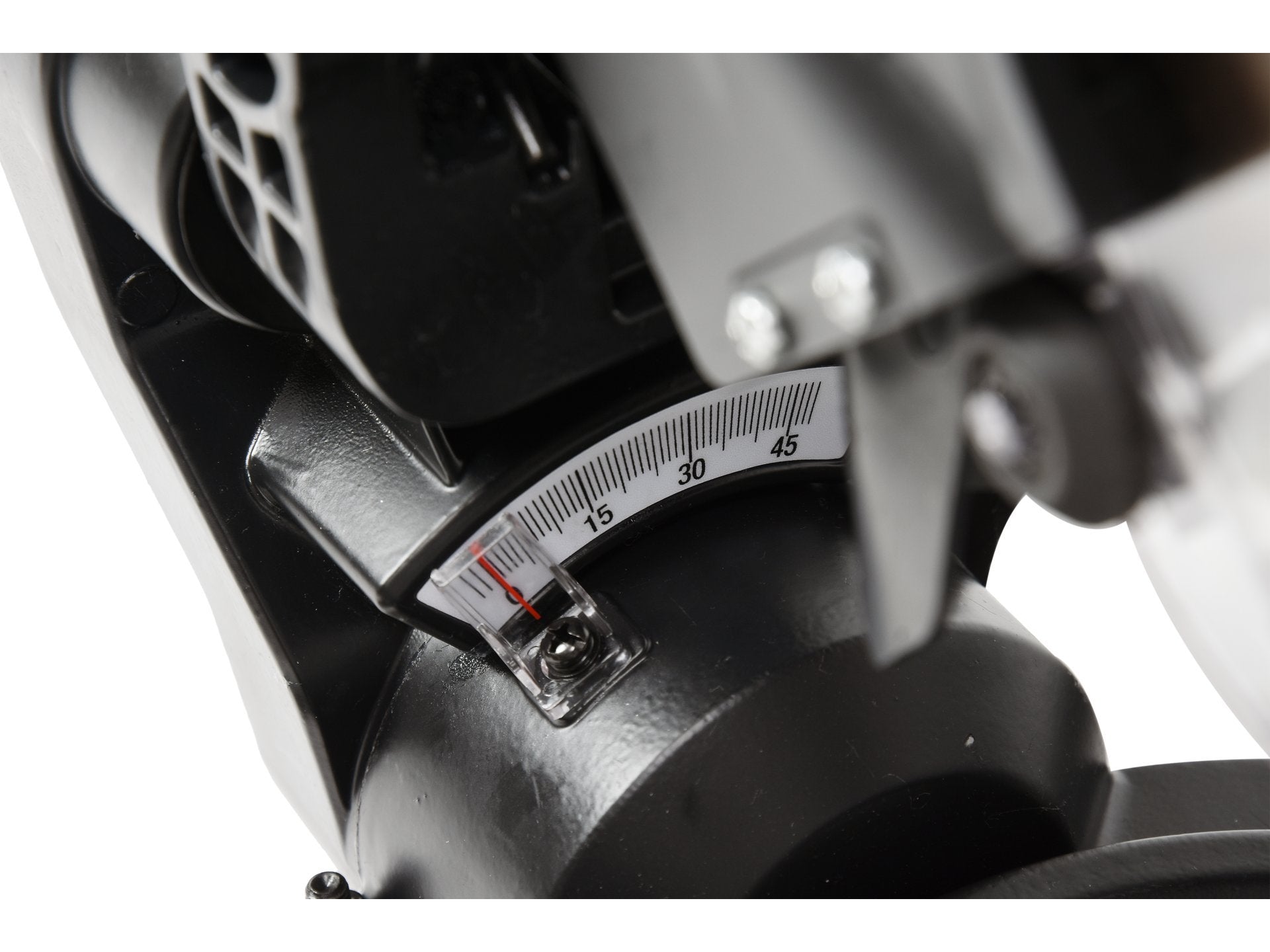

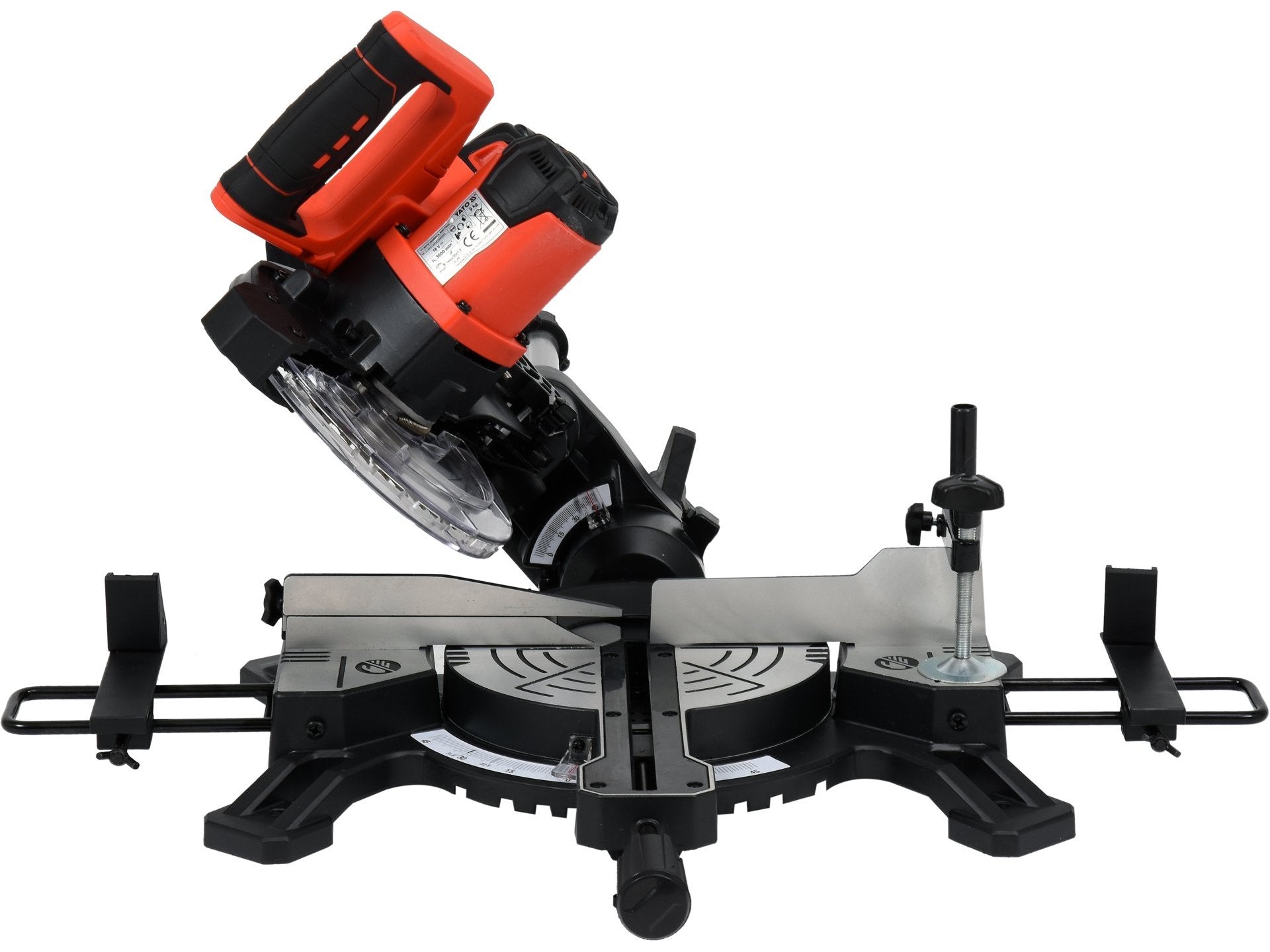

Adjustable cutting angles: Cutting head rotates within ±45° with common settings at 0°, 15°, 22.5°, 31.6°, and 45°; bevel cutting head tilts up to 45°.
-
Multiple cutting modes: Supports downward cutting, horizontal sliding cutting with locked lowered head, and plunge cutting to a preset height.
-
Laser cutting guide: Red class 2 laser line indicator with independent switch helps show the cutting line on the workpiece.
-
Work support and dust control: Metal base includes angle adjustment, lateral slide-out supports, workpiece clamp, transport handle, and dust outlet for the included dust bag or external extraction.
Technical Specifications
| Parameter |
Value |
| Brand |
YATO |
| Product Type |
Cordless mitre saw |
| Voltage |
18 V d.c. |
| Battery System |
18 V Li-Ion system |
| Battery Type |
Li-Ion |
| Rated Speed |
3600 min⁻¹ |
| Cutting Disc Outer Diameter |
185 mm |
| Cutting Disc Internal Diameter |
30 mm |
| Cutting Disc Maximum Thickness |
2 mm |
| Number Of Teeth |
40 |
| Maximum Bevel Cutting Angle |
45° |
| Cutting Head Horizontal Rotation Range |
±45° |
| Common Horizontal Angle Settings |
0°, 15°, 22.5°, 31.6°, 45° |
| Maximum Cut At 0° Rotation / 0° Tilt |
51 × 203 mm |
| Maximum Cut At 45° Rotation / 0° Tilt |
51 × 152 mm |
| Maximum Cut At 0° Rotation / 45° Tilt |
35 × 203 mm |
| Maximum Cut At 45° Rotation / 45° Tilt |
35 × 152 mm |
| Minimum Processed Material Dimensions |
200 × 20 × 20 mm |
| Laser |
Yes |
| Laser Class |
2 |
| Laser Power |
<1 mW |
| Laser Wavelength |
650 nm |
| Laser Pointer Colour |
Red |
| Electric Insulation Class |
III |
| Protection Grade |
IPX0 |
| Acoustic Pressure |
83.14 ± 3.0 dB(A) |
| Acoustic Power |
96.14 ± 3.0 dB(A) |
| Net Weight |
9 kg |
| Volume |
111.15 |
| Compatible With |
YT-60590 |
| Application |
Wood, panels, laminates, plastics |
| Dimensions (L×W×H) |
65 × 45 × 38 cm |
| Weight |
12/13 kg |
Variant Comparison
| SKU Code |
Spec / Size |
Battery Included |
Battery Capacity |
Battery Quantity |
Charger Included |
Charging Time |
Quick Charging |
| 100501-0001 |
18 V 185 mm mitre saw body |
No |
Not included |
0 |
No |
Not applicable |
Not specified |
| 100501-0002 |
18 V 185 mm mitre saw with 4 Ah battery |
Yes |
4000 mAh |
1 |
Yes |
2 h for 4 Ah battery |
Yes |
Package Contents
- Each variant includes 1 × mitre saw, 1 × dust collection bag, 1 × 185 mm circular saw blade with 30 mm mounting hole, 1 × work table clamp, and 1 × work table locking screw.
- The 4 Ah kit variant additionally includes 1 × 18 V 4 Ah Li-Ion battery and 1 × fast charger with a 2-hour charging time for the 4 Ah battery.
