YATO

STEP DRILL 10-45MM

SKU: 100006-0001
(0)
5.344 Ft inc. VAT
Coming soon
On order

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

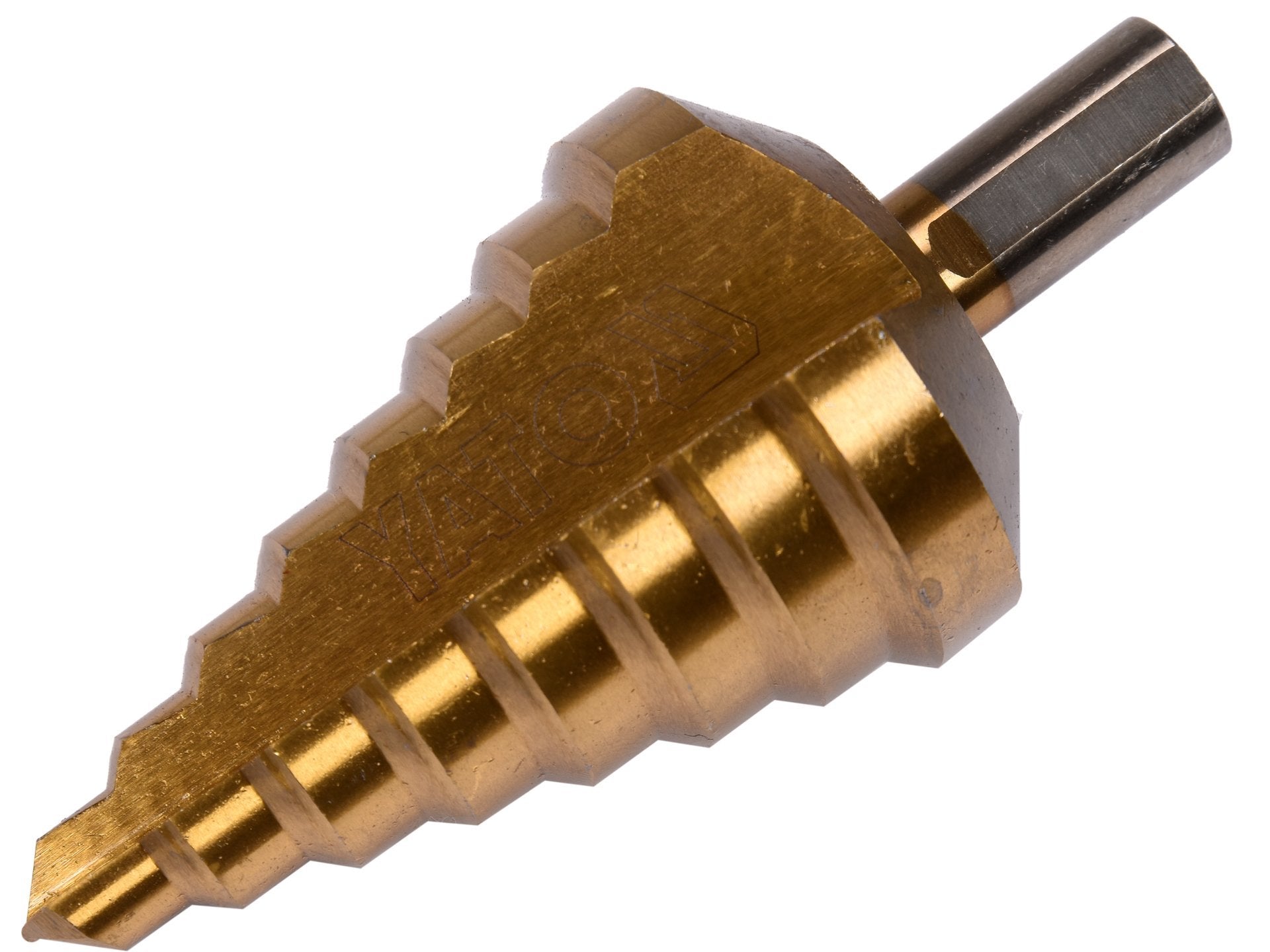

The YATO step drill 10-45 mm is designed for professional drilling in stainless steel, structural steel, cold rolled steel, non-ferrous metals, sheet metal, and plastic. Its HSS 4241 body, titanium nitride coating, and stepped 8-rung profile support clean, controlled hole making across multiple diameters.

Key Features

  • Multi-Size Drilling: Produces stepped hole diameters from 10 mm to 45 mm in one drill bit.
  • Wide Material Use: Designed for high-quality stainless steel, structural steel, cold rolled steel, non-ferrous metals, steel sheets, and plastic.
  • Durable Construction: Made from HSS 4241 high-speed steel with a titanium nitride coating to increase drill bit life.
  • Clean Hole Edges: Designed to leave drilled hole edges clean and burr-free.
  • Stable Drilling: Automatic centering supports use on rounded and slippery surfaces.
  • Efficient Chip Removal: Two spiral flutes help dissipate excavated material and support rapid heat dissipation in hard materials.
  • Torque Transfer: Shank with three flat surfaces supports maximum torque transfer.

Technical Specifications

Parameter Value
Brand YATO
Category Step drill bits and sets
SKU 100006-0001
Model YT-44742
Material HSS 4241 high-speed steel
Surface Finish Titanium nitride coating
Application High-quality stainless steel, structural steel, cold rolled steel, non-ferrous metals, steel sheets, plastic

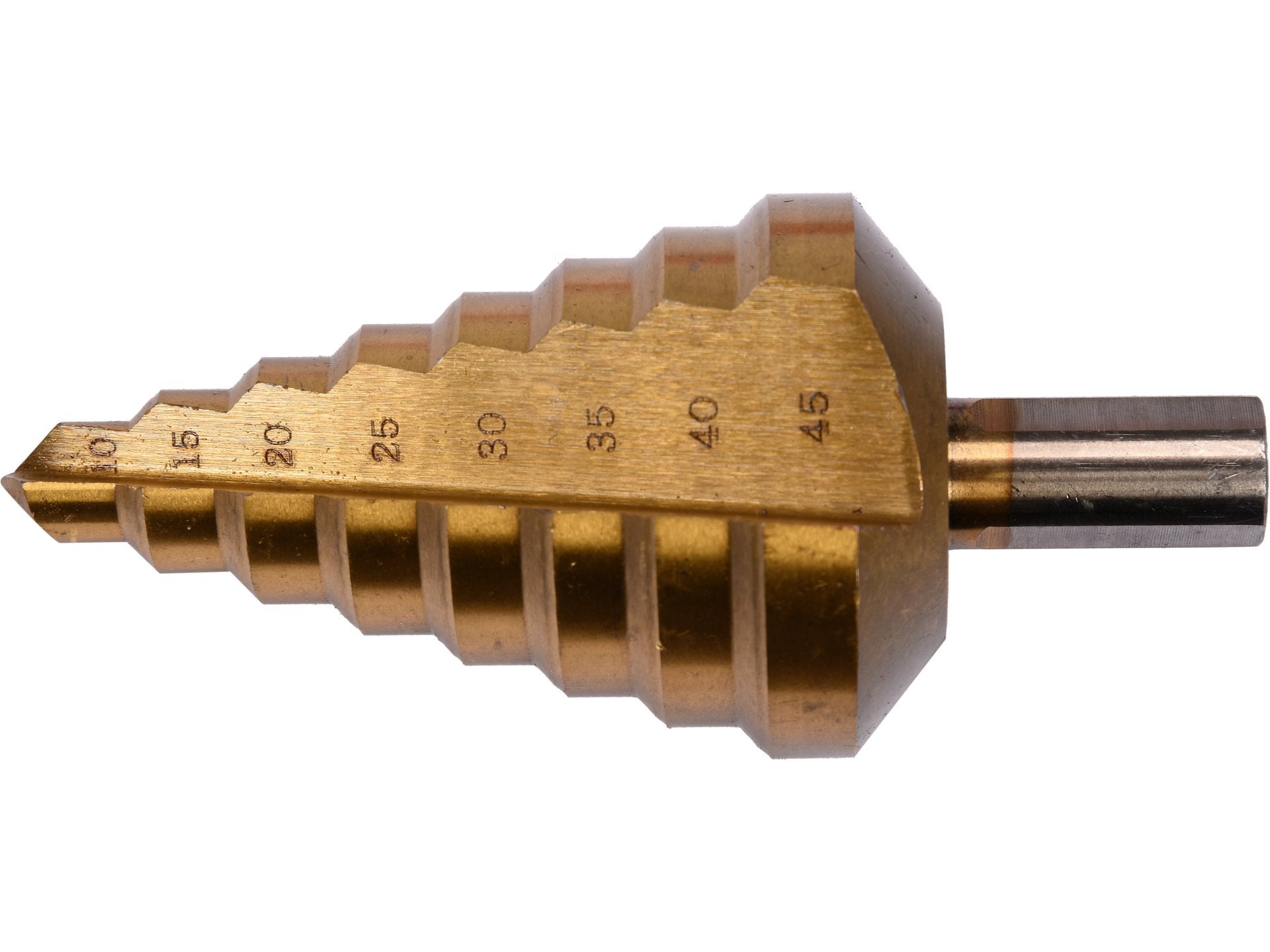

Diameter Steps 10, 15, 20, 25, 30, 35, 40, 45 mm
Rung Quantity 8
Length 100 mm
Working Length 75 mm
Maximum Cutting Capacity 4 mm
Toolholder Type Triangle
Flutes 2 spiral flutes
Shank 3 flat surfaces
Weight 0.371 kg
Package Dimensions 18.0000 × 8.5000 × 5.0000 cm
Unit Of Measure PCS

Package Contents

  • 1 × YATO step drill 10-45 mm
