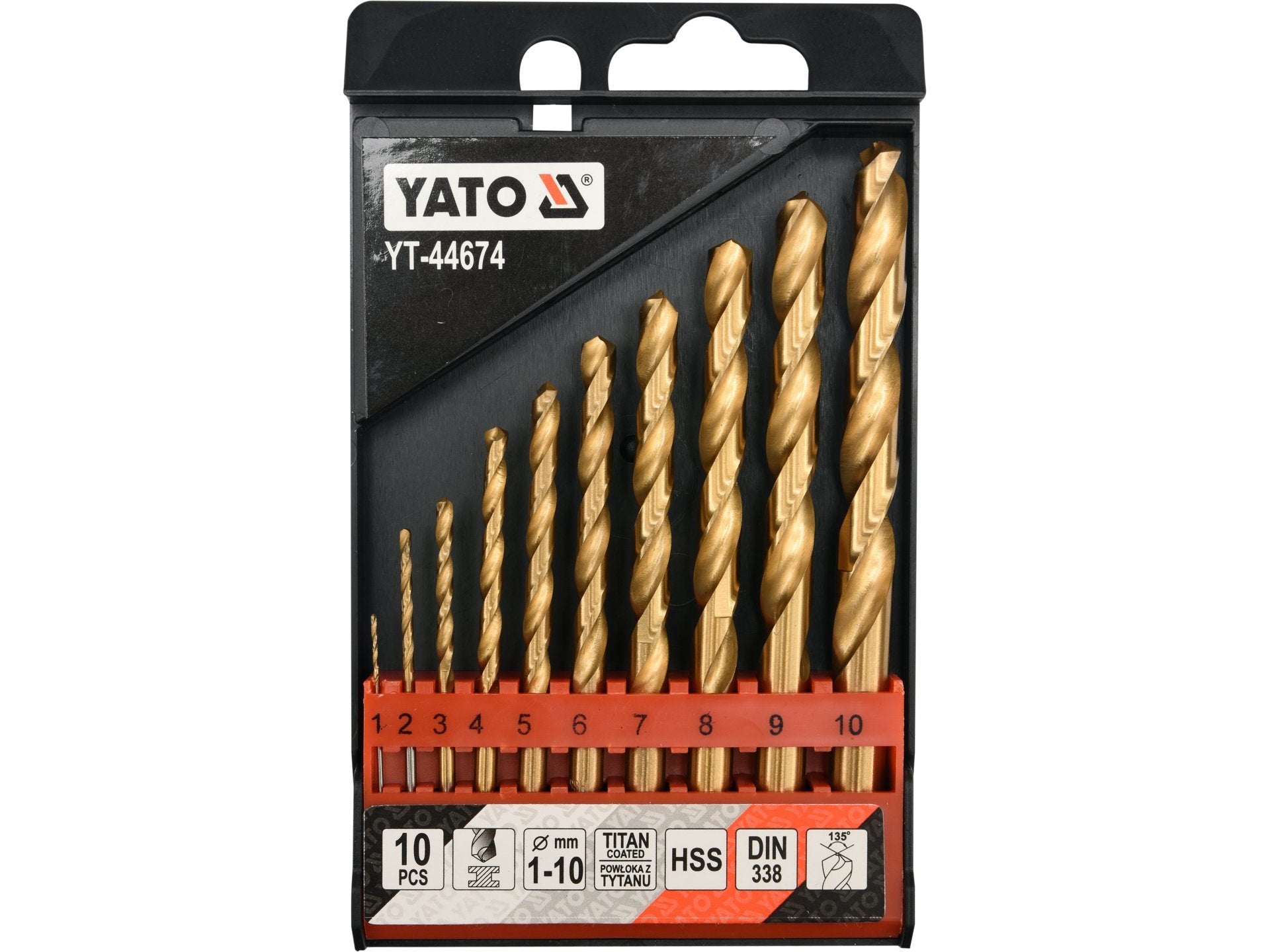

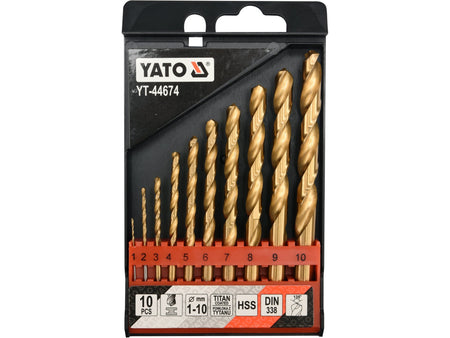

The YATO 10-piece HSS-TiN twist drill bit set is designed for professionals drilling stainless, acid-resistant, structural and cold rolled steel. With 1-10 mm sizes, titanium nitride coating and 135° split points, it supports accurate drilling without prior scoring.
| Parameter | Value |
| Brand | YATO |
| SKU | 100008-0001 |
| Product Type | Twist drill bit set |
| Category | Twist drill bits HSS-TiN and sets |
| Material | HSS 6524 |
| Application | Stainless steel, acid-resistant steel, cold rolled steel |
| Additional Suitable Materials | High-quality steel, structural steel |
| Surface Finish | Coated with titanium nitride, polished |
| Toolholder Type | Cylindrical |
| Toolholder Size | 1/4" (6.3 mm) |
| Diameter | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 mm |
| Rotations | 3800, 4000, 2600, 2000, 1600, 1300, 1100, 1000, 900, 800 min⁻¹ |
| DIN Standard | 338 |
| Overall Length | 34, 49, 61, 75, 86, 93, 109, 117, 125, 133 mm |
| Working Part Length | 12, 24, 33, 43, 52, 57, 69, 75, 81, 87 mm |
| Drill Bit Point Angle | 135° |
| Split Point | Yes |
| Quantity | 10 pcs |
| Unit Of Measure | KPL |
| Weight | 0.23 kg |
| Dimensions | 16.5 × 10 × 2 cm |
