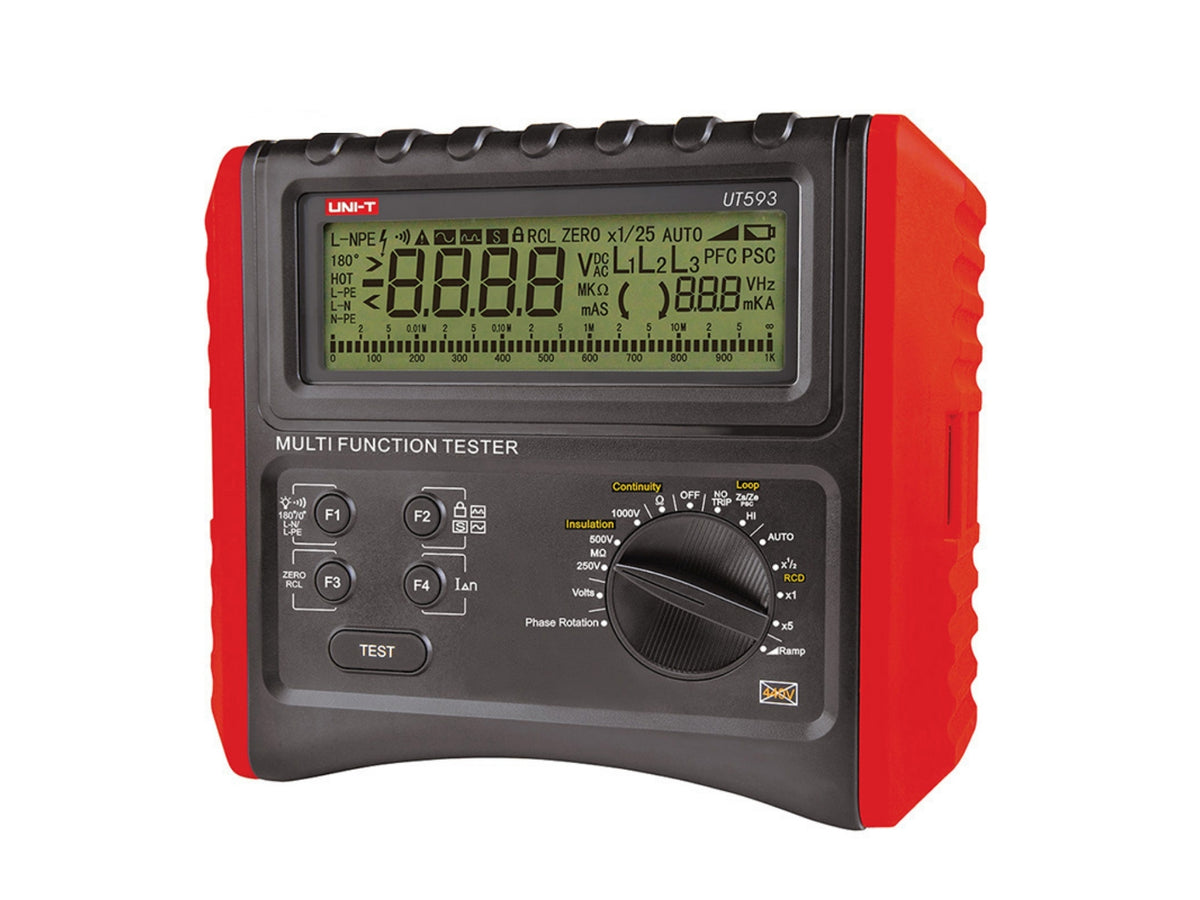

UNI-T Multifunction Installation Tester, Insulation, Continuity & Loop Impedance – UT593

SKU: 003104
(0)
141.239 Ft inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

The UNI-T UT593 combines insulation resistance, continuity, line and loop impedance, RCD, phase sequence and AC voltage testing in one portable instrument. It is designed for electrical installation inspection, commissioning, fault finding and routine maintenance.

Key Features

  • Insulation resistance testing at selectable 250V, 500V and 1000V test voltages, with measurement ranges up to 1000MΩ.
  • Low-resistance continuity testing with over 200mA test current for checking protective conductors and bonding connections.
  • Line, loop and non-trip loop impedance testing, with prospective fault current measurement up to 26kA.
  • RCD testing at 10mA, 30mA, 100mA, 300mA and 500mA, including trip-time, ramp, phase-angle and countdown test modes.
  • Additional phase sequence and AC voltage testing, supported by a 9999-count backlit display, data storage and automatic power-off.

Product Specifications

Insulation Resistance
Test Voltages 250V / 500V / 1000V DC, ±10%
Range at 250V 0.05MΩ–250MΩ
Range at 500V 0.05MΩ–500MΩ
Range at 1000V 0.05MΩ–1000MΩ
Insulation Resistance Accuracy ±(5% + 5 digits)
Short-Circuit Current Less than 2mA
Continuity and Impedance
Low-Resistance Continuity Range 0.00Ω–199Ω
Continuity Accuracy ±(2% + 5 digits)
Continuity Test Current Greater than 200mA at 0.00Ω–2Ω
Line Impedance Range 0.01Ω–2000Ω
Loop Impedance Range 0.01Ω–2000Ω
Non-Trip Loop Impedance Range 1.00Ω–2000Ω
Prospective Fault Current 0–26kA
RCD and Voltage Testing
RCD Test Currents 10mA / 30mA / 100mA / 300mA / 500mA
RCD Test Multipliers ×1/2, ×1, ×2 and ×5 IΔn
RCD Phase Angle 0° / 180°
RCD Operating Voltage 195V–253V AC, 45Hz–65Hz
AC Voltage Range 0–440V
AC Voltage Accuracy ±(5% + 2 digits)
Phase Sequence Operating Range 100V–440V AC, 45Hz–65Hz
General
Display 9999-count LCD with analogue bar graph and backlight
Additional Functions Data storage, connection-status indication, low-battery indication and automatic power-off
Power Supply 6 × 1.5V AA batteries
Product Dimensions 210 × 175 × 90mm
Net Weight 1000g
Certification CE

Applications

  • Inspection and commissioning of domestic, commercial and industrial electrical installations.
  • Testing insulation integrity and protective conductor continuity.
  • Checking line and loop impedance, prospective fault current and RCD operation.
  • Electrical maintenance, troubleshooting and verification of three-phase sequence.

Included Components

  • UNI-T UT593 multifunction electrical installation tester
  • Red, green and black test leads
  • Special mains test lead
  • Remote test lead
  • 6 × 1.5V AA batteries
  • User manual
  • Tool case
