UNI-T Digital Multimeter, 1000 V DC/750 V AC, 20 A AC/DC, 20 μF – UT52

SKU: 003089
(0)
10.771 Ft inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

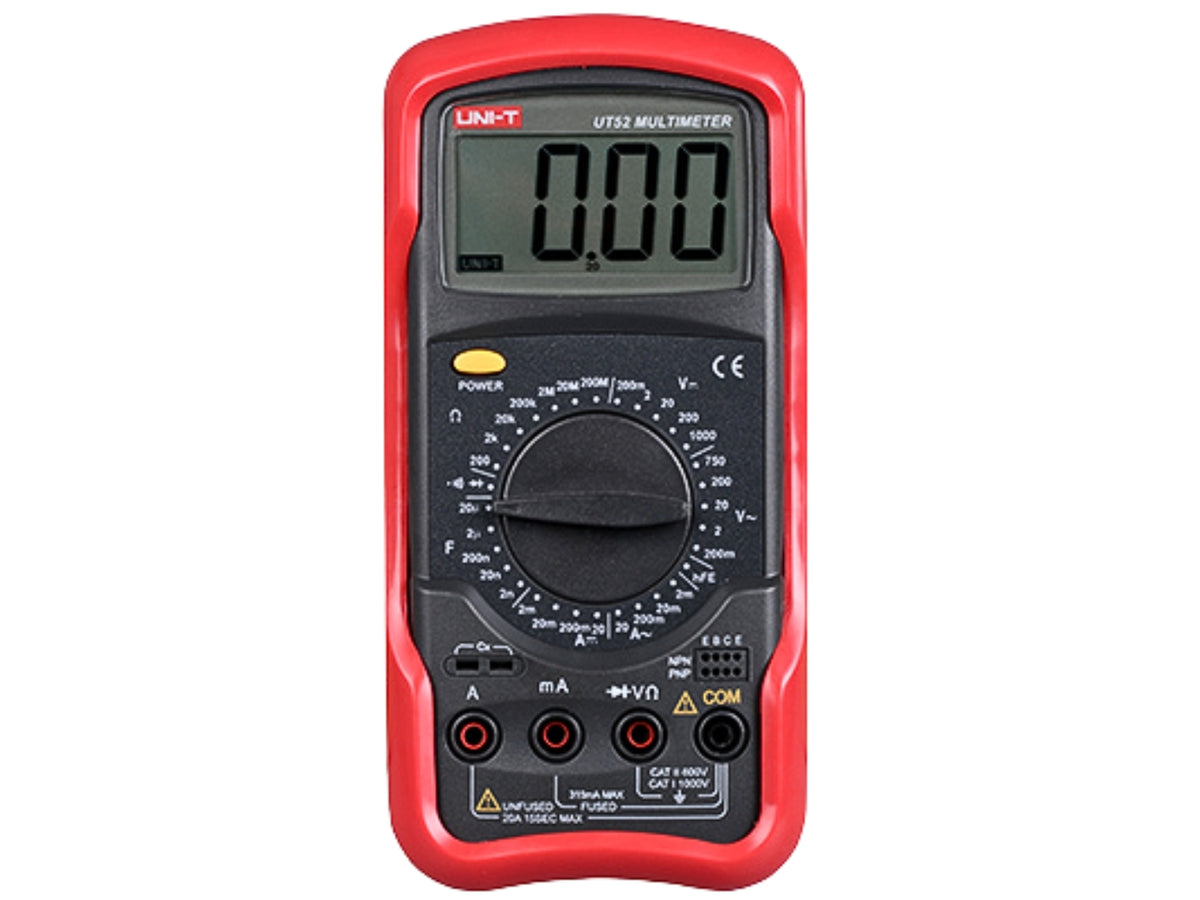

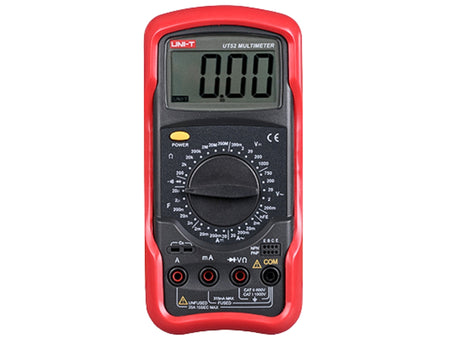

The UNI-T UT52 is a general-purpose manual-range digital multimeter for measuring AC/DC voltage, AC/DC current, resistance and capacitance. With current measurement up to 20A and resistance up to 200MΩ, it is suitable for electronics repair, electrical maintenance, manufacturing and HVAC service work.

Key Features

  • Measures AC/DC voltage, AC/DC current, resistance and capacitance
  • Manual range selection with a 1999-count, 3½-digit display
  • Measures DC voltage up to 1000V and AC voltage up to 750V
  • Measures AC/DC current up to 20A and resistance up to 200MΩ
  • Includes capacitance, diode, transistor and audible continuity testing

Product Specifications

Specification Details
Brand UNI-T
Series UT50 Series
Model UT52
Range Selection Manual
AC Measurement Type Average responding; calibrated to the RMS value of a sine wave
Maximum Display 1999 counts, 3½ digits
DC Voltage Ranges 200mV, 2V, 20V, 200V and 1000V
DC Voltage Basic Accuracy ±(0.5% of reading + 1 digit)
AC Voltage Ranges 200mV, 2V, 20V, 200V and 750V
AC Voltage Basic Accuracy ±(0.8% of reading + 3 digits)
AC Voltage Frequency Range 40–400Hz
Voltage Input Impedance 10MΩ
DC Current Ranges 2mA, 20mA, 200mA and 20A
DC Current Basic Accuracy ±(0.8% of reading + 1 digit)
AC Current Ranges 2mA, 20mA, 200mA and 20A
AC Current Basic Accuracy ±(1% of reading + 3 digits)
Maximum Current Input 20A
High-Current Measurement Duration Less than 15 seconds, with at least 15 minutes between measurements
Resistance Ranges 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ and 200MΩ
Resistance Basic Accuracy ±(0.8% of reading + 1 digit)
Capacitance Ranges 2nF, 20nF, 200nF, 2µF and 20µF
Capacitance Accuracy ±(4% of reading + 3 digits)
Diode Test Supported
Transistor Test Supported
Audible Continuity Test Supported
Low-Battery Indication Supported
Overload Protection Full-range overload protection
Current Input Fuse Protection 315mA/250V fuse for low-current ranges; the 20A range is unfused
Display Size 65 × 33mm
Digit Height 27mm
Operating Environment 0°C to 40°C
Storage Temperature -10°C to 50°C
Maximum Operating Altitude 2,000m
Power Supply 1 × 9V 6F22 battery
Product Dimensions 190 × 88 × 34mm
Net Weight Approximately 540g including protective holster
Product Colour Red and grey
Safety Standard IEC 61010; CAT I 1000V, CAT II 600V and CAT III 300V

Applications

  • Electrical and electronic equipment troubleshooting
  • Electronic component and circuit testing
  • Manufacturing and production maintenance
  • HVAC equipment inspection and field service

Included Components

  • 1 × UNI-T UT52 Digital Multimeter
  • 1 × Pair of Test Leads
  • 1 × 9V 6F22 Battery

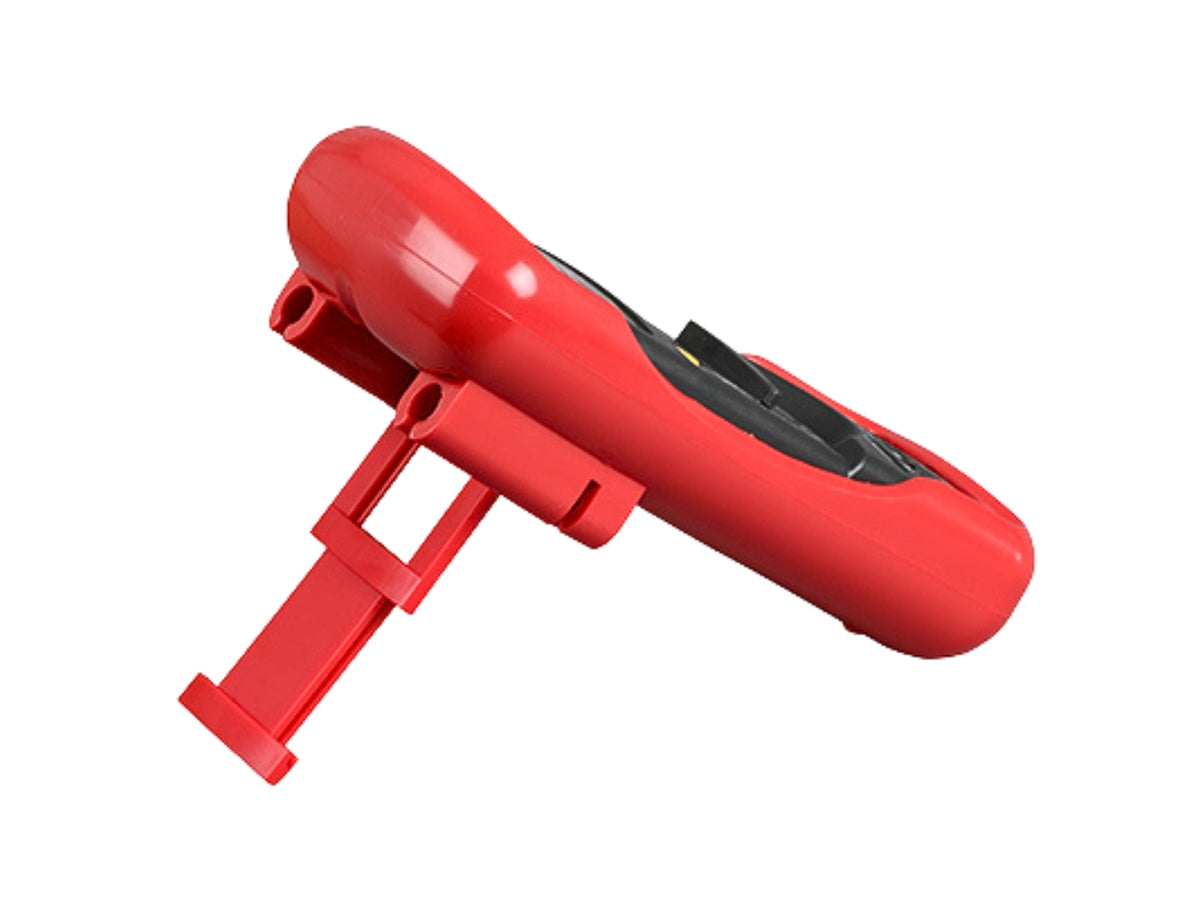

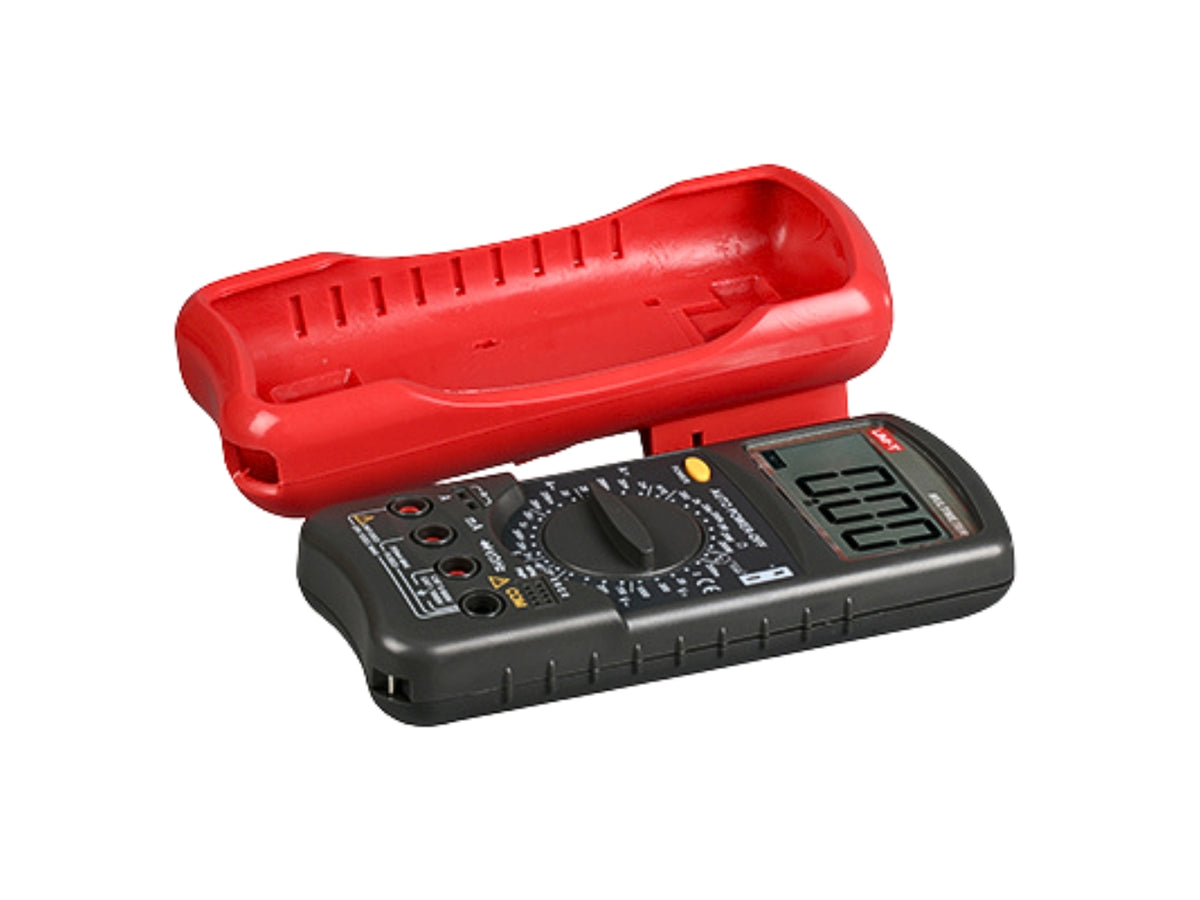

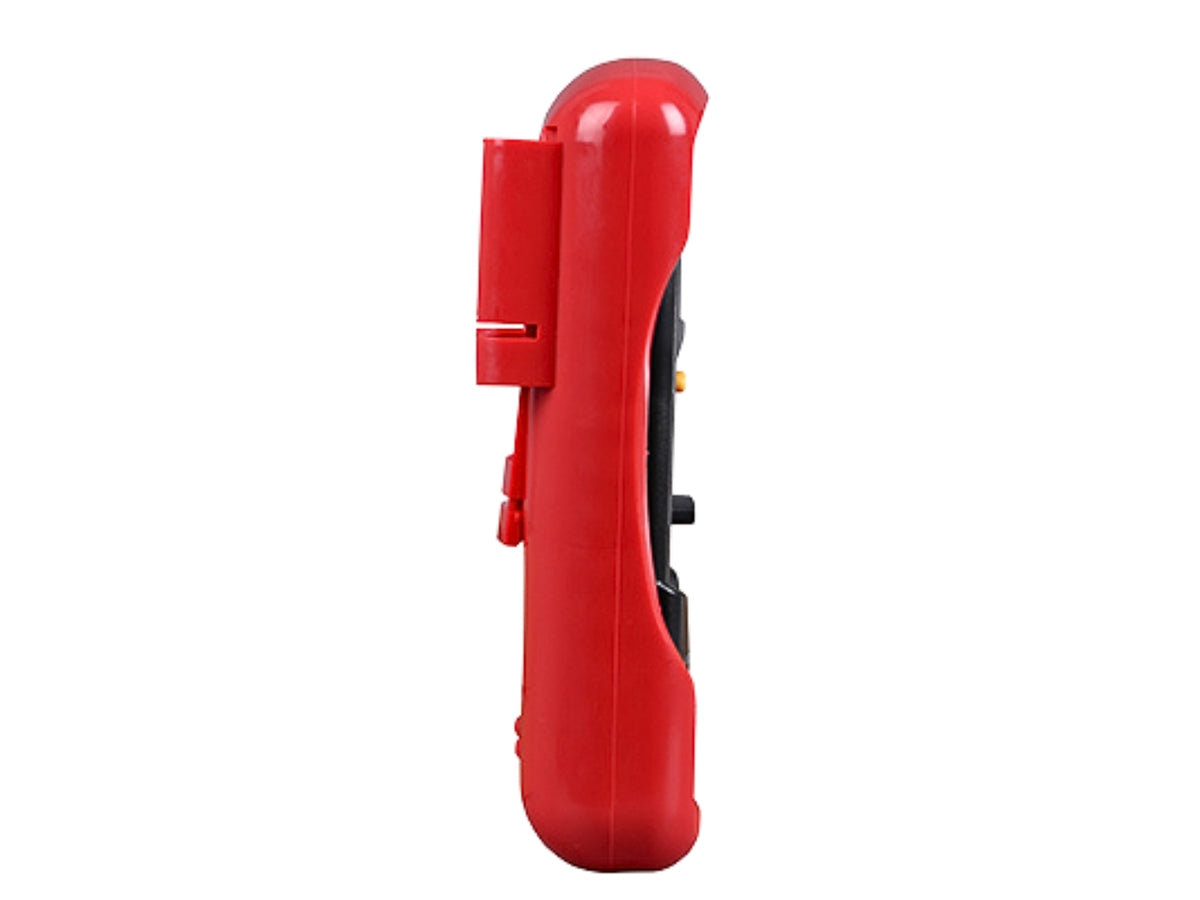

  • 1 × Protective Holster
  • 1 × English User Manual
