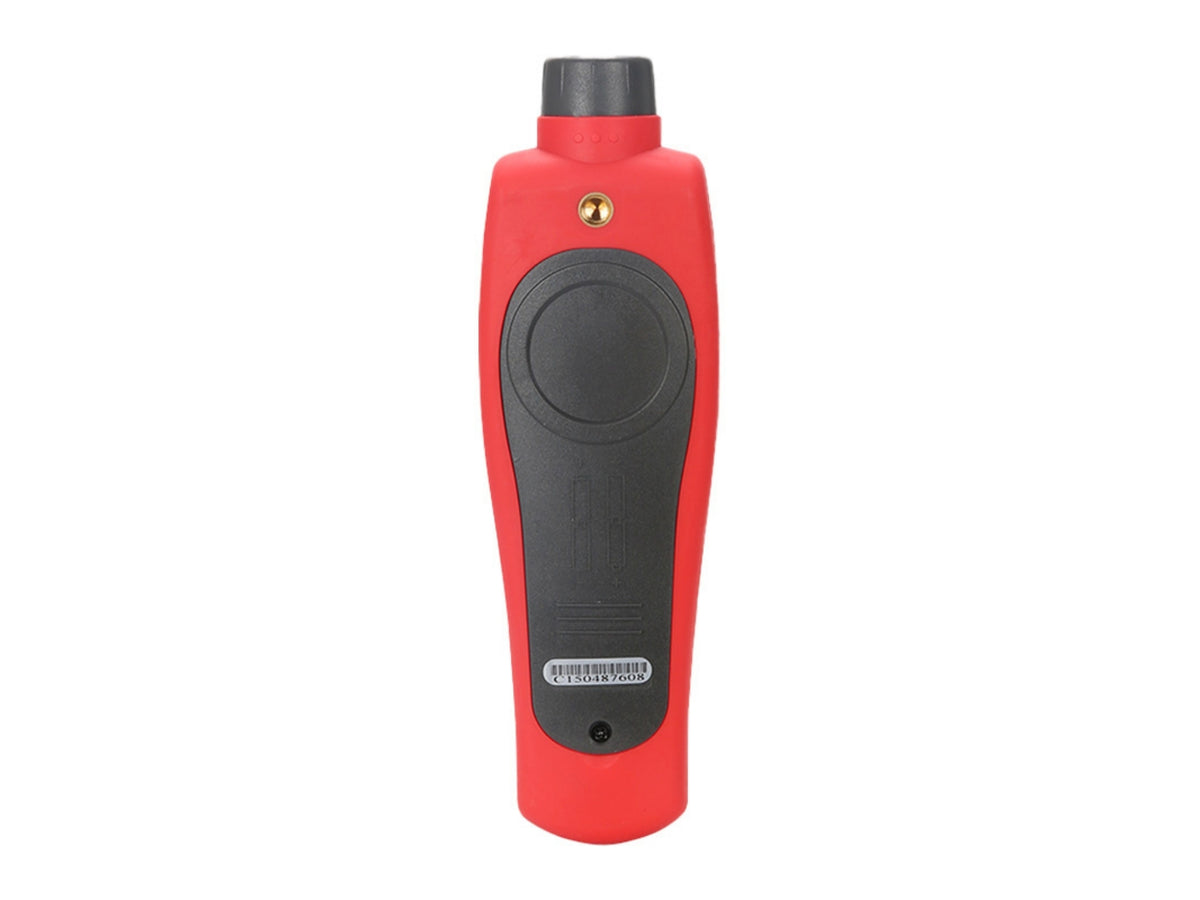

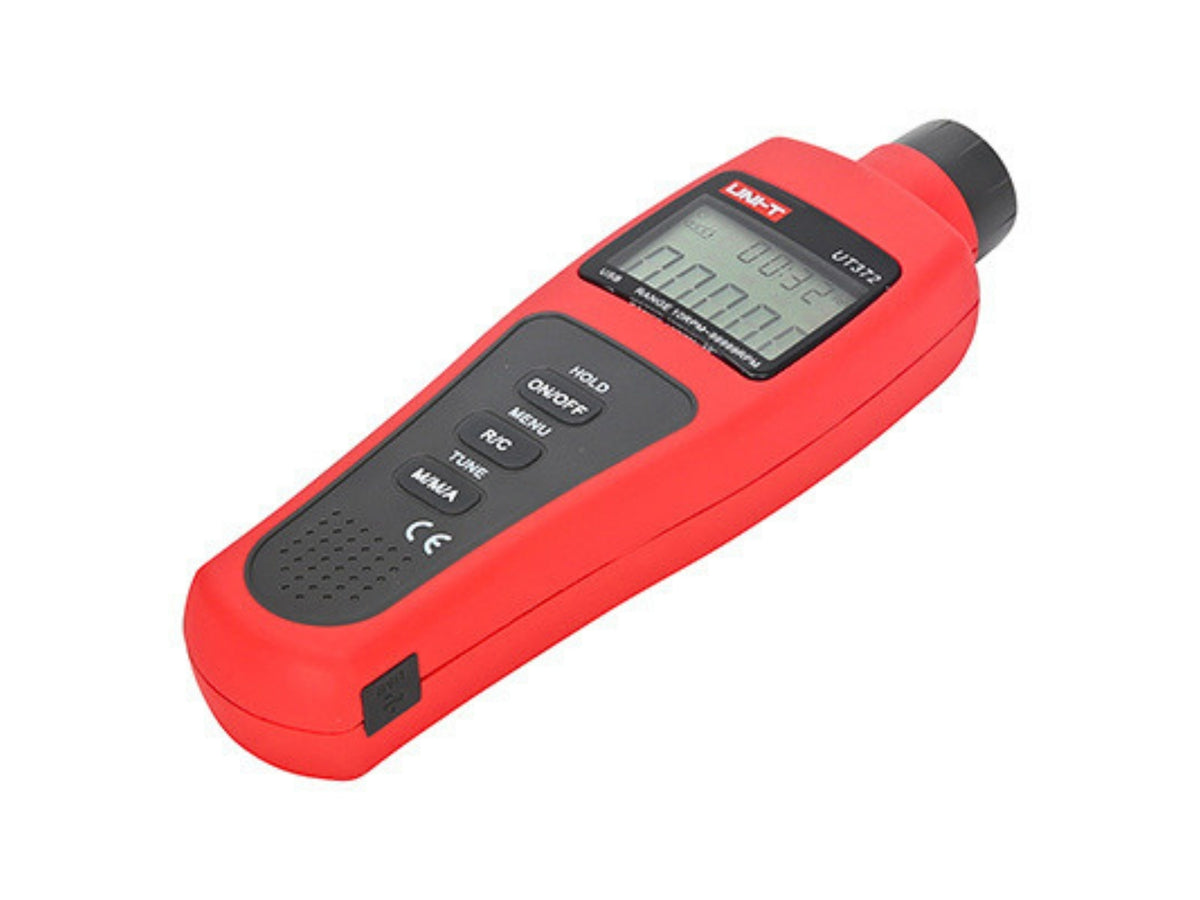

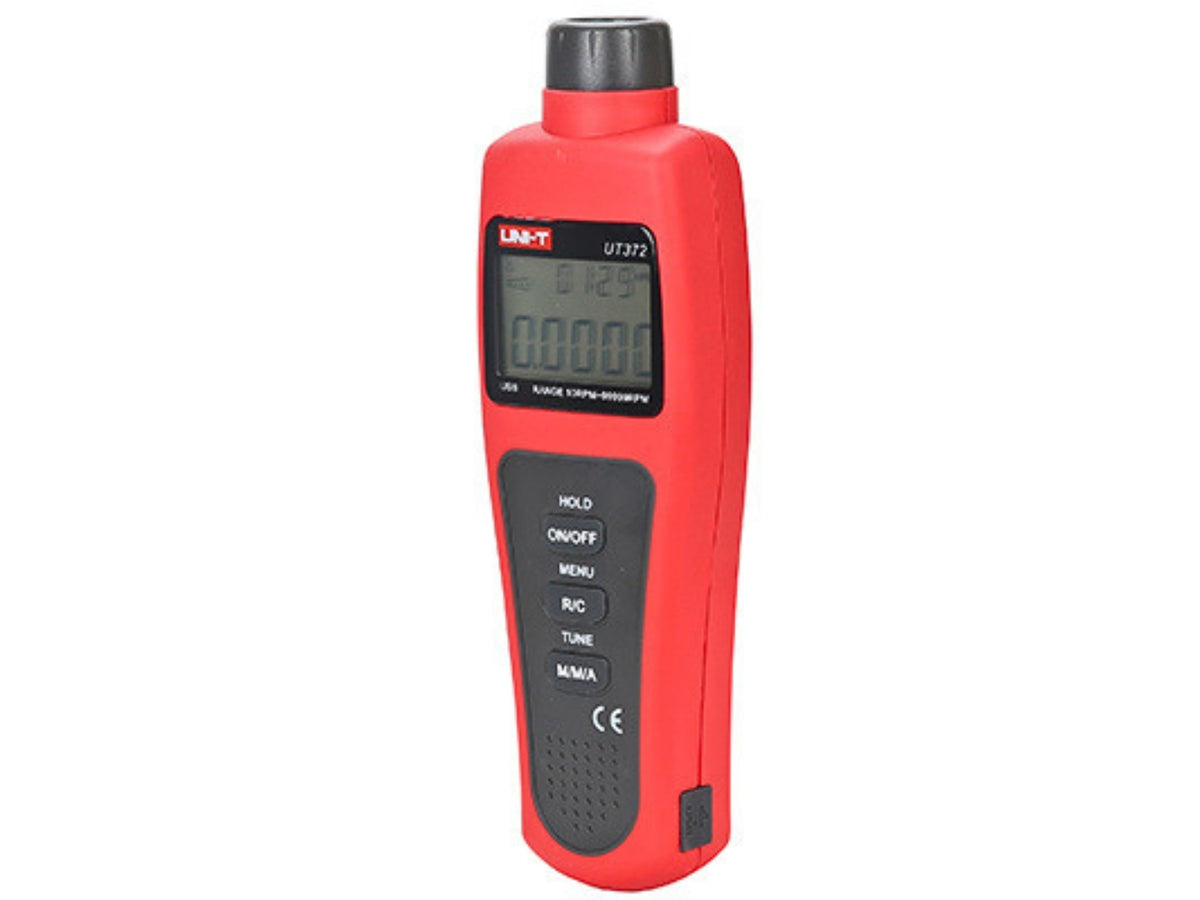

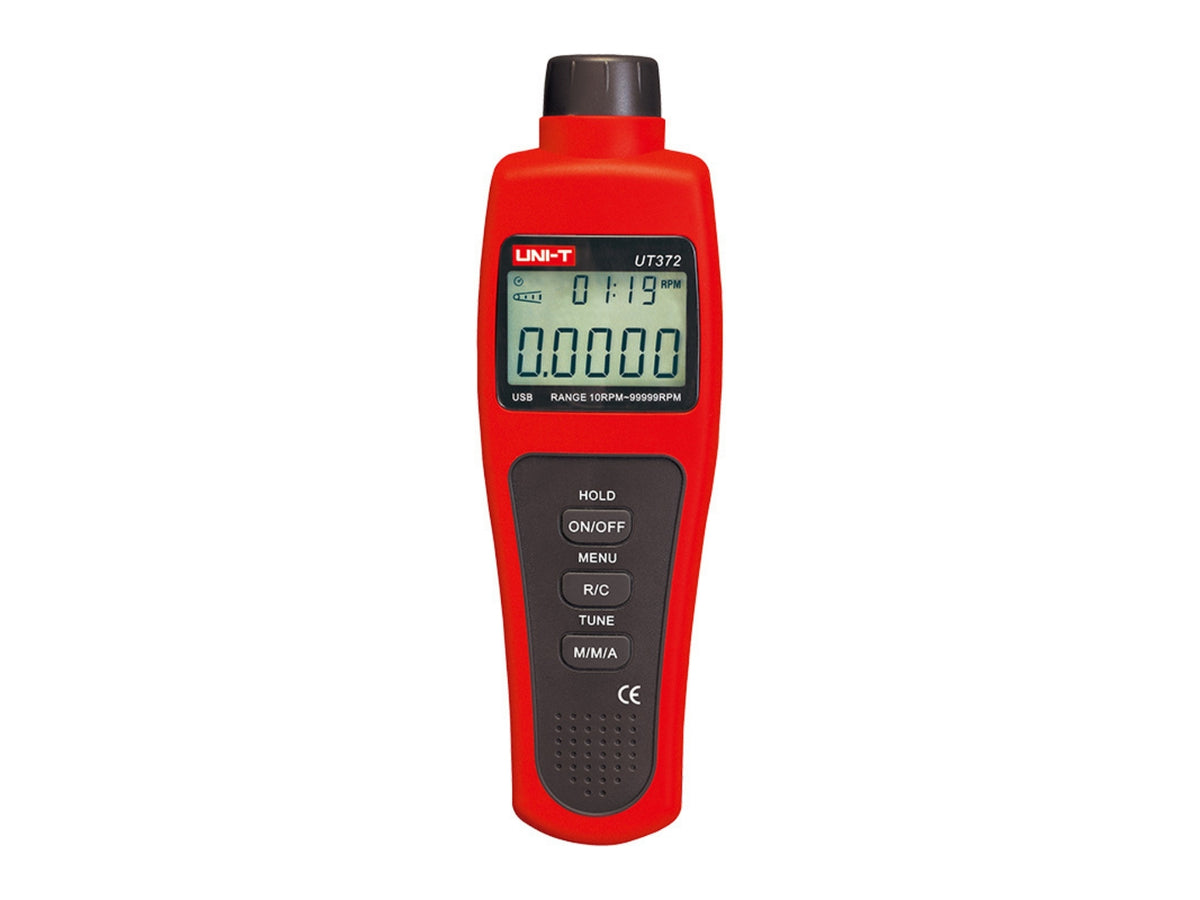

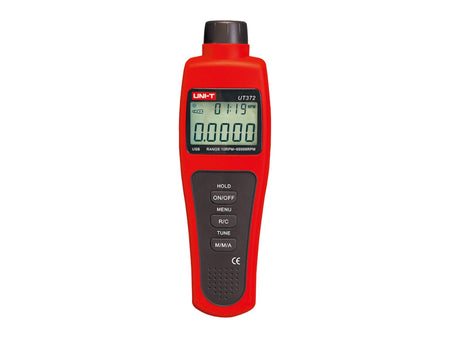

UNI-T Non-Contact Laser Tachometer, 10-99999 RPM, 50-200 mm Target Distance, USB – UT372

SKU: 002982
(0)
25.258 Ft inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323
The UNI-T UT372 is a non-contact digital tachometer for measuring rotational speed and counting revolutions without interfering with the equipment being tested. Its USB interface, PC software compatibility and measurement range of up to 99,999 RPM make it suitable for industrial maintenance, inspection and laboratory work.

Key Features

  • Non-contact rotational speed measurement from 10 to 99,999 RPM
  • Measures RPM and revolution count using a point laser and reflective tape
  • MAX, MIN, AVG and data hold functions with adjustable sampling interval
  • USB data transfer with compatible PC software for measurement analysis
  • Large dual display with selectable laser and cancelable automatic power-off

Product Specifications

Specification Details
Brand UNI-T
Series UT370 Series
Model UT372
Measurement Method Non-contact optical measurement using laser and reflective tape
Rotational Speed Range 10–99,999 RPM
Accuracy at 10–99 RPM ±0.03%
Accuracy at 100–999 RPM ±(0.04% + 2 digits)
Accuracy at 1,000–9,999 RPM ±(0.04% + 2 digits)
Accuracy at 10,000–99,999 RPM ±(0.04% + 2 digits)
Revolution Count Range 0–99,999
Maximum Input Frequency 10kHz
Target Distance 50–200mm
Maximum Display 99,999
Measurement Modes Normal, MAX, MIN and AVG
Data Hold Supported
Sampling Interval Adjustable from 0.5 to 255 seconds
Data Storage 10 groups
USB Interface Supported for PC data transfer
Clock and Time Setting Supported
Automatic Power-Off After approximately 15 minutes; function can be disabled
Low-Battery Indication ≤4.8V
Continuous Operating Time Approximately 40 hours
Power Supply 4 × 1.5V LR6 (AA) batteries
Display 5-digit LCD with RPM/count and time dual display
Display Size 53 × 41mm
Product Dimensions 184 × 56 × 34mm
Net Weight 100g
Product Colour Red and grey
Certifications CE and UKCA

Applications

  • Rotational speed measurement of motors, shafts and rotating discs
  • Factory equipment inspection and preventive maintenance
  • Automotive servicing and diagnostic testing
  • Laboratory, educational and engineering applications

Included Components

  • 1 × UNI-T UT372 Non-Contact Digital Tachometer
  • 4 × 1.5V LR6 (AA) batteries
  • Reflective tape
  • USB data cable
  • PC software CD
  • English user manual
