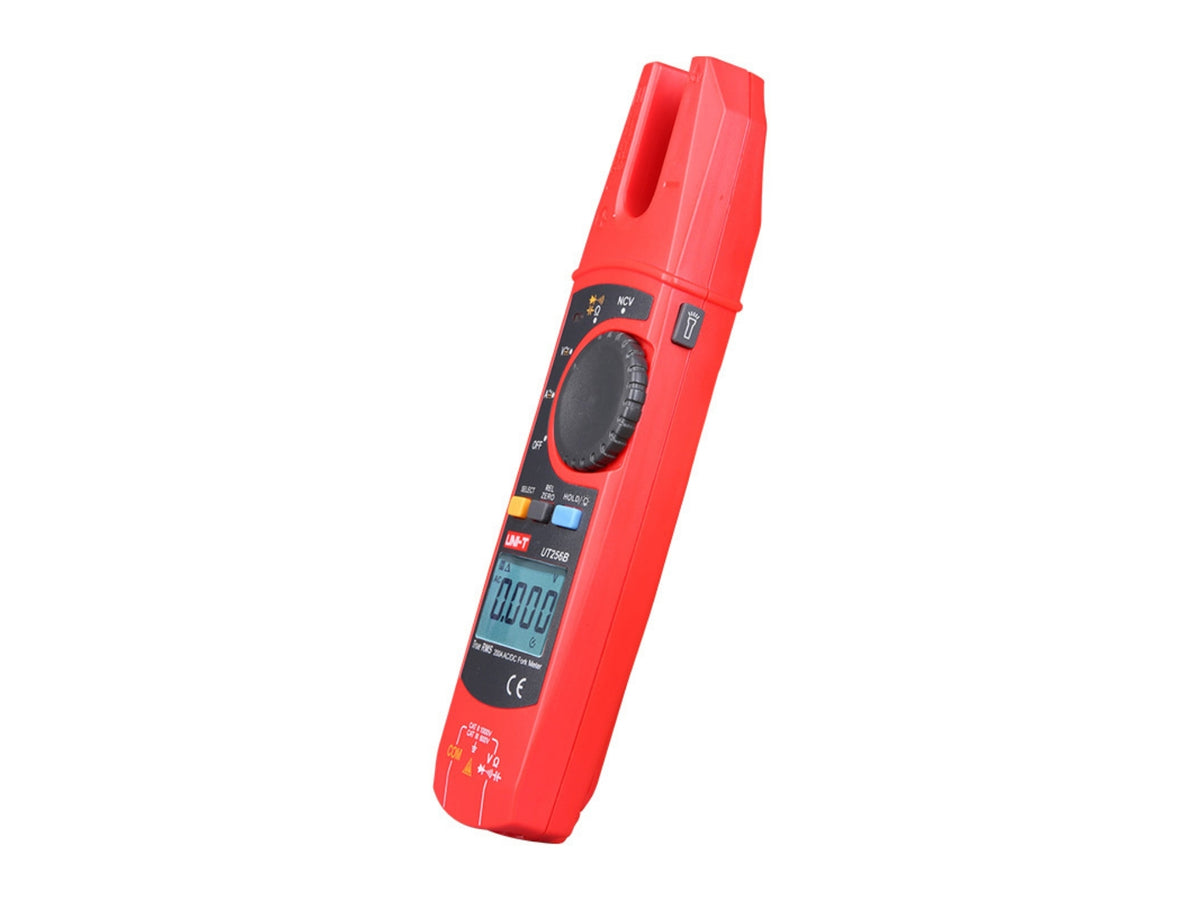

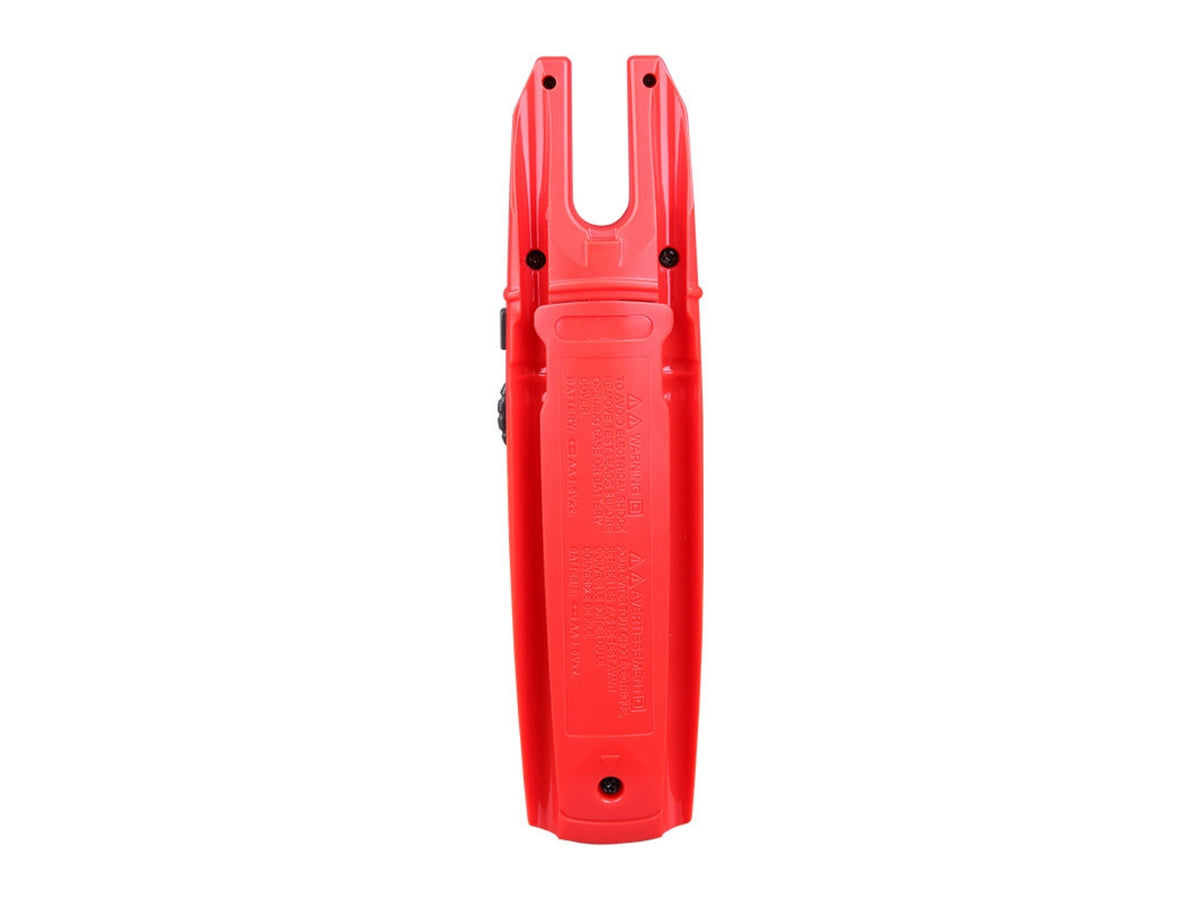

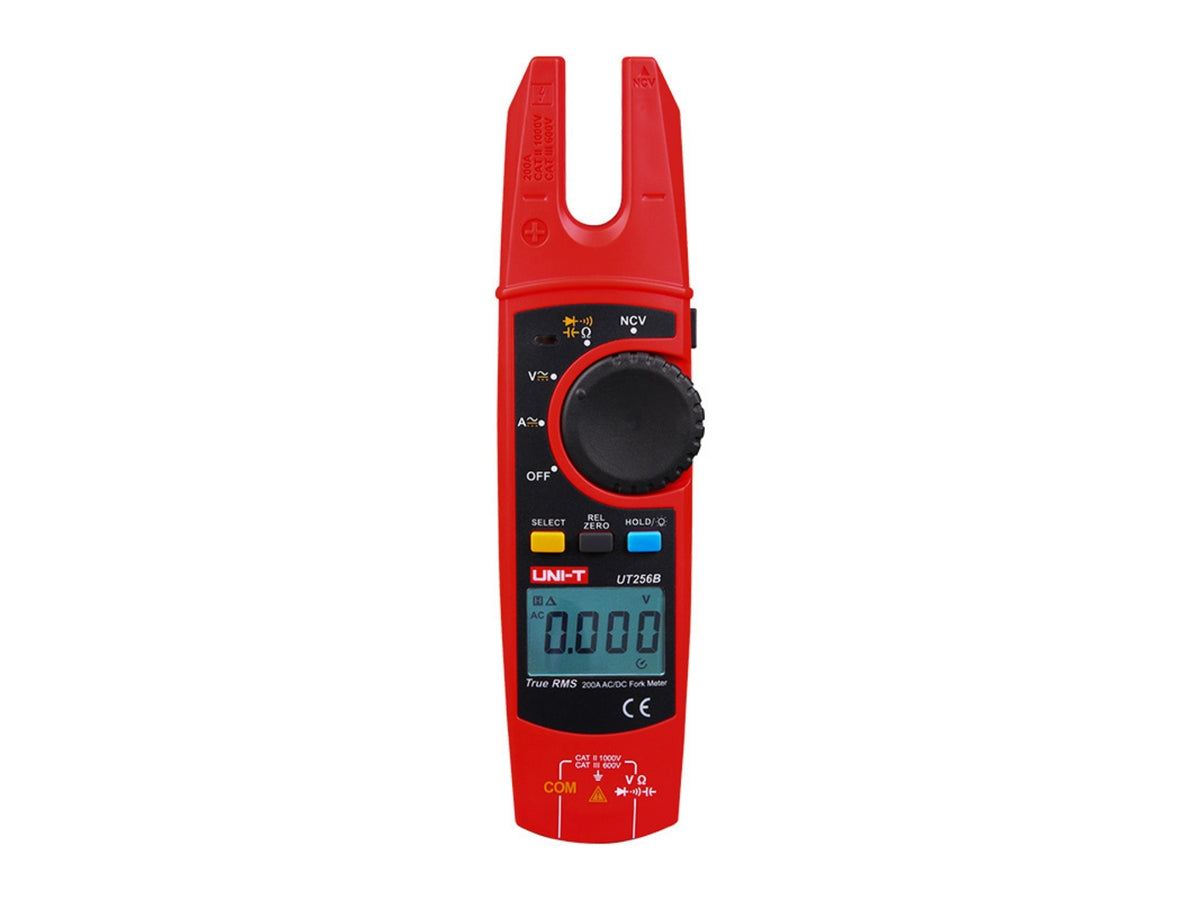

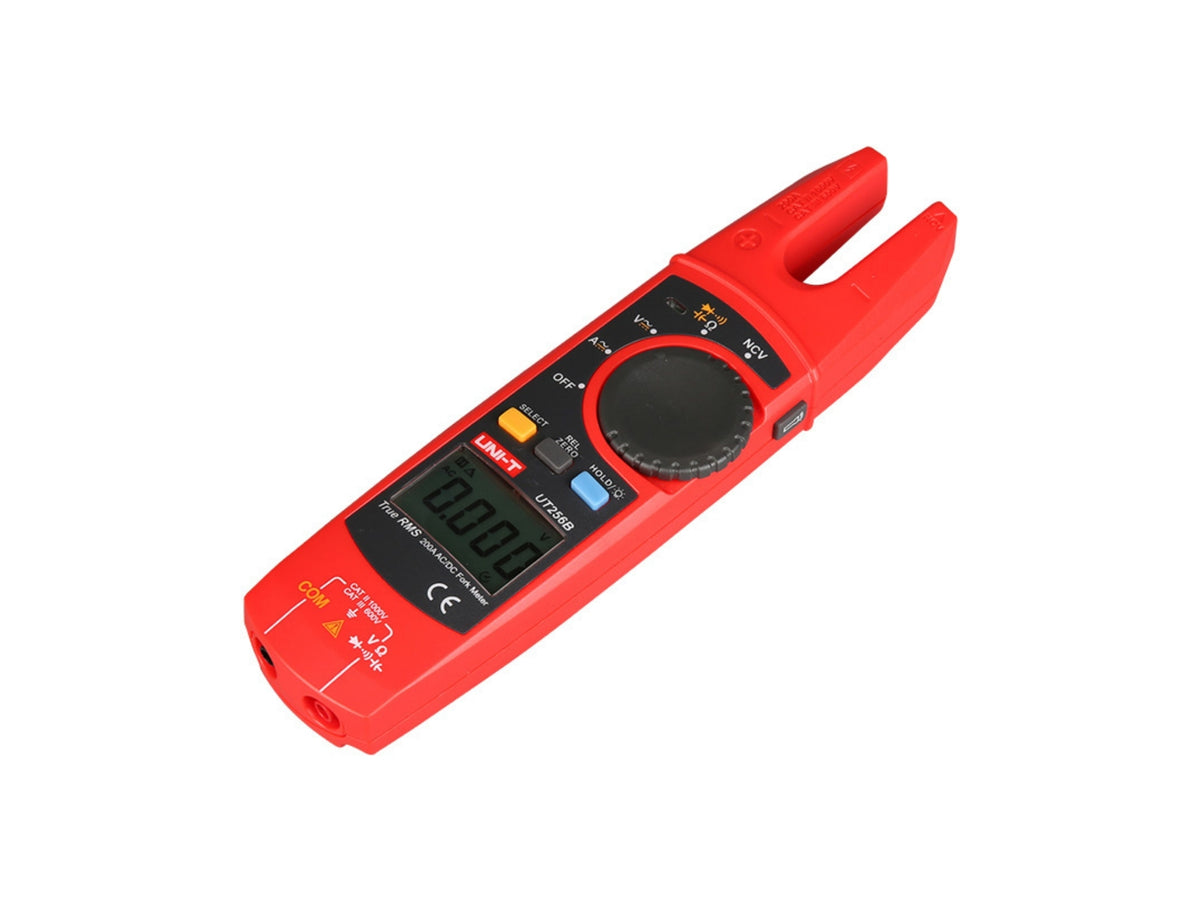

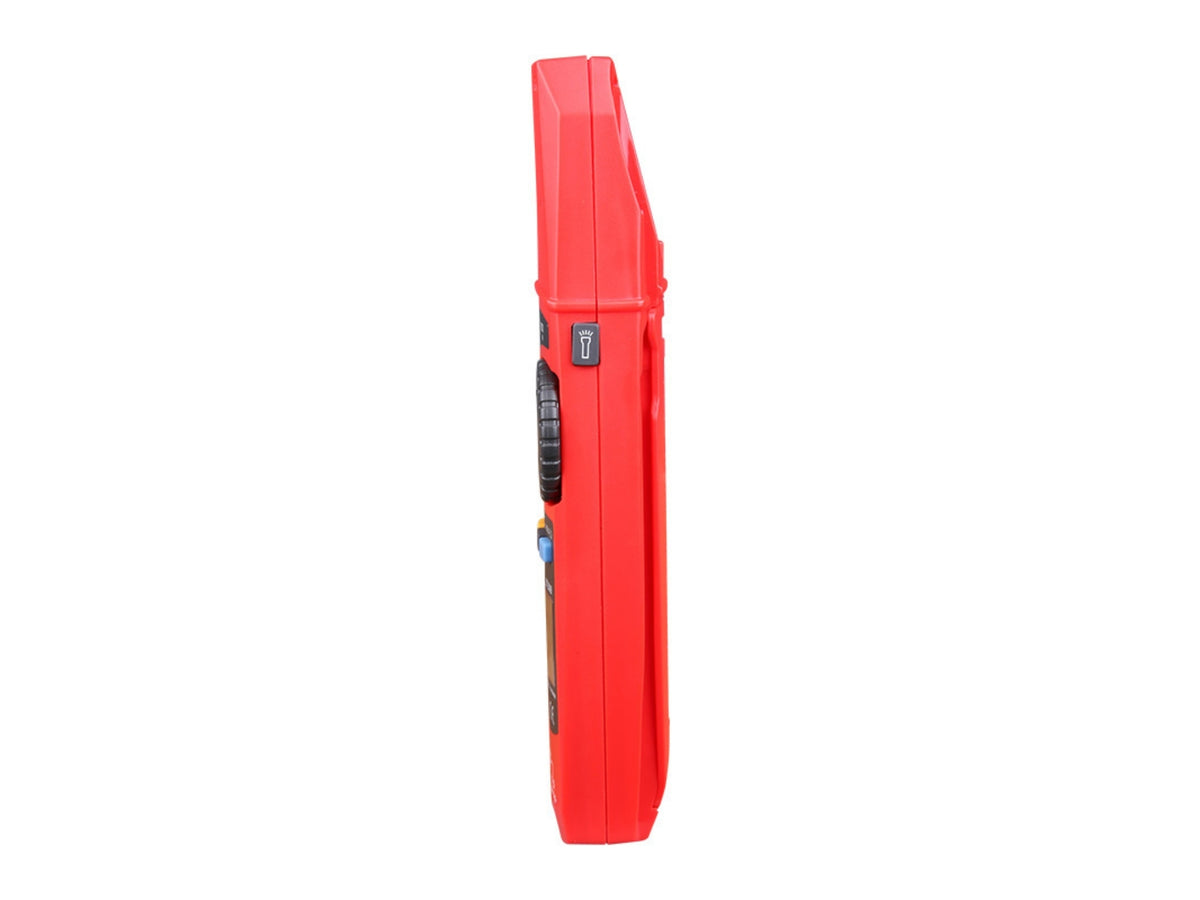

The UNI-T UT256B is a True RMS open-jaw clamp meter for measuring AC and DC current up to 200A without disconnecting the conductor. Its fork-style 14.7mm opening provides quick access in crowded panels, while additional voltage, resistance and capacitance functions support electrical troubleshooting.

Key Features

  • Measures AC and DC current up to 200A with 0.1A resolution
  • Open-jaw fork design accepts conductors up to approximately 14.7mm in diameter
  • True RMS measurement for improved accuracy on non-sinusoidal signals
  • Measures AC/DC voltage, resistance and capacitance
  • NCV detection, zero, relative and data-hold functions for electrical troubleshooting

Product Specifications

Specification Details
Brand UNI-T
Model UT256B
Meter Type True RMS AC/DC open-jaw clamp meter
AC Current Range Up to 200A
AC Current Resolution 0.1A
AC Current Accuracy ±(2.5% + 5 digits)
AC Current Frequency Response 50Hz to 60Hz
DC Current Range Up to 200A
DC Current Resolution 0.1A
DC Current Accuracy ±(2.5% + 5 digits)
AC Voltage Range Up to 750V
AC Voltage Accuracy ±(1.2% + 3 digits)
DC Voltage Range Up to 1000V
DC Voltage Accuracy ±(0.8% + 3 digits)
Resistance Range Up to 60MΩ
Capacitance Range Up to 60mF
Display Count 6000 counts
Measurement Response True RMS
Maximum Conductor Diameter Approximately 14.7mm
Ranging Automatic
Voltage Detection NCV non-contact AC voltage detection
Additional Test Functions Diode test and audible continuity test
Additional Functions Zero mode, relative mode, data hold, LCD backlight and automatic power-off
Input Impedance ≥10MΩ
Safety Category CAT II 1000V / CAT III 600V
Certifications CE, RoHS and cETLus
Power Supply 2 × 1.5V AA batteries
Display Size 36.5 × 24mm
Dimensions 210 × 53 × 35mm
Net Weight Approximately 164g including batteries

Applications

  • Current measurement in crowded electrical panels
  • Automotive and battery-powered DC system testing
  • Electrical installation inspection and troubleshooting
  • Control-panel and industrial equipment maintenance

Included Components

  • UNI-T UT256B True RMS AC/DC open-jaw clamp meter
  • Test leads
  • 2 × 1.5V AA batteries
  • Carrying bag and user documentation
