UNI-T True RMS Digital Multimeter, 10 A, 2000 Counts, NCV – UT139A

SKU: 003101
(0)
14.056 Ft inc. VAT
In stock · 3 items available
Ships Within 3-5 Working Days
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

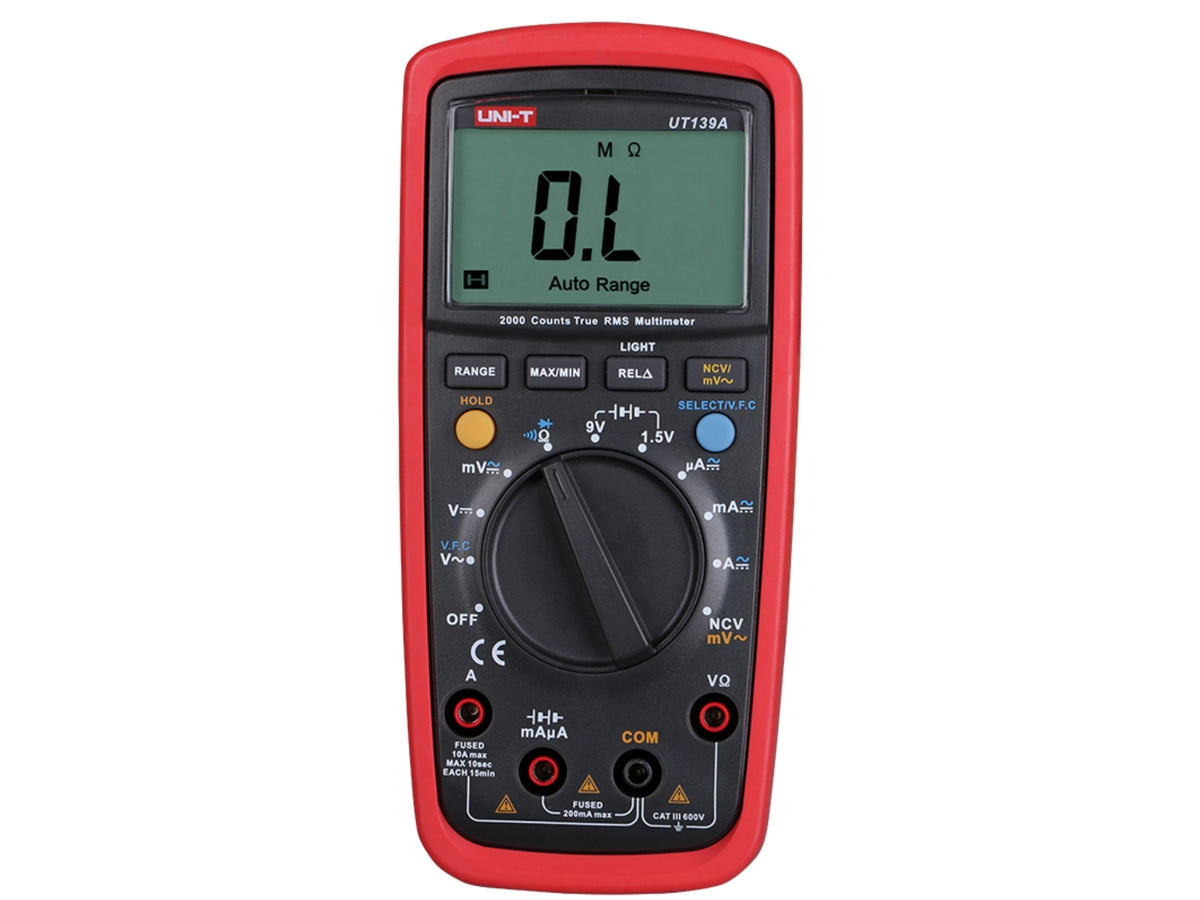

The UNI-T UT139A is a 1999-count True RMS digital multimeter for electrical installation, equipment maintenance and troubleshooting. It measures AC/DC voltage and current, resistance and batteries, with VFC, NCV and selectable automatic or manual ranging.

Key Features

  • True RMS measurement for AC voltage and current
  • Measures AC/DC voltage up to 600 V and AC/DC current up to 10 A
  • VFC mode supports stable voltage measurement in variable-frequency environments
  • NCV detection, 1.5 V/9 V battery testing, diode testing and continuity buzzer
  • Automatic or manual ranging with MAX, MIN, REL and data hold modes

Product Specifications

Parameter Range / Specification Basic Accuracy
DC Voltage 20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(0.5% + 2)
AC Voltage 20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1% + 3)
DC Current 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(0.7% + 2)
AC Current 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1% + 3)
Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1% + 2)
Display 1999 counts, 58 × 36 mm LCD
AC Measurement Type True RMS
AC Bandwidth 45 Hz to 400 Hz
Ranging Modes Automatic and manual ranging
VFC Measurement Variable-frequency voltage measurement
Non-Contact Voltage Detection NCV function
Battery Test 1.5 V and 9 V batteries
Diode Test Approximately 2 V test voltage
Additional Functions Continuity buzzer, MAX/MIN, relative mode, data hold, LCD backlight and low-battery indication
Automatic Power-Off After approximately 15 minutes
Input Protection 600 Vrms full-range input protection
Safety Rating CAT III 600 V, double insulation, Pollution Degree 2
Certifications CE, UKCA, cETLus
Power Supply 2 × 1.5 V AA batteries
Product Dimensions 175 × 80 × 48.5 mm
Product Weight Approximately 370 g
Product Colour Red and grey

Applications

  • Electrical installation, servicing and fault diagnosis
  • Industrial machinery and variable-frequency equipment maintenance
  • Power distribution, control circuit and appliance testing
  • Workshop, manufacturing and general MRO electrical work

Included Components

  • UNI-T UT139A True RMS digital multimeter
  • Test leads
  • 2 × 1.5 V AA batteries
  • User manual and warranty documentation
