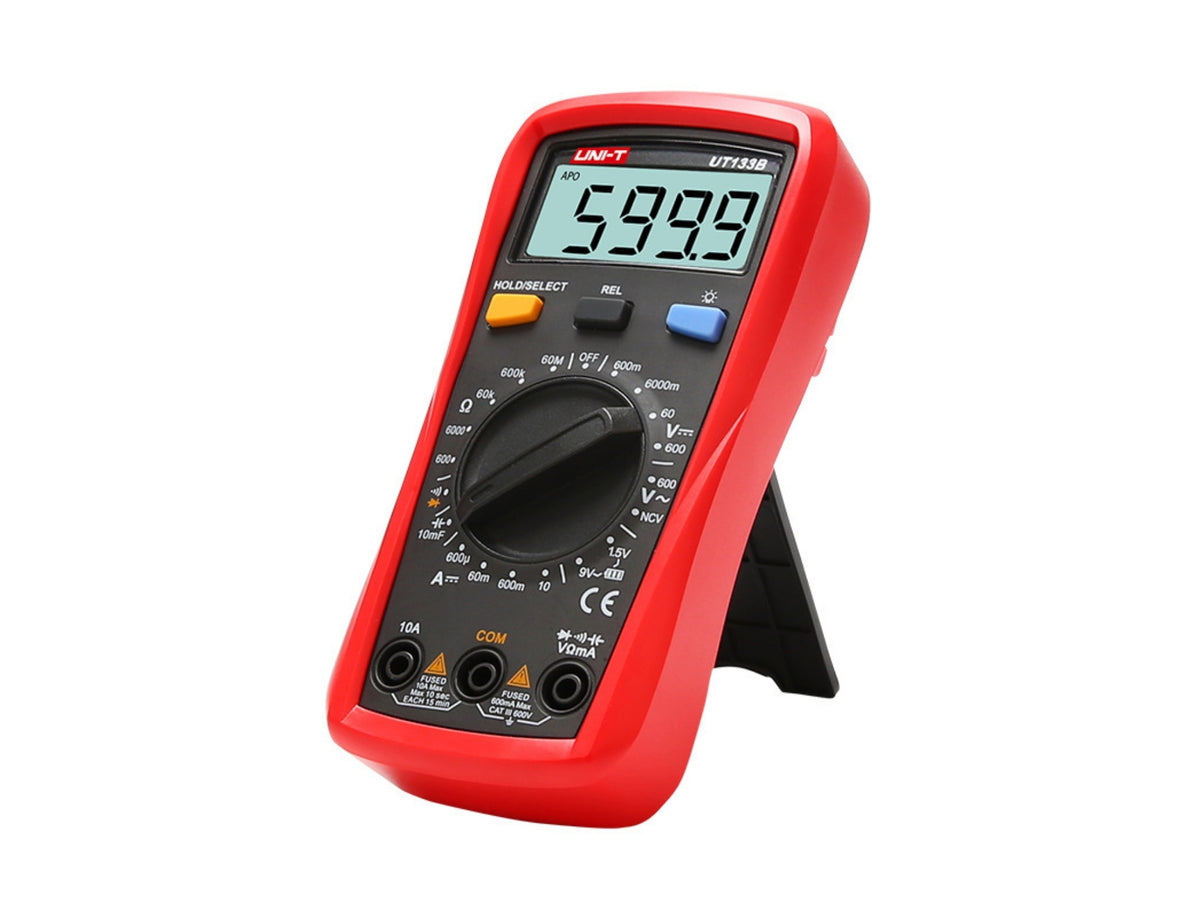

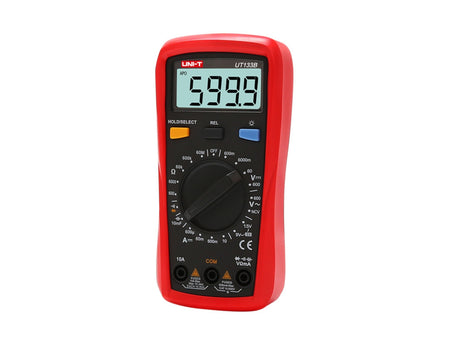

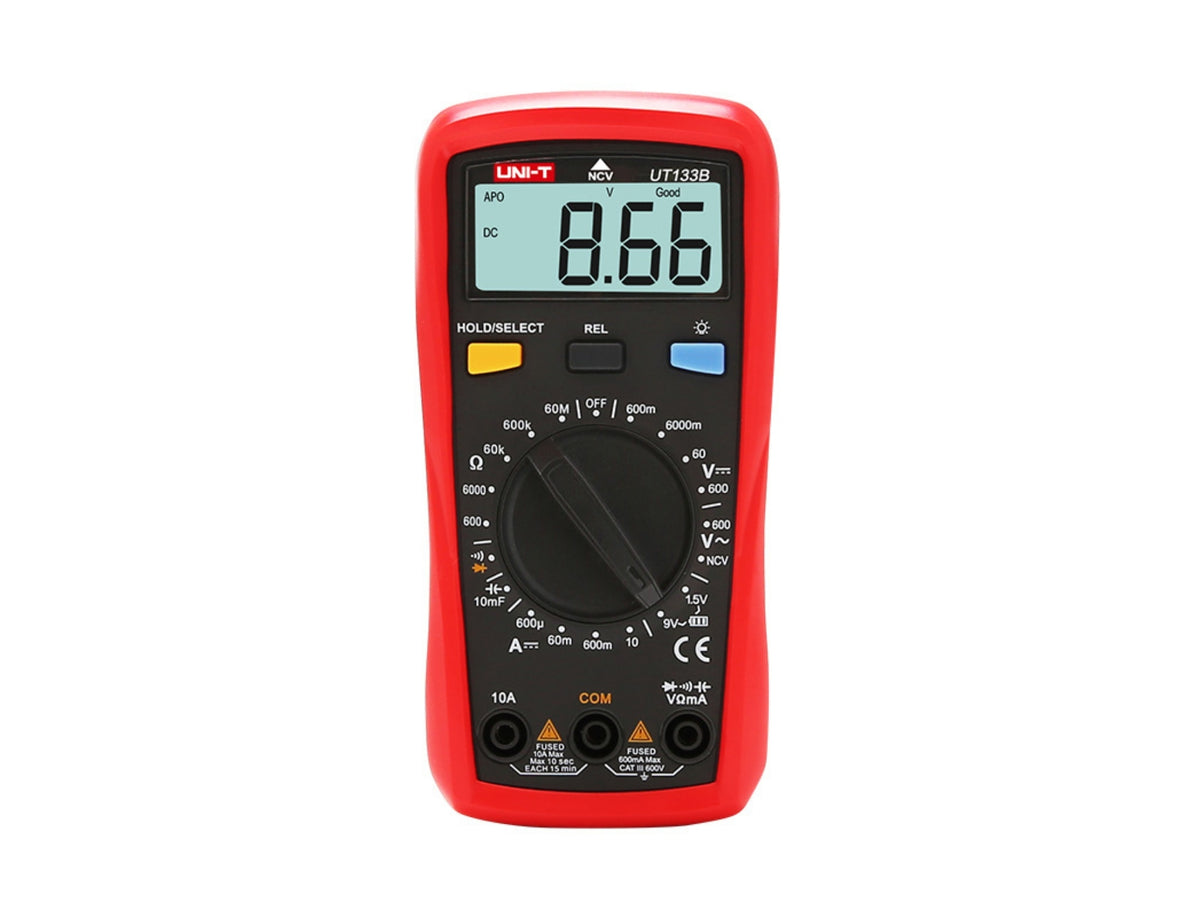

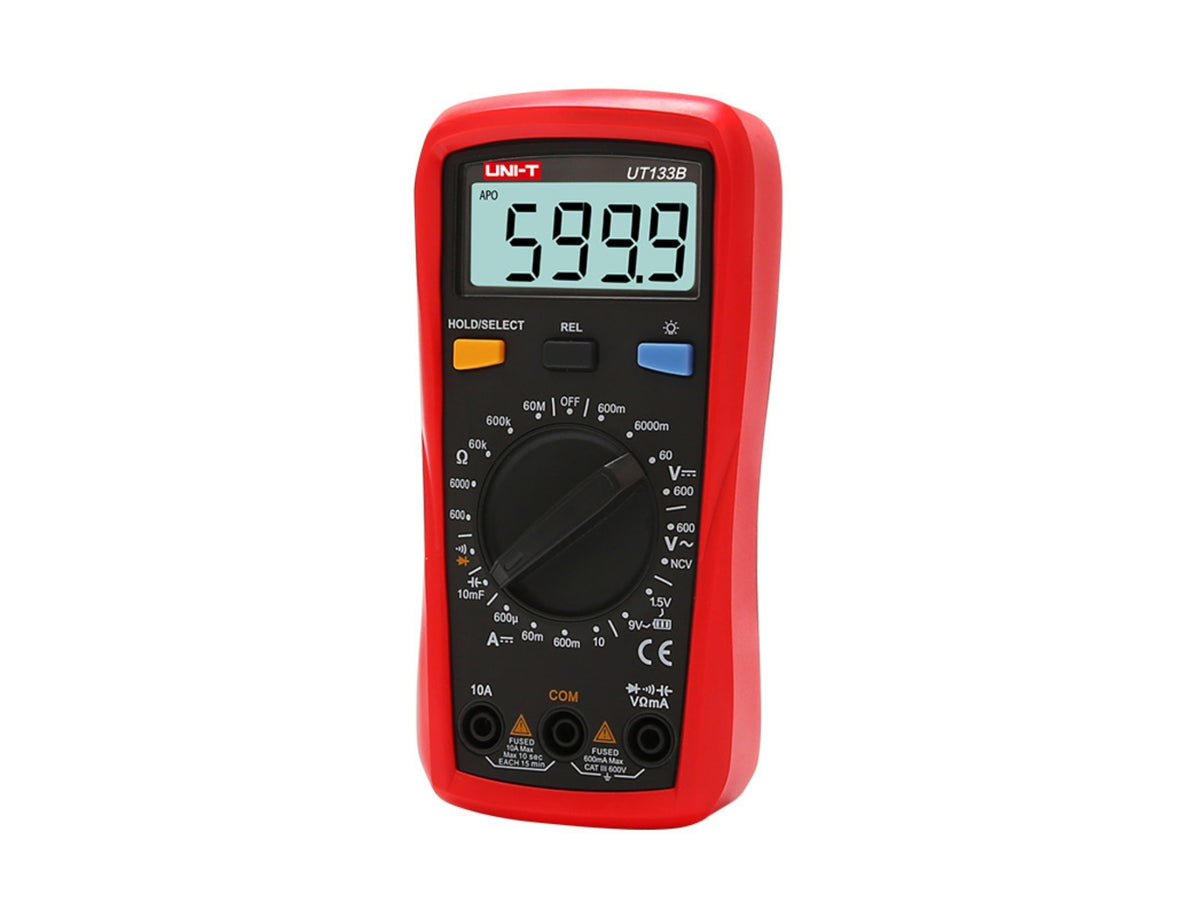

UNI-T UT133B is a palm-size digital multimeter measuring up to 600V AC/DC voltage, 10A DC current, 60MΩ resistance, and 9.999mF capacitance. Its 6000-count display, manual ranging, NCV detection, 1.5V/9V battery test, backlight, data hold, and overload protection support electrical and electronic troubleshooting.
| Model | UT133B |
|---|---|
| Product Type | Palm-size digital multimeter |
| Display Count | 6000 |
| Range Selection | Manual |
| NCV | Yes |
| Battery Test | 1.5V / 9V; Good, Low, Bad indication |
| Power Supply | 2 × 1.5V R03 batteries |
| Display Size | 56.8 × 36.1mm |
| Product Size | 155 × 76.5 × 49mm |
| Net Weight | 255g with batteries |
| Certifications | CE, UKCA, cETLus |
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV / 6000mV / 60V / 600V | ±(0.5%+3) |
| AC Voltage | 600V | ±(1.2%+3) |
| DC Current | 600μA / 60mA / 600mA / 10A | ±(1%+2) |
| Resistance | 600Ω / 6000Ω / 60kΩ / 600kΩ / 60MΩ | ±(0.8%+2) |
| Capacitance | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF | ±(4%+5) |
