Home » YATO Digital Voltage Tester Pen, 12-250 V, LCD – YT-2862
YATO

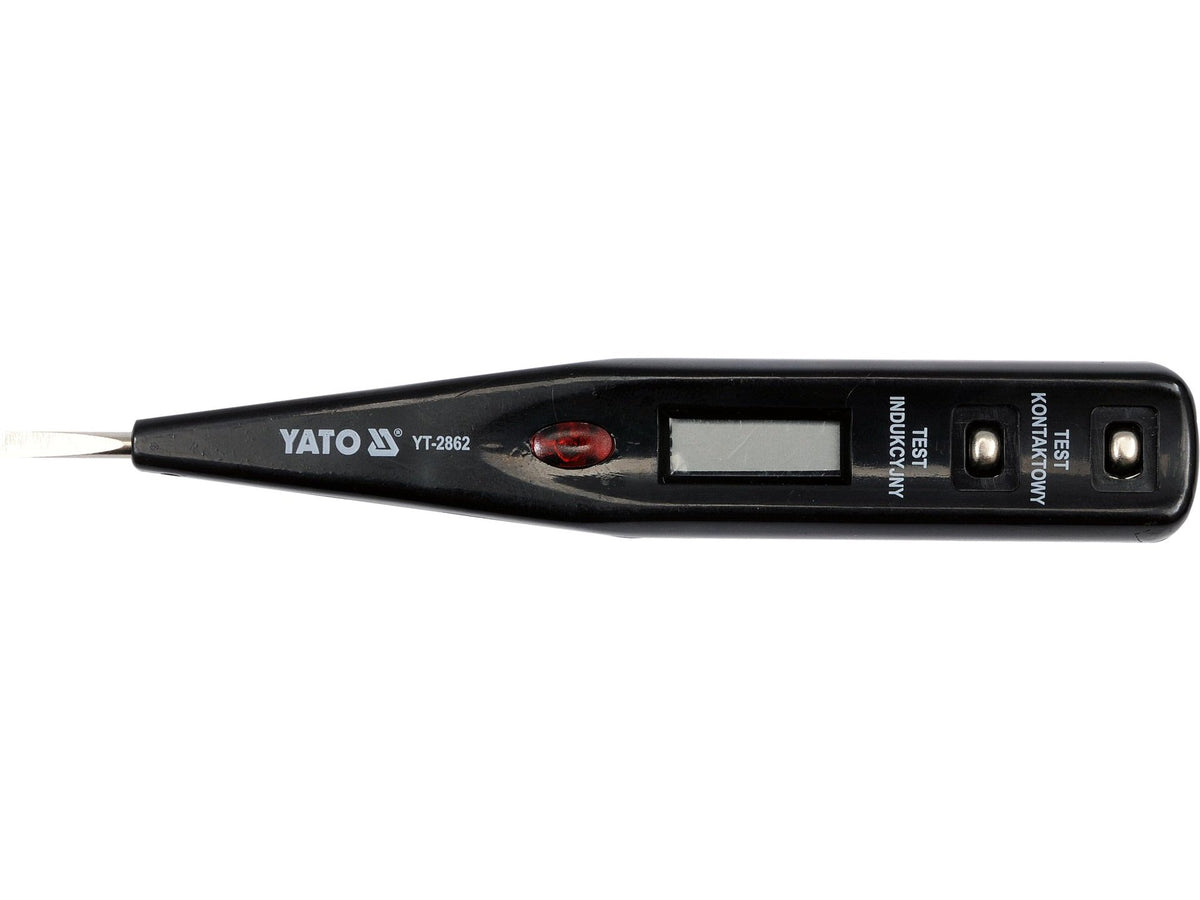

YATO Digital Voltage Tester Pen, 12-250 V, LCD – YT-2862

SKU: 100727-0001
(0)
391 Ft inc. VAT
In stock · 10 items available
Ships Within 1 Working Day

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

Digital voltage tester with LCD for electrical professionals and maintenance users checking AC voltage presence by contact or induction method. It provides LCD range indication, LED contact indication, ground testing, and a flat 3.0 mm tip in a compact 130 mm design.

Key Features

  • Voltage detection: Detects AC voltage by contact method from 12–250 V and by non-contact induction method from 12–250 V.
  • LCD display: Backlit LCD screen indicates measurement ranges of 12, 36, 55, 110 and 220 V.
  • LED indication: LED light indicates current flow when using the contact test method.
  • Contact testing: Apply the flat tip to a live component to display the highest detected voltage range and all lower ranges.
  • Induction testing: Detects AC voltage in insulated wires and can help locate breaks in a live electric wire when the signal stops.
  • Electrical application: Suitable for electrical voltage presence checks and ground testing.

Technical Specifications

Parameter Value
Brand YATO
SKU 100727-0001
Model YT-2862
Product Type Digital voltage tester with LCD
Voltage Contact Test 12–250 V a.c.
Voltage Non-Contact Test 12–250 V a.c.
Voltage 12–250 V d.c.
Measured Voltage Frequency 50–500 Hz
Display Type Backlit LCD
LCD Measurement Ranges 12, 36, 55, 110 and 220 V
LED Indicators Yes
Ground Test Yes
Tip Type Flat
Blade Width 3.0 mm
Overall Length 130 mm
Application Electrical
Unit Of Measure PCE
Weight 0.033 kg
Dimensions 18 × 6.5 × 2 cm
Volume 0.128

Package Contents

  • 1 × digital voltage tester
