Home » YATO Continuous-Rim Diamond Cutting Blade for Ceramic & Porcelain Tiles, 125 mm, 10 mm Segment – YT-59952
YATO

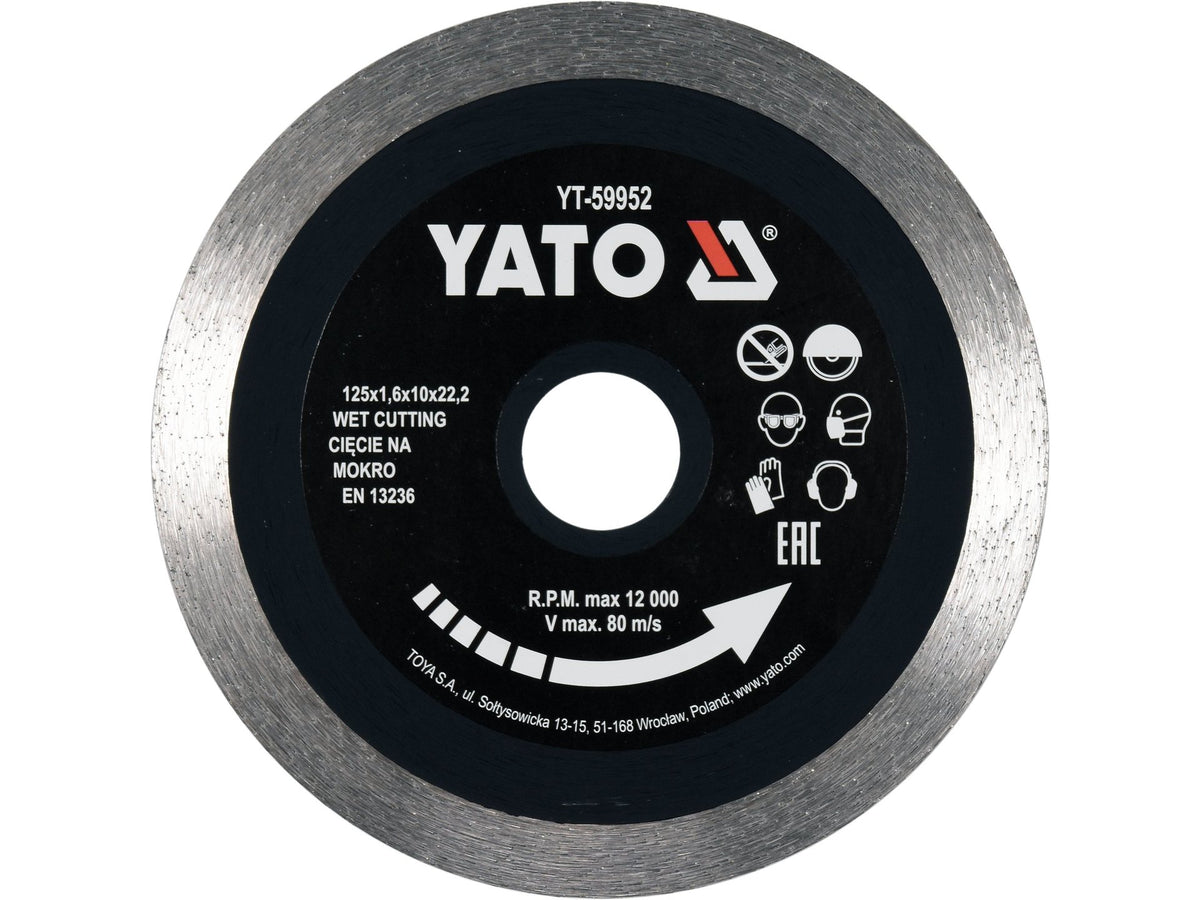

YATO Continuous-Rim Diamond Cutting Blade for Ceramic & Porcelain Tiles, 125 mm, 10 mm Segment – YT-59952

SKU: 100755-0001
(0)
1.809 Ft inc. VAT
Available to order
Ships Within 5-10 Working Days

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

YATO continuous rim diamond blade for professional cutting of ceramic, glazed, stone, and stoneware tiles. Designed for clean, precise wet cutting, it helps reduce edge chipping and grinder load while using a 10 mm diamond segment for extended working life.

Key Features

  • Precise Cutting: designed for precise, clean cutting of stoneware, ceramic tiles, glazed tiles, and stone tiles.
  • Continuous Rim Design: supports clean cutting with reduced chipping on cut edges.
  • 10 Mm Segment Height: high cutting segment helps increase disc service life.
  • Reduced Cross-Section: enables faster, more precise cutting with less load on the grinder.
  • Diamond Segment Composition: segment uses selected A-grade industrial diamond granules and cobalt hardness selected for the application.
  • Wet Cutting Application: specified for wet cutting, with the source description also referencing dry or wet cutting use.

Technical Specifications

Parameter Value
Brand YATO
SKU 100755-0001
Product Type Continuous rim diamond blade
Diameter 125 mm
Mounting Hole Diameter 22.2 mm
Cutting Segment Thickness 1.6 mm
Cutting Segment Height 10 mm
Maximum Rotations 12000 min⁻¹
Maximum Disc Linear Velocity 80 m/s
Material 65Mn steel
Cutting Segment Chemical Composition Fe 20%, Cu 55%, Sn 7%, Ni 8%, Co 10%, diamond coating 15%
Work Type Wet cutting
Application Ceramic tiles, glazed tiles, stone tiles, stoneware, ceramics
Weight 0.18 kg
Package Dimensions 20.5 × 16.0 × 0.5 cm
Unit Of Measure PCS

Package Contents

  • 1 × continuous rim diamond blade 125 mm
