TG Straight Shank Machine Reamer, Hardened HSS, H7, 2–20 mm

SKU: 003488-2
(0)
1.351 Ft VAT included
Available to order
Ships Within 5–10 Working Days

Planning a larger order? Send us the required quantity and delivery details for a tailored quotation.

Product TG Straight Shank Machine Reamer, Hardened HSS, H7, 2–20 mm — 2 × 20 × 49 mm

Got questions, ask an expert!

Email +36 70 719 8323

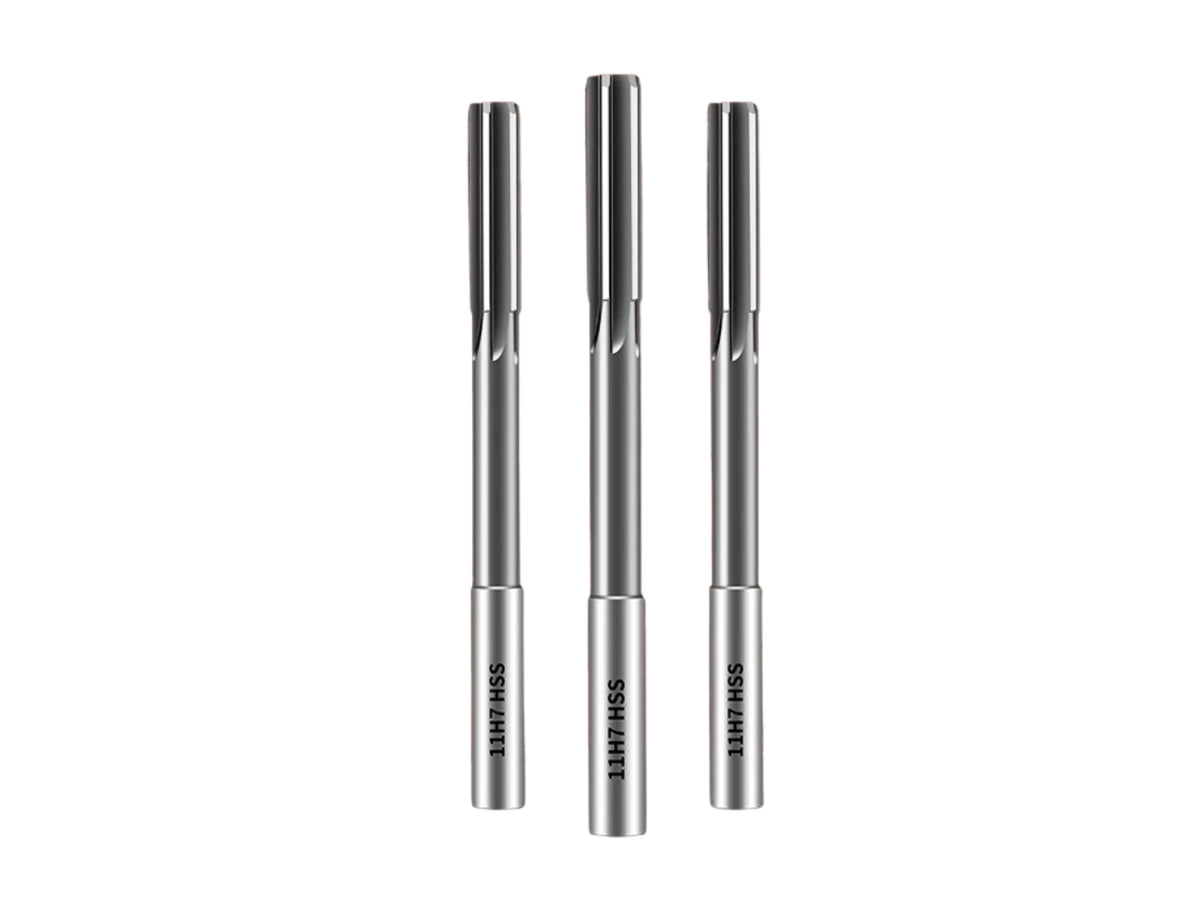

TG machine reamers feature hardened HSS construction, precision-ground cutting edges and a straight round shank, with 19 cutting diameters available from 2 to 18 mm plus 20 mm. Designed for machine reaming of existing holes in stainless steel, cast iron, aluminium alloy and mould steel, each diameter option is sold as one piece.

Key Features

  • Hardened HSS Construction – The cutting section and tool body are hardened for wear resistance during machining.
  • One-Piece Design – The cutting section and shank form a single, integrated tool.

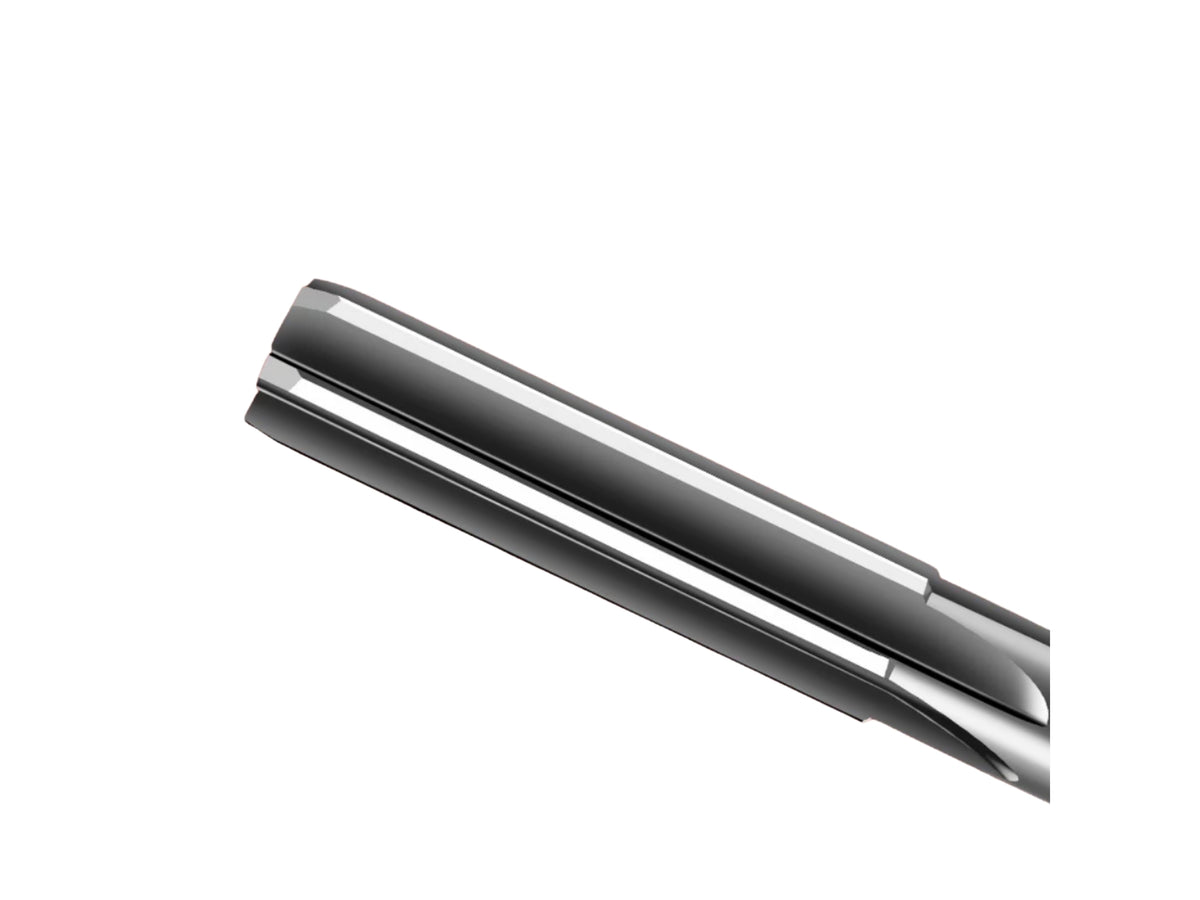

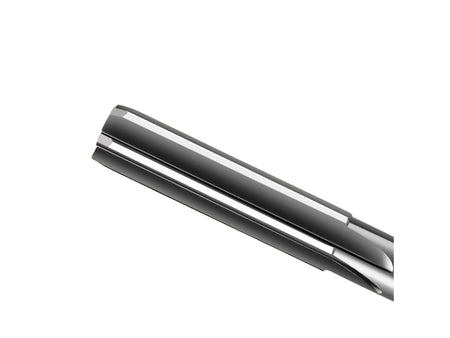

  • Precision-Ground Cutting Edges – Ground cutting edges provide the cutting geometry for machine reaming.

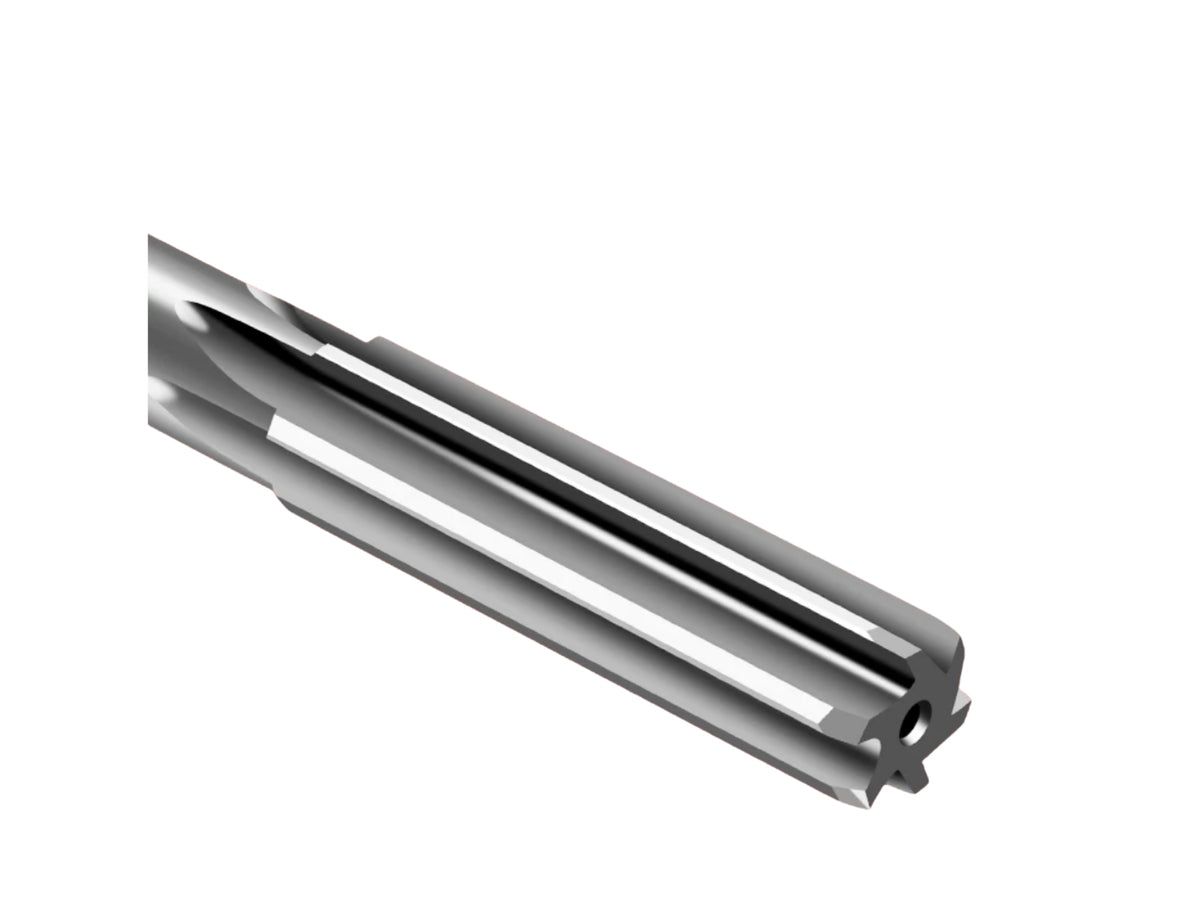

  • Multiple Straight Flutes – Multiple chip channels help carry chips away from the cutting area.
  • 19 Diameter Options – Select from 2 mm, 2.5 mm, whole-millimetre sizes from 3 to 18 mm, and 20 mm to suit the required hole size.

Product Specifications

Brand TG
Product Type Machine reamer
Material Hardened high-speed steel (HSS)
Construction One-piece design
Cutting Edges Precision-ground
Flute Type Straight flutes
Shank Type Straight round shank
Supplier Grade Designation H7
Available Cutting Diameters 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 and 20 mm
Workpiece Materials Stainless steel, cast iron, aluminium alloy and mould steel
Variant Selection Cutting diameter
Sales Unit 1 pc per selected variant

Variant Specifications

Dimensions are shown as nominal diameter × cutting length × overall length.

Nominal Diameter H7 Range (mm) Cutting Length (mm) Overall Length (mm) SKU
Ø2 mm 0.004–0.008 20 49 003488-2
Ø2.5 mm 0.004–0.008 23 56 003488-2.5

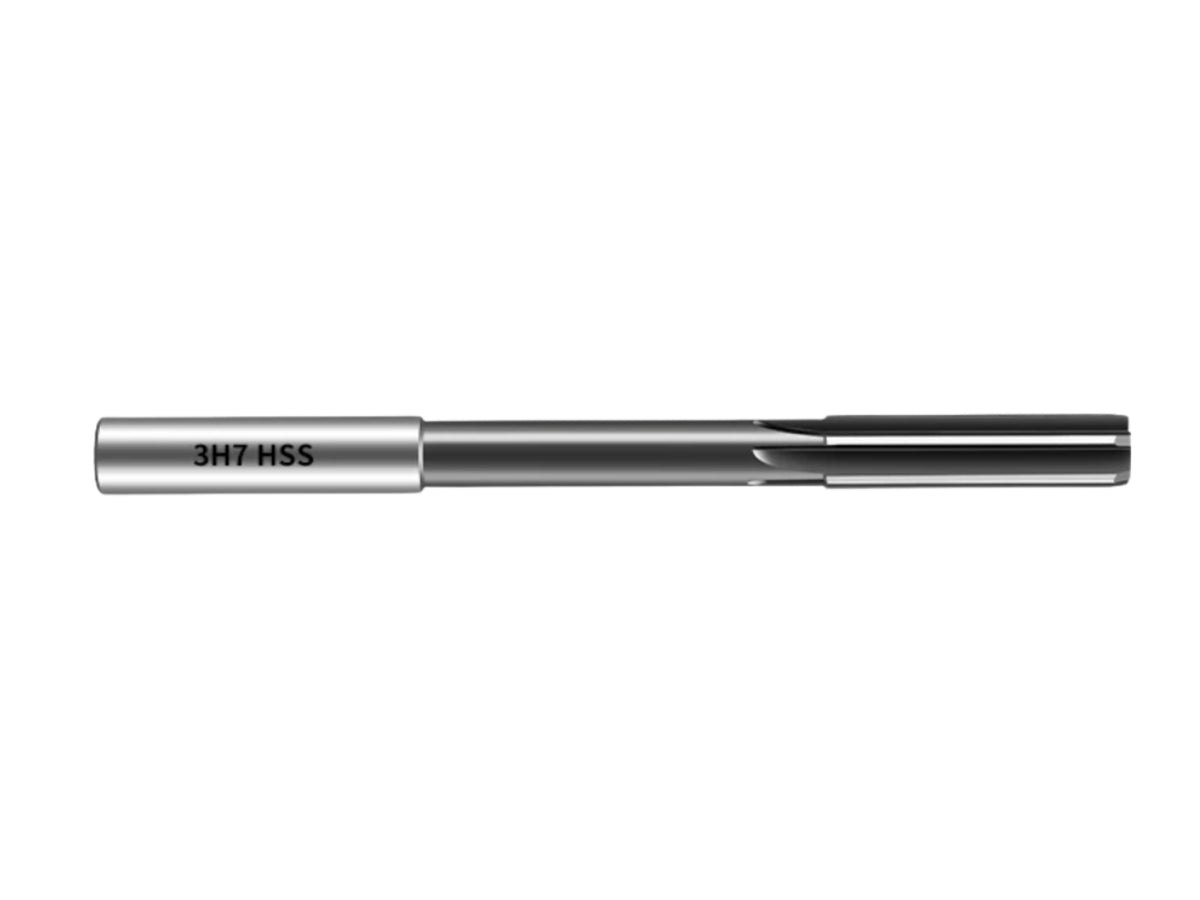

Ø3 mm 0.004–0.008 15 61 003488-3

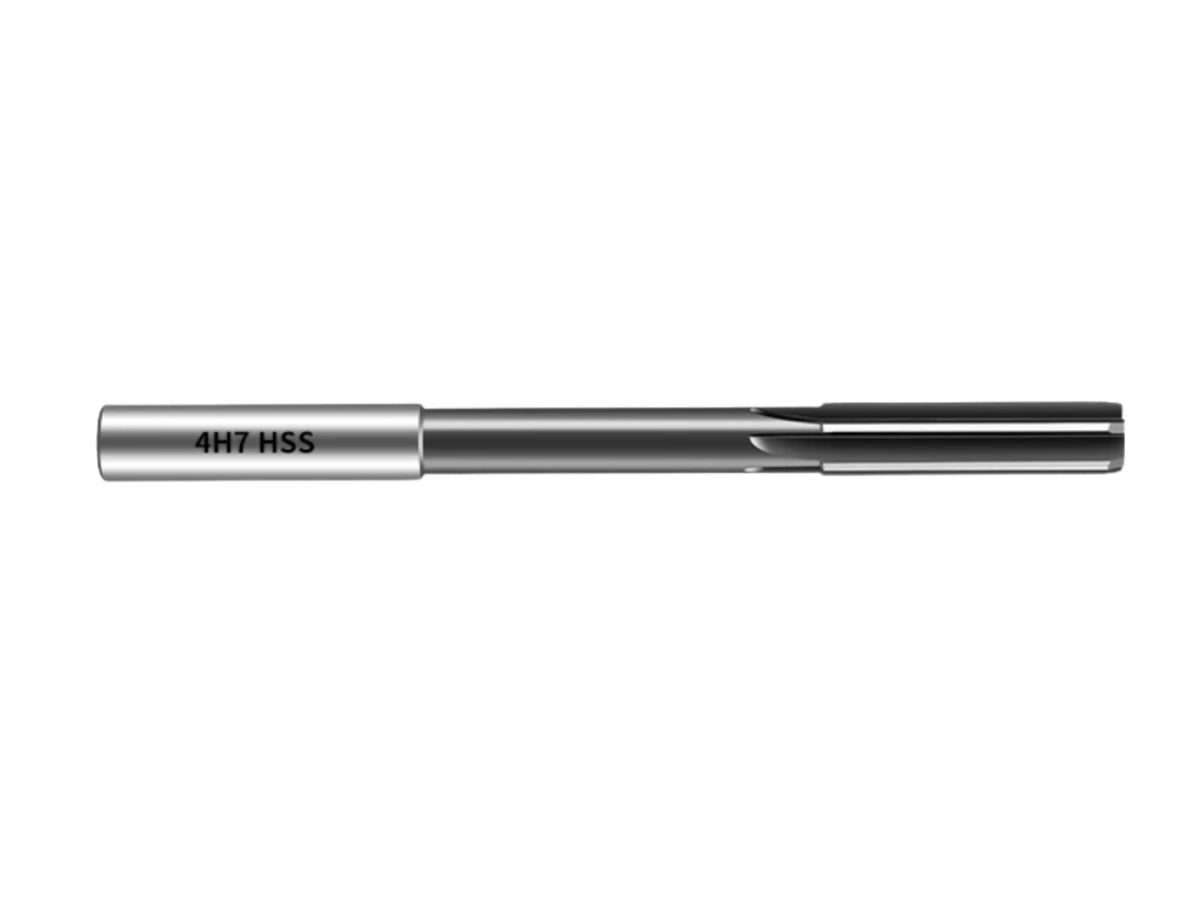

Ø4 mm 0.005–0.010 19 75 003488-4
Ø5 mm 0.005–0.010 23 86 003488-5
Ø6 mm 0.005–0.010 26 93 003488-6
Ø7 mm 0.006–0.012 31 109 003488-7

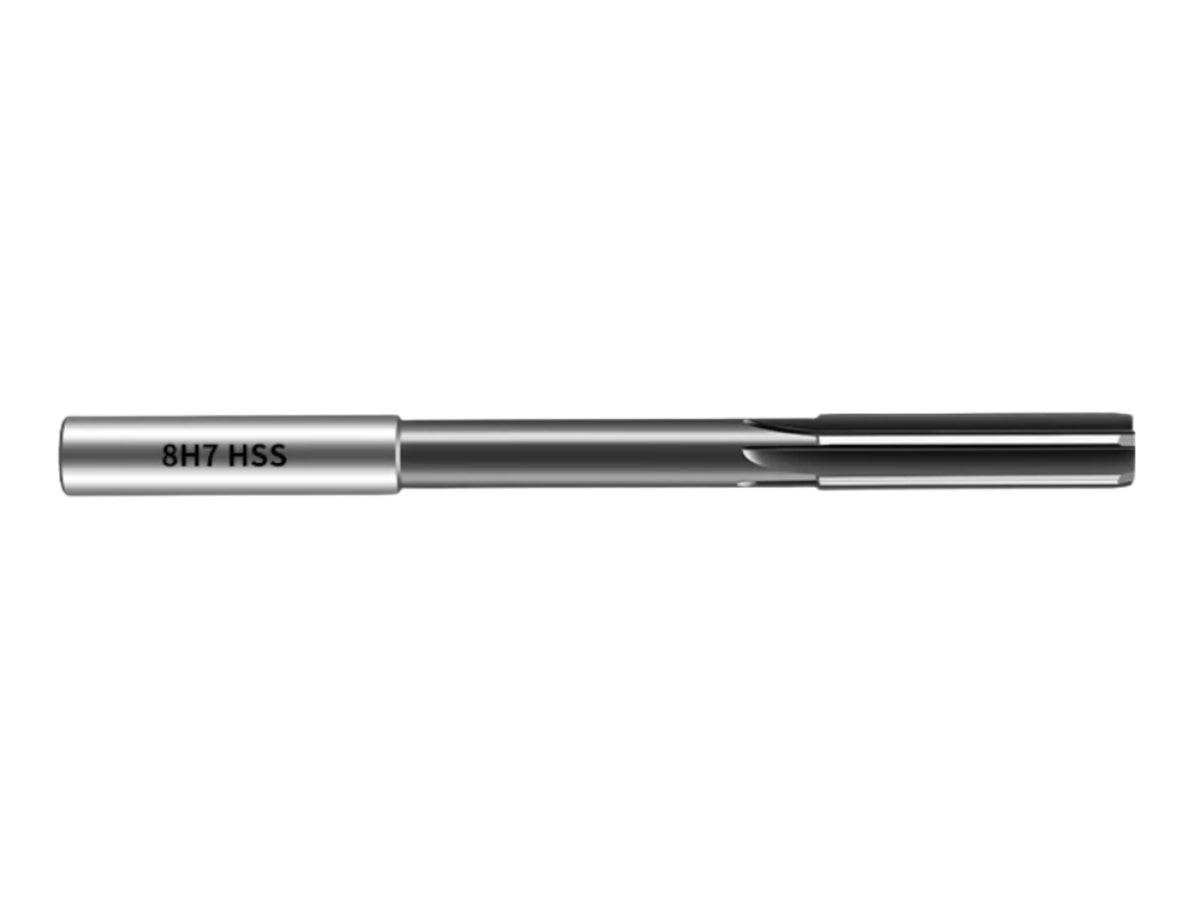

Ø8 mm 0.006–0.012 33 117 003488-8
Ø9 mm 0.006–0.012 36 125 003488-9

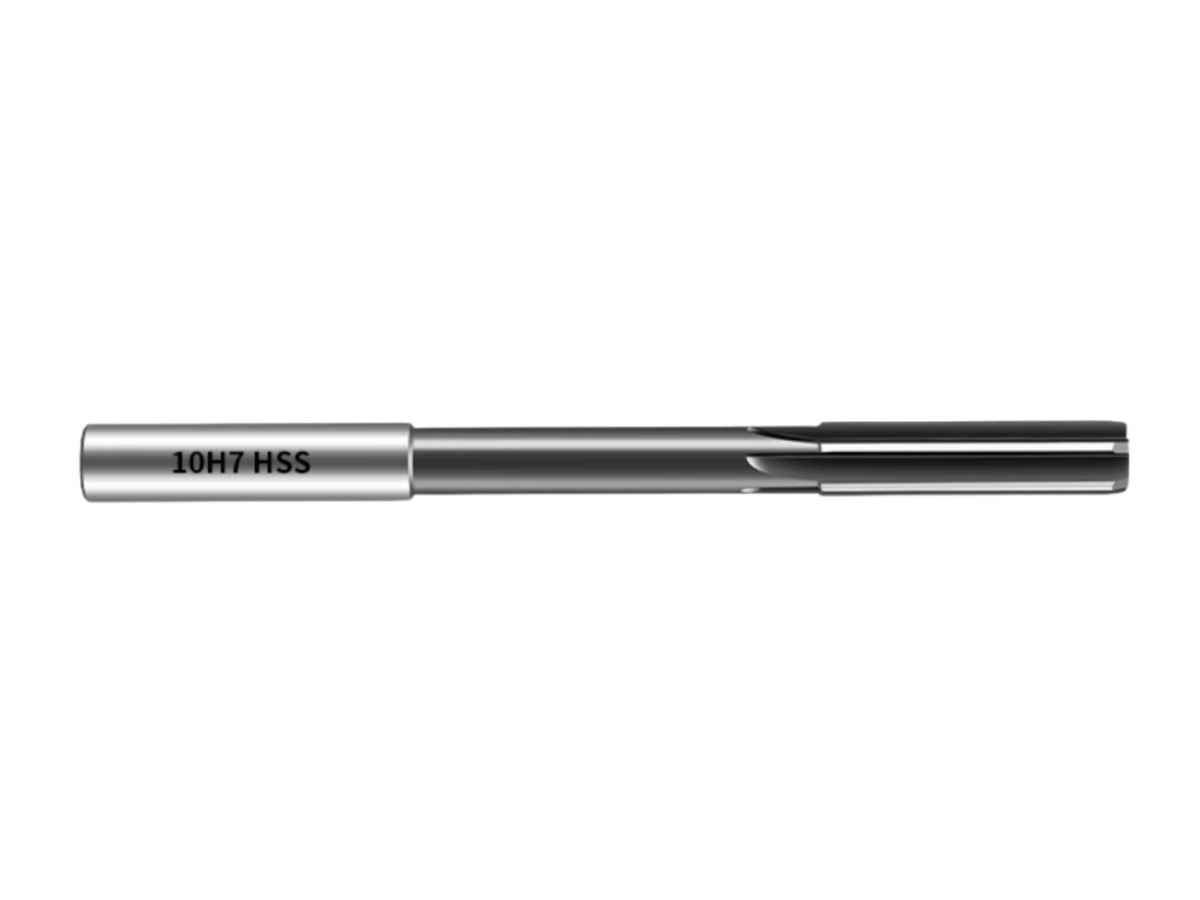

Ø10 mm 0.006–0.012 38 133 003488-10

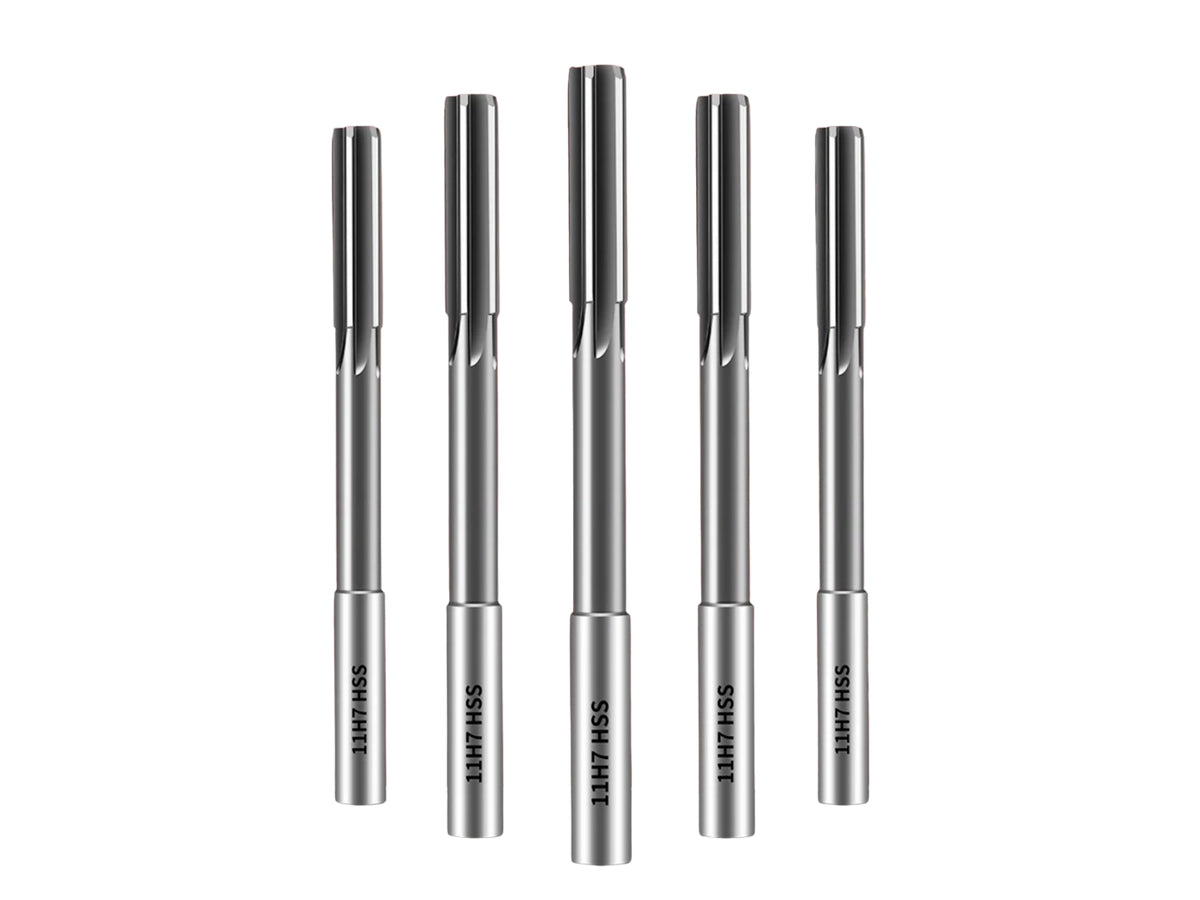

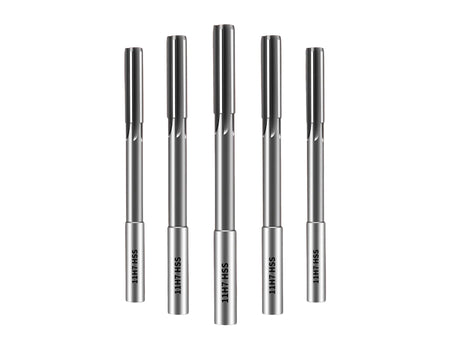

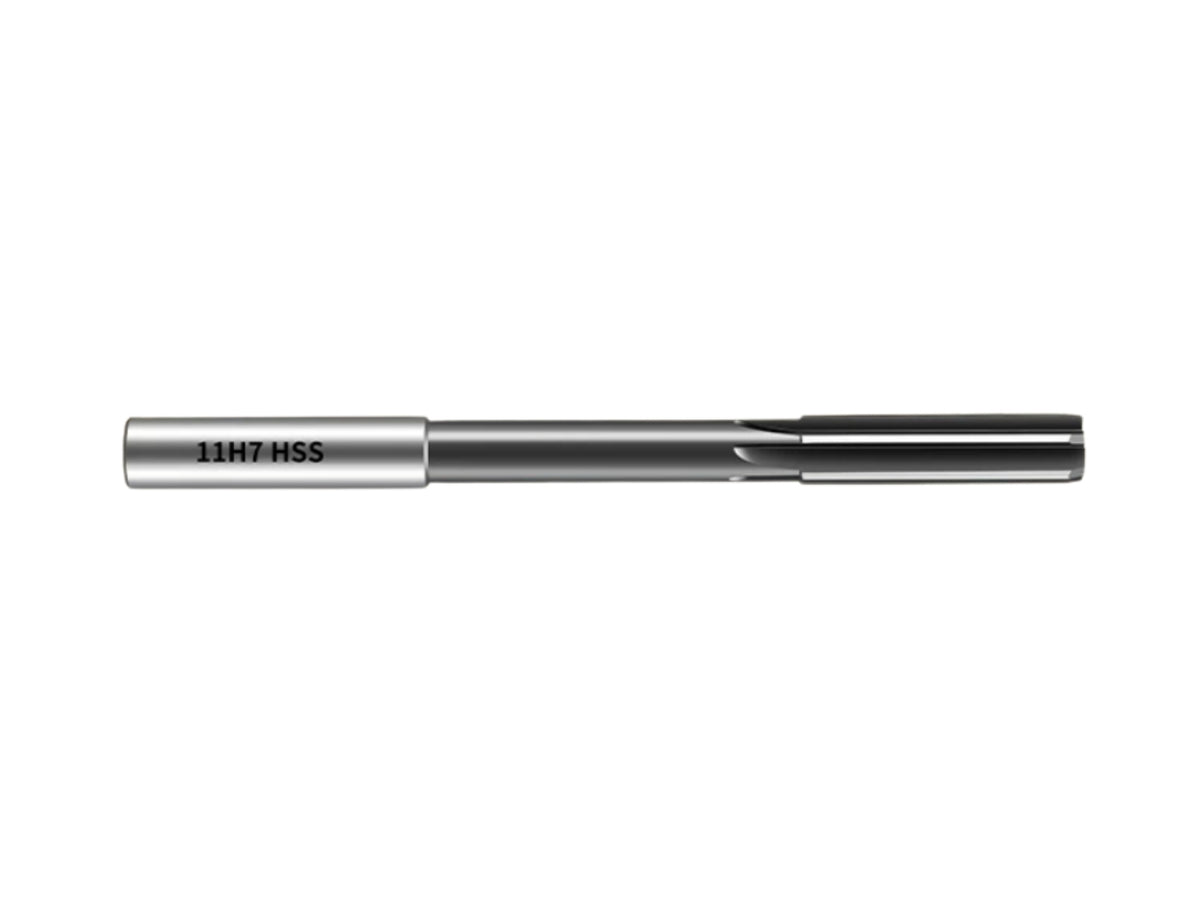

Ø11 mm 0.008–0.015 41 142 003488-11

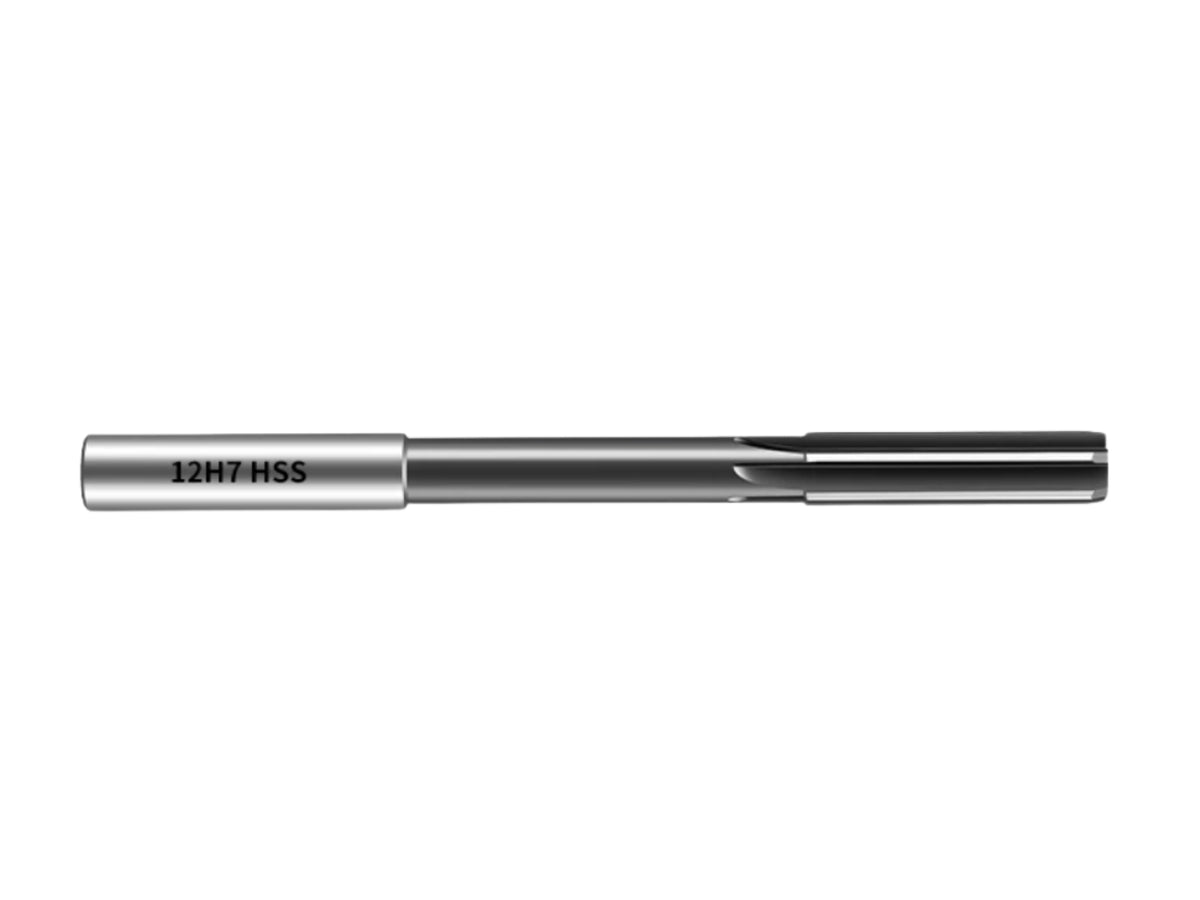

Ø12 mm 0.008–0.015 44 151 003488-12

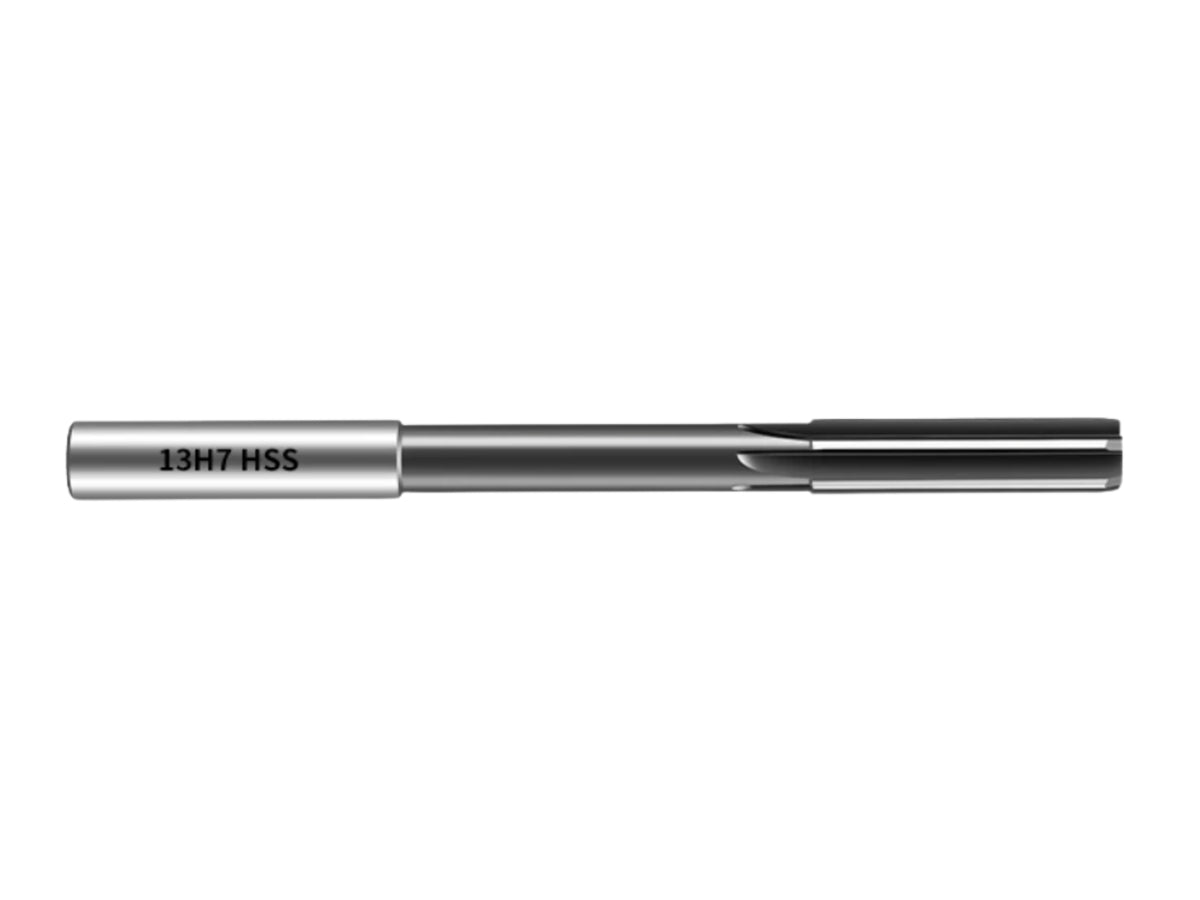

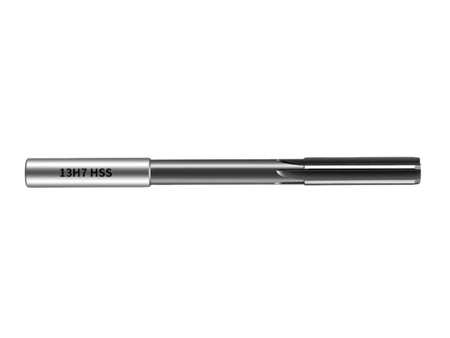

Ø13 mm 0.008–0.015 44 151 003488-13

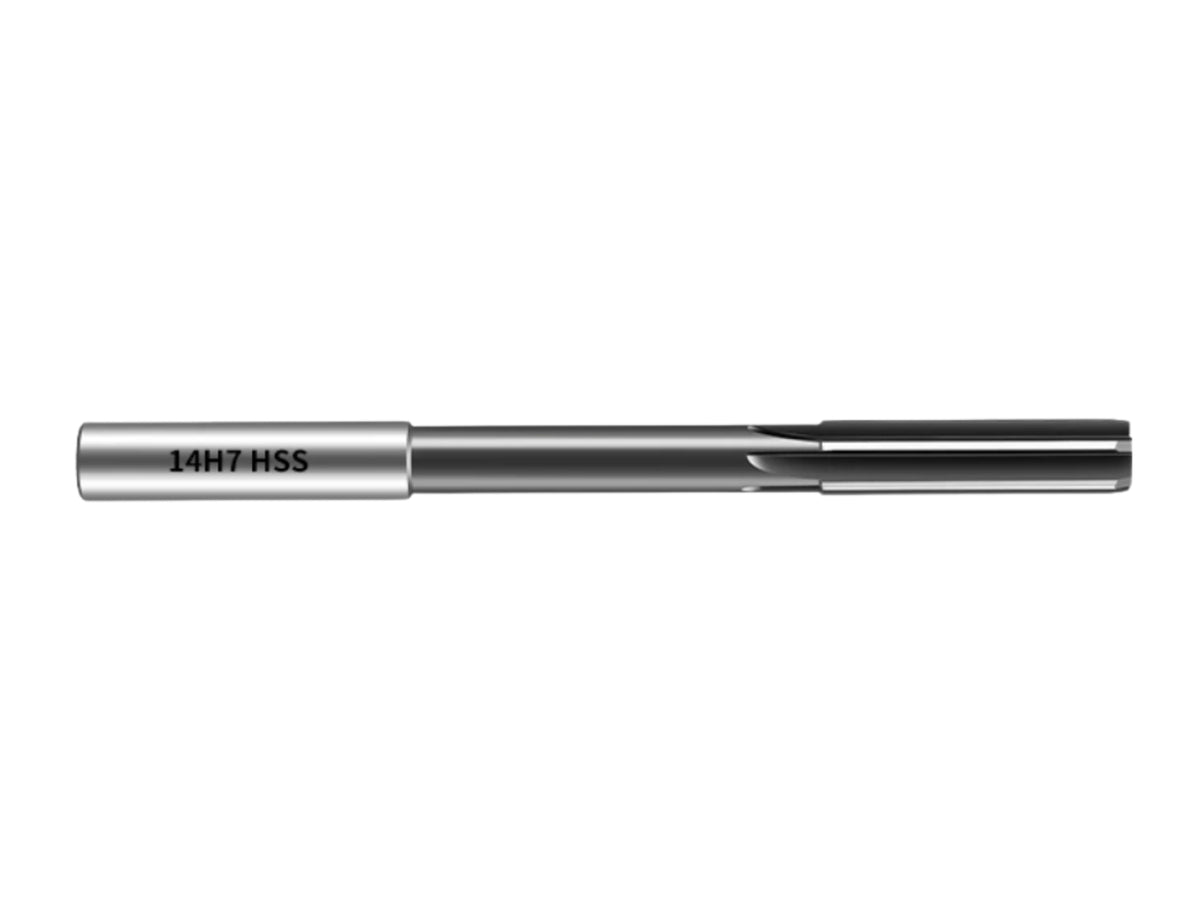

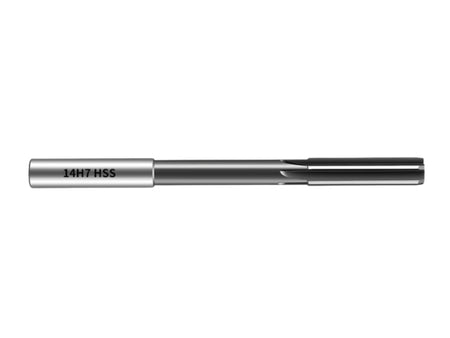

Ø14 mm 0.008–0.015 47 160 003488-14

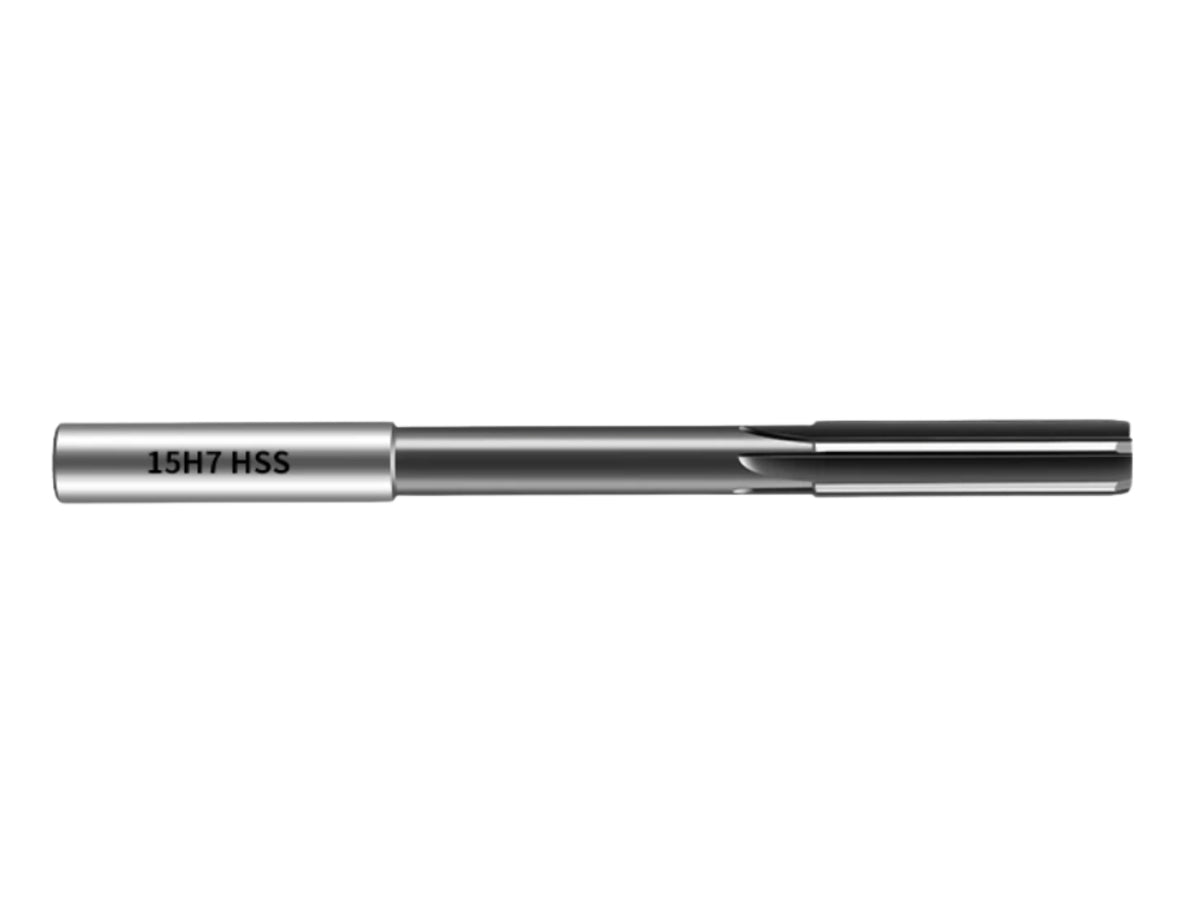

Ø15 mm 0.008–0.015 50 162 003488-15

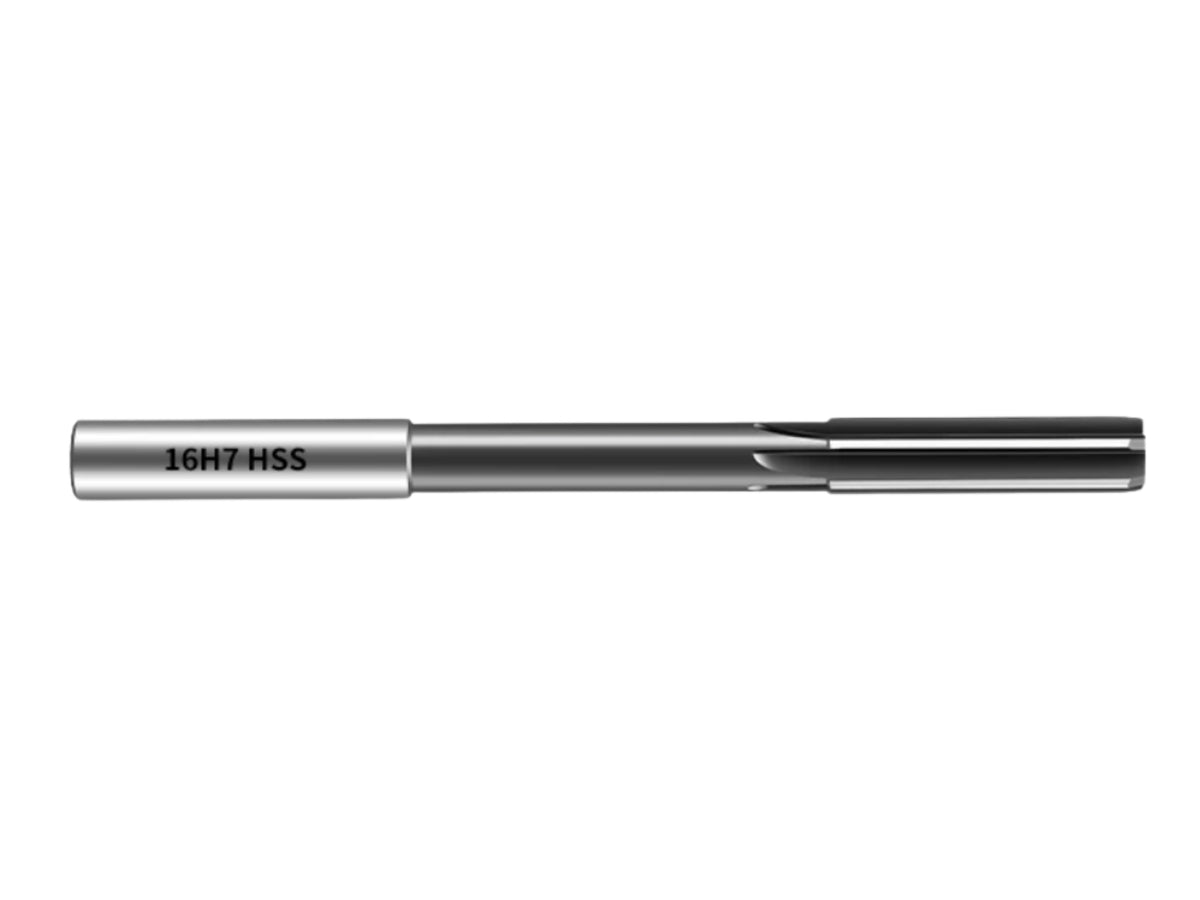

Ø16 mm 0.008–0.015 52 170 003488-16
Ø17 mm 0.008–0.015 54 175 003488-17

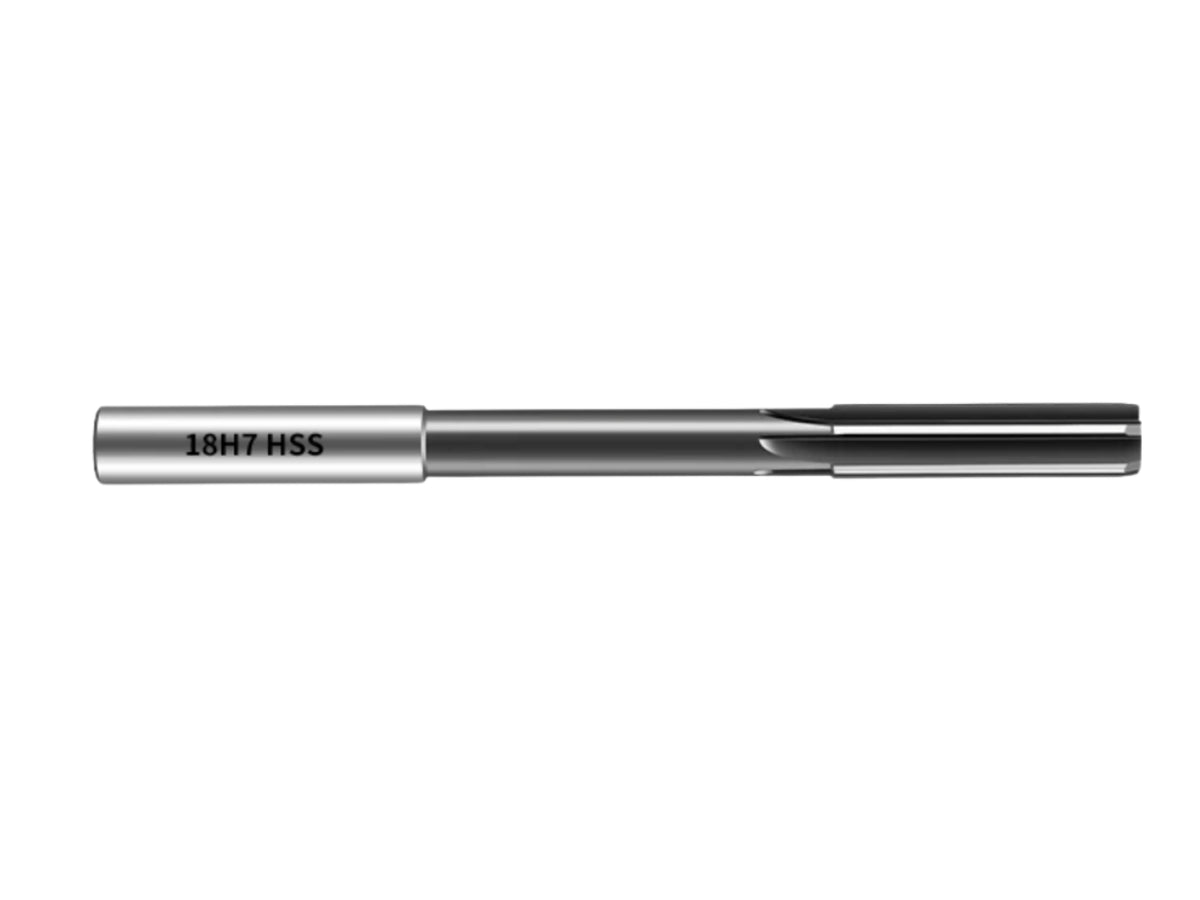

Ø18 mm 0.008–0.015 56 182 003488-18

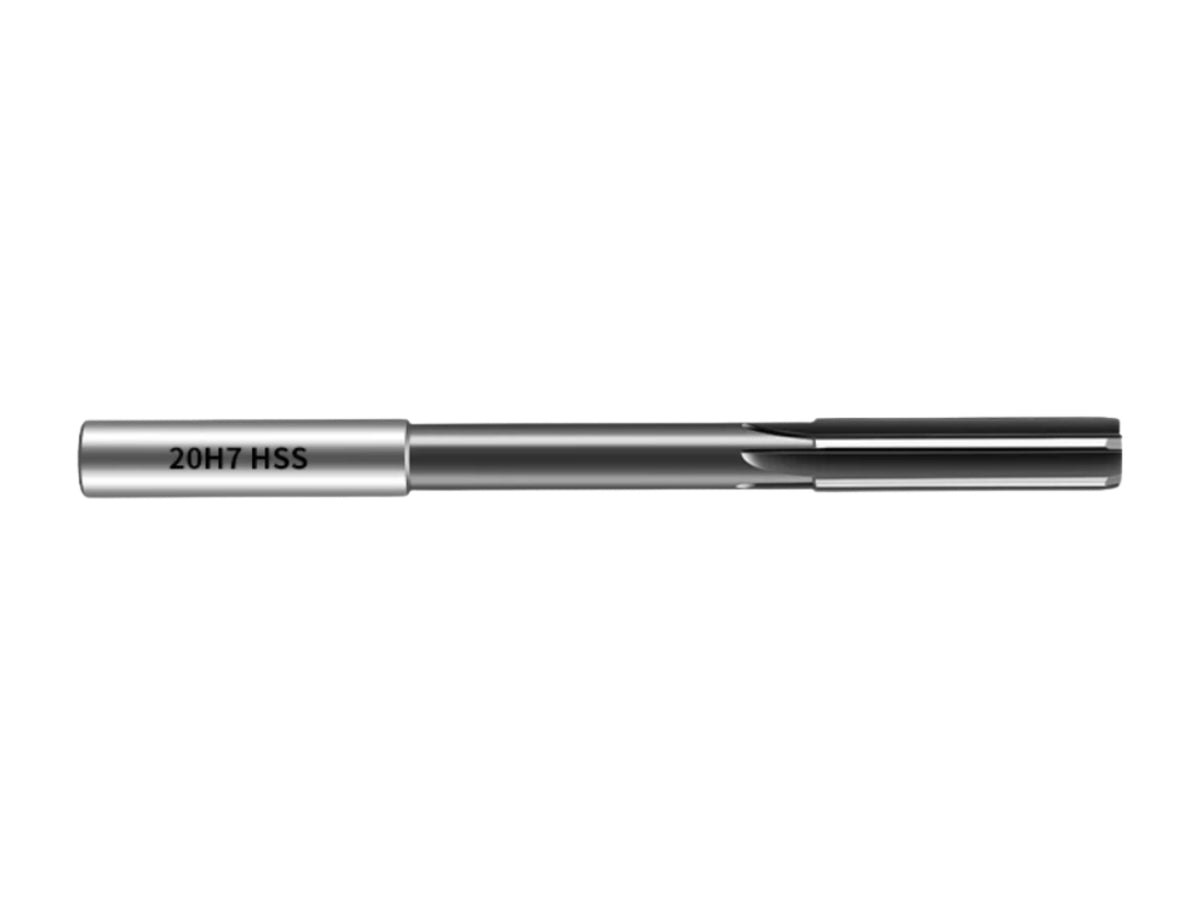

Ø20 mm 0.009–0.017 60 195 003488-20

Applications

  • Machine reaming of existing holes in stainless steel components.
  • Hole finishing in cast iron workpieces.
  • Reaming operations in aluminium alloy components.
  • Hole finishing in mould steel workpieces.

Selection Guide

  1. Match the nominal diameter: Select the reamer size for the required finished hole diameter. Available sizes are Ø2–Ø18 mm and Ø20 mm.
  2. Check the H7 range: Compare the size-specific range in the table with the tolerance required by your drawing or process.
  3. Confirm working length: Check cutting length against the depth of the hole and overall length against machine clearance.
  4. Check the machine setup: Confirm the shank and holder are compatible, secure the workpiece, and follow the machine or tooling supplier’s cutting-condition guidance.
  5. Plan the hole operation: A reamer is selected for finishing a suitably prepared hole; choose a separate tool for the initial hole-making operation.

Included Components

  • 1 × TG straight shank machine reamer in the selected cutting diameter.
