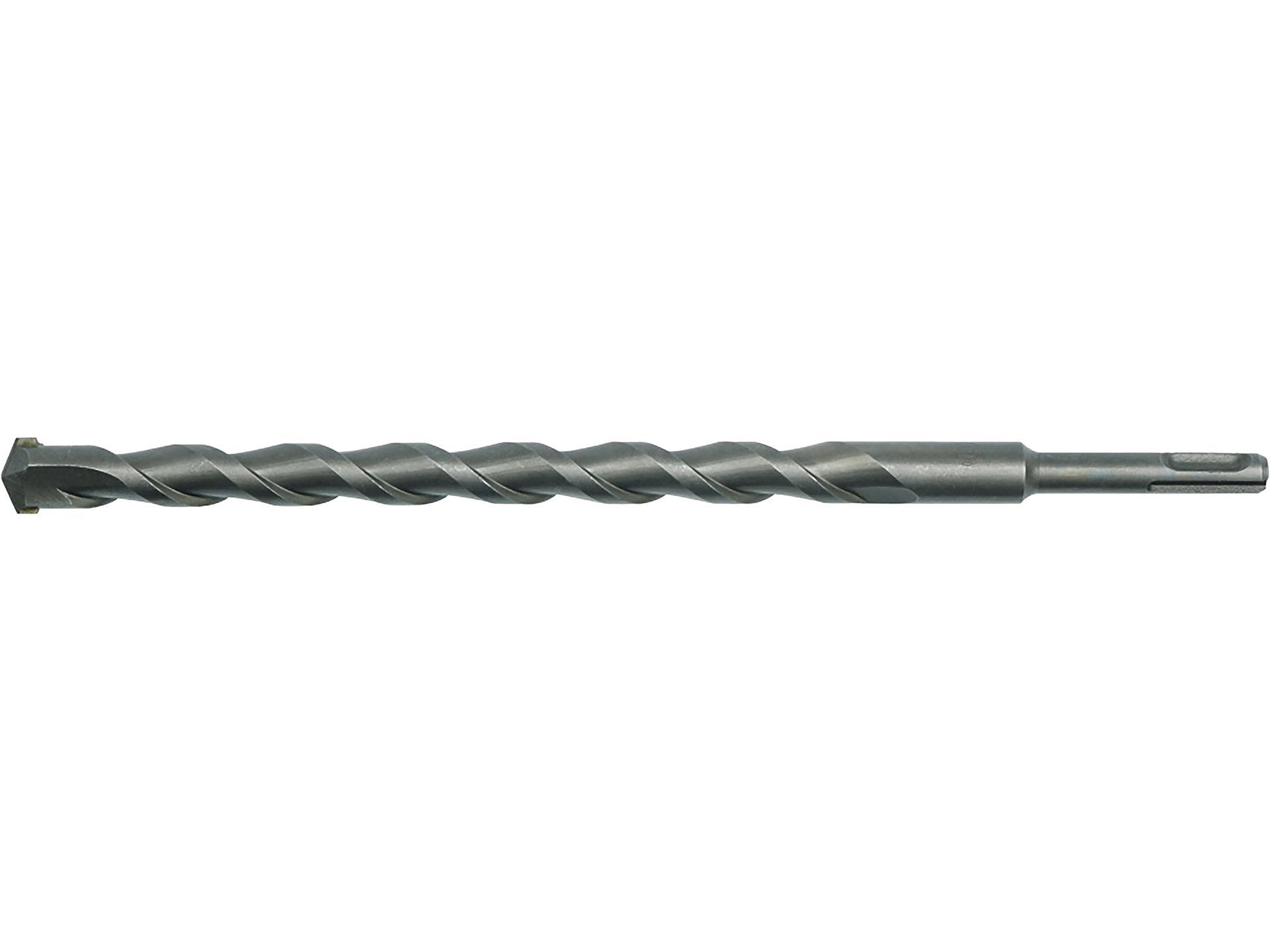

The STHOR SDS-Plus 8 mm masonry drill bit is designed for concrete drilling with compatible rotary hammer drills. It is suitable for trade users who need selectable drilling depths, with six length variants from 110 mm to 600 mm.
Key Features
- SDS-Plus Toolholder: suitable for compatible rotary hammer drills using an SDS-Plus connection.
- 8 Mm Diameter: consistent drill diameter across all available variants.
- Concrete Drilling Application: designed for masonry drilling work in concrete.
- Multiple Length Options: available from 110 mm to 600 mm to match different drilling depth requirements.
- Single Bit Supply: one masonry drill bit is supplied in the selected length variant.
Technical Specifications
| Parameter |
Value |
| Brand |
STHOR |
| Category |
SDS concrete drills and sets |
| Product Type |
Masonry drill bit |
| Toolholder Type |
SDS-Plus |
| Diameter |
8 mm |
| Application |
Concrete drilling |
| Supplied Quantity |
1 drill bit per selected variant |
Variant Comparison
| SKU Code |
Spec / Size |
Length |
Weight |
Dimensions (L×W×H) |
Unit Of Measure |
| 100225-0001 |
Masonry drill bit SDS-Plus 8x110 mm |
110 mm |
0.042 kg |
19.0×9.0×6.0 cm |
PCS |
| 100225-0002 |
Masonry drill bit SDS-Plus 8x160 mm |
160 mm |
0.068 kg |
24.0×5.0×1.0 cm |
PCS |
| 100225-0003 |
Masonry drill bit SDS-Plus 8x210 mm |
210 mm |
0.064 kg |
28.0×4.0×1.0 cm |
PCS |
| 100225-0004 |
Masonry drill bit SDS-Plus 8x300 mm |
300 mm |
0.088 kg |
37.0×1.0×1.5 cm |
PCS |
| 100225-0005 |
Masonry drill bit SDS-Plus 8x460 mm |
460 mm |
0.145 kg |
54.0×4.5×1.0 cm |
PCS |
| 100225-0006 |
Masonry drill bit SDS-Plus 8x600 mm |
600 mm |
0.157 kg |
68.0×4.5×1.5 cm |
PCS |
Package Contents
- 1 × masonry drill bit in the selected SDS-Plus 8 mm length variant
