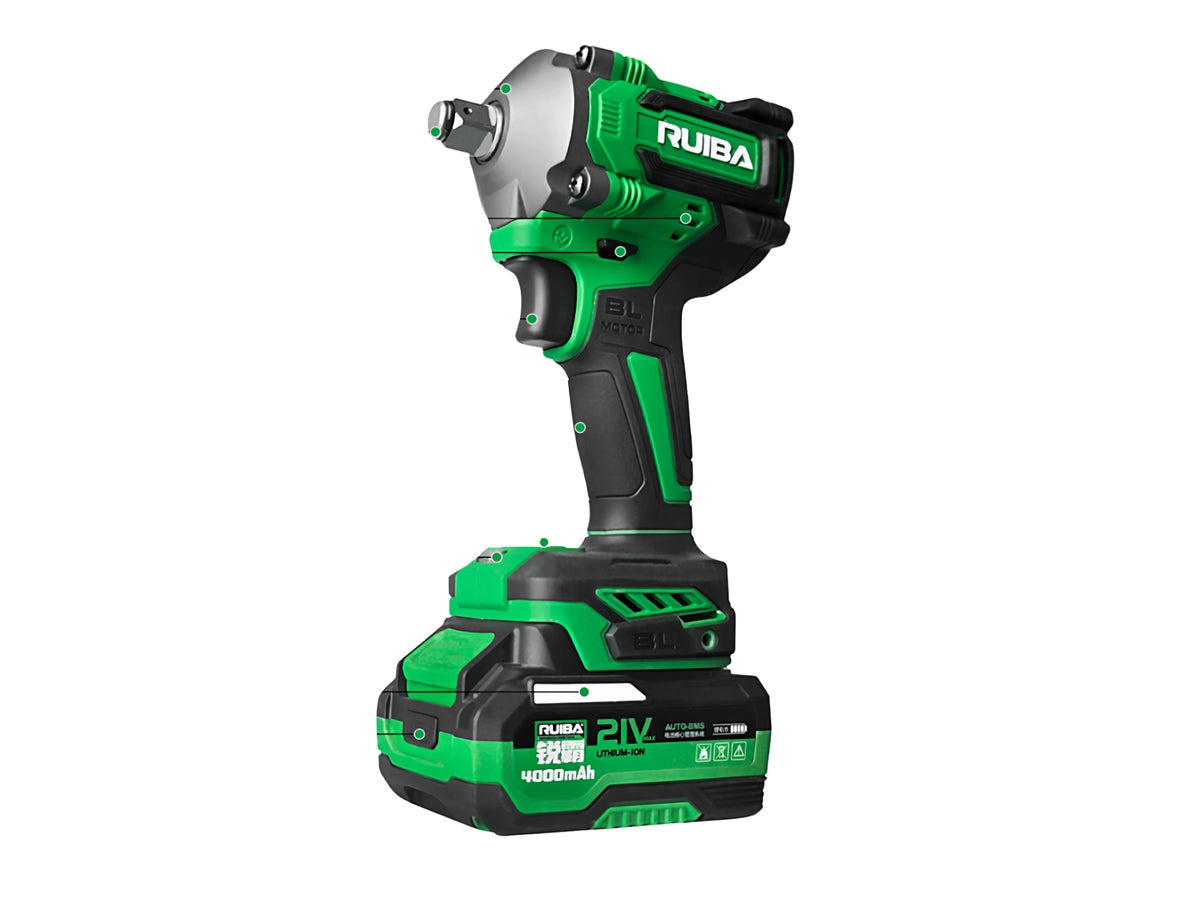

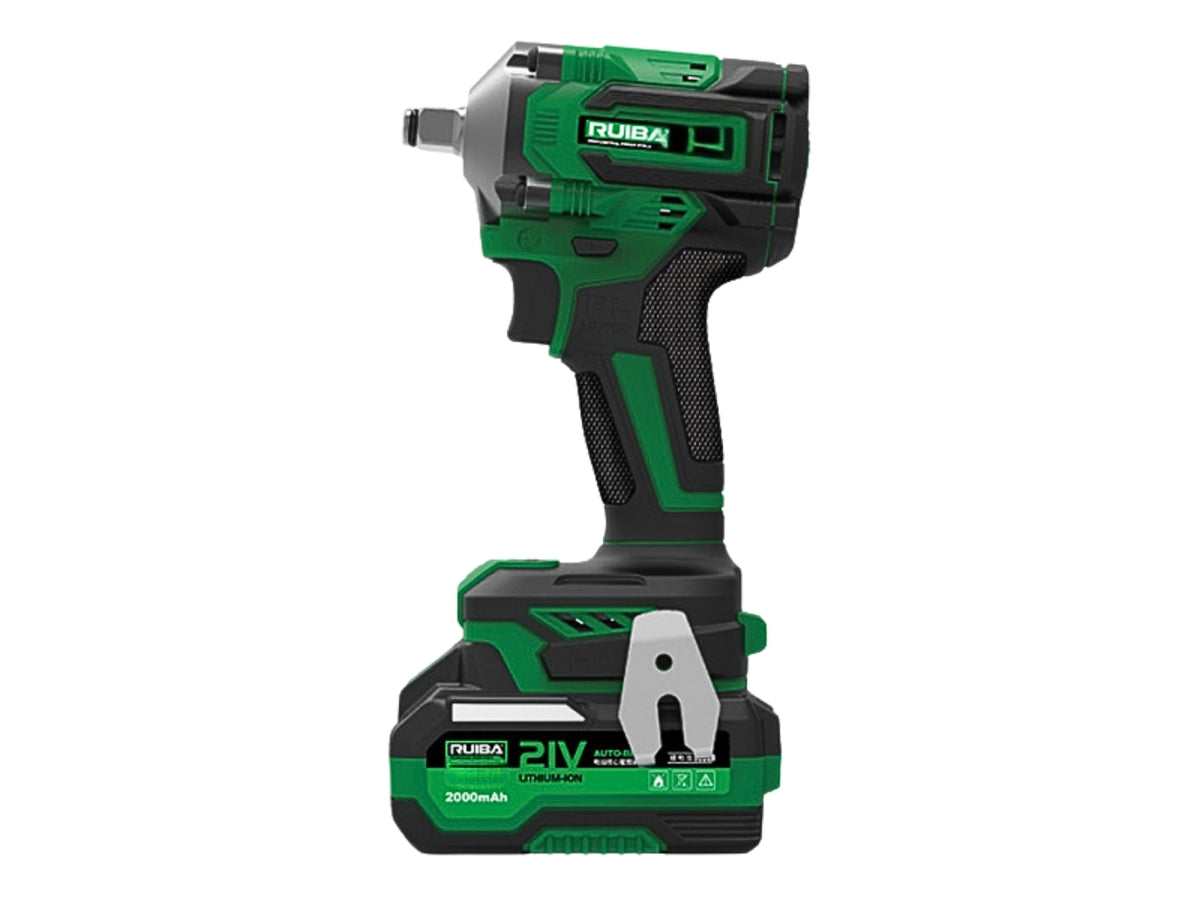

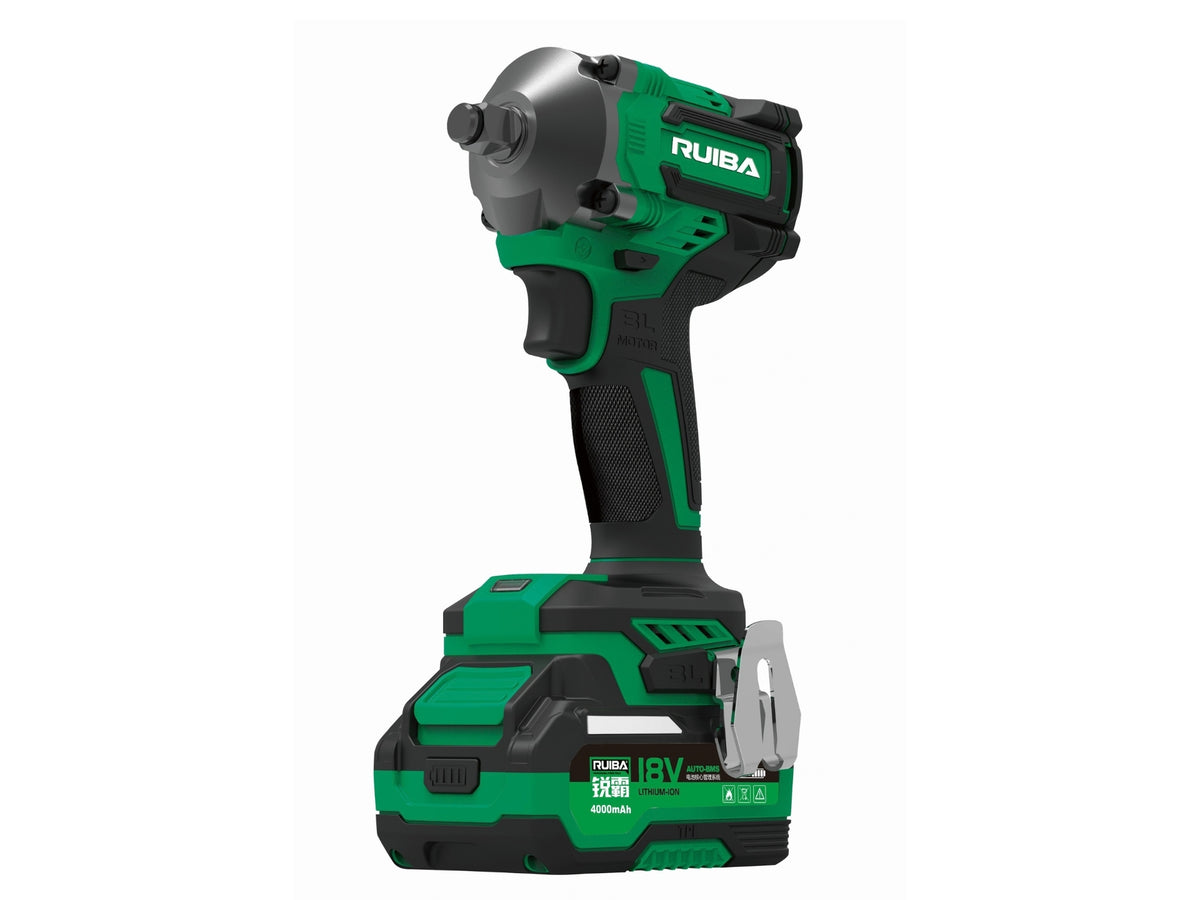

RUIBA Cordless Brushless Impact Wrench Kit, 1/2", 18 V, 420 Nm, 2 × 4.0 Ah Batteries – RB-806S
Couldn't load pickup availability
Got questions, ask an expert!
The RUIBA RB-806S is an 18 V cordless brushless impact wrench with a 1/2" square drive, a maximum fastening torque of 420 Nm and a maximum loosening torque of 600 Nm. Suitable for DIY fastening and removal tasks, this kit includes two 4.0 Ah batteries, a 2.3 A charger and a plastic carrying case.
Key Features
- Brushless Motor – The 500 W brushless motor delivers a maximum fastening torque of 420 Nm and a maximum loosening torque of 600 Nm for bolt fastening and removal.
- Two Output Levels – Select between 320 and 420 Nm torque levels, with corresponding speed and impact-rate settings for different fastening tasks.
- Reverse Auto-Stop – Selectable reverse auto-stop stops rotation when a fastener loosens and resistance drops. Continuous reverse operation is also available.
- Variable Speed and LED Lighting – Control operating speed through trigger pressure, use the direction selector for forward or reverse rotation, and illuminate the work area with the built-in LED.
- Dual-Battery Kit – Supplied with two 4.0 Ah lithium-ion batteries, a 2.3 A charger and a plastic carrying case for storage and transport.
Product Specifications
| Brand | RUIBA |
|---|---|
| Model | RB-806S |
| Product Type | Cordless impact wrench kit |
| Motor Type | Brushless |
| Rated Voltage | 18 V DC |
| Rated Power | 500 W |
| Drive Type and Size | 1/2" square drive (12.7 mm) |
| Maximum Fastening Torque | 420 Nm ±5% |
| Maximum Loosening Torque | 600 Nm |
| Output Settings | Two selectable levels |
| Speed Control | Variable-speed trigger |
| Rotation Direction | Forward and reverse, with a centre trigger-lock position |
| Reverse Operation | Continuous reverse and selectable reverse auto-stop |
| Standard Bolt Capacity | M8–M20 |
| High-Strength Bolt Capacity | M8–M16 |
| Gear Housing Material | Aluminium |
| Work Light | Built-in LED |
| Bare Tool Weight | 1.1 kg, excluding battery |
| Bare Tool Dimensions | 130 × 80 × 210 mm |
| Battery Type | Lithium-ion |
| Battery Capacity | 4.0 Ah per battery |
| Charger Output Current | 2.3 A |
Output Settings
| Setting | Torque Level | No-Load Speed | Impact Rate |
|---|---|---|---|
| Level 1 | 320 Nm | 1,850 rpm ±5% | 2,800 ipm ±5% |
| Level 2 | 420 Nm | 2,450 rpm ±5% | 3,500 ipm ±5% |
The listed speed and impact-rate values describe each output setting; trigger pressure controls operating speed. Output settings should not be treated as calibrated final tightening torque values. Where a specified tightening torque is required, verify the final torque with an appropriate torque wrench.
Operating Controls
- Output Selection – Use the mode control to select one of the two forward output levels.
- Variable-Speed Trigger – Press the trigger lightly for a lower speed and increase pressure to increase speed. Release the trigger to stop operation.
- Forward and Reverse – Move the direction selector to change rotation direction. The centre position locks the trigger.
- Continuous Reverse – In continuous reverse mode, the tool runs in reverse while the trigger is held.
- Reverse Auto-Stop – Select reverse and enable the auto-stop function using the control panel. The tool stops reverse rotation when the fastener loosens and resistance drops.
Applications
- DIY assembly, maintenance and disassembly involving bolted connections.
- Fastening and removal of standard bolts from M8 to M20.
- Fastening and removal of high-strength bolts from M8 to M16.
Included Components
- 1 × RUIBA RB-806S cordless brushless impact wrench, bare tool

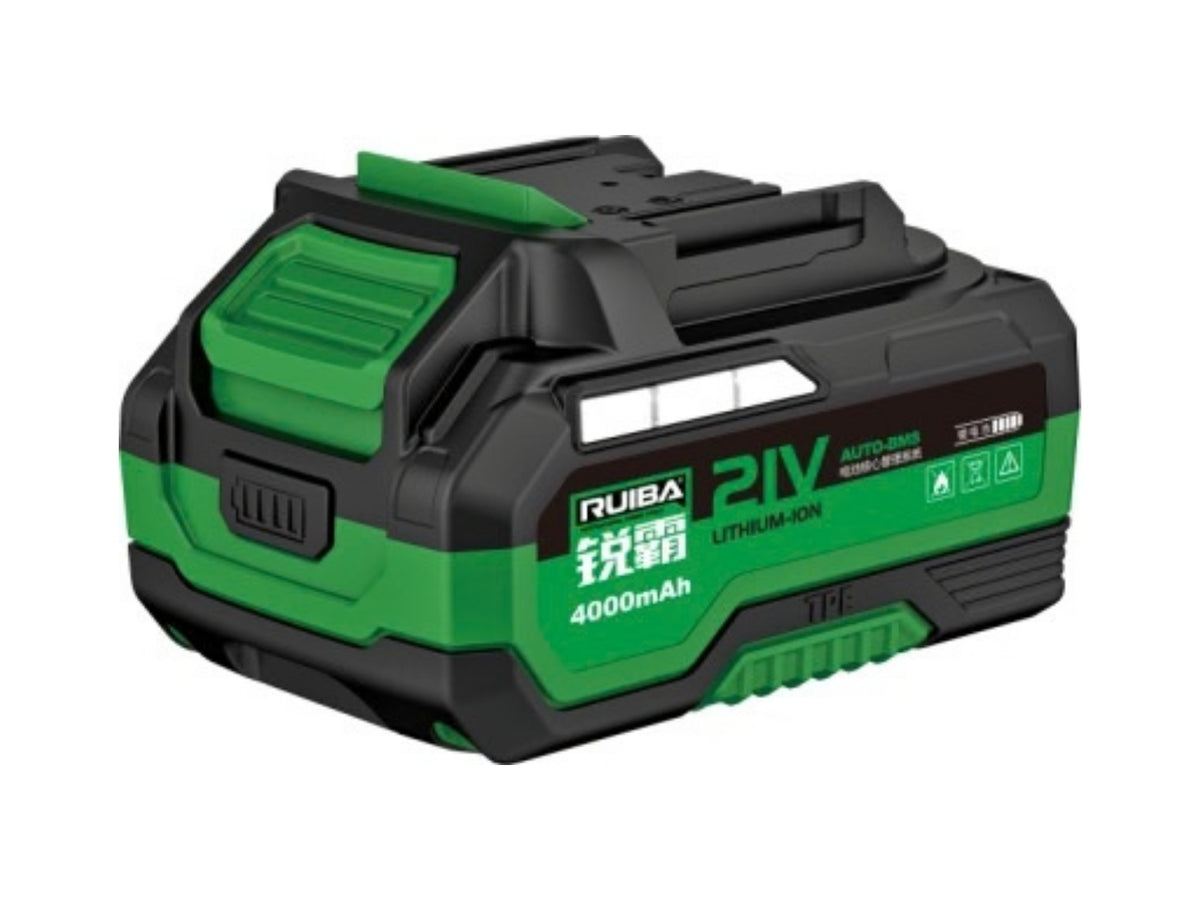

- 2 × 4.0 Ah lithium-ion battery packs

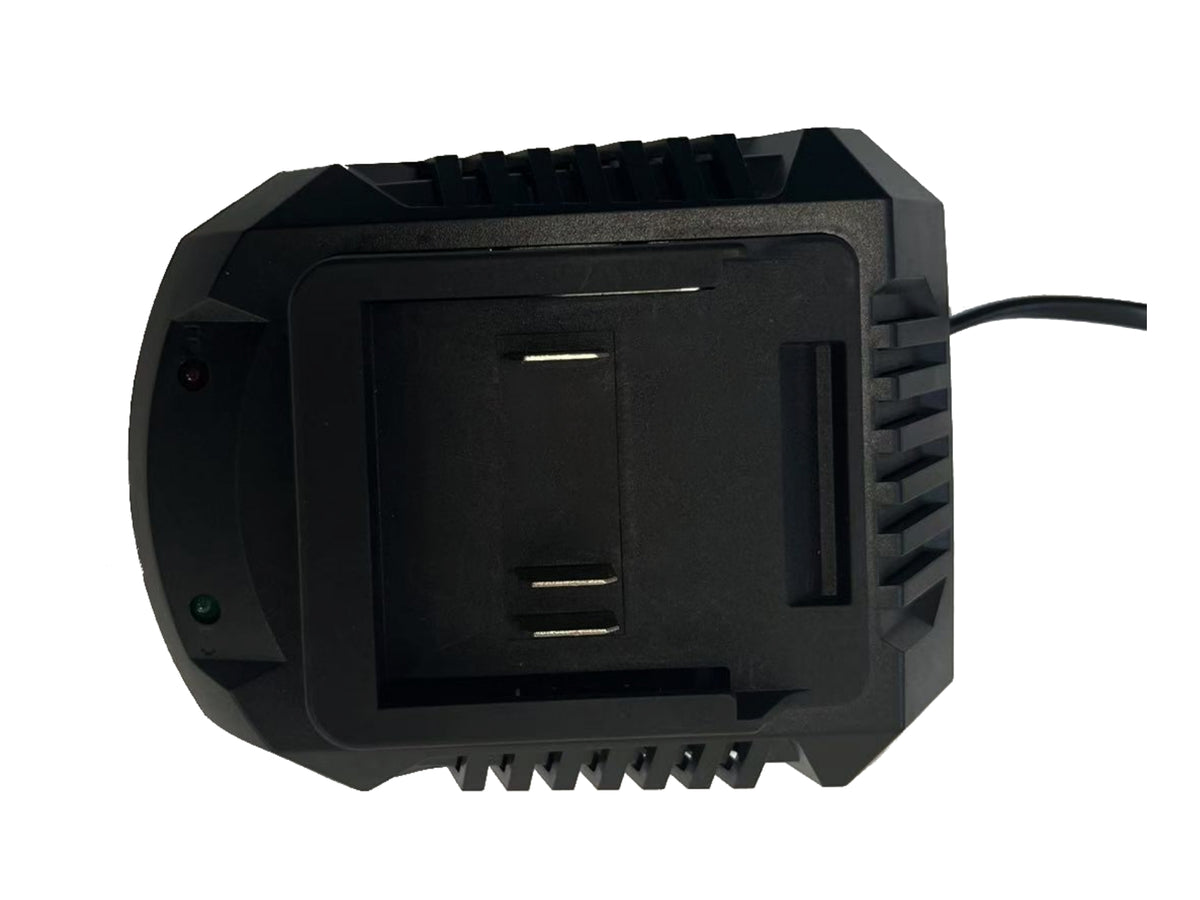

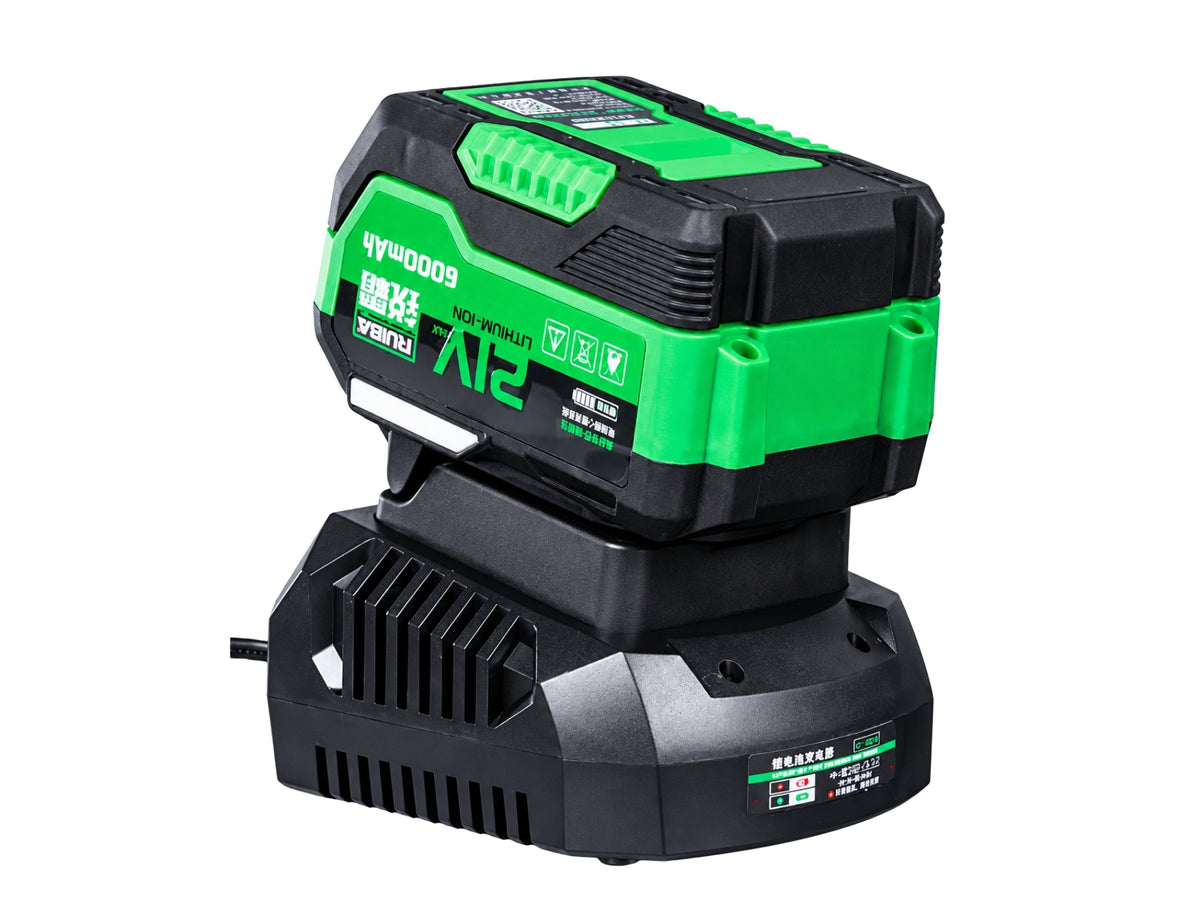

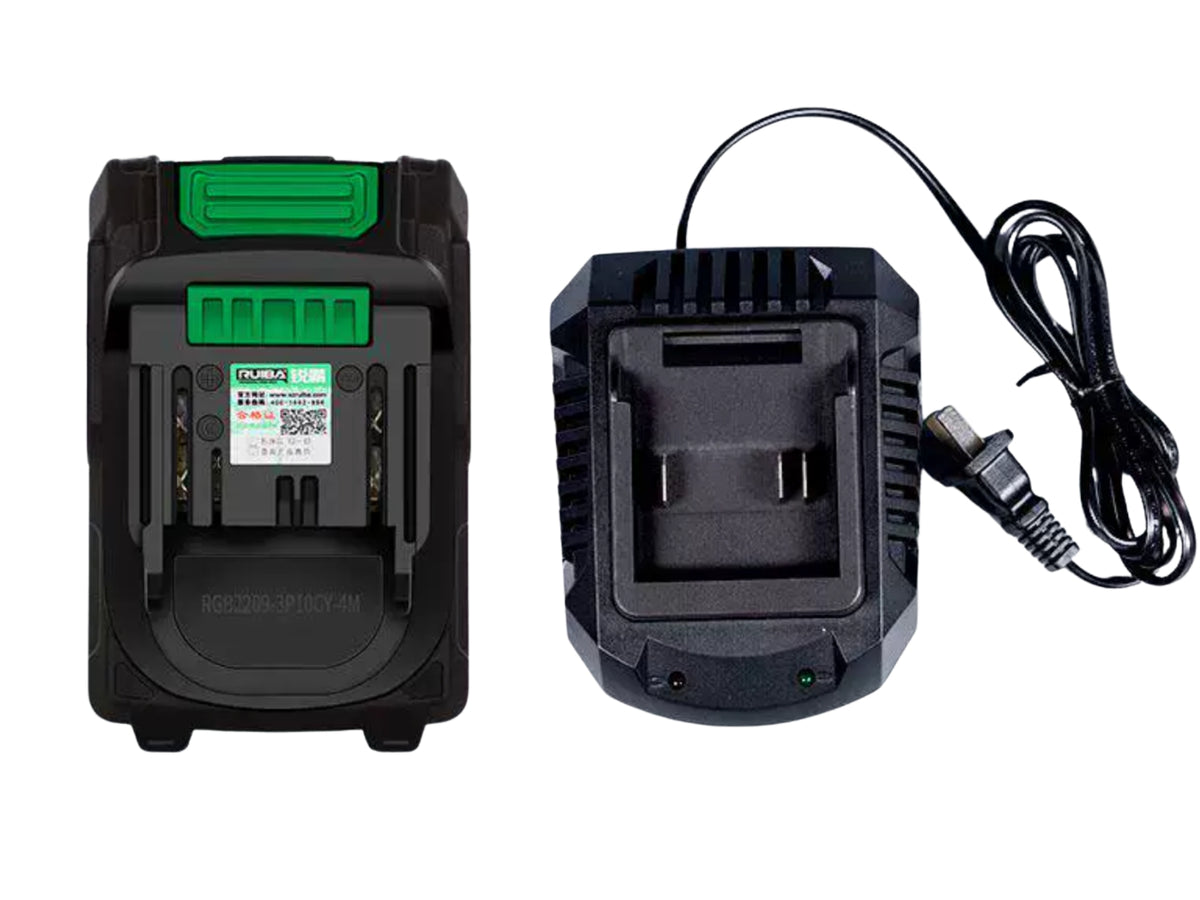

- 1 × 2.3 A charger

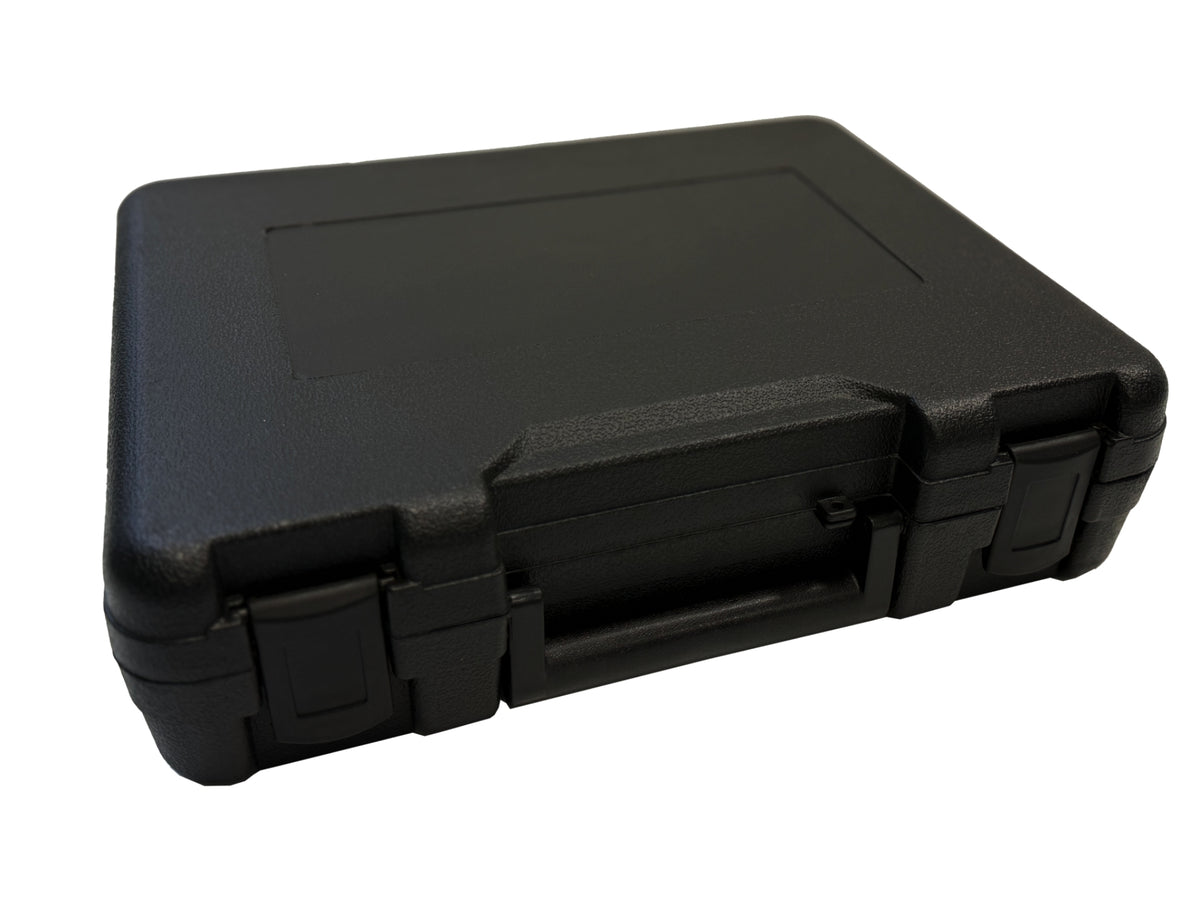

- 1 × Plastic carrying case
24-Month Product Warranty
Consumer purchases of this product include a 24-month PERIPLUS commercial product warranty from the date of delivery. This warranty is additional to, and does not limit, any mandatory statutory consumer rights.
