TWIST DRILL BIT HSS-TIN 1,0-13,0 MM

SKU: 100465-0001
(0)
133 Ft inc. VAT
Coming soon
On order
Variants

If you like the product, please help us by sharing on social media. Many thanks!

Got questions, ask an expert!

Email +36 70 719 8323

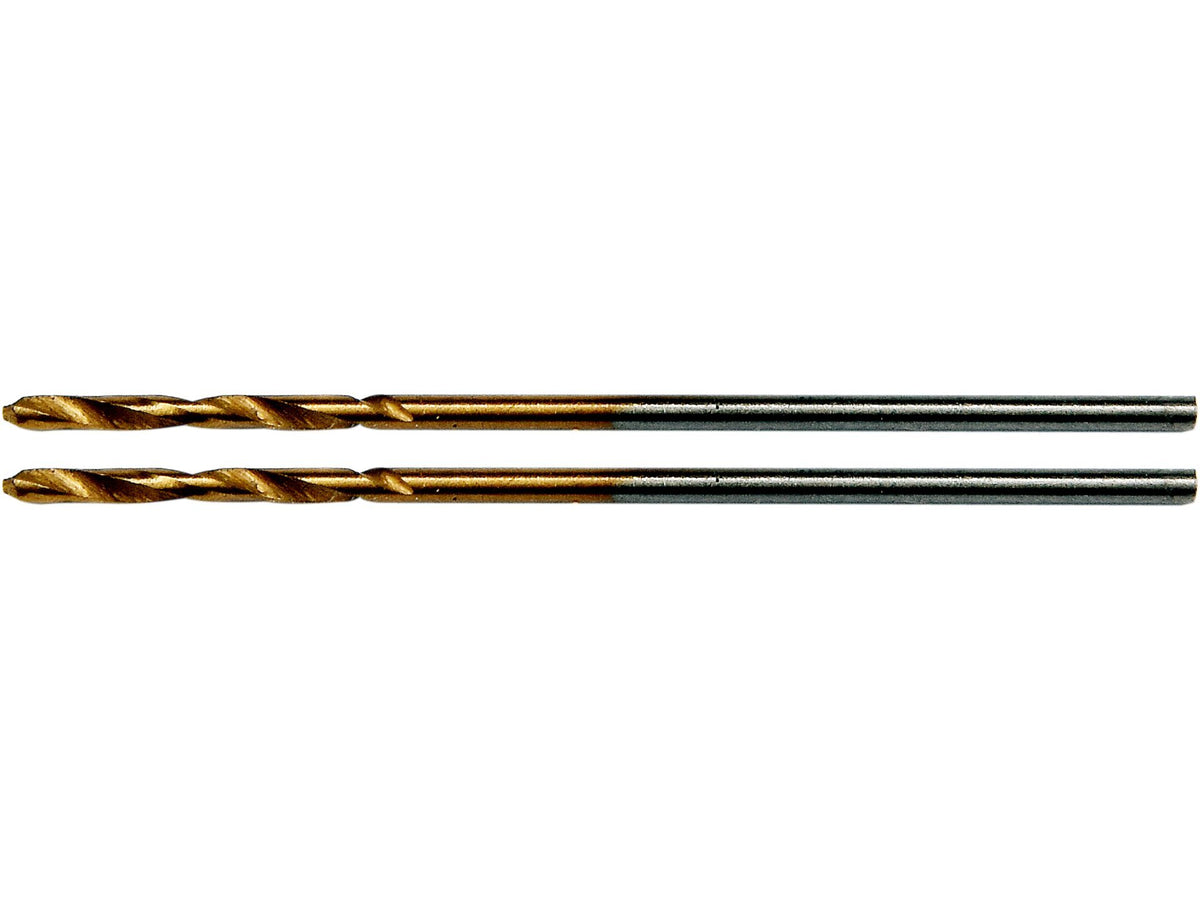

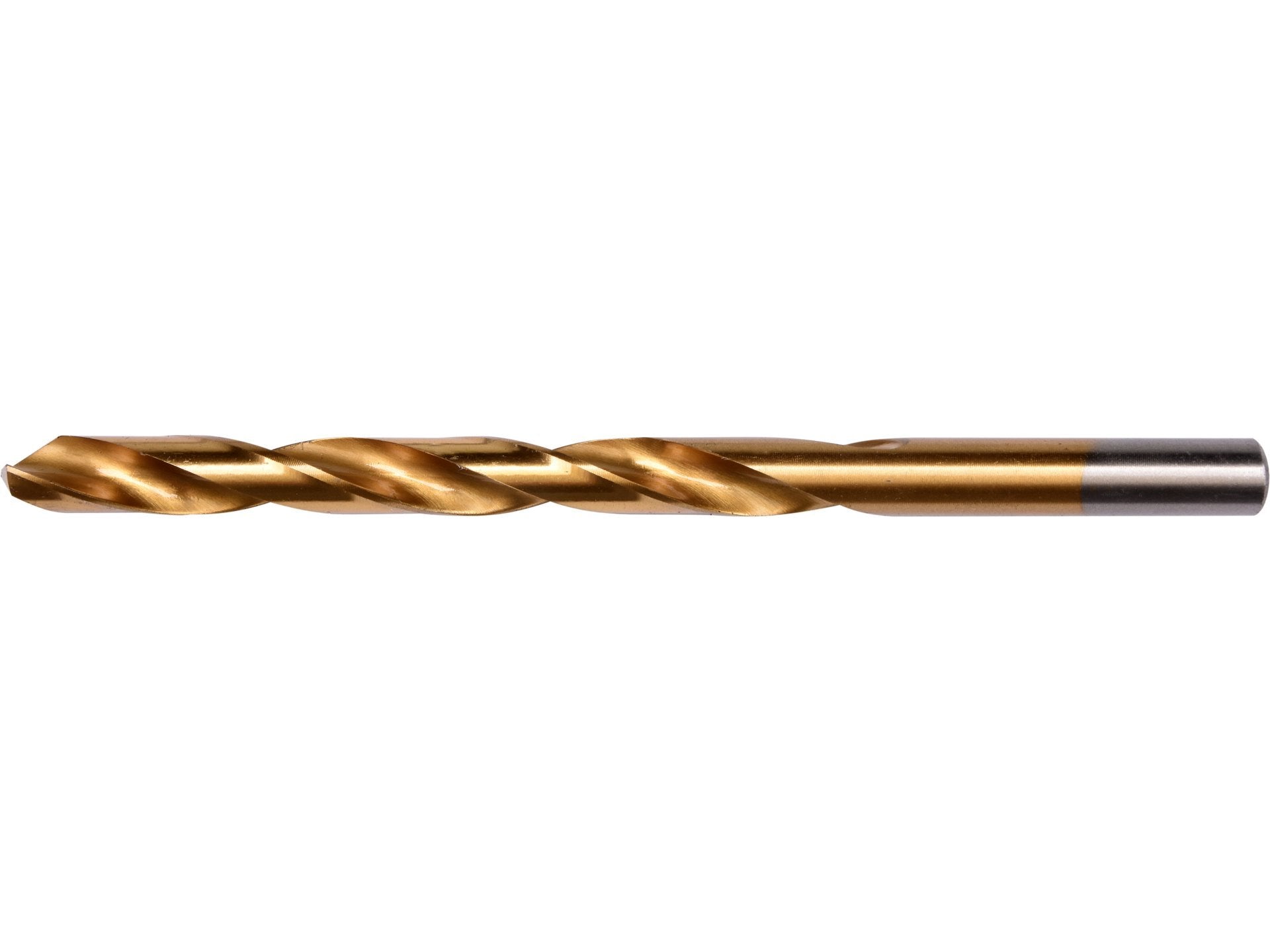

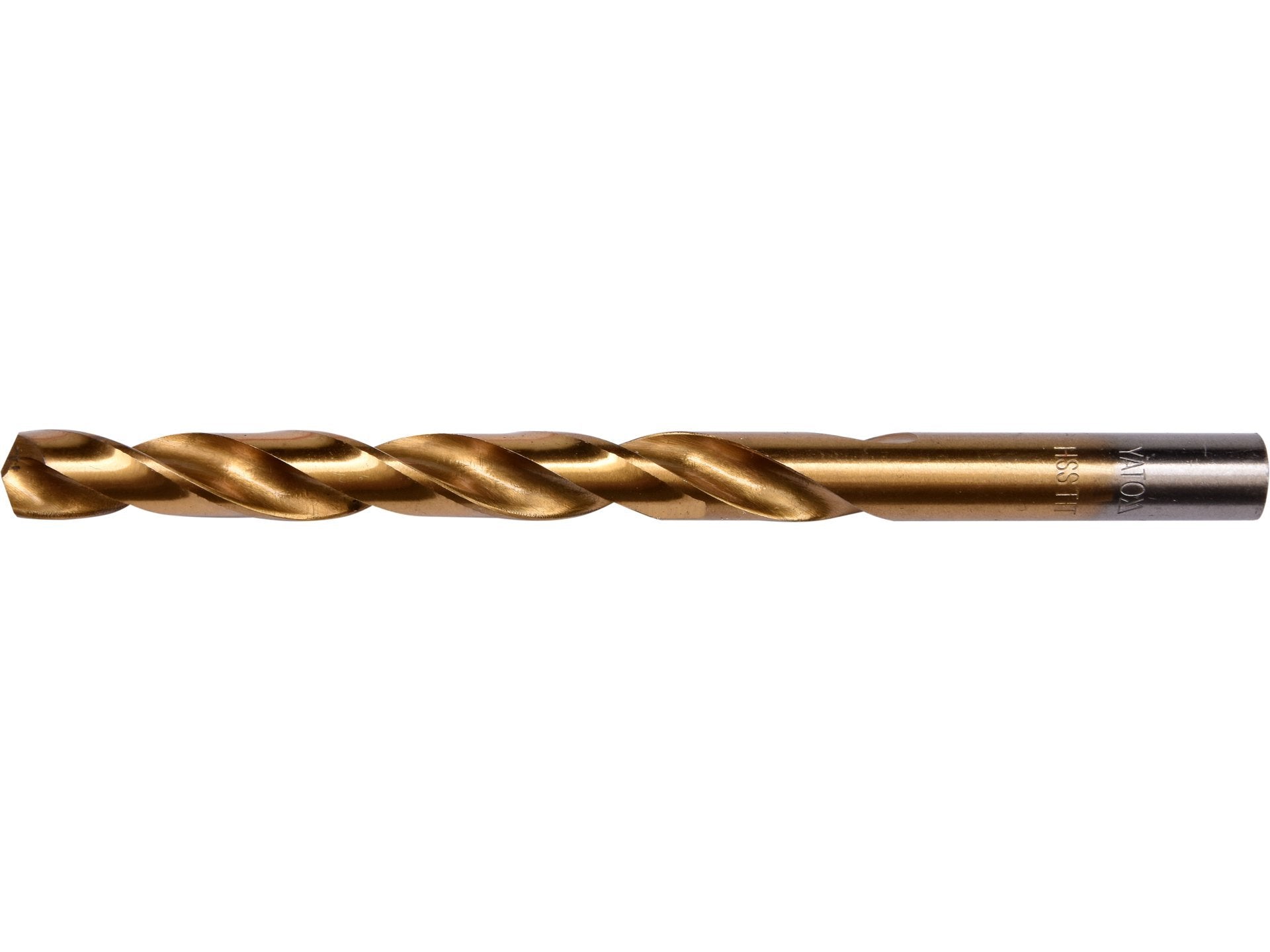

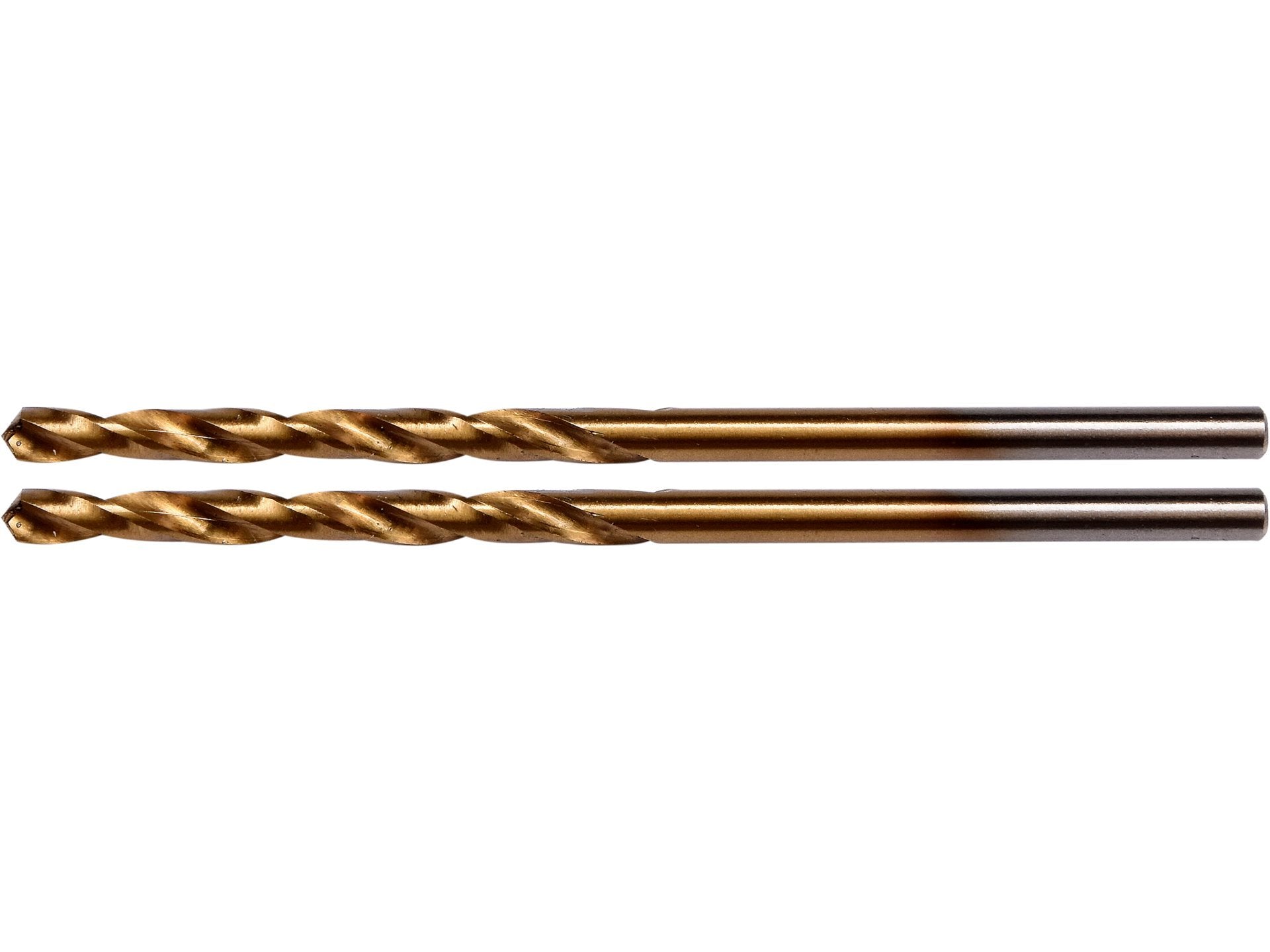

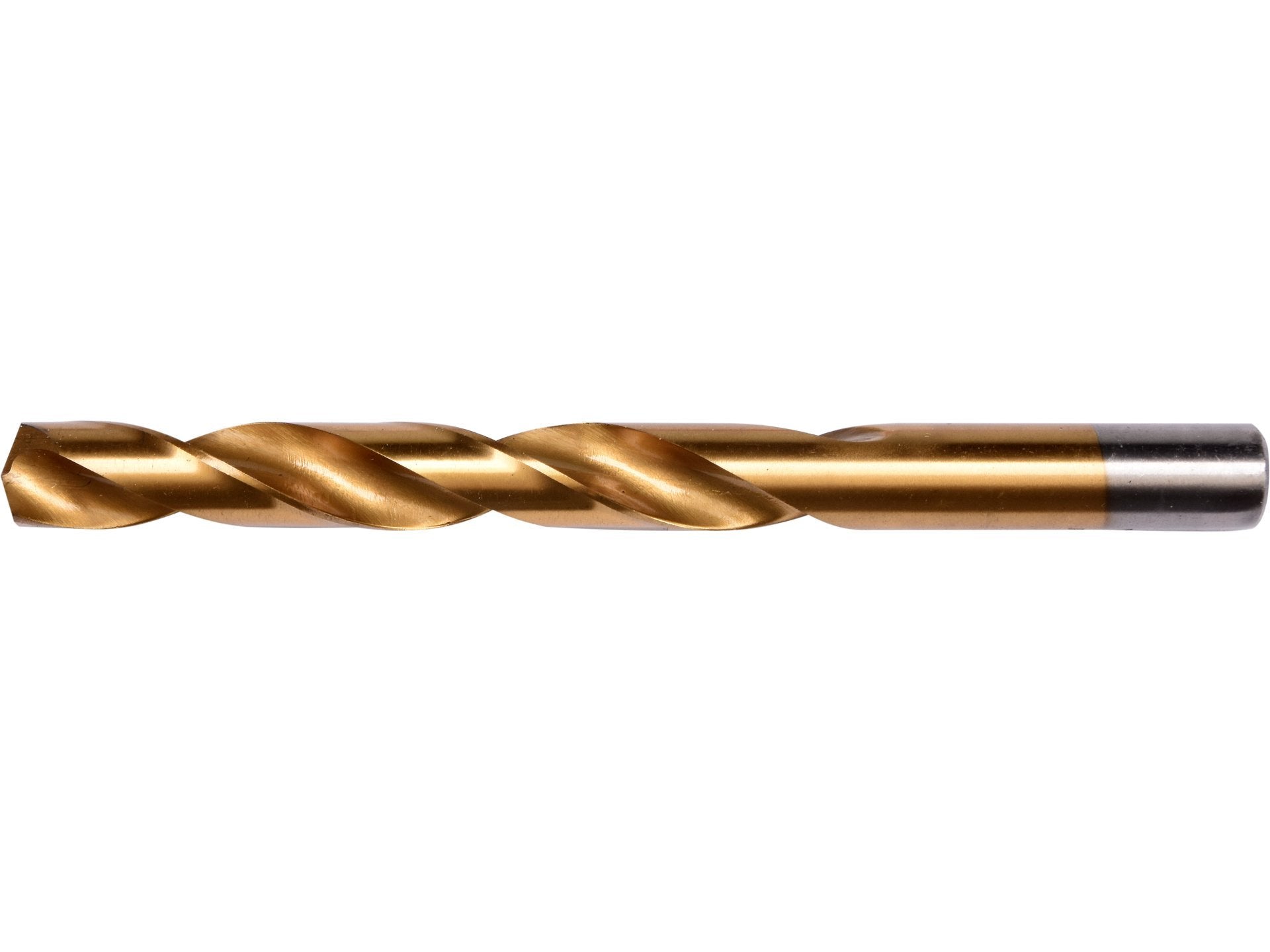

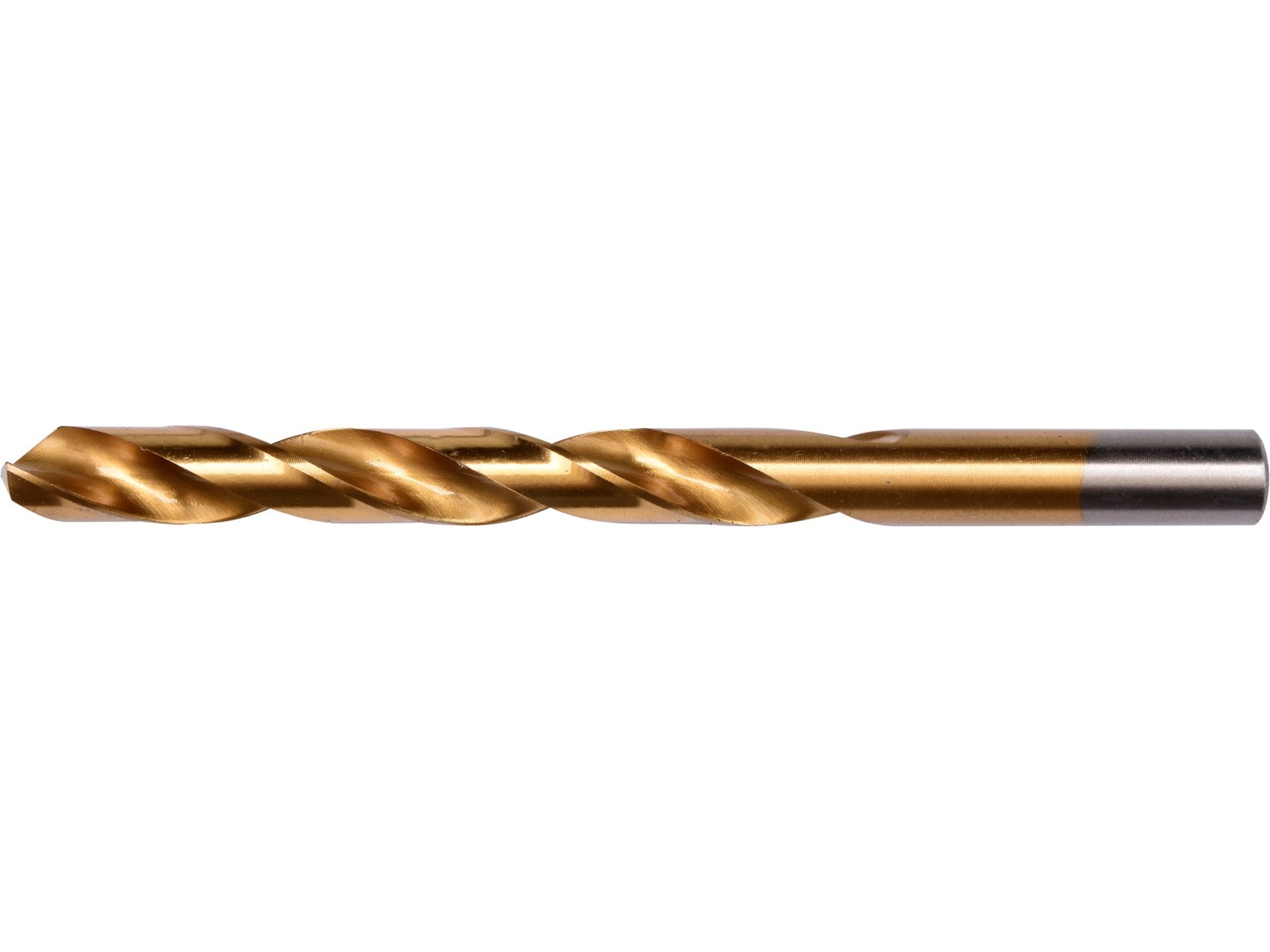

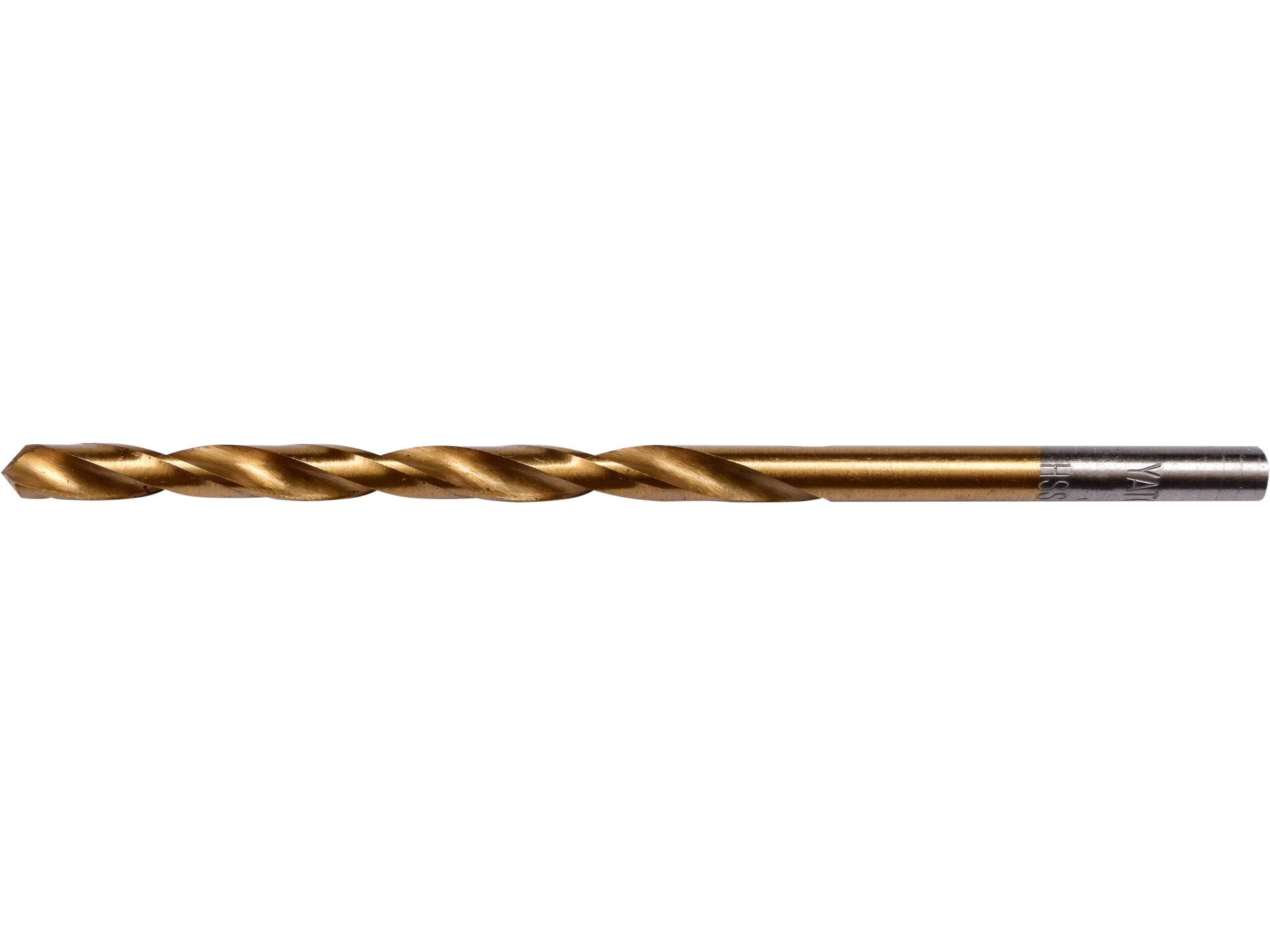

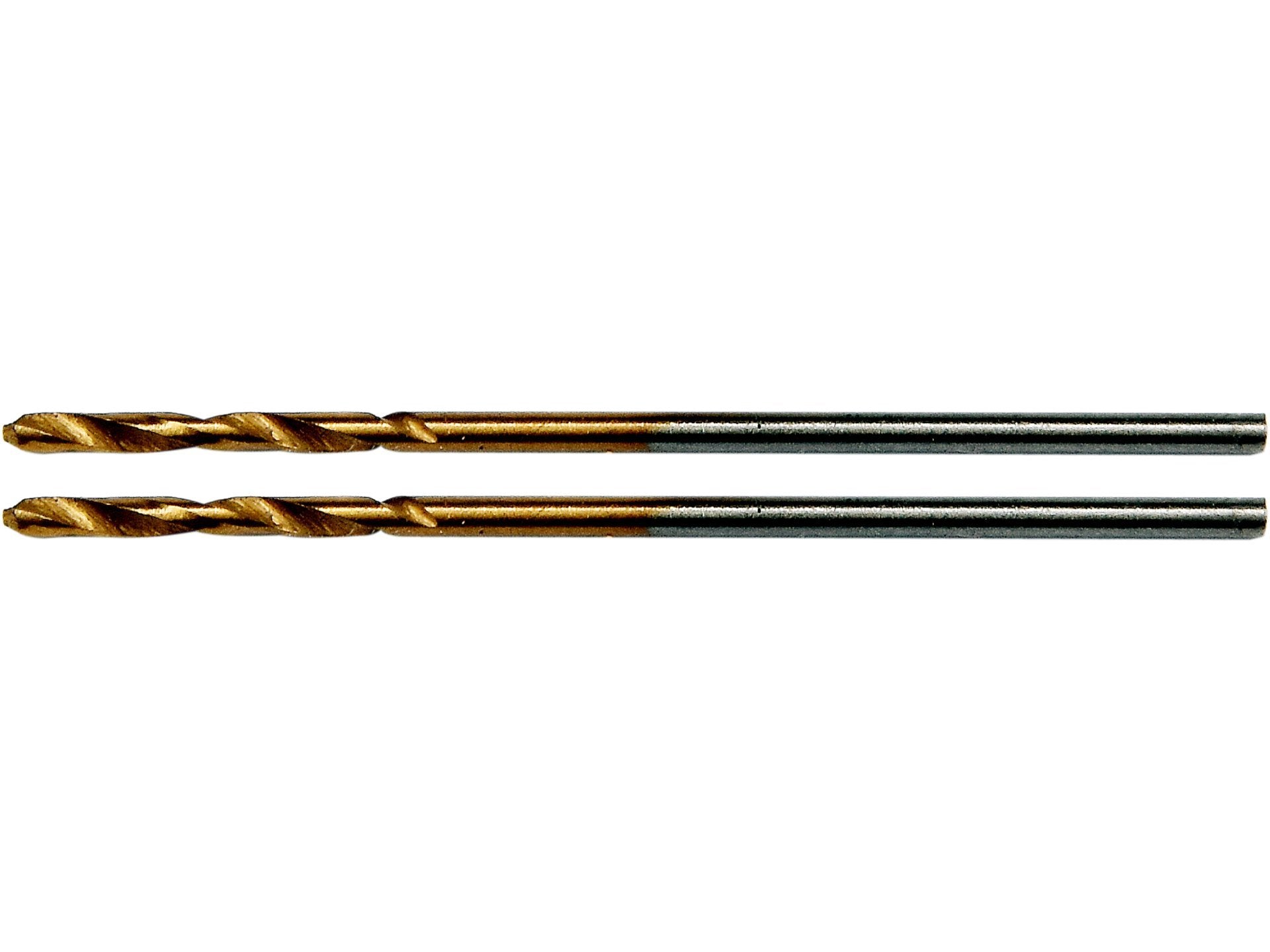

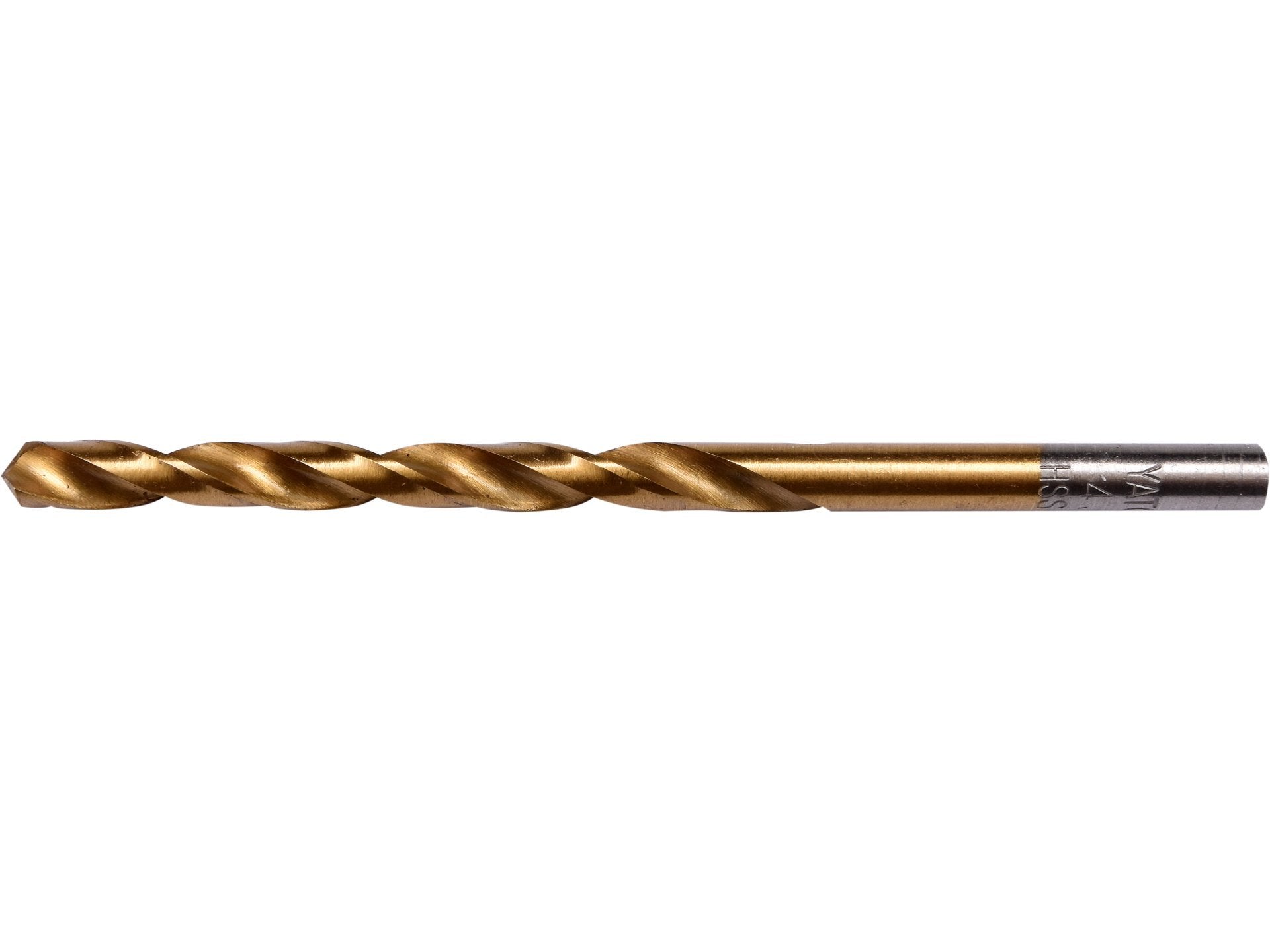

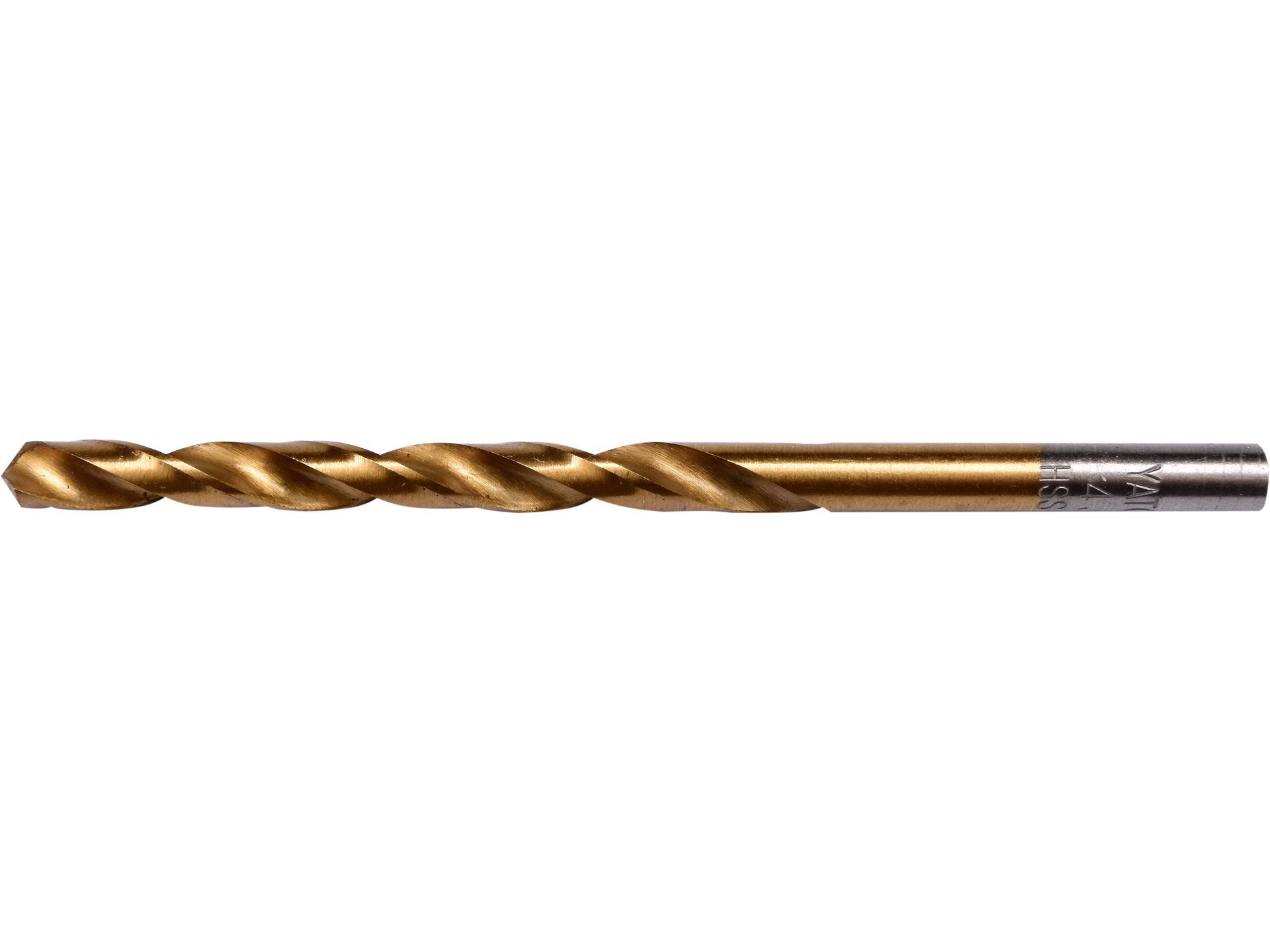

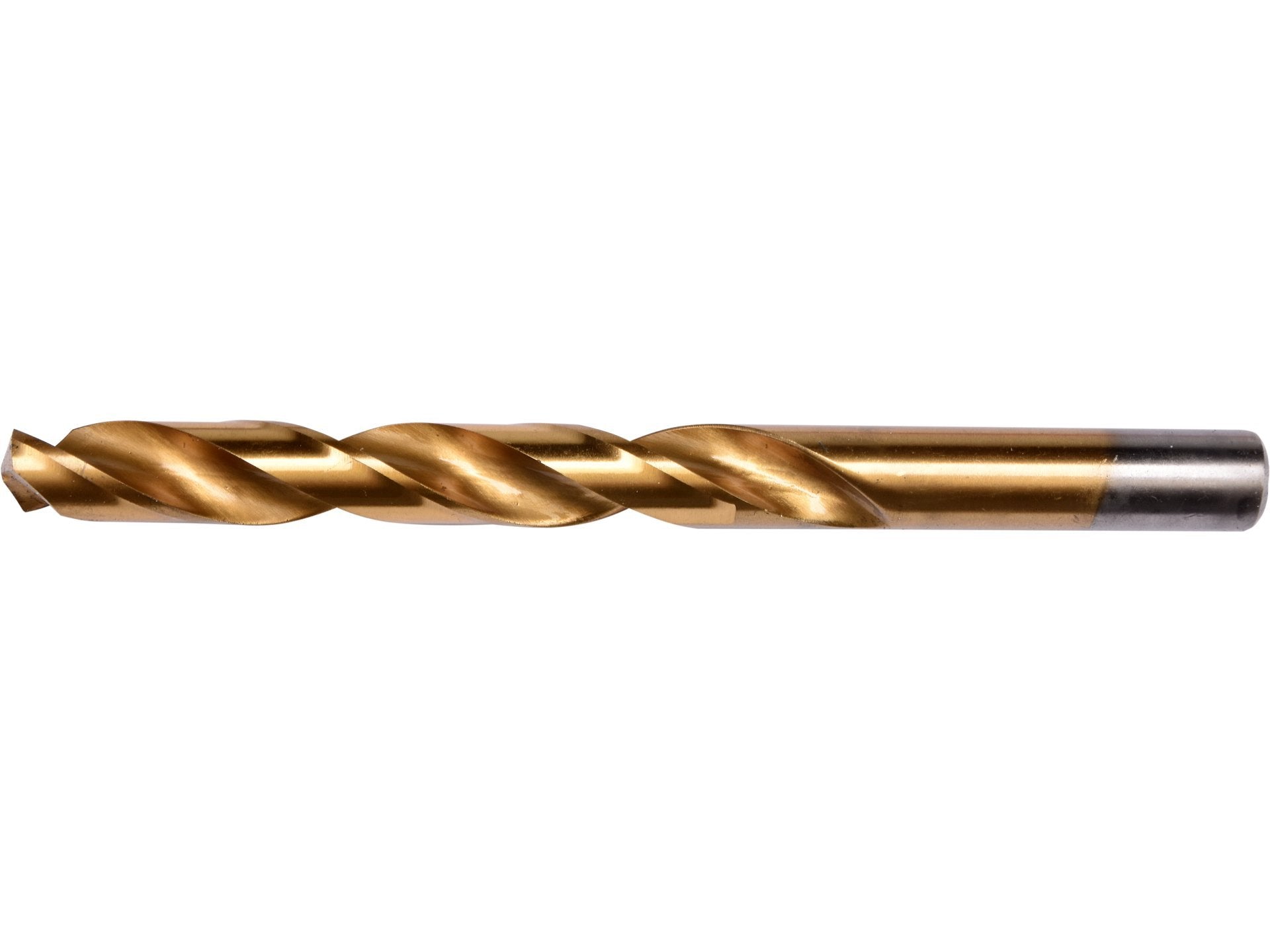

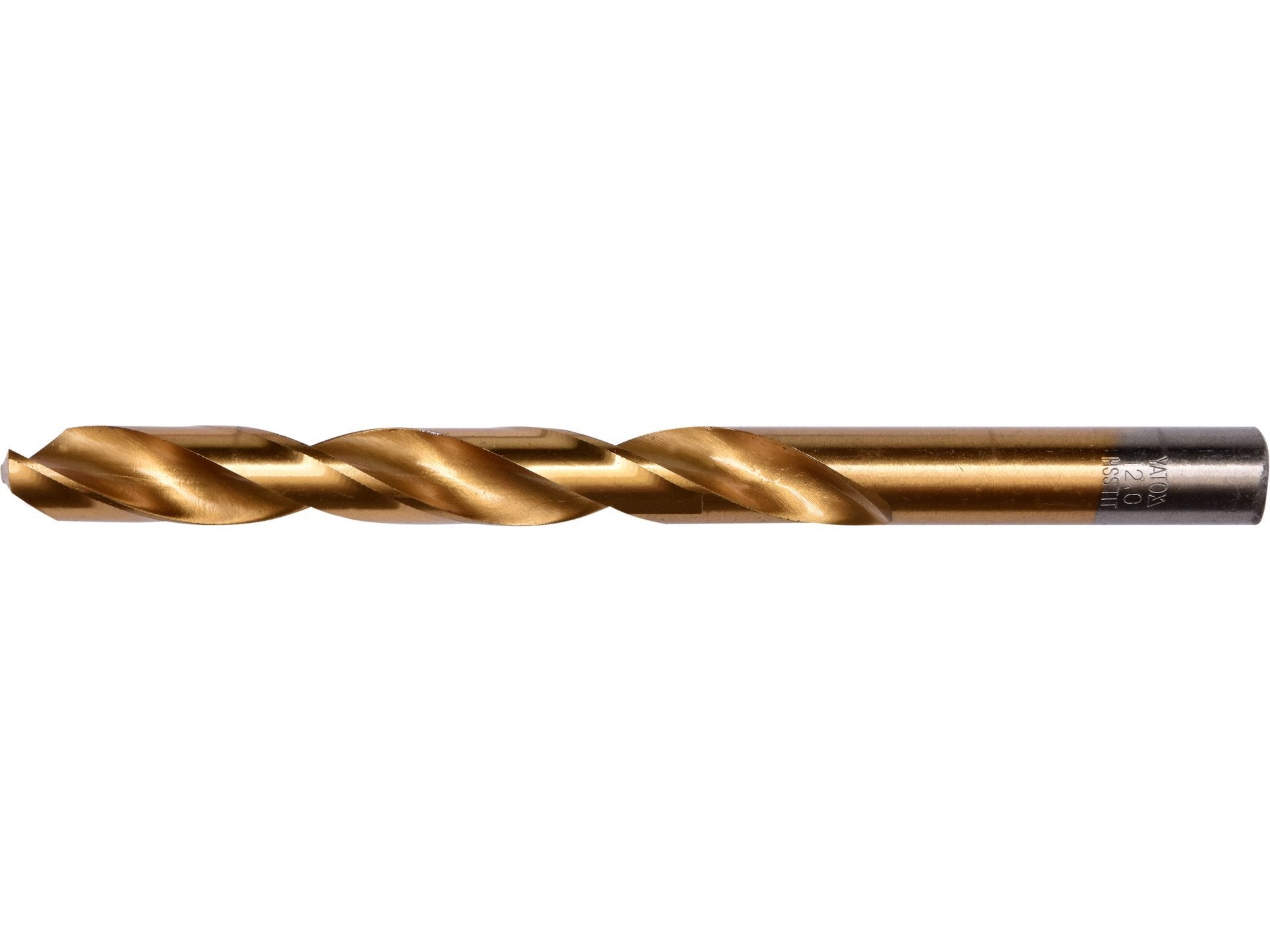

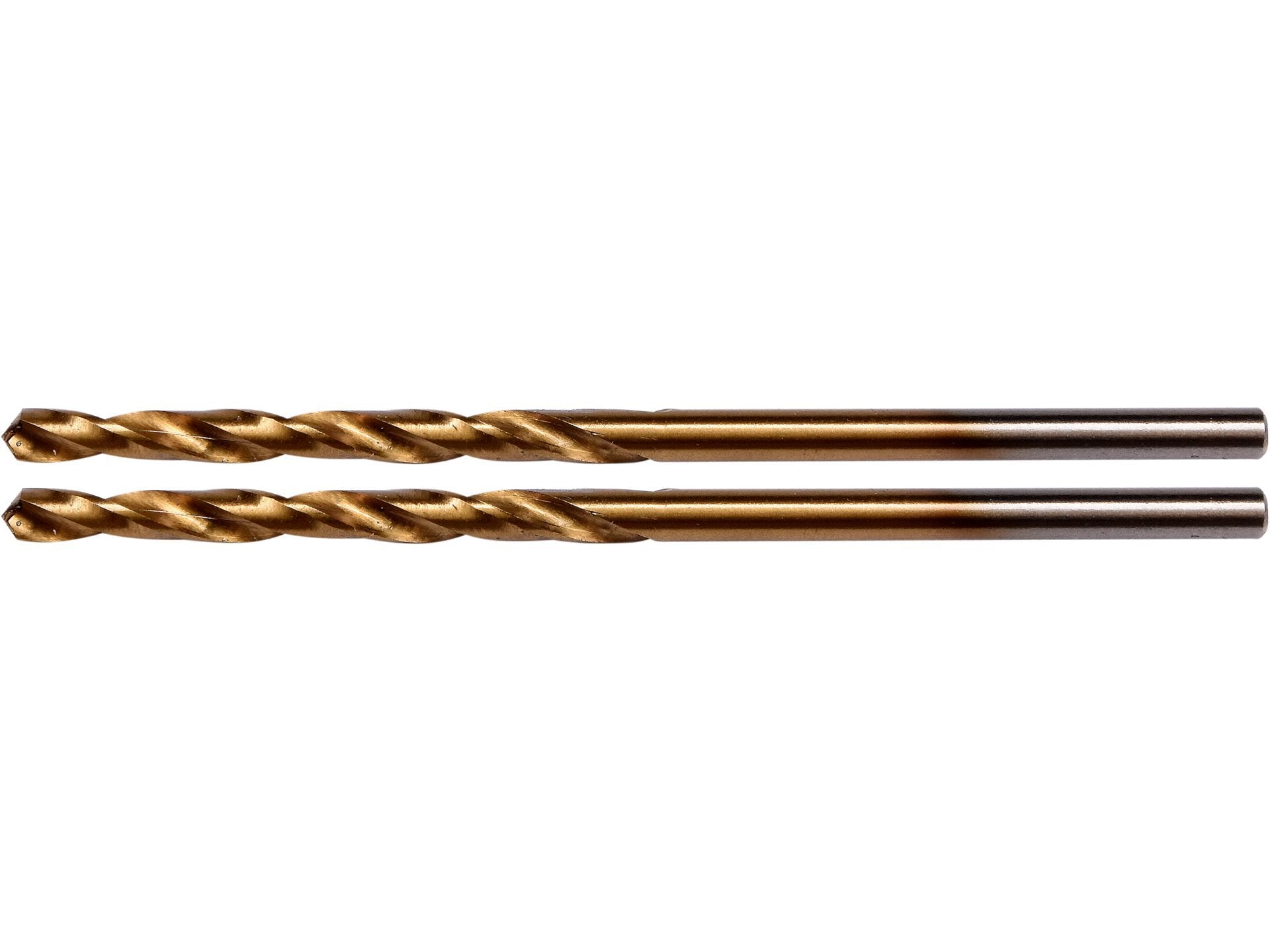

YATO HSS-TiN twist drill bits are designed for professional drilling in stainless steel, acid-resistant steel, and cold rolled steel. The DIN 338 bits feature HSS 6524 construction, titanium nitride coating, cylindrical shanks, and 135° split points, with 29 diameter options from 1 mm to 13 mm.

Key Features

  • Ground HSS-TiN drill bit: Twist drill bit made from HSS 6524 with titanium nitride coated and polished finish.
  • Steel drilling applications: Designed for stainless steel, acid-resistant steel, and cold rolled steel.
  • 135° split point: Supports drilling without prior center punching or scoring.
  • Cylindrical shank: Suitable for standard self-clamping and keyed drill chucks.
  • DIN 338 construction: Manufactured for use with standard drills, column drills, and magnetic drills.

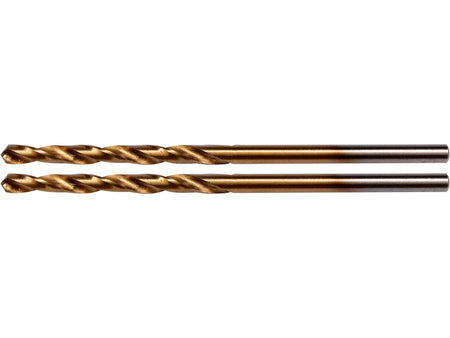

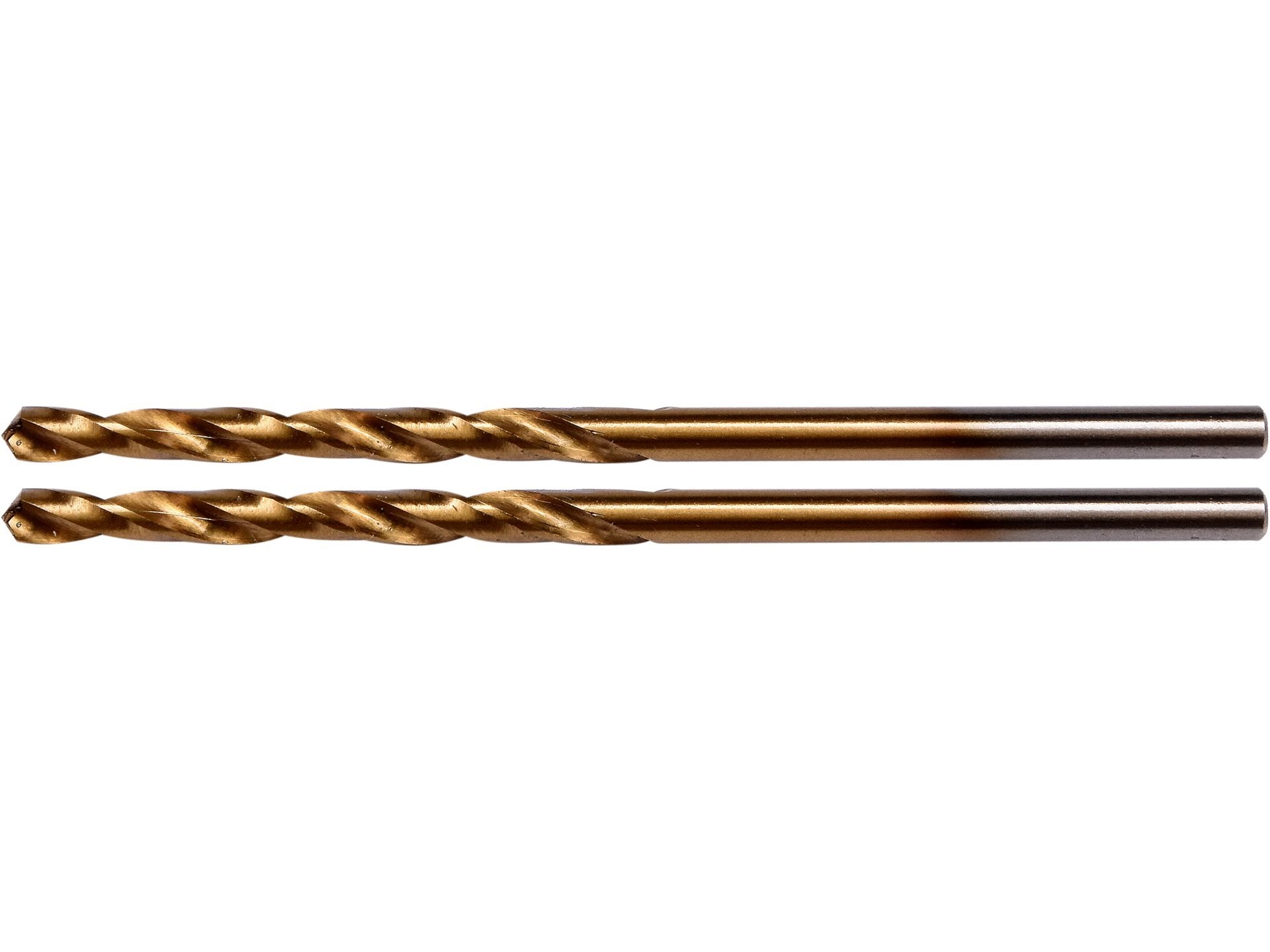

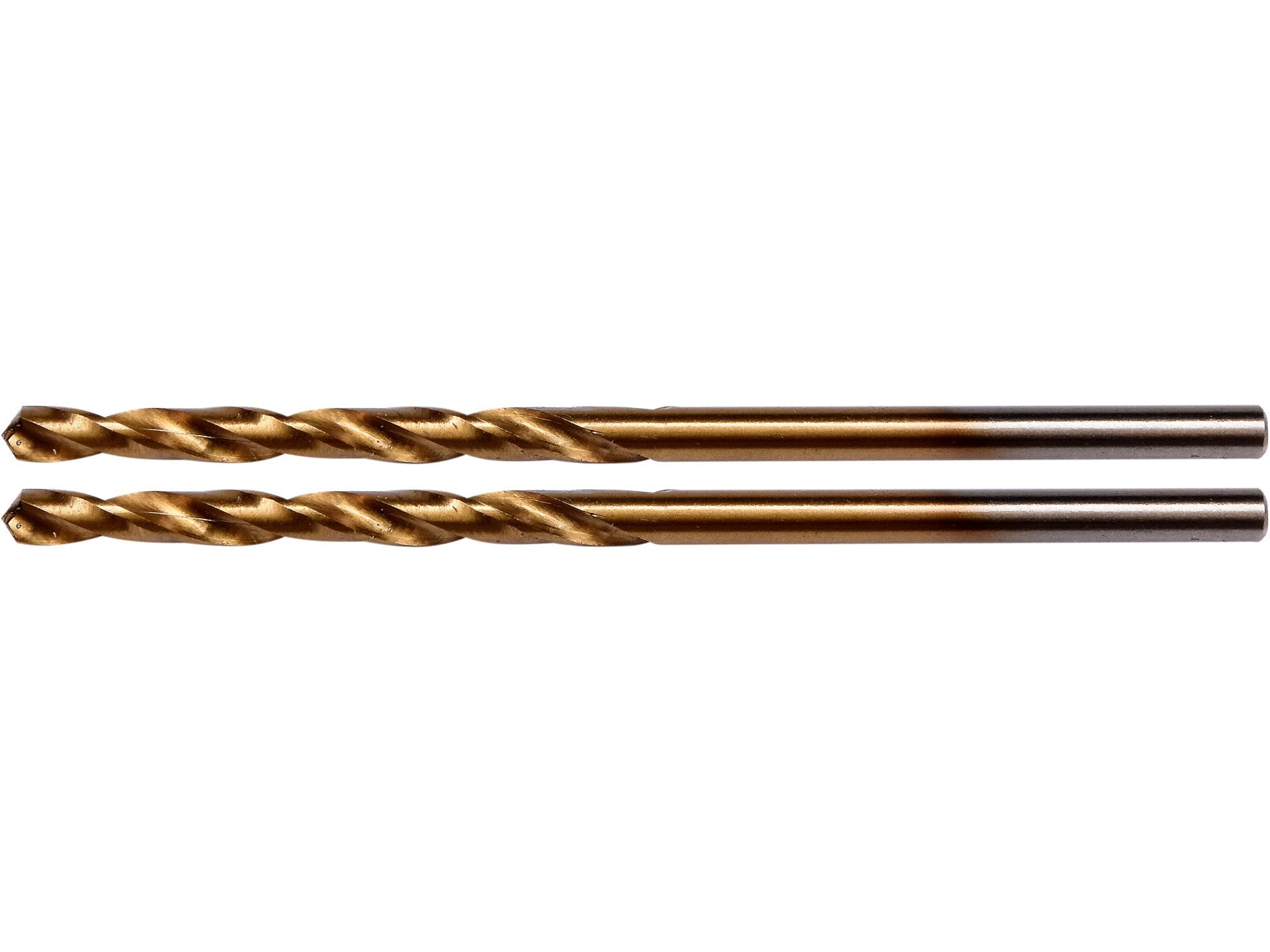

  • Multiple size options: Available in 29 diameter variants from 1 mm to 13 mm, with selected small sizes supplied as 2-piece packs.

Technical Specifications

Parameter Value
Brand YATO
Product Type Twist drill bit
Category Twist drill bits HSS-TiN and sets
Material HSS 6524
Application Stainless steel; acid-resistant steel; cold rolled steel
Surface Finish Titanium nitride coated; polished
Toolholder Type Cylindrical
DIN Standard DIN 338
Drill Bit Point Angle 135°
Split Point Yes
Compatible Equipment Standard drills; column drills; magnetic drills

Variant Comparison

SKU Code Spec / Size Diameter Overall Length Working Part Length Pcs Weight Dimensions (L×W×H)

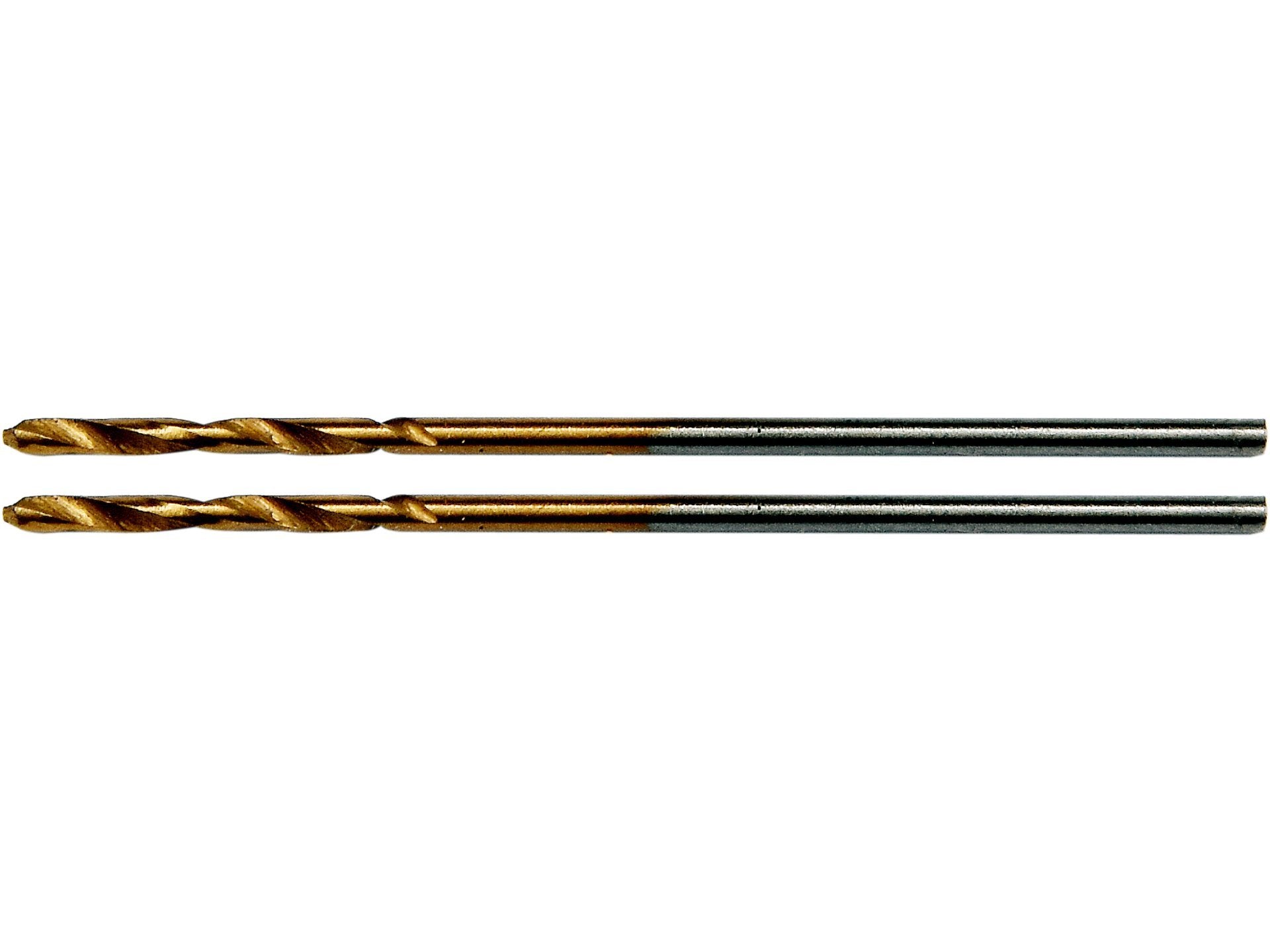

100465-0001 1 mm - 2 pcs 1 mm 34 mm 12 mm 2 0.01 kg 16 × 5 × 1 cm
100465-0008 1.5 mm - 2 pcs 1.5 mm 40 mm 18 mm 2 0.01 kg 15.5 × 5 × 1 cm
100465-0011 2 mm - 2 pcs 2 mm 49 mm 24 mm 2 0.01 kg 16 × 5 × 1 cm
100465-0009 2.5 mm - 2 pcs 2.5 mm 57 mm 30 mm 2 0.01 kg 15.5 × 5 × 1 cm
100465-0010 2.8 mm - 2 pcs 2.8 mm 61 mm 33 mm 2 0.01 kg 15.5 × 5 × 1 cm
100465-0014 3 mm - 2 pcs 3 mm 61 mm 33 mm 2 0.01 kg 15.5 × 5 × 1.5 cm
100465-0012 3.2 mm 3.2 mm 65 mm 36 mm 1 0.01 kg 15.5 × 5 × 1 cm
100465-0013 3.5 mm 3.5 mm 70 mm 39 mm 1 0.01 kg 15.5 × 5 × 1 cm
100465-0018 4 mm 4 mm 75 mm 43 mm 1 0.01 kg 15.5 × 5 × 1 cm
100465-0015 4.2 mm 4.2 mm 75 mm 43 mm 1 0.01 kg 15.5 × 5 × 0.5 cm
100465-0016 4.5 mm 4.5 mm 80 mm 47 mm 1 0.01 kg 19 × 5 × 1.5 cm
100465-0017 4.8 mm 4.8 mm 86 mm 52 mm 1 0.01 kg 19 × 5 × 1 cm
100465-0021 5 mm 5 mm 86 mm 52 mm 1 0.01 kg 19 × 5 × 1 cm
100465-0019 5.2 mm 5.2 mm 86 mm 52 mm 1 0.01 kg 19 × 5 × 1 cm
100465-0020 5.5 mm 5.5 mm 93 mm 57 mm 1 0.01 kg 19 × 5 × 1 cm
100465-0023 6 mm 6 mm 93 mm 57 mm 1 0.01 kg 19 × 5 × 1.5 cm
100465-0022 6.5 mm 6.5 mm 101 mm 63 mm 1 0.01 kg 19 × 5 × 1 cm
100465-0025 7 mm 7 mm 109 mm 69 mm 1 0.02 kg 19 × 5 × 1 cm
100465-0024 7.5 mm 7.5 mm 109 mm 69 mm 1 0.02 kg 19 × 5 × 1 cm
100465-0027 8 mm 8 mm 117 mm 75 mm 1 0.03 kg 22.5 × 5 × 2 cm
100465-0026 8.5 mm 8.5 mm 117 mm 75 mm 1 0.03 kg 23 × 5 × 2 cm
100465-0029 9 mm 9 mm 125 mm 81 mm 1 0.04 kg 22.5 × 5 × 2.5 cm
100465-0028 9.5 mm 9.5 mm 125 mm 81 mm 1 0.04 kg 23 × 5 × 2 cm
100465-0003 10 mm 10 mm 133 mm 87 mm 1 0.05 kg 22.5 × 5 × 2 cm
100465-0002 10.5 mm 10.5 mm 133 mm 87 mm 1 0.05 kg 22.5 × 5 × 1.5 cm
100465-0004 11 mm 11 mm 142 mm 94 mm 1 0.06 kg 23 × 5 × 1.5 cm
100465-0006 12 mm 12 mm 151 mm 101 mm 1 0.08 kg 23 × 5 × 1.5 cm
100465-0005 12.5 mm 12.5 mm 151 mm 101 mm 1 0.09 kg 22.5 × 5 × 1.5 cm
100465-0007 13 mm 13 mm 151 mm 101 mm 1 0.09 kg 22.5 × 5 × 1.5 cm

Package Contents

  • Each selected variant includes either 1 HSS-TiN twist drill bit or a 2-piece pack, depending on the chosen diameter and variant specification.
