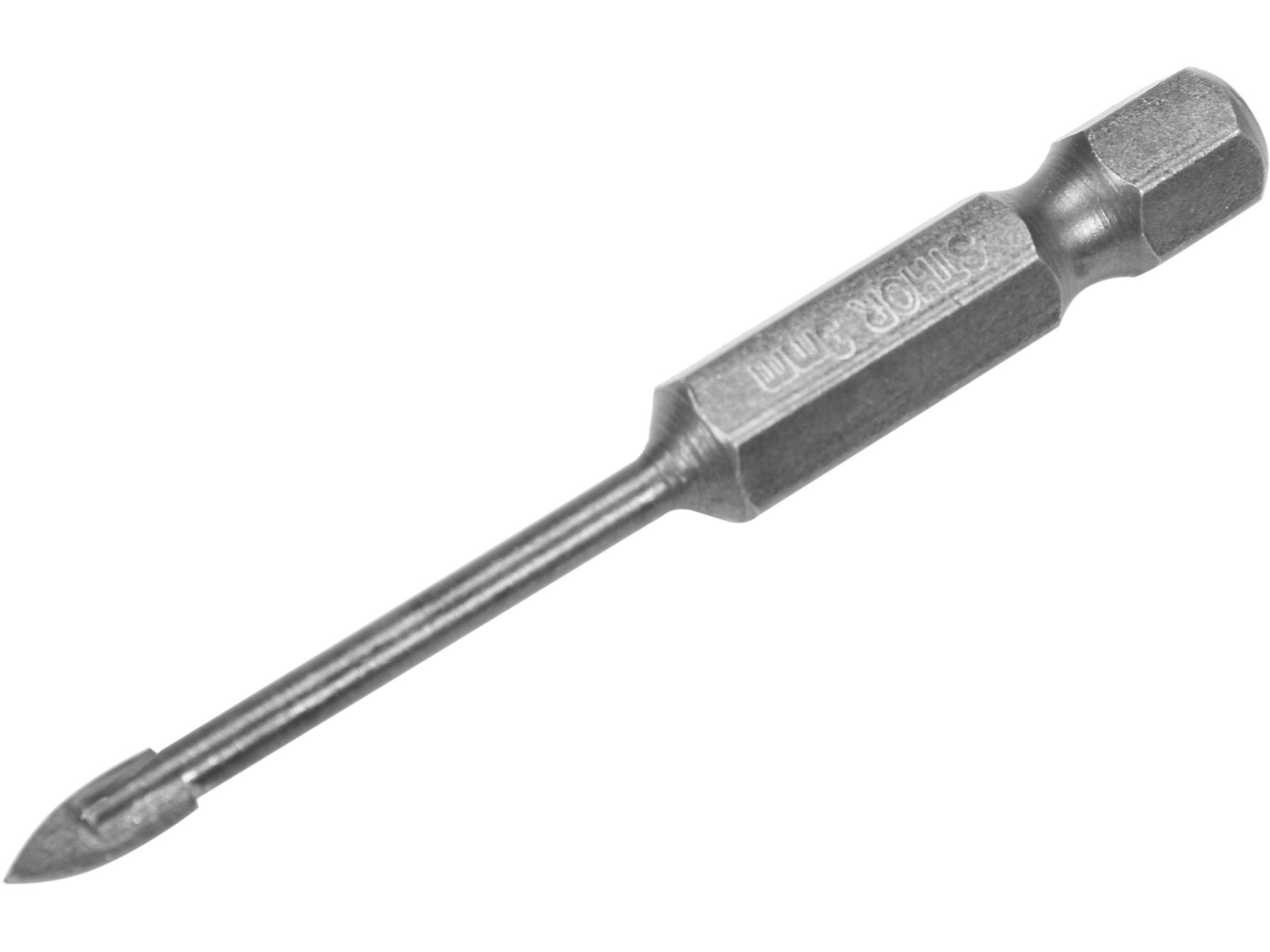

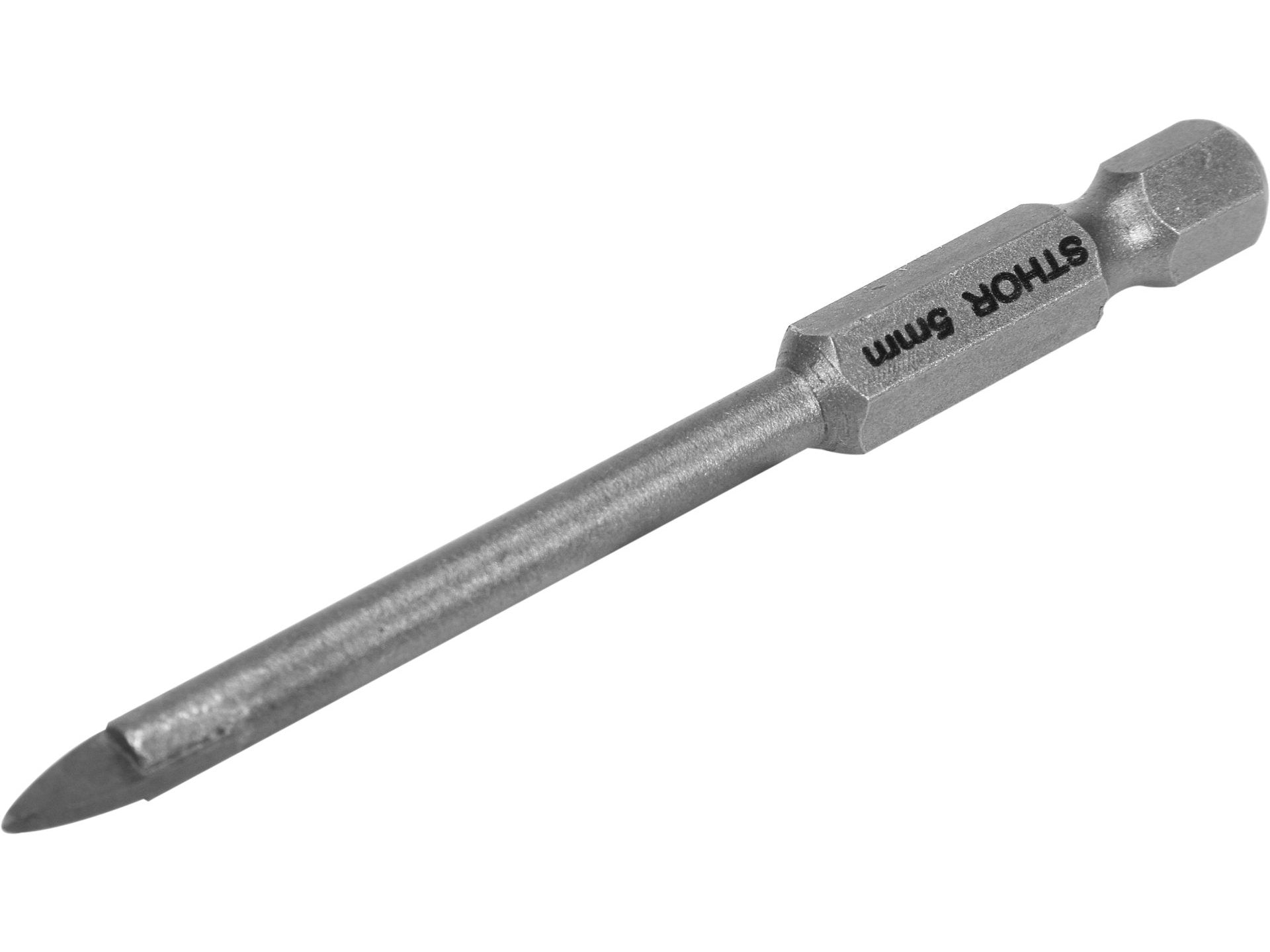

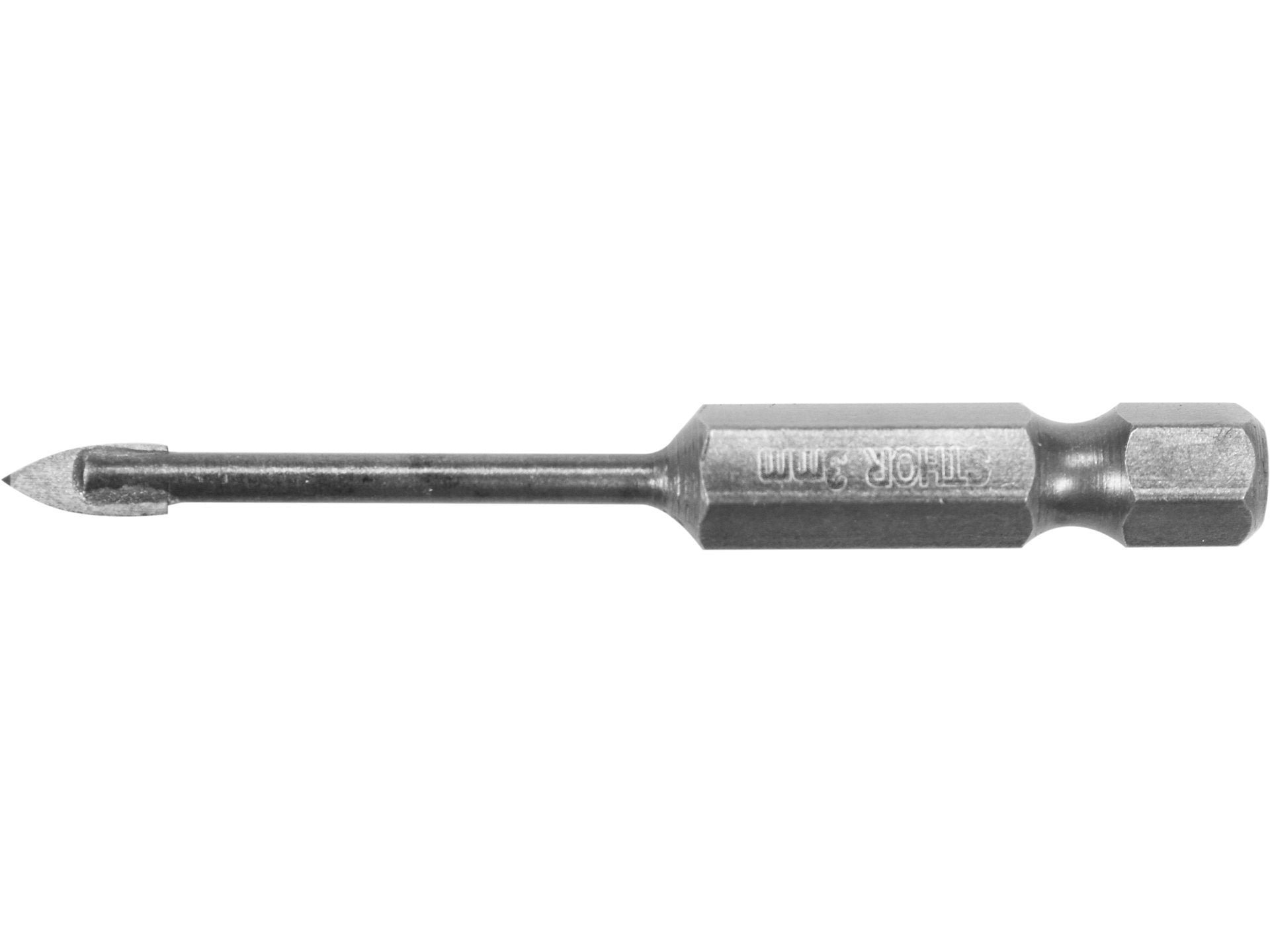

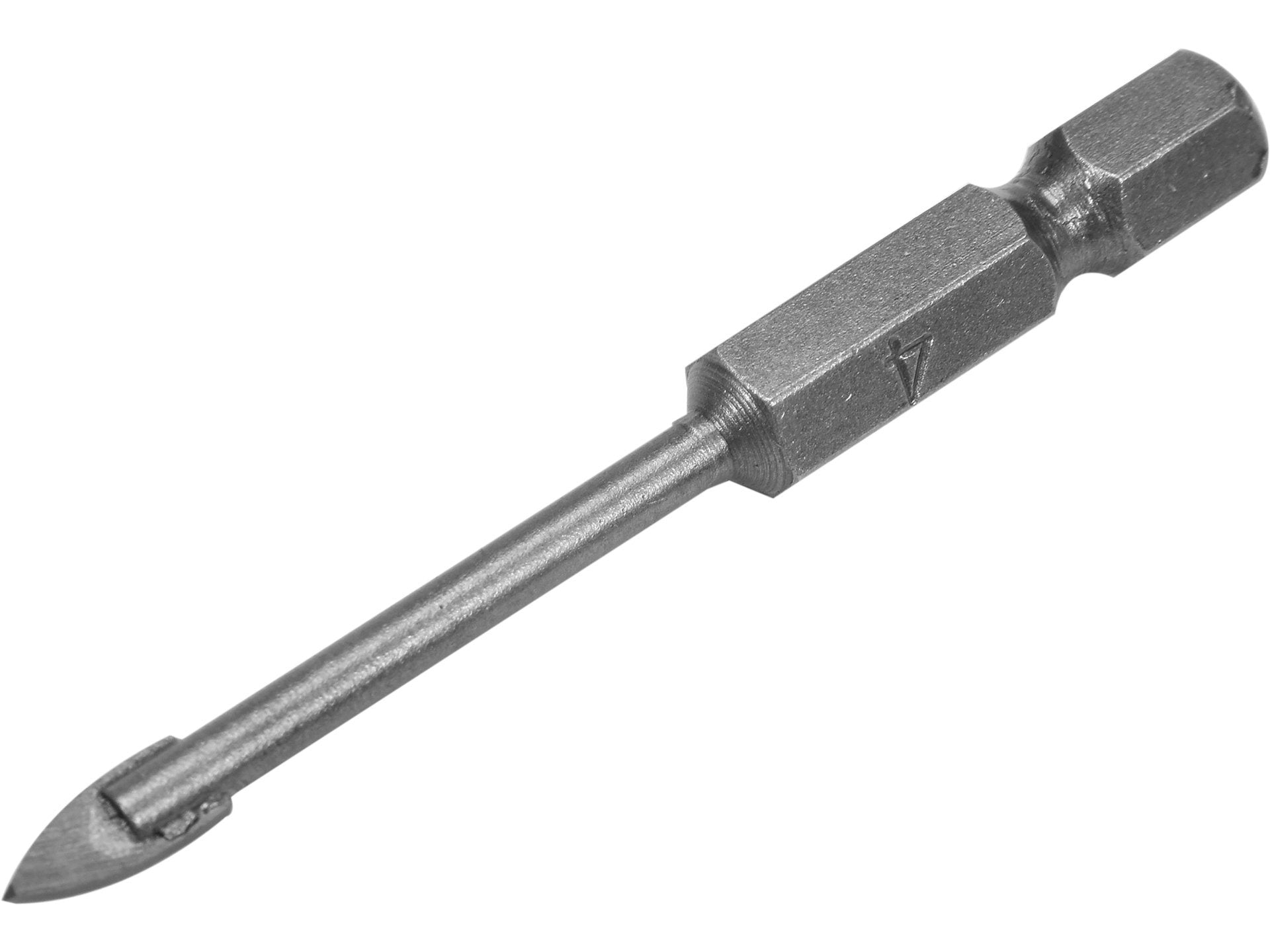

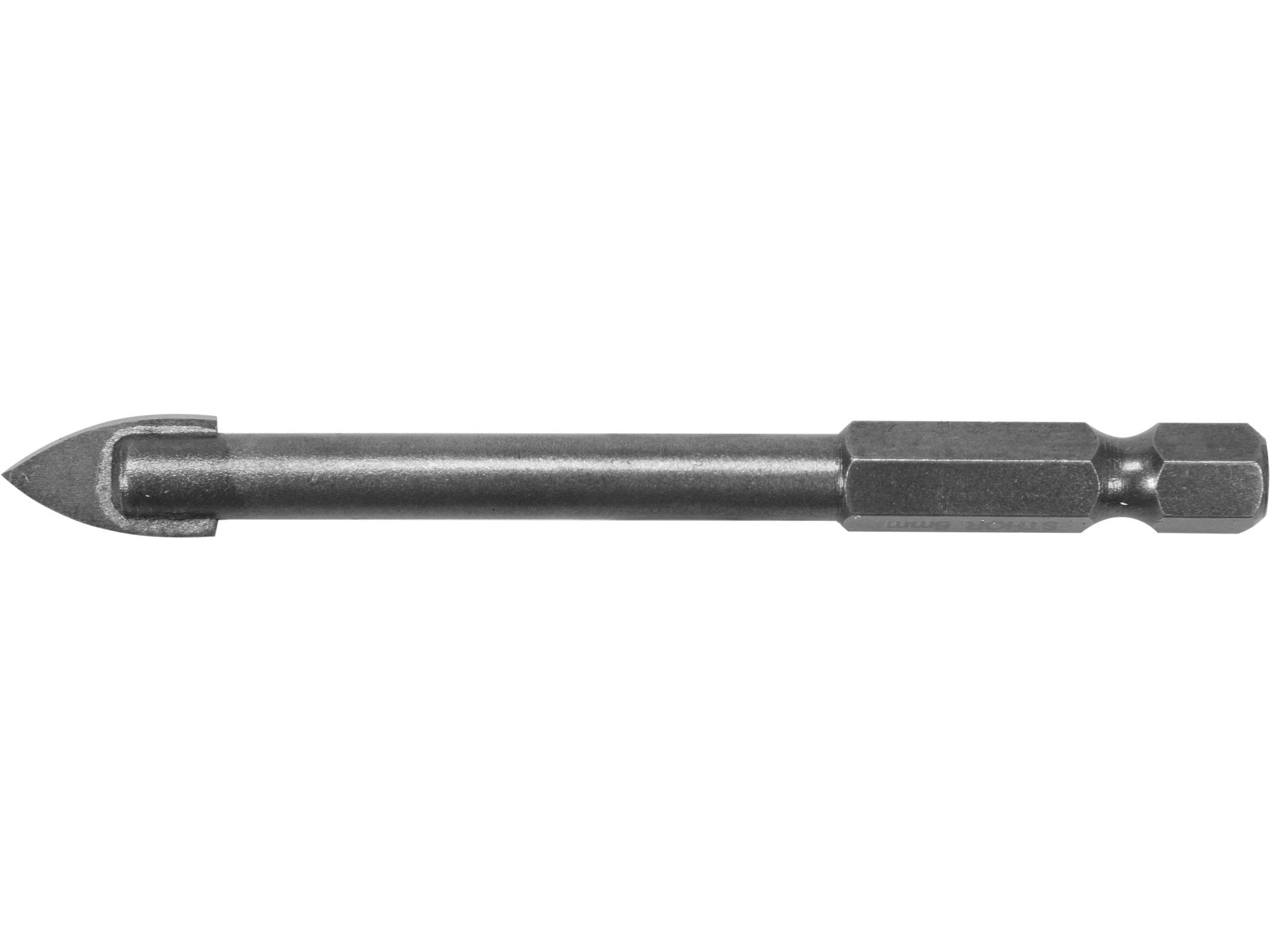

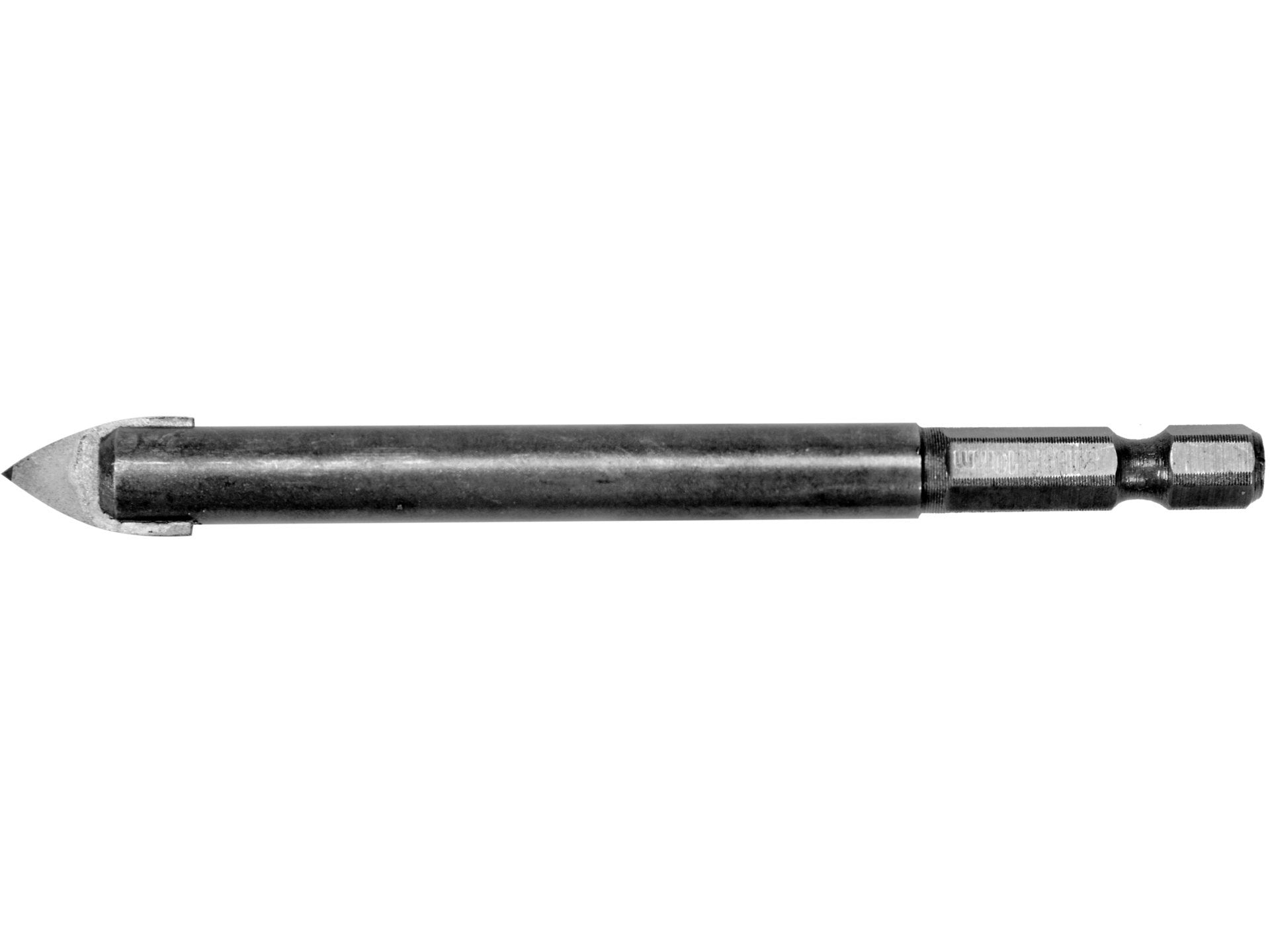

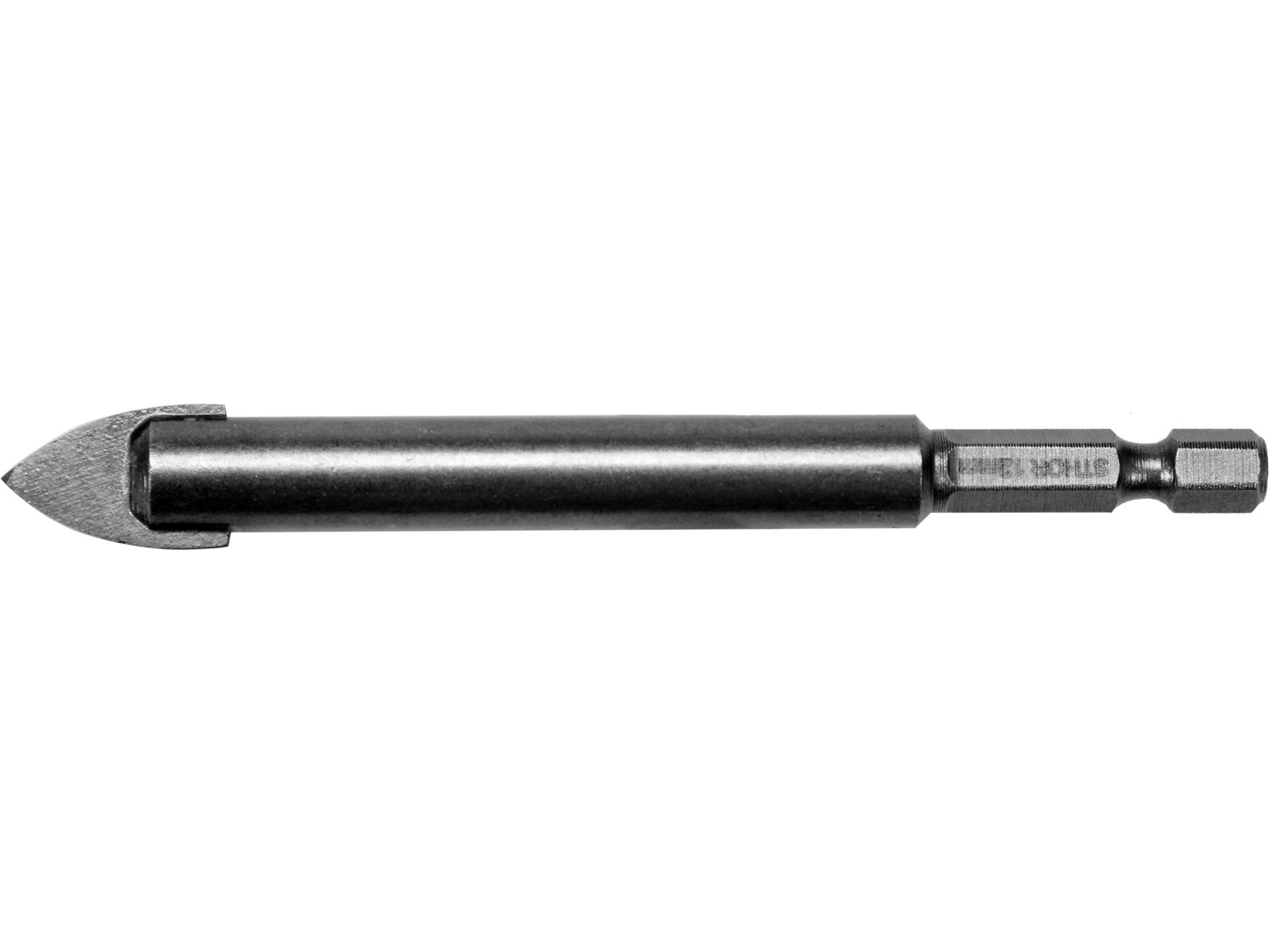

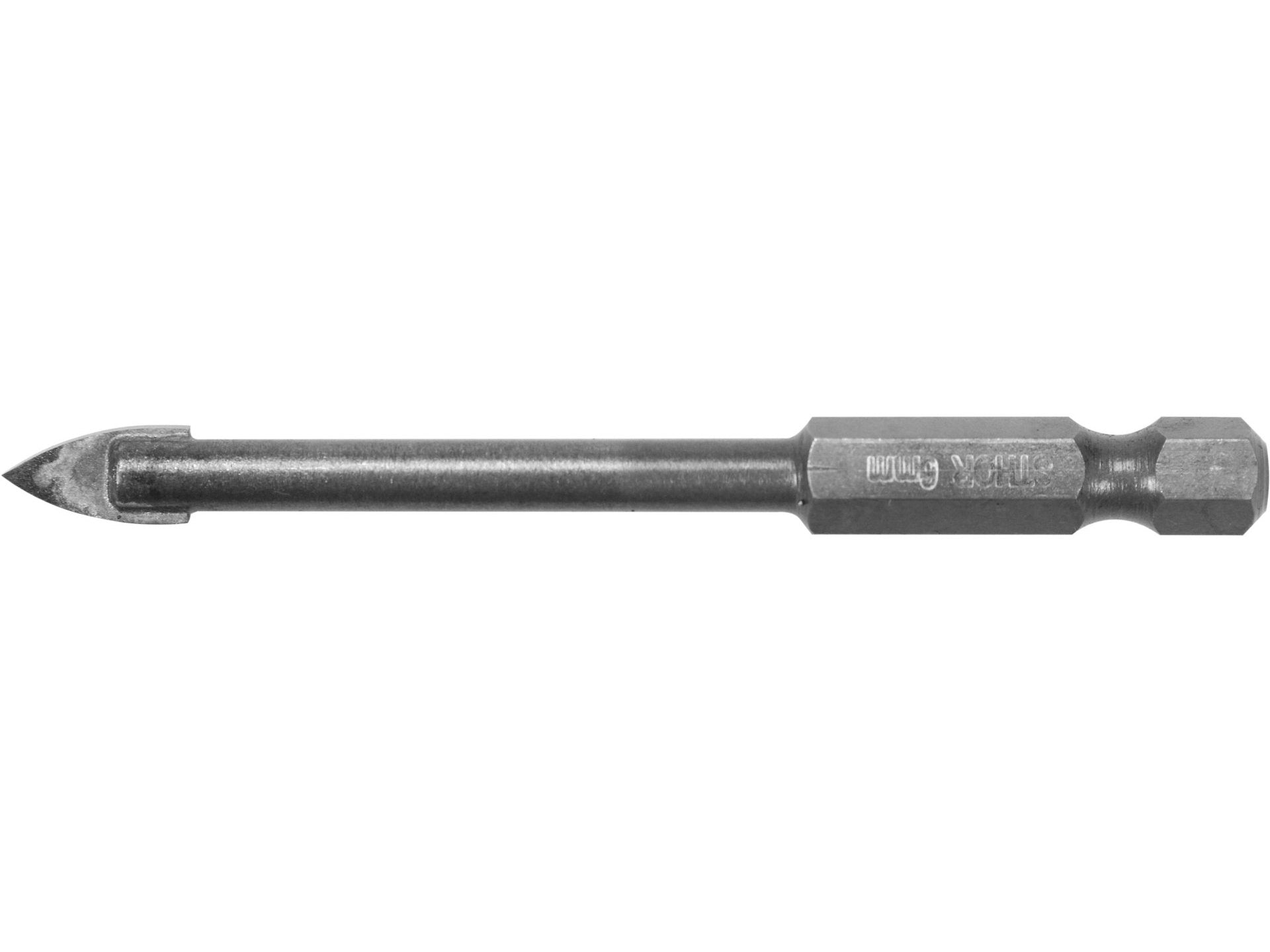

STHOR Glass and Tile Drill with Hex Shank 3-12mm

SKU: 100102-0001
(0)
366 Ft VAT included
Available to order
Ships Within 5–10 Working Days
Variants

Planning a larger order? Send us the required quantity and delivery details for a tailored quotation.

Product STHOR Glass and Tile Drill with Hex Shank 3-12mm — 3 mm

Got questions, ask an expert!

Email +36 70 719 8323

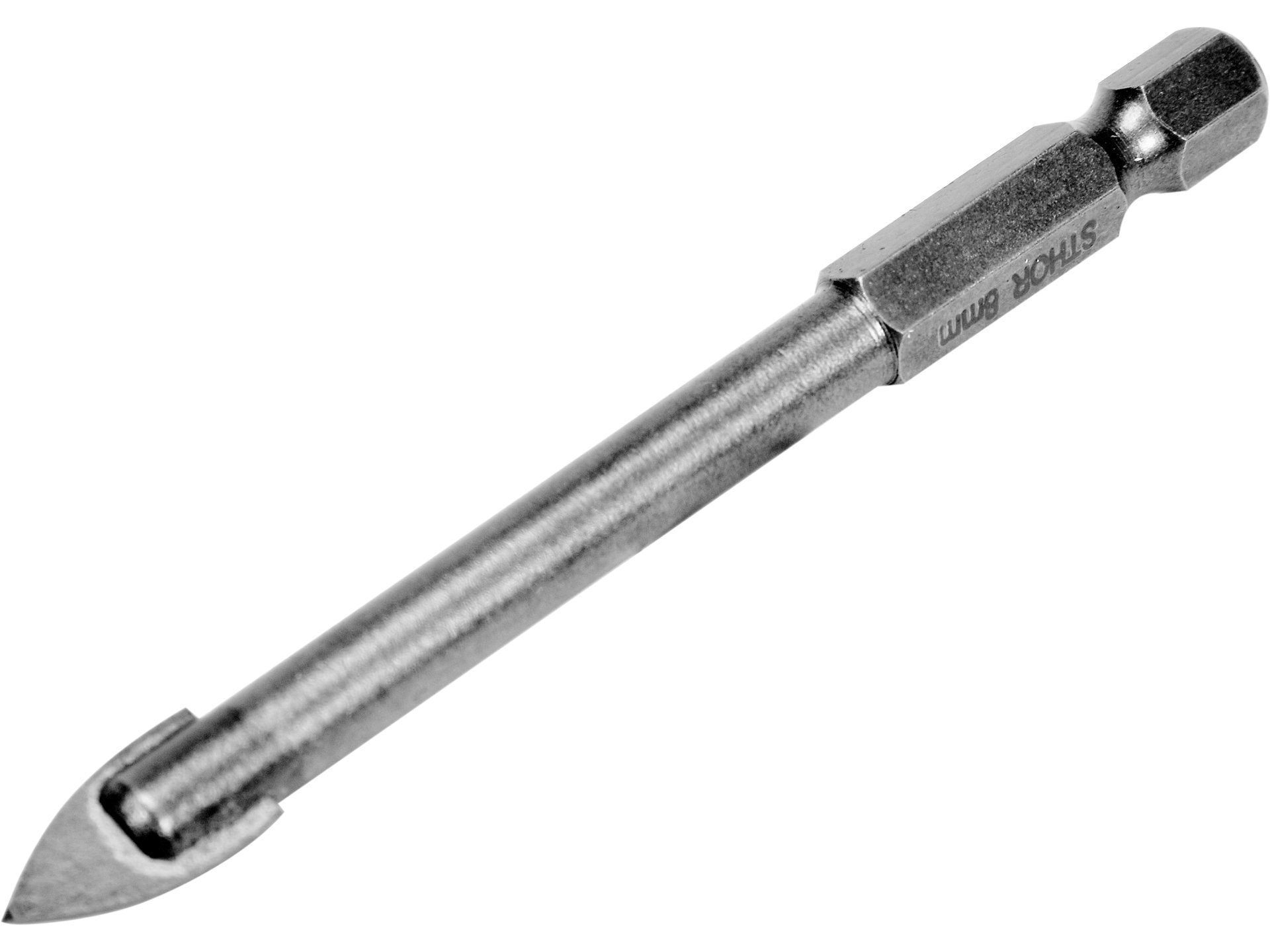

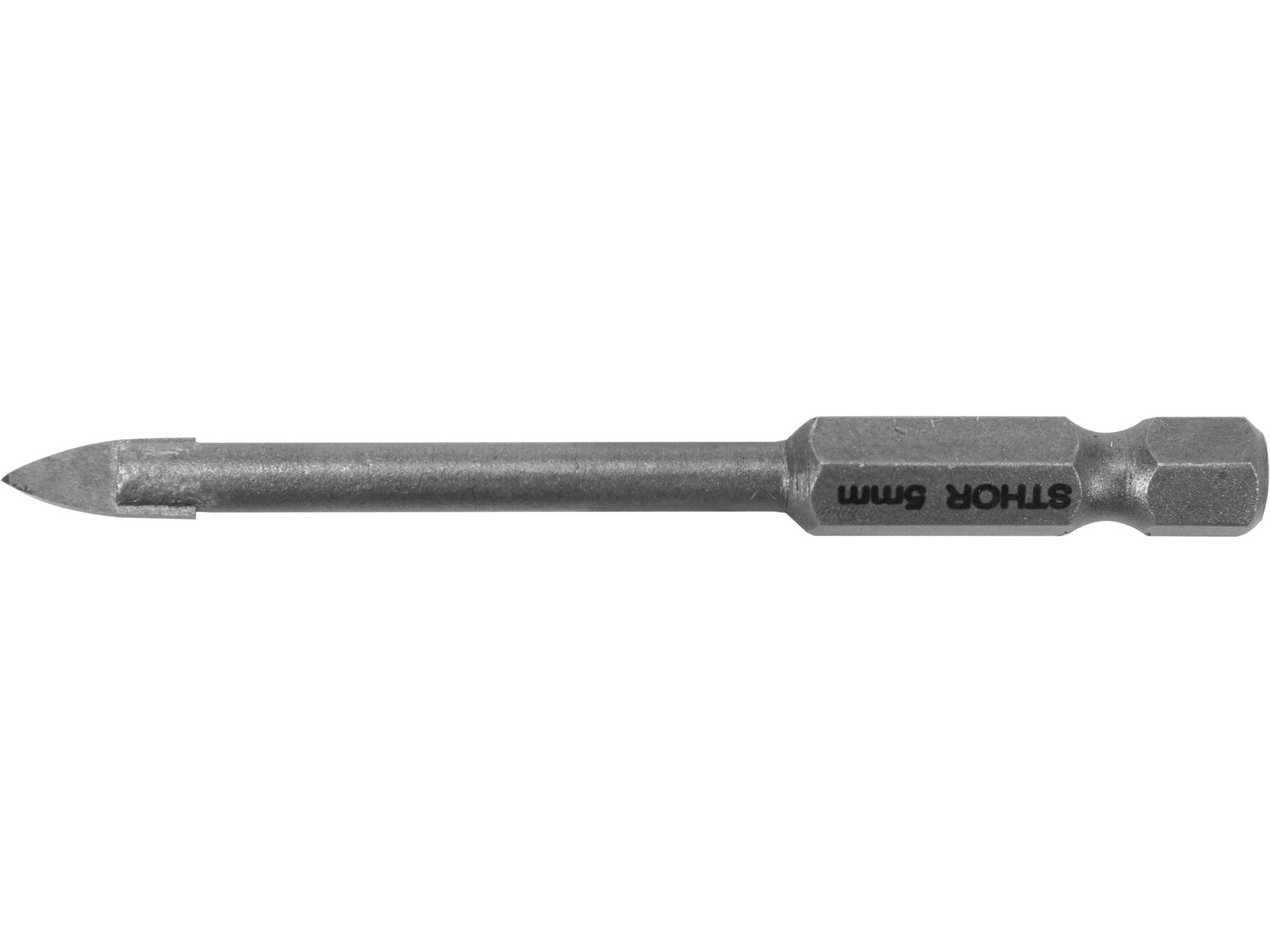

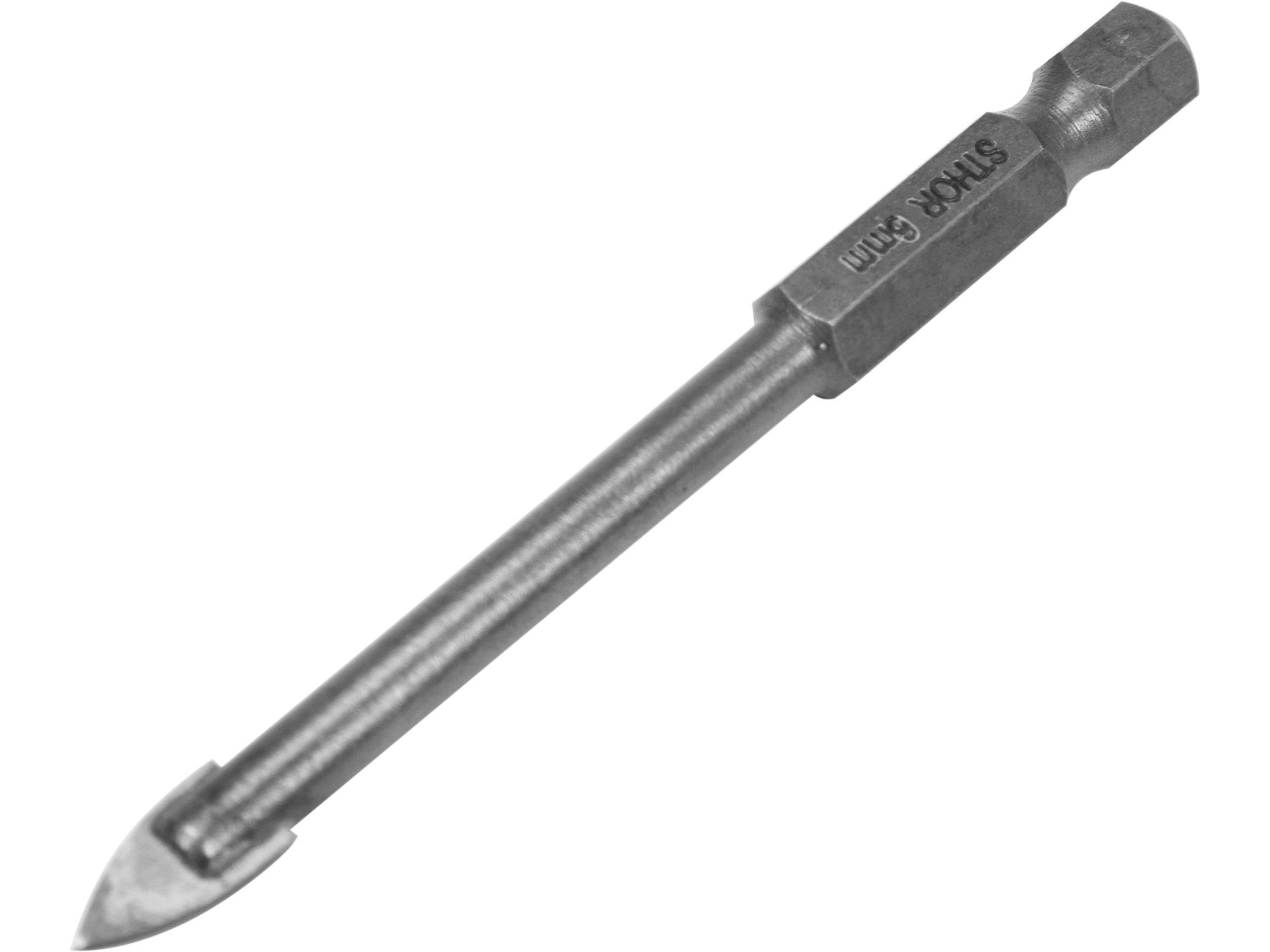

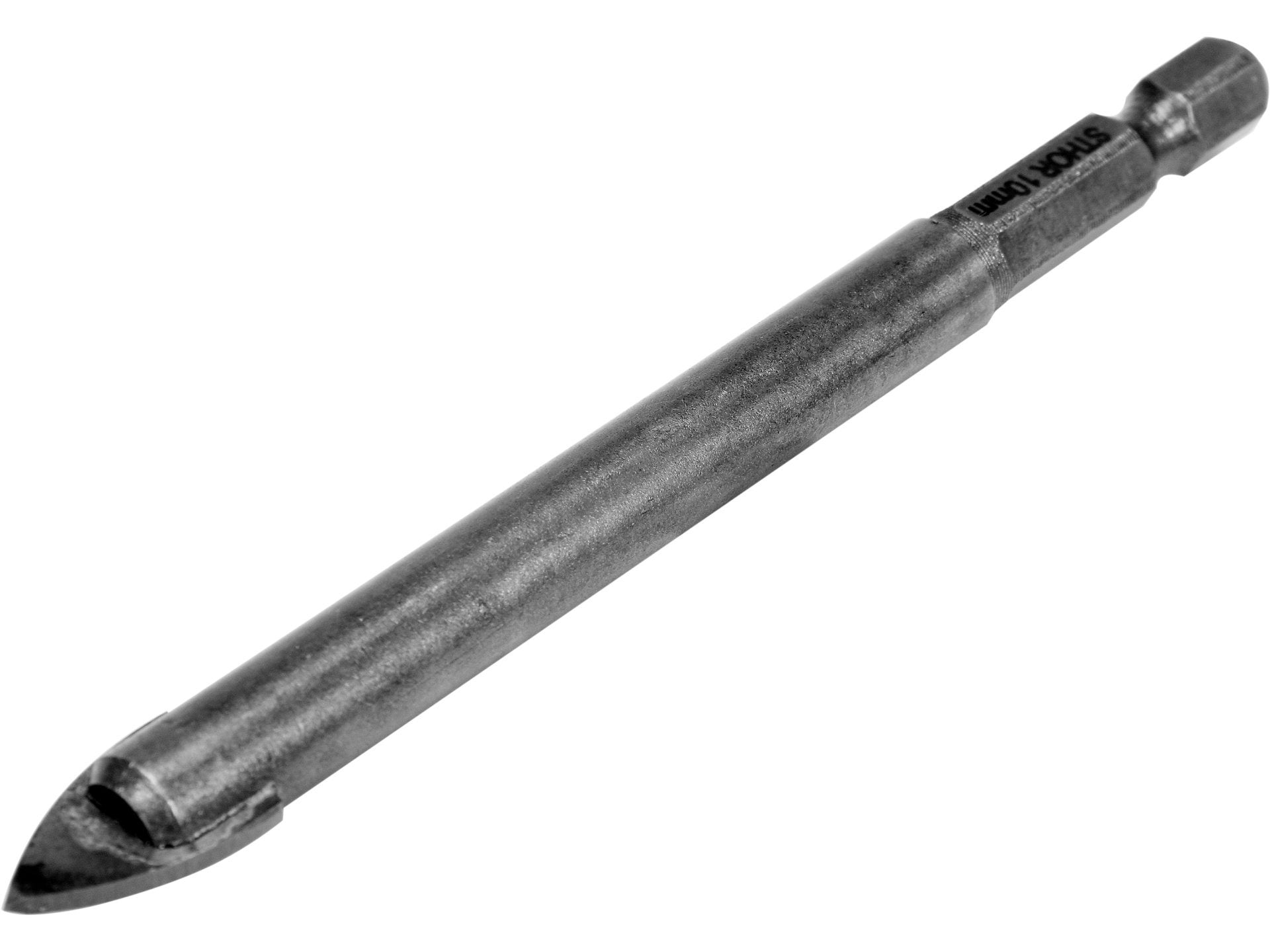

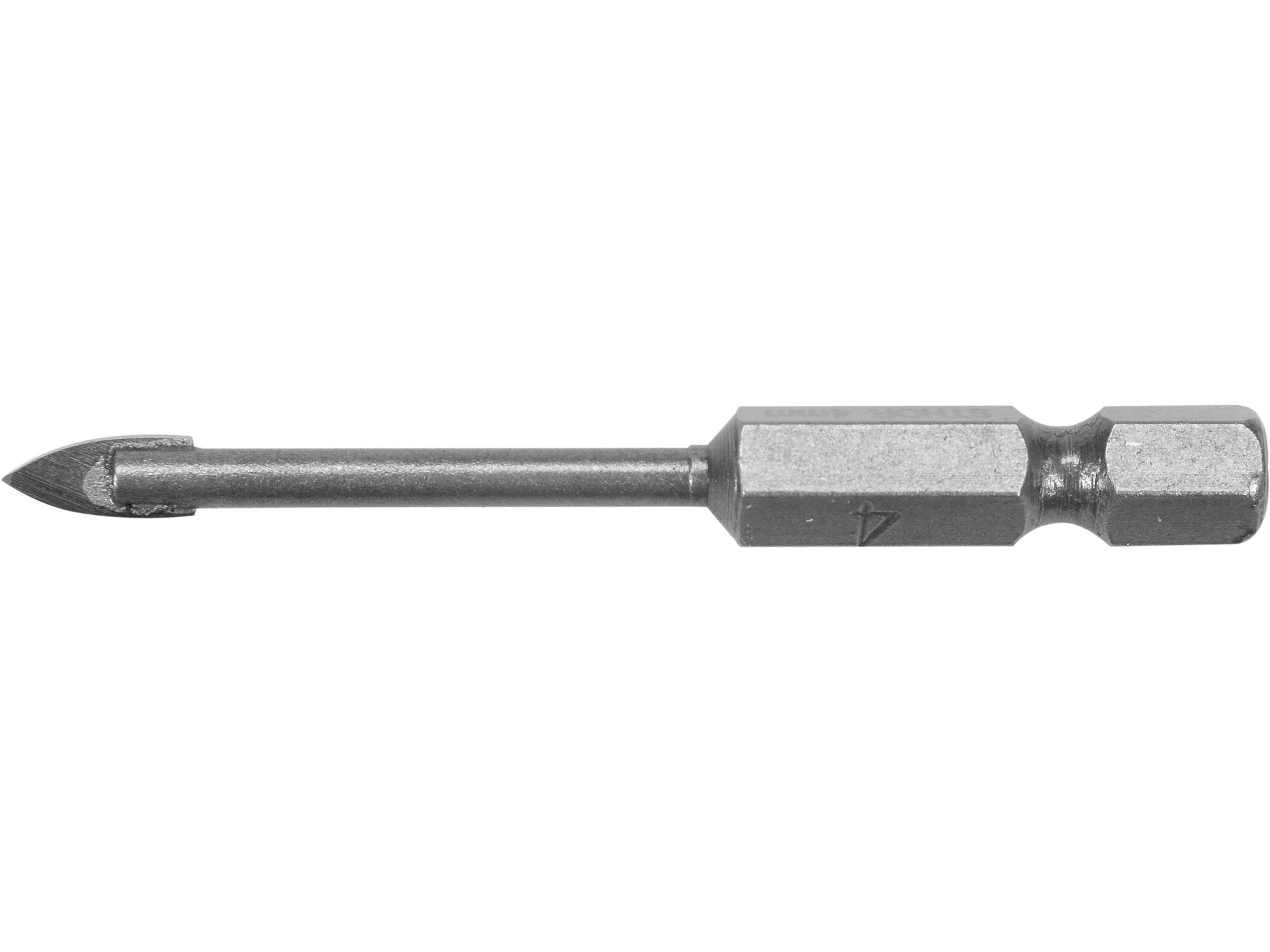

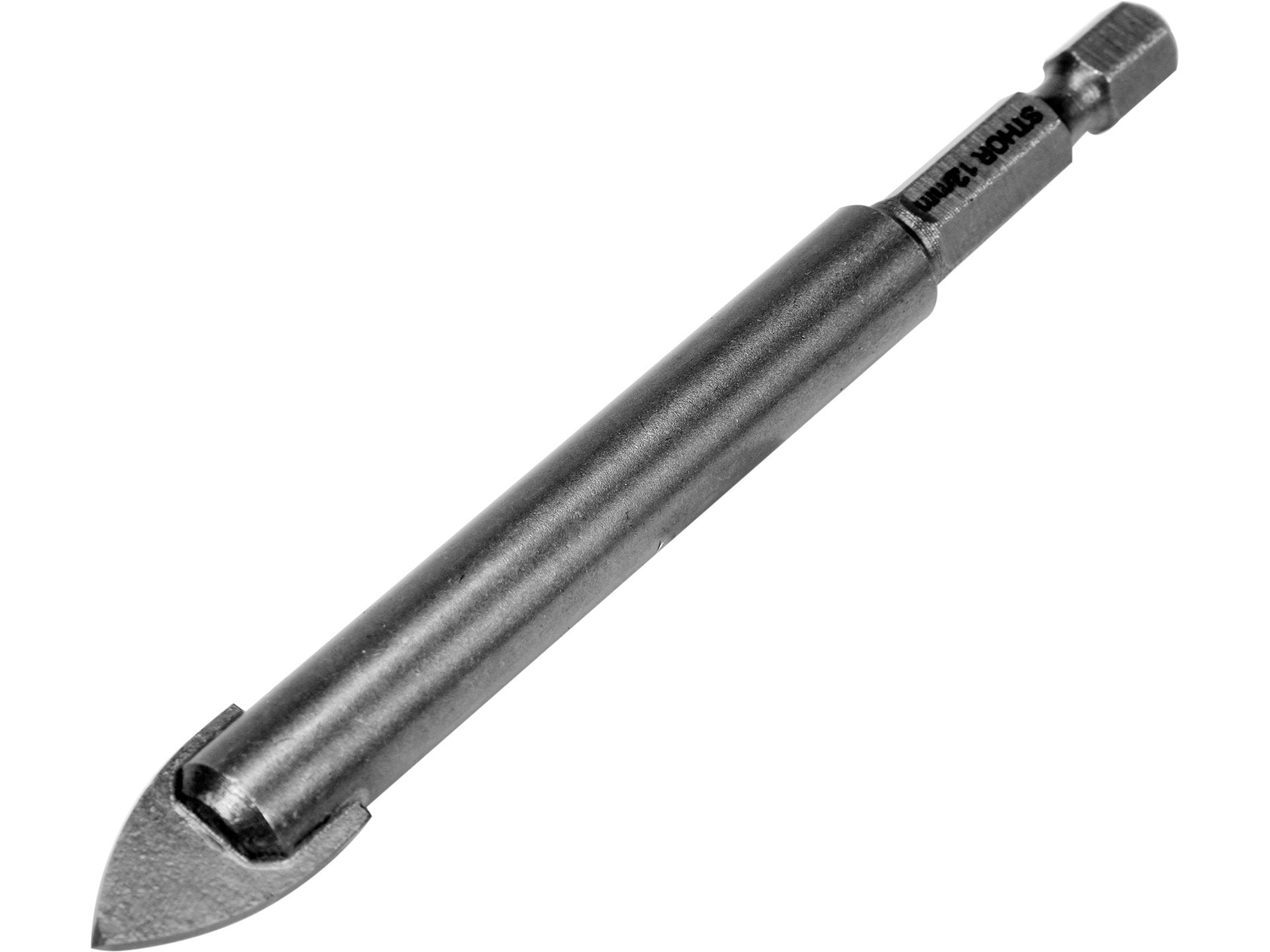

STHOR glass and tile drill bits are designed for clean, precise holes in glass, ceramic, and porcelain surfaces. Suitable for trade and workshop users, the hex shank design and YG6X cutting tip support reliable hard-surface drilling across 3 mm to 12 mm diameter options.

Key Features

  • Application: Designed for drilling glass, ceramics, and porcelain.
  • Hex Shank: Hexagonal toolholder configuration for compatible drill holders.
  • Cutting Material: YG6X cutting tip/blade material for hard surface drilling.
  • Hardness: Tip hardness specified at 90 HRC across all variants.
  • Construction: #45 carbon steel body with durable construction intended to resist damage and dulling.
  • Size Range: Available in 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, and 12 mm diameters.

Technical Specifications

Parameter Value
Brand STHOR
Category Drills for glass, ceramic tiles and sets
Product Type Glass and tile drill bit
Application Glass, ceramics
Suitable Materials Mentioned Glass, ceramics, porcelain
Material #45 carbon steel
Tip/Blade Material YG6X
Toolholder Type Hexagonal
Hardness 38 HRC
Tip Hardness 90 HRC
Maximum Rotations 1200 min⁻¹
Available Diameters 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm

Variant Comparison

SKU Code Diameter Length Package Weight Dimensions (L×W×H) Toolholder Size Included Contents
100102-0001 3 mm 60 mm 0.0100 kg 18.0×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 3 mm
100102-0004 4 mm 60 mm 0.0100 kg 18.0×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 4 mm
100102-0005 5 mm 70 mm 0.0200 kg 18.0×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 5 mm
100102-0006 6 mm 75 mm 0.0200 kg 18.0×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 6 mm
100102-0007 8 mm 80 mm 0.0200 kg 18.5×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 8 mm
100102-0002 10 mm 100 mm 0.0200 kg 18.0×5.0×1.0 cm 1/4" (6.3 mm) 1 drill bit, 10 mm
100102-0003 12 mm 100 mm 0.0300 kg 18.0×5.0×1.5 cm 1/4" (6.3 mm) 1 drill bit, 12 mm

Package Contents

  • 1 × glass and tile drill bit in the selected diameter variant
